Fanless Industrial Computers & Embedded Box PCs · ComputeOps™

A unified computing architecture for core industrial compute needs, made up of four series — standard / modular / AI computing / rackmount. Covering general control, edge inference and data-center deployment.

4 series Standard · Modular · AI · Rackmount
50+ models In production · long-term supply
-40~70°C Wide-temp operation · industrial reliability
157 TOPS Peak AI compute · Jetson Orin
Browse the Four Series Contact Us
  • Intel® Core™ 7-13 / Xeon®
  • NVIDIA® Jetson Orin / Nano
  • AMD Ryzen™ / EPYC™
  • Domestic · Phytium / Rockchip / Loongson
FlexCore modular box PC fanless embedded computer FlexCore™ Modular
Jetson edge AI Jetson Edge AI
fanless industrial PC Fanless Industrial PC
rackmount industrial PC 1U / 2U / 4U Rackmount
PLATFORM PILLARS

Four Capability Pillars for Full-scenario Industrial Computing

Through standardized design and modular reuse, we build a scalable, collaborative, field-ready industrial computing foundation.

Compute Performance

Full coverage of Intel® Core™ 7th–13th Gen, Xeon® workstation-class, NVIDIA Jetson, AMD Ryzen™ and ARM domestic platforms.

I/O Expansion

PCIe / M.2 / MXM / i-Connect modular expansion; any combination of multi-COM, isolated DIO, CAN and PoE.

Modular Reuse

FlexCore™ three-board architecture: i-Core + i-Function + i-Connect — reuse to cut cost and boost efficiency.

Industrial-grade Stability

Wide temperature -40 to +70°C, 9-36V wide-range input, 5Grms vibration resistance; MTBF ≥ 60,000 hours for 7×24 field operation.

DEFINITION · WHAT IS COMPUTEOPS

What Is ComputeOps™?

An Industrial Computing Platform is high-reliability computing hardware designed for 7×24 continuous operation in the field. Unlike consumer or commercial PCs, an industrial computing platform must meet three core characteristics at once:

01

Industrial-grade Reliability

Fanless cooling + MTBF 60,000h+ + wide-temperature operation (-20°C to 60°C), dust- and vibration-resistant, stable long-term in non-air-conditioned industrial environments.

02

Multi-protocol Industrial I/O

Standard COM / CAN / GPIO / isolated I/O, connecting natively to PLCs, sensors and industrial buses without a third-party gateway.

03

Long-cycle Supply Commitment

3–5 years of same-model supply + 12-month advance EOL notice, meeting the long-term maintenance needs of industrial projects.

FOUR PRODUCT SERIES

Four Series — From General Control to Edge AI in One Stop

standard industrial PC series STANDARD
Standard Selection

Standard Industrial PC Series

Standard-spec design — order straight from the datasheet

View Details →
modular industrial PC series FlexCore MODULAR
FlexCore™

Modular Industrial PC Series

Modular architecture for flexible compute and I/O configuration

View Details →
AI computing IPC series AI EDGE
NVIDIA Jetson

AI Computing IPC Series

Industrial compute platform for edge computing and AI inference

View Details →
rackmount industrial PC series RACKMOUNT
1U / 2U / 4U

Rackmount Industrial PC Series

High-performance industrial computing platform for centralized deployment

View Details →

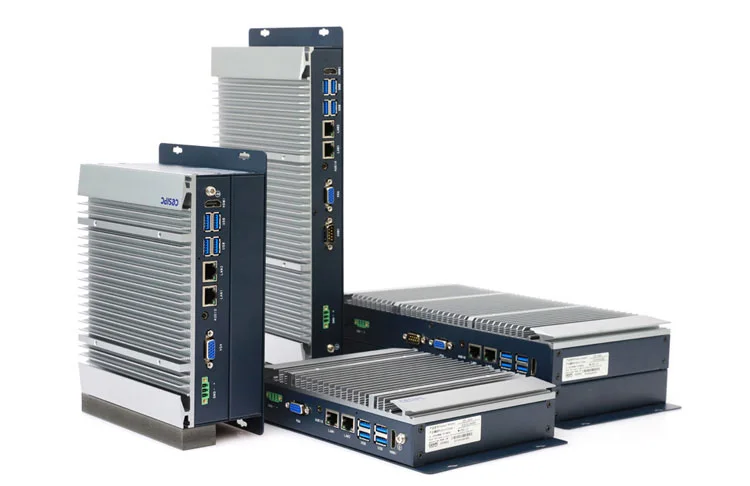

01

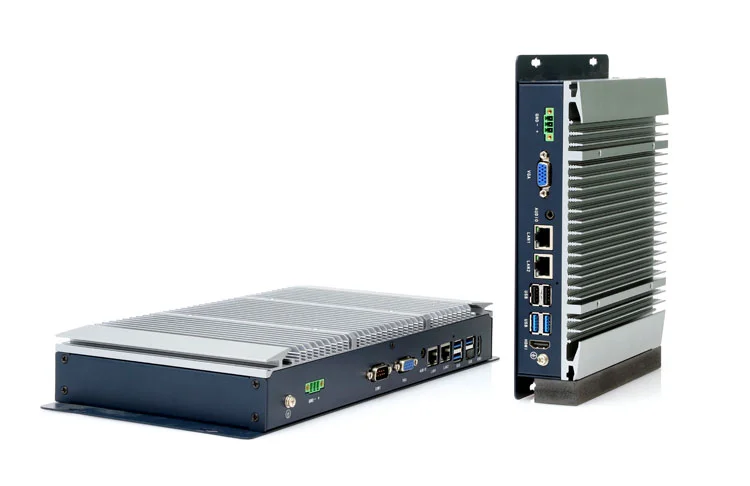

STANDARD FANLESS PC

Standard Industrial PC Series

Fanless compact chassis · 9-36V wide-voltage · industrial RS-232/485/422 · wide-temperature operation

standard fanless industrial PC EPC-10 Compact Series · EPC-30 Multi-COM Series

A standardized design spanning the Intel® Atom®, Celeron® and Core™ i3/i5/i7 platforms. With fanless cooling and a one-piece aluminum body, you can select and order straight from the datasheet — a proven, rock-solid solution for equipment control, machine vision, rail transit, smart warehousing and similar applications.

  • Fanless & compact: all-aluminum finned cooling, zero moving parts, IP40 dust protection
  • Wide voltage & temperature: 9-36V DC wide-voltage input, stable across -20 to +60℃
  • Complete industrial I/O: 4–6× COM, 4–8× USB 3.0, 2× GbE, isolated DIO
  • Flexible expansion: M.2 / Mini-PCIe / mSATA expansion slots

EPC-10 Compact Series · 229 × 160 × 47 mm

EPC-102AIntel® 12th Gen Core™ i3/i5/i7 EPC-109AIntel® 10th Gen Core™ i3/i5/i7 EPC-107AIntel® Celeron® J6412 low-power EPC-106AIntel® Celeron® J1900 economy

EPC-30 Multi-COM Series · 337 × 160 × 47.5 mm · 6× COM

EPC-302AIntel® 12th Gen Core™ i3/i5/i7 EPC-309AIntel® 10th Gen Core™ i3/i5/i7 EPC-307AIntel® Celeron® J6412 low-power EPC-306AIntel® Celeron® J1900 economy

Applications

Equipment control Machine vision Rail transit Smart warehousing Data acquisition
Get a Quote / Datasheet Download Datasheet
02

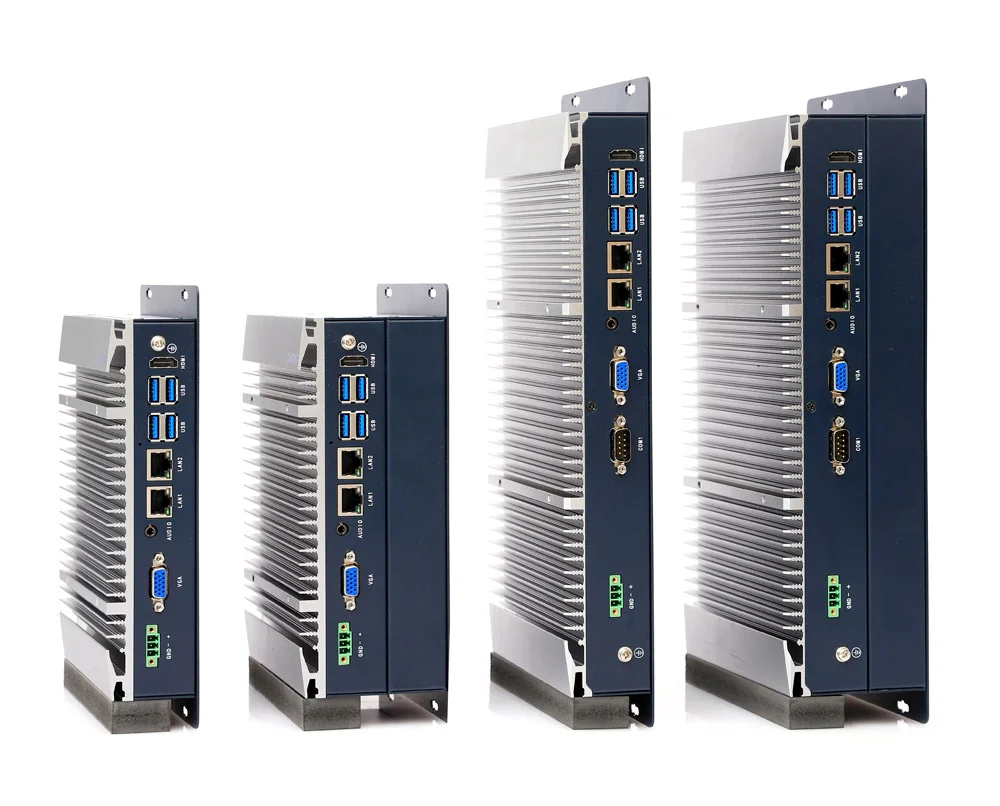

MODULAR · FLEXCORE™

Modular Industrial PC Series

FlexCore™ three-board architecture · i-Core + i-Function + i-Connect · any combination

FlexCore modular industrial PC FlexCore™ Modular Platform

Built on the FlexCore™ modular mainboard architecture, which fully decouples compute, expansion and I/O. Like building blocks, you can freely combine i-Core (compute), i-Function (expansion) and i-Connect (I/O) to match each project — a single model covers multiple configuration versions and cuts development time by more than 60%.

  • Swappable boards: i-Core / i-Function / i-Connect are independent and hot-upgradeable
  • Unified structure: unified interfaces, power supply and chassis airflow
  • Smart thermal control: adaptive airflow + multi-point temperature sensing with closed-loop control
  • Rich expansion: PCIe Gen4 / MXM / M.2 / i-Connect module slots

EPC Modular Sub-series · FlexCore™ three boards + smart thermal control

EPC-102BIntel® 12th Gen Core™ high-performance, multi-LAN EPC-102OIntel® Celeron® 7305 EDID customization EPC-202BIntel® 12th Gen Core™ multi-COM workhorse EPC-207BIntel® Celeron® J6412 multi-COM low-power EPC-302BIntel® 12th Gen Core™ high-performance, multi-LAN EPC-306PIntel® Celeron® J1900 Phoenix terminal multi-COM EPC-309EIntel® 10th Gen Core™ multi-LAN, multi-COM

UPC Universal Box Sub-series · universal chassis + multi-scenario customization (4G / redundant power / 14× USB / opto-isolated GPIO)

UPC-302DIntel® 12th Gen Core™ multi-COM UPC-302FIntel® 10th Gen Core™ · 14× USB UPC-309CIntel® 10th Gen Core™ · built-in 4G UPC-309RIntel® 10th Gen Core™ · redundant power UPC-209BIntel® 10th Gen Core™ · opto-isolated GPIO UPC-206FIntel® Celeron® J1900 · built-in 4G UPC-206EIntel® Celeron® J1900 economy UPC-108HIntel® 7th Gen Core™ economy option

Applications

AGV / AMR control AOI visual inspection Robot main controller Edge AI inference Medical imaging
Explore FlexCore™ Technology Inquire About Custom Configuration
03
NVIDIA JETSON · AI EDGE COMPUTING

AI Computing IPC Series

Engineered around NVIDIA® Jetson modules · empowering modern industry with AI+

EA-N500A edge AI computer - front main view - CESIPC EA-N500 157 TOPS
JETSON ORIN NX 16GB / 8GB

EA-N500 Series

A flagship edge AI computing platform built on the NVIDIA Jetson Orin™ NX module, with 4× PoE Gigabit ports plus rich industrial I/O — for industrial visual inspection, robot control and edge large-model inference.

  • CPU8-core Arm® Cortex®-A78AE @ 2.0 GHz
  • GPUNVIDIA Ampere 1024 CUDA® + 32 Tensor Core
  • AI computeup to 157 TOPS
  • I/O4× PoE Gigabit / USB 3.0 / HDMI / COM / CAN / GPIO
  • Power12-36V DC wide-voltage input
View Details Get a Quote / Datasheet
EA-N200A edge AI computer - front main view - CESIPC EA-N200 67 TOPS
JETSON ORIN NANO SUPER / 8GB / 4GB

EA-N200 Series

A mid-range industrial edge AI computer that flexibly hosts the Jetson Orin™ Nano in Super / 8GB / 4GB compute tiers, with 4× integrated PoE Gigabit — built for machine vision and real-time decision-making.

  • CPU6-core Arm® Cortex®-A78AE
  • GPUNVIDIA Ampere + Tensor Core
  • AI computeup to 67 TOPS
  • I/O4× PoE Gigabit / USB 3.0 / HDMI / COM / CAN / GPIO
  • Power12-36V DC wide-voltage input
View Details Get a Quote / Datasheet
EA-N100A edge AI computer - front main view - CESIPC EA-N100 472 GFLOPS
JETSON NANO 4GB

EA-N100 Series

An entry-level, compact industrial edge AI computer built on the Jetson Nano™ platform, balancing AI inference performance with low power — a cost-effective choice for deploying lightweight AI applications.

  • CPU4-core Arm® Cortex®-A57 MPCore @ 1.43 GHz
  • GPU128-core NVIDIA Maxwell™
  • AI compute472 GFLOPS
  • I/OHDMI / 2× USB / 1× LAN / GPIO
  • Power9-24V DC input
View Details Get a Quote / Datasheet

AI Series Applications

Industrial machine vision AGV / AMR autonomous navigation AOI defect detection Humanoid robot control Edge large-model inference Smart agriculture & farming
04

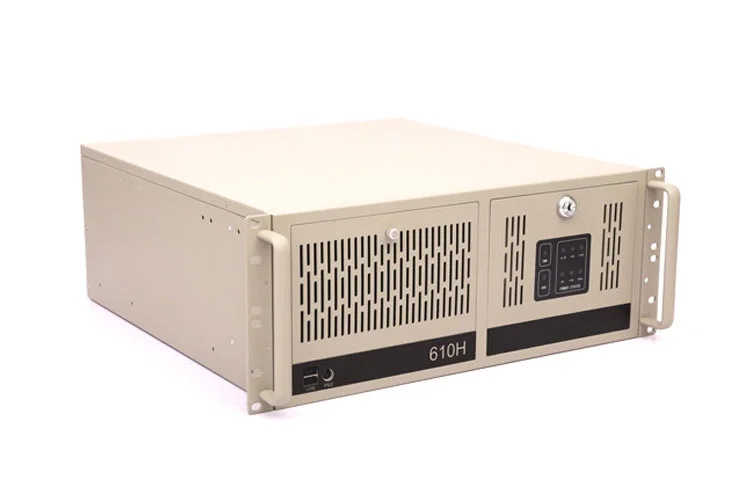

RACKMOUNT · 1U / 2U / 4U

Rackmount Industrial PC Series

Standard 19" rack form factor · Xeon® workstation platform · data centers / control rooms / test cabinets

rackmount industrial PC 1U 2U 4U EPC-R1U · R2U · R4U

Compliant with the EIA-310 standard 19" rack form factor in 1U/2U/4U heights, spanning everything from edge servers to industrial data centers. Built on a Xeon® multi-core, multi-channel memory platform with hot-swap power supplies and drives, RAID 0/1/5/10 and IPMI remote management for reliable 7×24 mission-critical operation.

  • Multi-platform support: Intel® Xeon® / Core™ i9, AMD EPYC™
  • Hot-swap redundancy: 1+1 redundant power, hot-swap drive backplane
  • Remote management: IPMI 2.0 / KVM over IP out-of-band management
  • High expandability: up to 8× full-length PCIe Gen4 slots

Representative Sub-series · 4U rackmount / wall-mount / Intel & Hygon domestic

IPC-610-I Series4U rackmount · 6th-9th Gen Core IPC-W10-I SeriesWall-mount · 6th-9th Gen Core IPC-W10-HG SeriesWall-mount · Hygon HG-3350 domestic

Applications

Domestic IT localization Server / control rooms Monitoring centers Industrial test cabinets Control-cabinet wall mounting Video stream analytics
Get a Quote / Datasheet Download Datasheet
STANDARDS & CERTIFICATIONS

Industry Standards & Certifications

ComputeOps™ rigorously follows international industrial, protection, safety and reliability standards — each one mapped to a hard requirement on the industrial floor.

CLASS A

EMC

Industrial-grade electromagnetic compatibility — compliant with EN 55032 / EN 61000 and other industrial EMC immunity requirements, running stably amid heavy interference from VFDs, motors and the like.

WIDE TEMP

-20℃ ~ 60℃

Industrial wide-temperature operation — deployable directly in outdoor cabinets, beside production lines and in non-air-conditioned rooms, with no extra climate control needed.

MTBF 60K+h

High-reliability MTBF

All-industrial-grade key components + rigorous burn-in testing, MTBF 60,000h+, for ≥ 6-8 years of failure-free operation on average.

LONG TERM

3-5 Year Same-model Supply

12-month advance EOL notice + compatible replacement plan — meeting the long-cycle maintenance needs of power grid, rail transit, CNC and similar projects.

ISO 9001

Quality Management System

Full ISO 9001:2015 quality management certification, covering design, production and after-sales across the entire process.

CE

EU CE Safety

Compliant with the EU Low Voltage Directive (LVD) and EMC Directive — compliant for projects exported to Europe.

FCC

US FCC EMC

Certified to FCC (Federal Communications Commission) electromagnetic compatibility — essential for export to the North American market.

CCC / RoHS

China Mandatory + Eco

China CCC compulsory certification + EU RoHS environmental restrictions — suitable for both domestic and overseas projects.

APPLICATION SCENARIOS

Typical Deployment Scenarios & Model Selection

Drawing on real project experience, recommended solutions for 4 high-frequency scenarios — challenges, solutions and recommended models at a glance.

smart manufacturing line control
Scenario 01

Smart Manufacturing Line Control

Challenge: fast line takt + coexisting multi-protocol equipment + real-time data upload to MES. Consumer PCs cannot withstand 24h continuous operation and shop-floor dust.

Solution: use a ComputeOps standard EPC (such as the EPC-102A series) + multiple COM ports + PoE LAN to interface with PLCs and MES, with industrial-grade EMC immunity.

Recommended models: EPC-102A · EPC-202A · EPC-10 Series

CNC machine tools / motion control
Scenario 02

CNC Machine Tools / Motion Control

Challenge: CNC systems require PCI / PCIe motion control cards + real-time control + long service life (machine-tool projects run 5-10 years) + industrial EMC immunity against VFD interference.

Solution: use ComputeOps modular / rackmount models (EPC-302A / IPC series) with PCI / PCIe card compatibility, an industrial-grade BIOS and long-cycle supply.

Recommended models: EPC-302A · IPC-W10-I Series · EPC-306A

unattended energy and power site
Scenario 03

Unattended Energy & Power Sites

Challenge: outdoor cabinet rooms + wide temperature + EMC immunity + remote O&M. Substations, pumped-storage plants and wind farms often have no air conditioning, demanding extremely high wide-temperature stability.

Solution: use a rugged EPC (IPC-W10-HG Hygon domestic / EPC-30 extended multi-COM) + IP65 protection + 4G/5G + watchdog self-recovery.

Recommended models: IPC-W10-HG Domestic · EPC-30 Series

edge AI visual inference
Scenario 04

Edge AI Visual Inference

Challenge: industrial vision compute + GPU cooling + real-time inference + multi-camera input. Machine vision, defect detection and smart sorting demand 50-200 TOPS of edge compute.

Solution: use a ComputeOps AI computing IPC (EA-N100A / EA-N200A / EA-N500A, built on NVIDIA Jetson Nano/Orin), with multiple PoE + USB 3.0 camera interfaces.

Recommended models: EA-N100A · EA-N200A · EA-N500A

FAQ

Frequently Asked Questions

Common questions about ComputeOps™, industrial computing selection and field deployment.

1. How is an industrial PC different from a regular PC?

Industrial PCs differ completely in component selection, thermal design, I/O configuration and supply cycle. Industrial-grade components withstand a wider temperature range and last longer; fanless cooling avoids dust-related failures; multiple COM/CAN/GPIO ports connect directly to PLCs; and 3-5 year supply of the same model matches project lifecycles. Consumer PCs are built for office environments and may be discontinued within 6-12 months, making them unsuitable for industrial projects.

2. How does a fanless industrial PC dissipate heat?

It relies mainly on whole-body heat dissipation through the aluminum chassis — the CPU transfers heat to the chassis via thermal grease or liquid metal, turning the entire surface into a heatsink. Combined with the i-Core board's temperature sensing and frequency-throttling strategy, it runs stably in -20℃ to 60℃ environments. The benefits are no fan noise, no dust failures and a long service life.

3. Box PC or rackmount industrial PC — how to choose?

A box PC (compact industrial PC) suits deployment beside line equipment, embedded in enclosures or in space-constrained settings, with DIN-rail or VESA wall mounting. A rackmount industrial PC (1U/2U/4U) suits centralized deployment in server rooms or control cabinets, with front I/O for easy maintenance. Choose rackmount for high-density large-scale deployment and box PCs for distributed field sites.

4. How long is the industrial supply commitment?

The CESIPC ComputeOps platform guarantees 3-5 years of supply for the same model. Customers with delivered projects receive a 12-month advance EOL notice plus a compatible replacement plan. This is critical for industrial projects — power grid, rail transit and CNC projects typically have 5-10 year maintenance cycles and cannot replace hardware frequently.

5. How should MTBF figures be interpreted?

MTBF (Mean Time Between Failures) = total operating time / number of failures. CESIPC ComputeOps products commonly reach 60,000h+. MTBF is not a warranty period but a statistical reliability indicator. Actual lifespan depends on field temperature, dust and vibration — a box PC with industrial-grade components and proper thermal design generally runs stably for 8-10 years.

6. How to choose between x86 / ARM / domestic platforms?

x86 (Intel / AMD) is mature and universal with the broadest software ecosystem; ARM (Jetson) suits edge AI and low power; domestic platforms (Phytium / Hygon / Rockchip) meet local-IT compliance requirements. ComputeOps supports them all — choose by software compatibility, compute needs and compliance.

7. For edge AI, choose Jetson or x86 + GPU card?

For compute needs under 50 TOPS (lightweight inference / edge gateway / first-pass industrial vision) → the Jetson Nano / Orin NX / AGX series, highly integrated, low power and compact. For demands over 100 TOPS (multi-model concurrency / training / HD stream analysis) → x86 plus a discrete GPU card (such as the NVIDIA RTX series). It depends on model complexity and inference real-time requirements.

8. Can it run reliably outdoors at -20℃?

Rugged ComputeOps models (such as the IPC-W10-HG / EPC-30 series) support a -20℃ to 60℃ wide temperature range + IP65 dust/water protection + vibration testing, suitable for outdoor cabinets, substations, vehicles and beside outdoor equipment. For extreme environments (-40℃ or 70℃+), a custom wide-temperature upgrade is required — please consult our sales engineers.

Can't find the right model? Tell us your project requirements

Our industrial solution engineers will respond within 24 hours with custom configurations, volume quotes and prototype evaluation.
