Industrial-Grade Edge AI Vision Inference & Real-Time Decision Platform powered by NVIDIA® Jetson Orin™ Nano
EA-N200A is a high-performance industrial Edge AI computer built on the NVIDIA® Jetson Orin™ platform, targeting machine vision, real-time inspection, intelligent control and edge decision-making applications. It supports Jetson Orin™ Nano 4GB / 8GB and Super series modules, allowing compute power to be flexibly configured per project. The system integrates multiple LAN ports, PoE power, rich industrial I/O and wireless expansion — a highly reliable solution for Edge AI deployment in demanding industrial environments and vision intelligence upgrades.
NVIDIA Jetson AI Performance + JetPack SDK Ecosystem + FlexCore™ Modular Architecture — an industrial-grade solution for Edge AI applications.
Supports three module tiers — Jetson Orin™ Nano Super / 8GB / 4GB — with 20-67 TOPS of compute, configured flexibly per project. 6-core A78AE CPU + 1024/512-core Ampere GPU — a cost-effective platform for machine vision and Edge AI.
1024-core NVIDIA Ampere GPU + 32 Tensor Cores, supporting INT8 / FP16 deep-learning inference. Low-latency local inference with no dependency on cloud compute.
Natively compatibility the NVIDIA JetPack SDK (including CUDA / cuDNN / TensorRT / DeepStream / VisionWorks), supporting mainstream frameworks such as TensorFlow, PyTorch and ONNX for modelsl deployment.
4× PoE Gigabit Ethernet ports deliver simultaneous power and data to industrial cameras, vision terminals and IP cameras — no external PoE switch required — simplifying machine-vision system deployment.
1× HDMI 1.4 (4K30) high-definition display output, serving local preview and diagnostic UIs in industrial vision applications.
4× USB 3.0 + 2× COM (RS-232 / RS-485 optional) + 1× CAN + 8× GPIO, covering the full spectrum of industrial control, data acquisition and fieldbus communication.
integrated 2× Wi-Fi antennas + Mini-PCIe expansion slot, with optional 4G / 5G LTE multi-carrier modules — flexibly adapted to on-site network topology.
3-pin pluggable Phoenix terminal, 9-36V DC wide-voltage input. Four-layer protection — over-voltage / over-current / reverse-polarity / surge — to ride through industrial power-line transients.
Built on the FlexCore™ four-element architecture: i-Core (Jetson compute module) + i-function expansion + i-Connect I/O + Smart Thermal. Jetson compute is upgradeable (N100 → N200 → N500).
Four coordinated protection mechanisms: ① Power protection (over-voltage / over-current / reverse-polarity / surge) + ② Backup power (smart Li-ion battery power-loss buffer) + ③ Startup/Shutdown control (auto power-on after AC recovery) + ④ System auto-recovery (watchdog + fault restart).

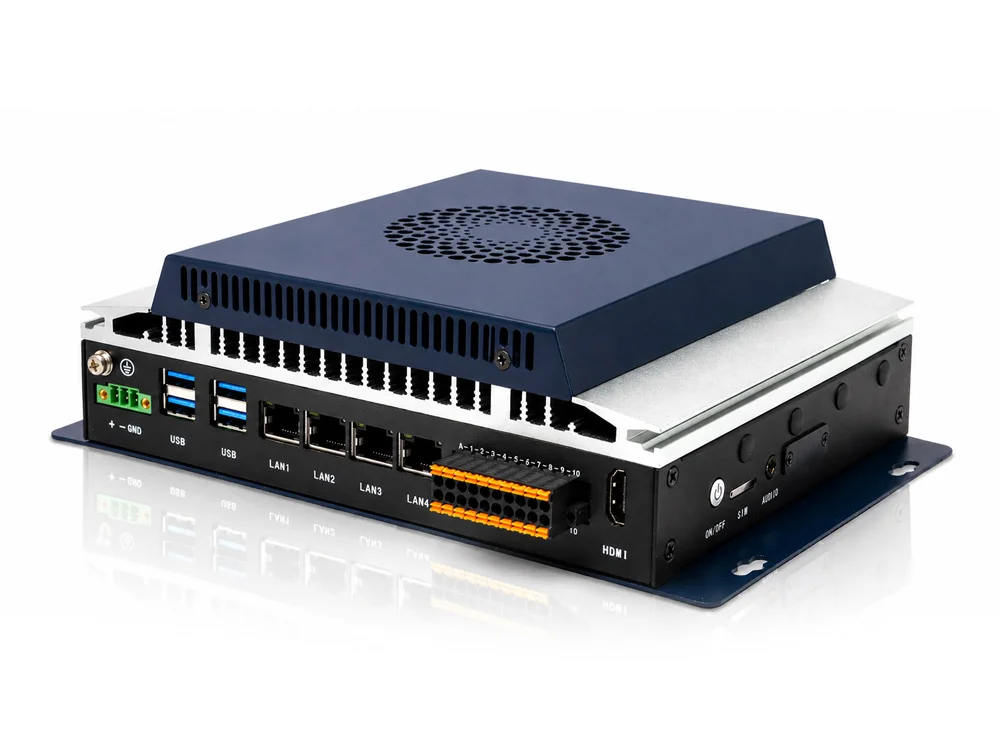

6061 high-strength aluminum + sheet-metal structure delivers industrial chassis reliability. designed for vision-intelligence upgrade projects such as new retail sorting, smart city, medical robotics and autonomous forklifts.
Datasheet V1.0 · Updated 2026-03-20 · NVIDIA Jetson modules and JetPack versions subject to sales confirmation.
| Item | NVIDIA Jetson Orin™ Nano Super | NVIDIA Jetson Orin™ Nano 8G | NVIDIA Jetson Orin™ Nano 4G |
|---|---|---|---|
| AI Module | Orin™ Nano Super | Orin™ Nano 8G | Orin™ Nano 4G |
| AI Performance | 67 INT8 TOPS | 40 TOPS (Sparse) | 20 TOPS (Sparse) |
| GPU | 1024-core Ampere with 32 Tensor Cores | 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores | 512-core NVIDIA Ampere architecture GPU with 16 Tensor Cores |
| CPU | 6-core Arm® Cortex®-A78AE v8.2 64-bit CPU, 1.5MB L2 + 4 MB L3 | 6-core Arm® Cortex®-A78AE v8.2 64-bit CPU, 1.5MB L2 + 4 MB L3 | 6-core Arm® Cortex®-A78AE v8.2 64-bit CPU, 1.5MB L2 + 4 MB L3 |
| TDP | 7W – 25W | 7W – 15W | 7W – 10W |
| Display Output | 1× 4K30, HDMI 1.4 | ||
| Memory (RAM) | 8GB LPDDR5 | 8GB LPDDR5 | 4GB LPDDR5 |
| Storage | M.2 NVMe SSD | ||
| Operating System | JetPack 6.x (Ubuntu 20.04 LTS, L4T) | ||
| Item | Specification |
|---|---|
| USB 3.0 | 4 |
| RS-232 | 2 (COM selectable as RS-232 / RS-485) |
| RS-485 | 2 (COM selectable as RS-232 / RS-485) |
| HDMI | 1 × HDMI 2.1 (8K30) |
| Gigabit Ethernet | 4 × PoE Gigabit Ethernet Ports |
| CAN Bus | 1 × CAN |
| GPIO | 8 channels (4 in / 4 out) |
| Wi-Fi | 2 × Wi-Fi Antennas |
| 4G / 5G (Optional) | LTE multi-carrier (4G / 5G optional) |
| Item | Specification |
|---|---|
| Power Connector | 3-pin Phoenix terminal, supporting 9-36V DC wide-voltage input |
| Startup Mode | AT/ATX models selection switch |
| Auto Power-On | Hardware-level automatic recovery after AC restore |
| Item | Specification |
|---|---|
| Dimensions | 229 (W) × 160 (D) × 64.5 (H) mm |
| Net Weight | 3 kg |
| Enclosure Material | 6061 High-Strength Aluminum Alloy |
| Mechanical Structure | Extruded aluminum + sheet-metal |
| Mounting Method | Desktop / Wall-Mount |
| Cooling | CESIPC Smart Thermal System |
| MTBF | 60,000 hrs |
| Item | Specification |
|---|---|
| Operating Temperature | 0–50℃ (Wide-Temperature Optional) |
| Storage Temperature | -10–60℃ (Wide-Temperature Optional) |
| Relative Humidity | 10%–95%, Non-Condensing |
| EMC | CE, FCC (EN 55032 & EN 55035) |
| EMC Harmonics | EN IEC 61000-3-2 |
| Item | Specification |
|---|---|
| Factory Certification | ISO 9001:2015 |
| BIOS Customization | Logo customization supported |

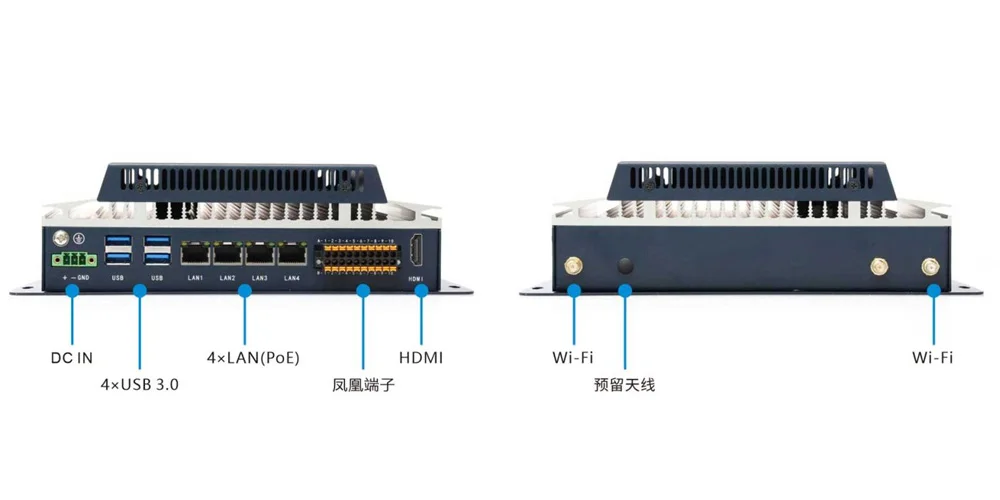

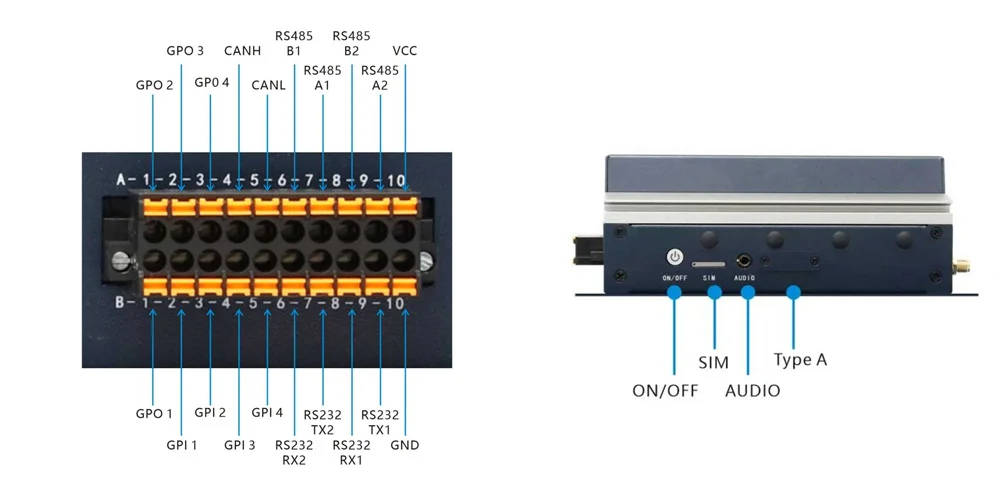

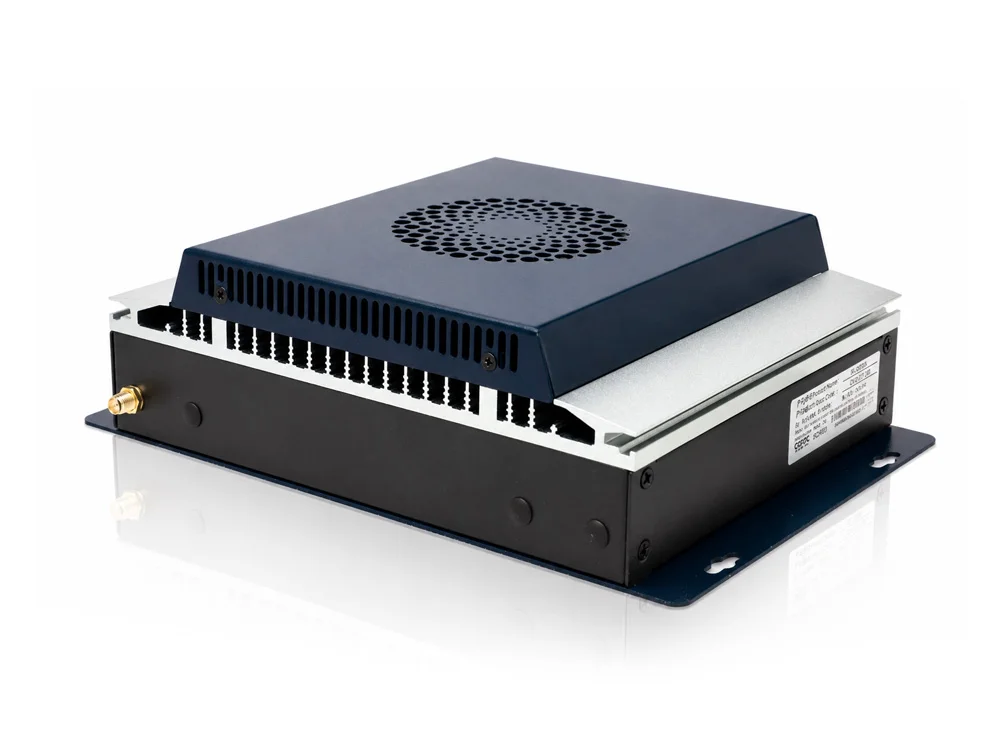

Industrial interface distribution engineered for machine vision and Edge AI deployments — plug-and-play with industrial cameras, sensors, PLCs and displays.

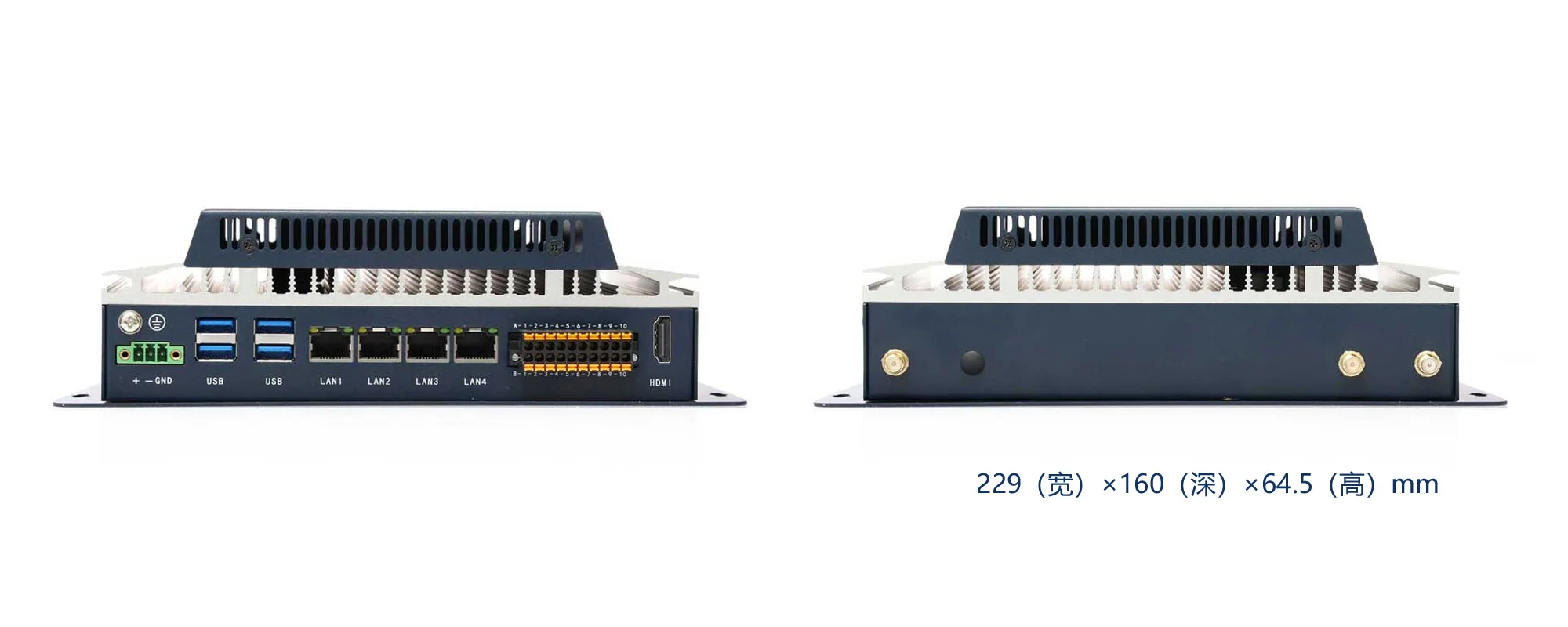

For detailed dimensions, refer to the datasheet or the three-view drawing below.
This series supports flexible NVIDIA Jetson module configuration per project (the same chassis is upgradeable). Contact sales for dedicated part numbers.
| No. | Part Number | Models | AI Module / Performance | Memory (RAM) | Storage |
|---|---|---|---|---|---|
| 01 | C12.01.01.005 | EA-N200A | Jetson Orin™ Nano Super / 67 TOPS | 8GB LPDDR5 | SSD 256GB |
| 03 | C12.01.01.004 | EA-N200A | Jetson Orin™ Nano 8G / 40 TOPS | 8GB LPDDR5 | SSD 256GB |
| 03 | C12.01.01.003 | EA-N200A | Jetson Orin™ Nano 4G / 20 TOPS | 4GB LPDDR5 | SSD 256GB |
Note: NVIDIA Jetson modules are supplied subject to NVIDIA's official availability and project quantity. Jetson compute can be upgraded per project (N100 / N200 / N500 shared a common chassis upgrade path). Contact sales for dedicated configurations.
Combining NVIDIA Jetson compute, industrial I/O and the JetPack ecosystem, EA-N200A is widely deployed across the following 4 Edge AI scenarios.
Tell us your AI modelsl scale, number of vision interfaces, on-site compute budget and order quantity. Our engineers will respond For 24 hours with a full datasheet, quotation and JetPack software compatibility assessment.
