EPC-30 Series
Extended Multi-COM Fanless Industrial PC
Extended 300-profile chassis (337 × 160 × 47.5 mm) · 4 processor platforms · 4 standard sub-models · 14-day delivery.
4 Standard Sub-models — Choose by CPU Platform
Same 337×160 chassis and identical I/O layout — only the compute platform differs. 95% common BOM means you can select straight from the datasheet.
EPC-302A
Intel® Core™ i3-1215U / i5-1235U / i7-1255U
12th Gen high-performance embedded platform for industrial control and multi-serial applications — i3/i5/i7 options, 4× RS-232 + 2× RS-485.
- 10C12T · DDR5 · Iris Xe graphics
- 4 RS-232 + 2 RS-485 multi-serial
- Manufacturing / vision / edge computing
EPC-309A
Intel® Core™ i3-10110U / i5-10210U / i7-10510U
10th Gen high-performance embedded platform for industrial control and multi-serial applications — three mainstream Core tiers + 6× COM ports.
- i3/i5/i7 performance tiers
- 4 RS-232 + 2 RS-485 multi-serial
- Vision inspection / PLC commissioning

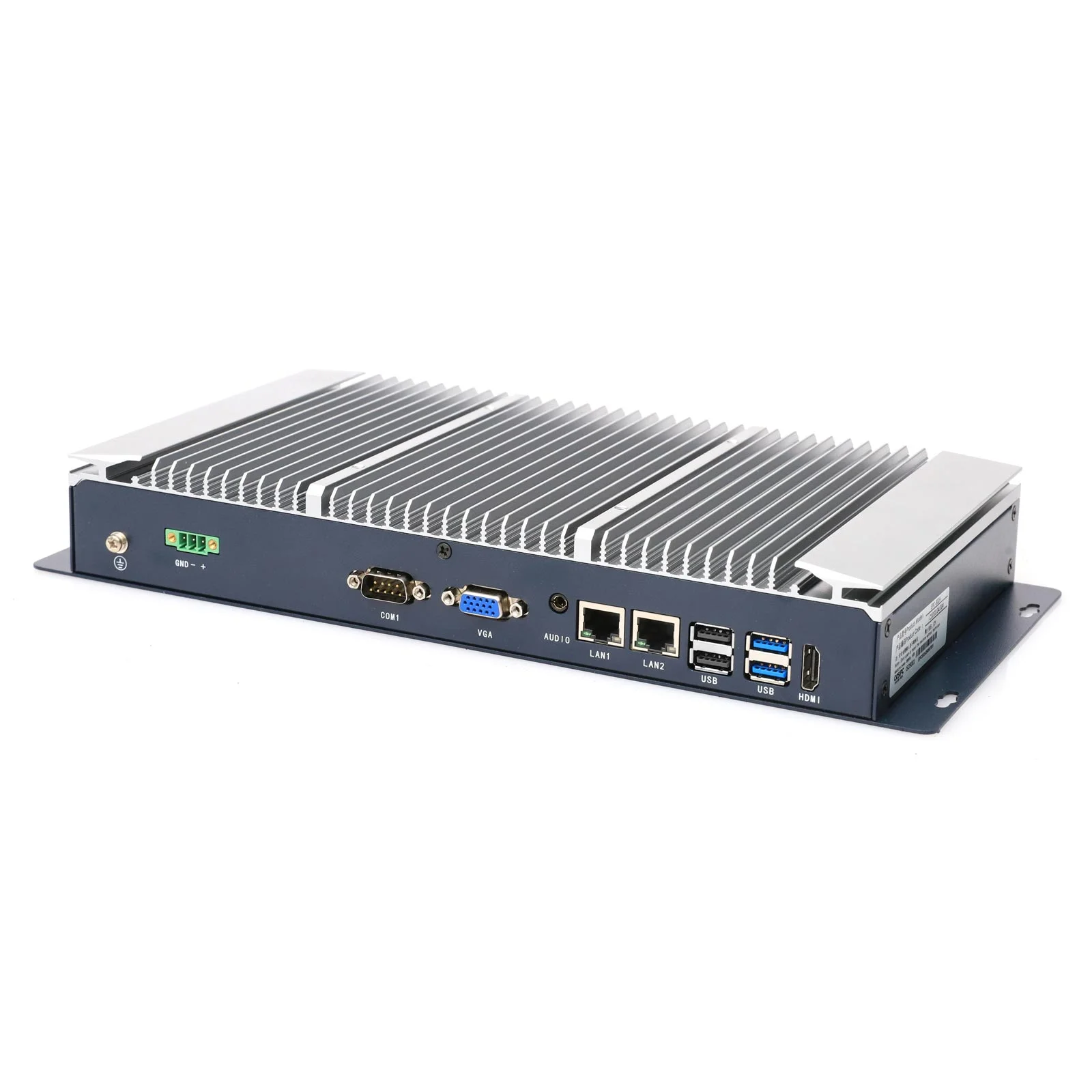

EPC-307A
Intel® Celeron® J6412 Quad-core
Next-generation embedded platform for low-power multi-serial applications in the field — upgraded J6412 performance + 4× RS-232 + 2× RS-485.
- 4 cores 2.0-2.6 GHz · 10W TDP
- 4 RS-232 + 2 RS-485
- Equipment control / data acquisition / transit

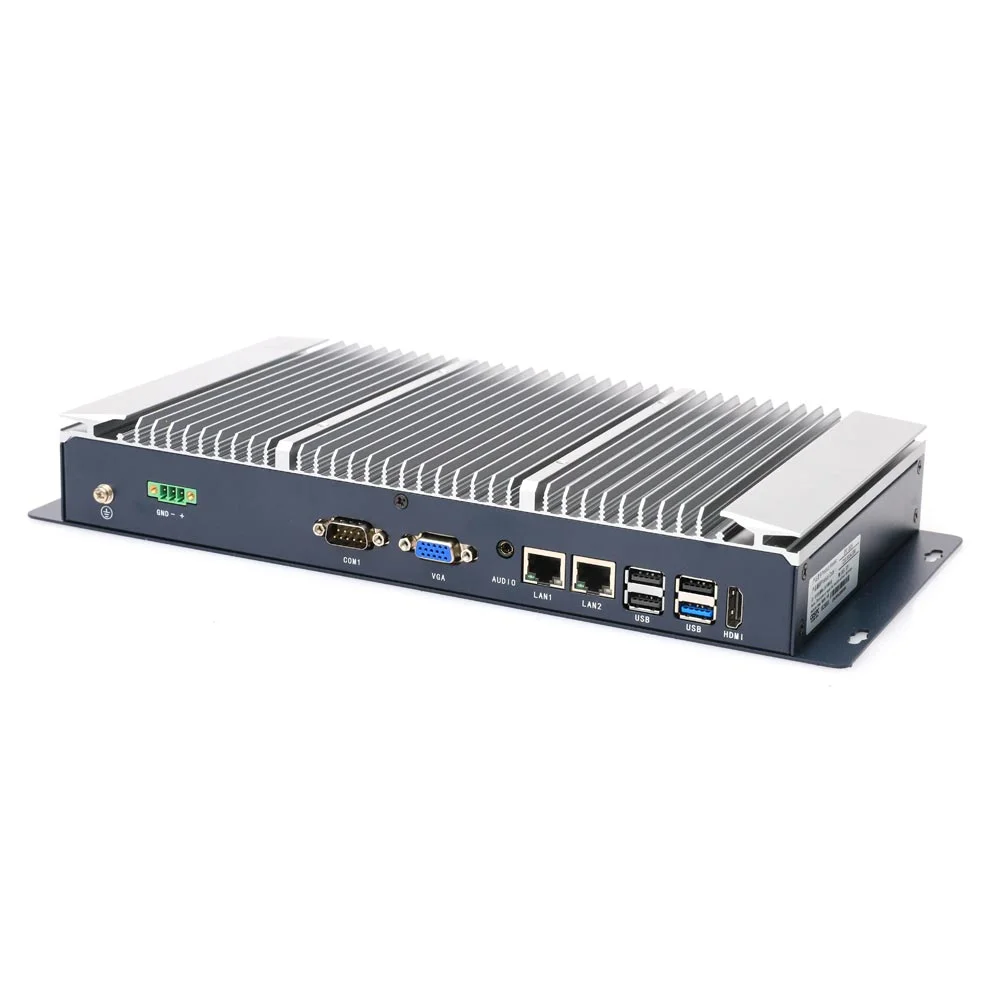

EPC-306A
Intel® Celeron® J1900 Quad-core
High-reliability embedded platform for unattended multi-serial applications in the field — economical, stable, 4× RS-232 + 2× RS-485 and long-term supply.
- 4 cores 2.0 GHz · 10W TDP
- 4 RS-232 + 2 RS-485
- Unattended / remote equipment / energy
EPC-30 Selection Support
Tell us your CPU platform needs, I/O configuration, power scenario and order quantity — our engineers will reply within 24 hours with recommended sub-models, datasheets and a quote.
