Wall-mount Chassis Structure
Industrial wall-mount chassis purpose-designed for control cabinets, equipment sides and space-constrained sites — no rack slot needed, with flexible installation.
IPC-W10-HG SERIES · WALL-MOUNT · HYGON HG-3350
A wall-mount industrial computer on the Hygon HG-3350 domestic CPU, purpose-designed for domestic-IT deployment and localization
IPC-W10-HG Series Wall-mount Industrial Computer
The IPC-W10-HG Series is a wall-mount industrial computer line built for domestic industrial applications, ideal for local-IT deployment, domestic replacement, industrial control and edge computing. It uses an industrial-grade wall-mount chassis, well suited to control cabinets, equipment-side and space-constrained field deployments.
This series supports flexible configuration of processor, memory, storage, networking and industrial interfaces, with strong system compatibility and expandability. The unit offers a rich set of I/O, dual LAN, SATA / M.2 storage and security-module support, and is compatible with UOS, Kylin, Linux and other domestic and mainstream operating systems — meeting the needs of industrial automation, equipment networking, data acquisition and localized information-system deployment.
Typical Applications
HygonHG-3350 domestic
8C / 16Tup to 3.3 GHz
4× SATA+ M.2 NVMe
Wall-mountcontrol cabinet deployment
PRODUCT HIGHLIGHTS
IPC-W10-HG Series · Eleven Core Features
Server-grade chassis + domestic-IT localization support + FlexCore™ modularity — the top choice for critical-infrastructure scenarios.
Hygon HG-3350 Domestic CPU
Hygon HG-3350 8 cores / 16 threads · base 2.8~3.0 GHz · up to 3.3 GHz turbo · 65W TDP · 4MB L2 + 16MB L3. A domestic IT-localization platform with full self-control.
Domestic IT Localization Support
Designed for critical-infrastructure scenarios such as government, defense, finance, energy and rail transit. Compatible with domestic operating systems (UOS / Kylin) and supports domestic application migration and certification testing.
Multi-display & Discrete GPU Support
Supports VGA + HDMI dual display output. Optional discrete GPUs: JingJiaMicro 7201 / NVIDIA GT730 / AMD R7350 / R5230 — suited to domestic-IT graphics and basic industrial GPU applications.
Multiple Drive Bays + M.2 NVMe
4× vertical SATA 3.0 connectors + 1× M.2 slot (supporting both SATA SSD and NVMe SSD). Meets high-capacity needs for industrial data acquisition, video storage and domestic-IT workloads.
Multi-bus Expansion
Micro ATX / ATX industrial mainboard options with multiple PCIe / PCI slots for add-in cards: motion control, multi-COM, capture, discrete GPU, NIC and more.
Dual Gigabit Ethernet
2× Intel Gigabit Ethernet for fast, stable industrial networking. Suited to multi-device coordination across PLCs, SCADA and vision servers.
9-36V Wide-voltage Industrial Power
9-36V DC wide-voltage input with four-way protection against over-voltage, over-current, reverse polarity and surge — riding out industrial grid spikes and transient voltage swings.
FlexCore™ Modular Hardware Architecture
Built on the FlexCore™ four-element architecture: i-Core compute + i-Function expansion + i-Connect I/O + Smart Thermal control. Unified interfaces, structure and power with free expansion.
SafeCore™ Industrial Reliability Enhancement
Four protection mechanisms working together: ① power protection (over-voltage / over-current / reverse polarity / surge) + ② backup power (smart lithium-battery power-loss buffering) + ③ start/stop control (auto power-on when energized) + ④ system self-recovery (watchdog + fault restart).
High-strength Metal Chassis
1.0~1.5 mm galvanized steel + aluminum front panel, IP30-rated, vibration- and EMI-resistant for long-term 7×24 operation. Watchdog + TPM 2.0 for dual security.
PRODUCT GALLERY

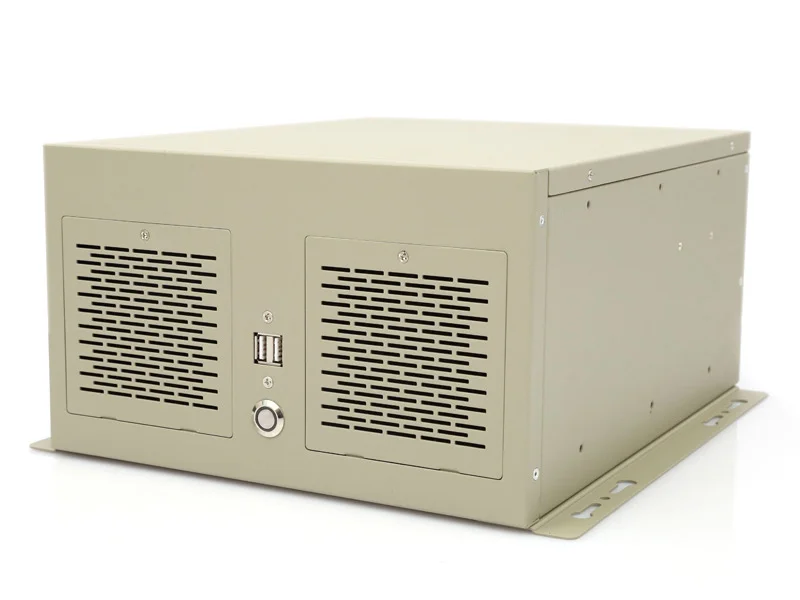

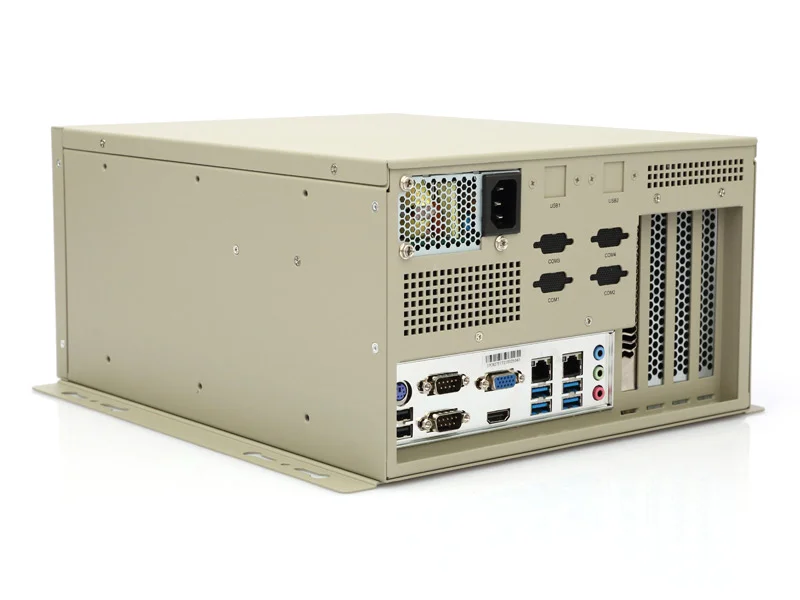

Product Gallery
SPECIFICATIONS
IPC-W10-HG Series Full Specifications
Datasheet V1.0 · updated 2026-03-20 · due to chip market fluctuations, key chips may change; please confirm with sales.
Core Hardware
| Item | Specification |
|---|---|
| Processor | Hygon HG-3350 |
| Cores | 8 cores |
| Threads | 16 threads |
| Frequency | Base 2.8-3.0GHz, max turbo 3.3GHz |
| Cache | L2 4MB + L3 16MB |
| TDP | 65W |
| Graphics | Discrete graphics card, supports VGA and HDMI display output; supported GPU models: JingJiaMicro 7201, GT730, R7350, R5230 |
| Memory | 4× vertical SATA connectors, supports SATA 3.0 |
| Storage | 1× M.2 connector, supports SATA and NVMe SSD |
I/O Ports
| Item | Specification |
|---|---|
| USB 2.0 | 4 |
| USB 3.0 | 4 |
| RS232 | 2 |
| RS485 | 2 |
| VGA | 1 |
| HDMI | 1 |
| Gigabit Ethernet | 2 × Intel I210 |
| Audio | 1xMic-in, 1x Line-in,1x Line-out |
| Wi-Fi (optional) | Dual-band 2.4G/5G Wi-Fi module |
Power Input
| Item | Specification |
|---|---|
| Power Connector | 3-pin pluggable terminal block, 9–36V DC wide-range input |
| ATX Switch | 1× ATX power switch |
| Boot Mode | AT/ATX mode switch (built-in) |
Physical & General
| Item | Specification |
|---|---|
| Dimensions | 330 (L)×330 (W)×180 (H)mm |
| Mounting | Wall-mount installation |
| Weight | 13 kg net weight |
| Enclosure Material | 1.2mmhigh-strength carbon structural steel, compliant with CCC, FCC and CE |
| Color | Industrial black or industrial gray |
| Reset Switch | 1× reset switch |
| TPM | TPM 2.0 |
| Watchdog | Hardware watchdog supported |
| MTBF | 100,000 hrs |
Operating Environment
| Item | Specification |
|---|---|
| Operating Temperature | -0~60℃ (wide temp -40~80℃ optional) |
| Storage Temperature | -10~70℃ (wide temp -40~80℃ optional) |
| Relative Humidity | 10%~90%, non-condensing |
| EMC | CE, FCC (EN 55032 & EN 55035) |
| EMC Harmonics | EN IEC 61000-3-2 |
Operating System
| Item | Specification |
|---|---|
| Windows | Windows 10 / Windows 11 |
| Linux | Ubuntu 16.04 / 18.04 / 20.04 / 22.04 |
Certifications & Compliance
| Item | Specification |
|---|---|
| Factory Certification | ISO9001: 2015 |
| BIOS Customization | BIOS / Boot LOGO / OEM |
I/O LAYOUT
Front & Rear Panel I/O Layout
Server-grade chassis with front/rear I/O partitioning for easy cabinet wiring and maintenance.
Front Panel

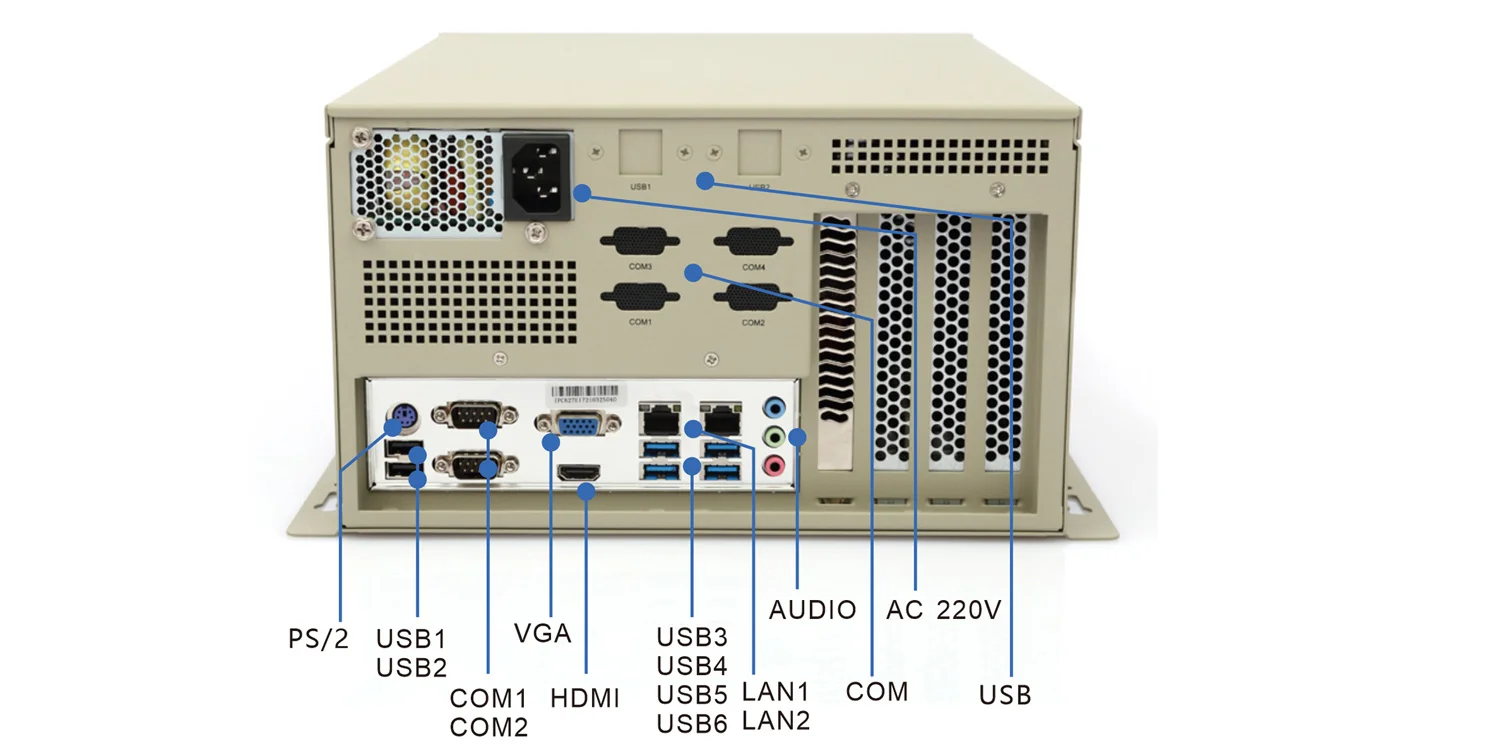

Rear Panel
DIMENSIONS

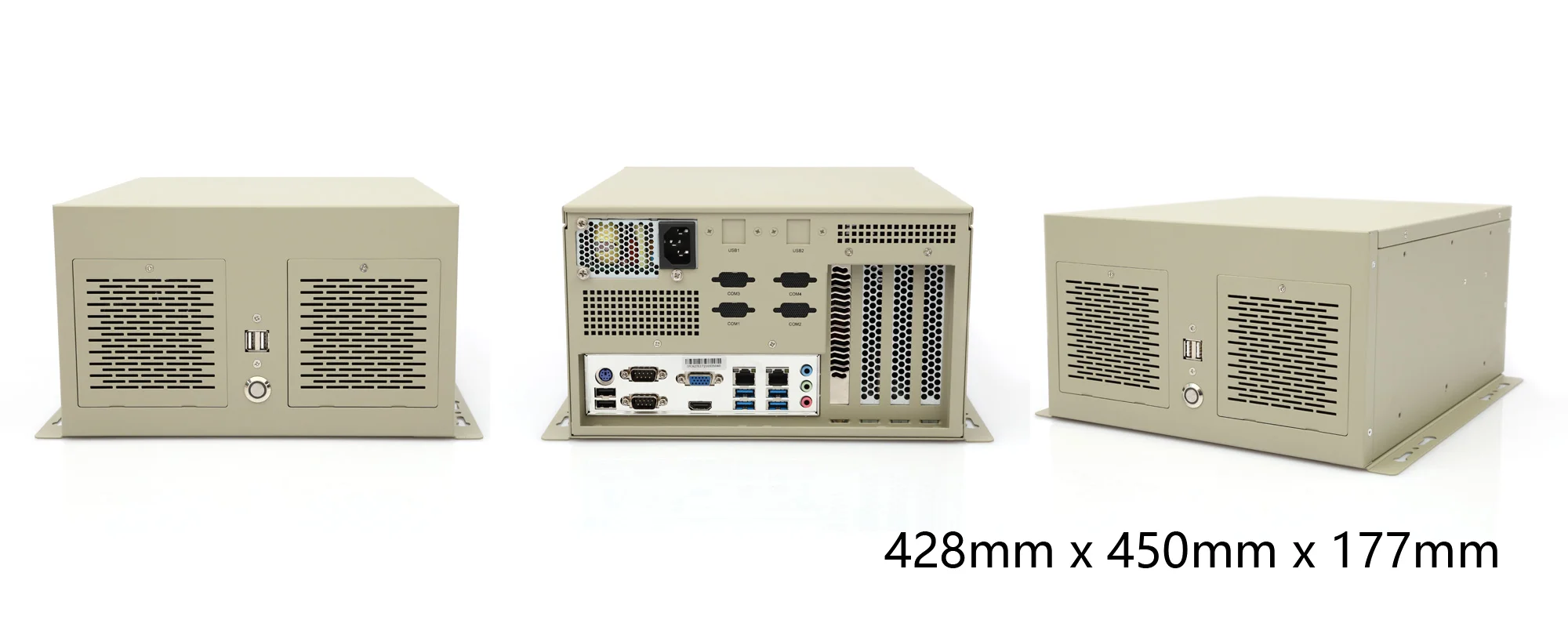

Dimensions — Three Views (mm)
Wall-mount structural dimensions · see the datasheet or the three views below for detailed data.
ORDERING INFORMATION
Ordering Information · Part Number
The table below shows typical configurations. This series supports free configuration of CPU / memory / storage / GPU / expansion boards — please confirm part numbers with sales.
| No. | Part Number | Model | Processor | Memory | Storage |
|---|---|---|---|---|---|
| 01 | C5.02.01.488 | IPC-W10-HG Series | Intel® Core™I5-6400 | 8GB DDR5 | SSD 128G+256G |
Note: This series is a flexibly configurable industrial server, supporting project-level customization of the CPU platform, memory capacity, number of drives, graphics-card model, number of NICs and add-in cards. Please contact sales for the specific configuration.
APPLICATIONS
IPC-W10-HG Series Typical Applications
With a server-grade chassis, broad expandability and domestic-IT localization support, the IPC-W10-HG Series is widely deployed across the 4 scenarios below.
