12th Gen Core CPU
Intel® Core™ i3-1215U / i5-1235U / i7-1255U in three tiers. A 10C12T performance cluster with Iris Xe integrated graphics, balancing performance and efficiency.
EPC-102A · 12TH GEN INTEL® CORE™
A high-performance 12th Gen Intel® Core™ embedded computing platform for industrial control and edge computing
EPC-102A 12th Gen i7 Fanless Embedded Box PC | 6× COM, 2× LAN
The CESIPC EPC-102A is a high-performance embedded computing platform built for multi-interface, unattended applications on the industrial floor. Based on the 12th Gen Intel® Core™ processor platform, it balances performance and efficiency, pairing dual Gigabit Ethernet with rich industrial I/O and supporting 9-36V wide-voltage DC power to handle demanding industrial power environments. It supports wireless communication expansion and combines the FlexCore™ modular architecture with SafeCore™ reliability enhancement — delivering stable operation alongside high serviceability and long-term reliability for industrial control, machine vision, data acquisition and edge computing.
Typical Applications
229Chassis width (mm)
2× I210Gigabit + PTP
DDR58-32GB
9-36VWide-voltage input
PRODUCT HIGHLIGHTS
EPC-102A · Eleven Core Features
From 12th Gen compute to industrial-grade protection — every design choice serves a clear purpose.
Dual Intel I210 + PTP
Dual Intel I210 Gigabit NICs with PTP clock synchronization — matched to industrial cameras and multi-device coordination for low latency, low packet loss and stable transmission.
Rich Industrial I/O
4× USB 3.0 + 2× USB 2.0 + 2× RS-232 + 1× RS-485 + 2× GbE + HDMI + VGA + audio + 3.5mm TRRS.
Mini-PCIe Wireless Expansion
1× Mini-PCIe slot with optional dual-band Wi-Fi / Bluetooth / 4G / 5G modules, flexibly adapting to on-site networking.
9-36V Wide-voltage Phoenix Terminal
A 3-pin pluggable Phoenix terminal with 9-36V DC wide-voltage input. Four-way protection against over-voltage, over-current, reverse polarity and surge — easy and secure wiring.
FlexCore™ Modular Hardware Architecture
Built on the FlexCore™ four-element architecture: i-Core compute + i-Function expansion + i-Connect I/O + Smart Thermal control. Unified interfaces, structure and power with free expansion — a platform approach that cuts repeated development and maintenance costs.
Fanless Cooling
One-piece die-cast finned cooling in 6061 high-strength aluminum alloy with zero moving parts — maintenance-free, dust- and vibration-resistant, IP40-rated for industrial endurance.
SafeCore™ Industrial Reliability Enhancement
Four protection mechanisms working together: ① power protection (over-voltage / over-current / reverse polarity / surge) + ② backup power (smart lithium-battery power-loss buffering) + ③ start/stop control (auto power-on when energized) + ④ system self-recovery (watchdog + fault restart).
Hardware-level Auto Power-on
An independent power-logic circuit triggers the boot signal, without relying on the BIOS. It restarts the moment power returns, keeping unattended deployments running.
IP65 Front Panel + Aluminum
6061 high-strength aluminum alloy + sheet-metal structure for an industrial-grade rugged body. The IP65 front panel resists dust and splashing water, with TPM 2.0 + watchdog for dual security.
Multi-OS Support
Windows 10 / 11 · CentOS · Ubuntu 16.04 / 18.04 / 20.04 / 22.04. BIOS supports customization, boot logo and OEM branding.

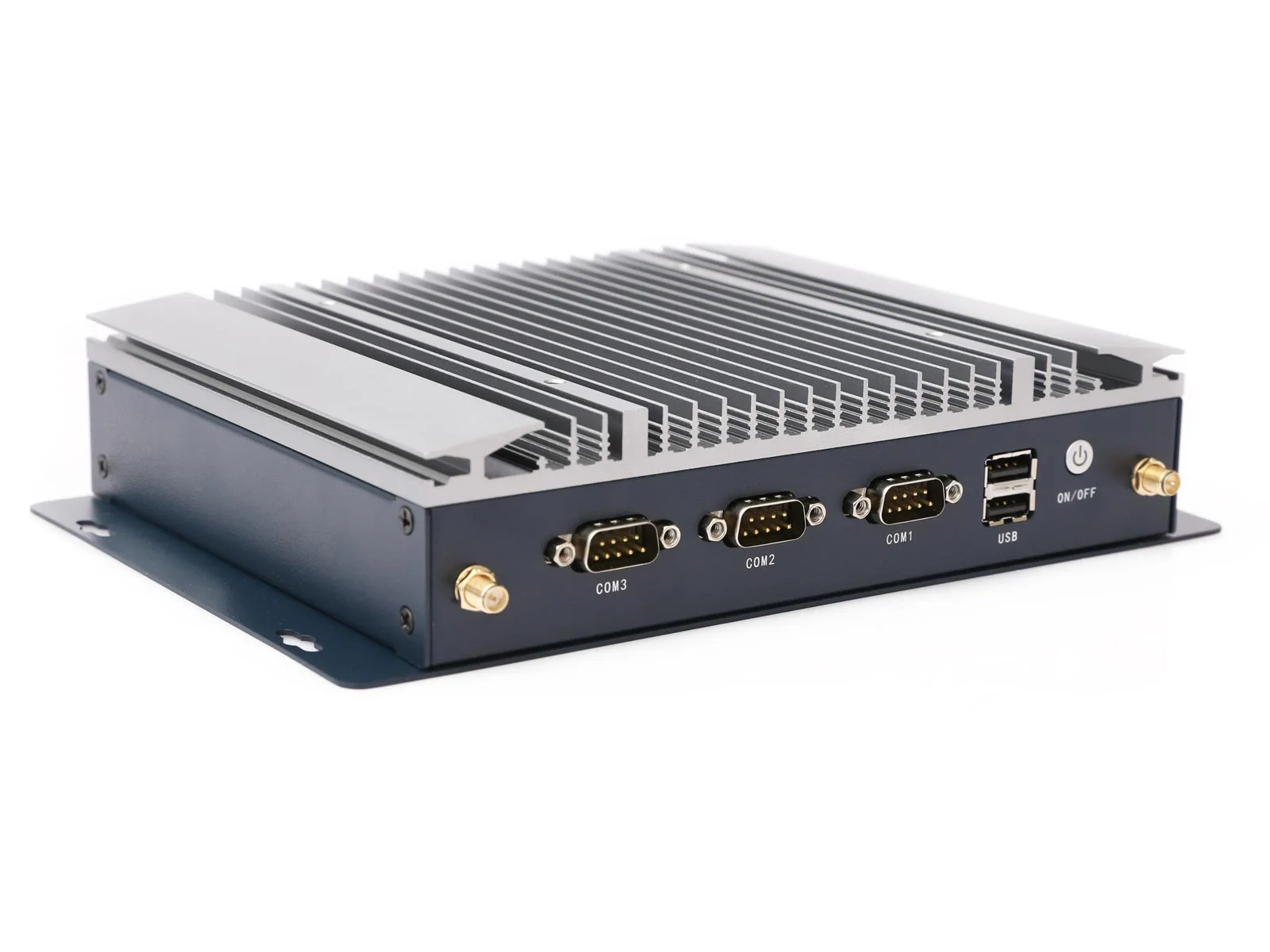

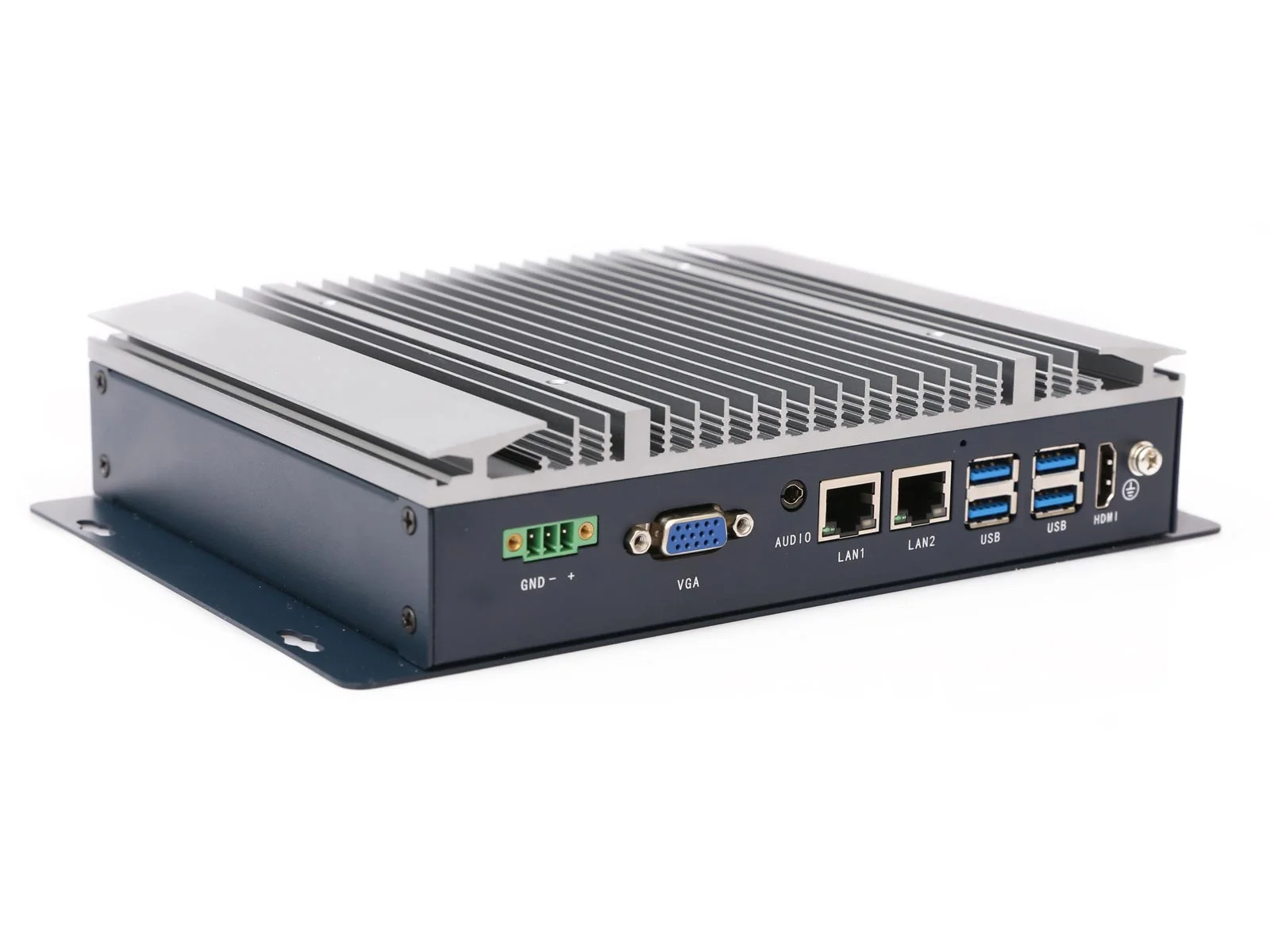

PRODUCT GALLERY
Product Gallery
SPECIFICATIONS
EPC-102A Full Specifications
Datasheet V1.0 · updated 2026-03-20 · due to chip market fluctuations, key chips may change; please confirm with sales.
Core Hardware
| Parameter | Intel® Core™ i3-1215U | Intel® Core™ i5-1235U | Intel® Core™ i7-1255U |
|---|---|---|---|
| Processor | i3-1215U | i5-1235U | i7-1255U |
| Cores | 6 (2P+4E) | 10 (2P+8E) | 10 (2P+8E) |
| Threads | 8 | 12 | 12 |
| Frequency | 1.2~4.4 GHz | 1.3~4.4 GHz | 1.7~4.7 GHz |
| Cache | 10 MB L3 Cache | 12 MB L3 Cache | 12 MB L3 Cache |
| TDP | 15W | ||
| Graphics | Intel UHD Graphics (64 EUs) | Intel Iris Xe Graphics (80 EUs) | Intel Iris Xe Graphics (96 EUs) |
| Memory | 8~32GB DDR5 | ||
| Storage | 2× M.2 2280 PCIe NVMe SSD | ||
I/O Ports
| Item | Specification |
|---|---|
| USB 2.0 | 2 |
| USB 3.0 | 4 |
| RS232 | 2 |
| RS485 | 1 |
| VGA | 1 |
| HDMI | 1 |
| Gigabit Ethernet | 2 × Intel I210 |
| Audio | 3.5mm TRRS |
| Wi-Fi (optional) | Dual-band 2.4G/5G Wi-Fi module |
Power Input
| Item | Specification |
|---|---|
| Power Connector | 3-pin pluggable terminal block, 9–36V DC wide-range input |
| ATX Switch | 1× ATX power switch |
| Boot Mode | AT/ATX mode switch (built-in) |
Physical & General
| Item | Specification |
|---|---|
| Dimensions | 229 (L)×160 (W)×47 (H)mm |
| Mounting Dimensions | 219 (L)×100 (W)mm |
| Weight | 1.48 kg net weight |
| Enclosure Material | 6061 high-strength aluminum alloy |
| Mechanical Structure | Extruded aluminum + sheet-metal structure |
| Mounting | Bracket mounting / VESA wall mount |
| Reset Switch | 1× reset switch |
| TPM | TPM 2.0 |
| Watchdog | Hardware watchdog supported |
| MTBF | 60,000 hrs |
Operating Environment
| Item | Specification |
|---|---|
| Operating Temperature | 0~60℃ (wide temp -40~80℃ optional) |
| Storage Temperature | -10~70℃ (wide temp -40~80℃ optional) |
| Relative Humidity | 10%~90%, non-condensing |
| EMC | CE, FCC (EN 55032 & EN 55035) |
| EMC Harmonics | EN IEC 61000-3-2 |
Operating System
| Item | Specification |
|---|---|
| Windows | Windows 10 / Windows 11 |
| Linux | Ubuntu 16.04 / 18.04 / 20.04 / 22.04 |
Certifications & Compliance
| Item | Specification |
|---|---|
| Factory Certification | ISO9001: 2015 |
| BIOS Customization | BIOS / Boot LOGO / OEM |
I/O LAYOUT
Front & Rear Panel I/O Layout
High-speed DDR5 memory, dual PCIe NVMe SSDs, dual I210 Gigabit LAN and Mini-PCIe wireless expansion — a compact layout that's easy to connect and service.
Front Panel

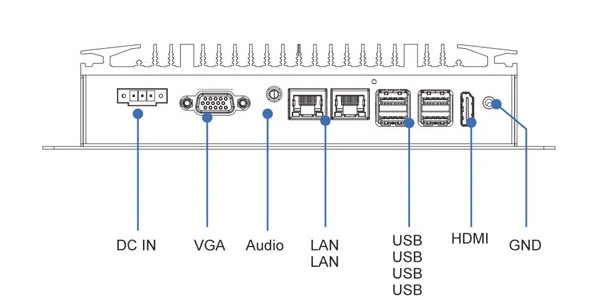

Rear Panel
DIMENSIONS

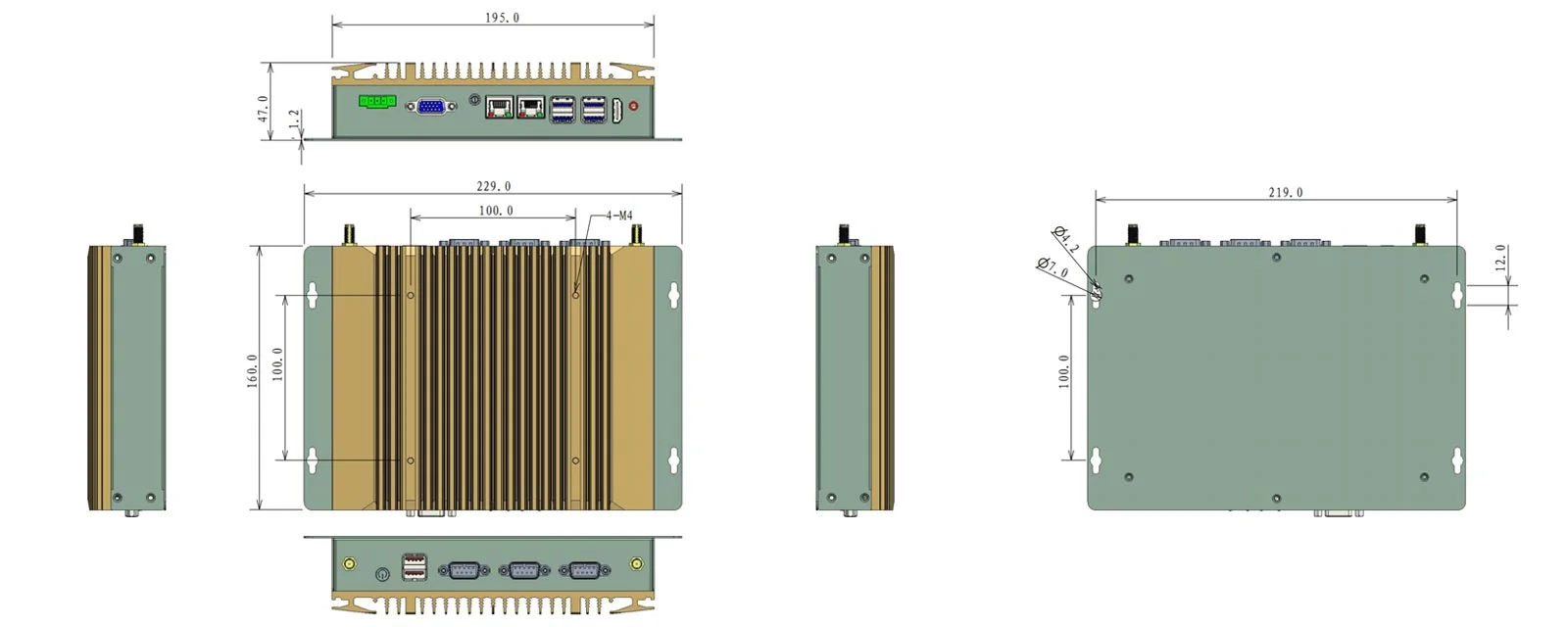

Dimensions — Three Views (mm)
Unit 229 × 160 × 47 mm · mounting dimensions 219 × 100 mm · net weight 1.48 kg · bracket mounting / VESA wall mount supported.
ORDERING INFORMATION
Ordering Information · Part Number
The 4 standard configurations below can be ordered straight from the list; for custom CPU / memory / storage, please contact sales.
| No. | Part Number | Model | Processor | Memory | Storage |
|---|---|---|---|---|---|
| 01 | C10.01.04.001 | EPC-102A | Intel® Core™ i3-1215U | 8GB DDR5 | SSD 256GB |
| 02 | C10.01.04.002 | EPC-102A | Intel® Core™ i5-1235U | 8GB DDR5 | SSD 256GB |
| 03 | C10.01.04.003 | EPC-102A | Intel® Core™ i5-1240P | 8GB DDR5 | SSD 256GB |
| 04 | C10.01.04.004 | EPC-102A | Intel® Core™ i7-1255U | 8GB DDR5 | SSD 256GB |
Note: this product supports 2× M.2 NVMe. Due to market fluctuations, key chips such as the CPU model, memory and drive may change — please confirm with our sales team.
APPLICATIONS
EPC-102A Typical Applications
Powered by dual I210 NICs + PTP clock synchronization + multi-interface expansion, the EPC-102A is widely deployed across the 4 industrial scenarios below.
CUSTOMIZATION · SAME-MODEL OPTIONS
EPC-102A Same-size Customization Options
Does the standard EPC-102A's I/O or display output not fit your project? Choose FlexCore™ modular customization — the 8-COM high-performance version (EPC-102B) or the dual-HDMI · Virtual EDID version (EPC-102O), all in the same 229×160 compact chassis, selected by scenario.
FlexCore™ Modular
Custom · Multi-COM High-performance

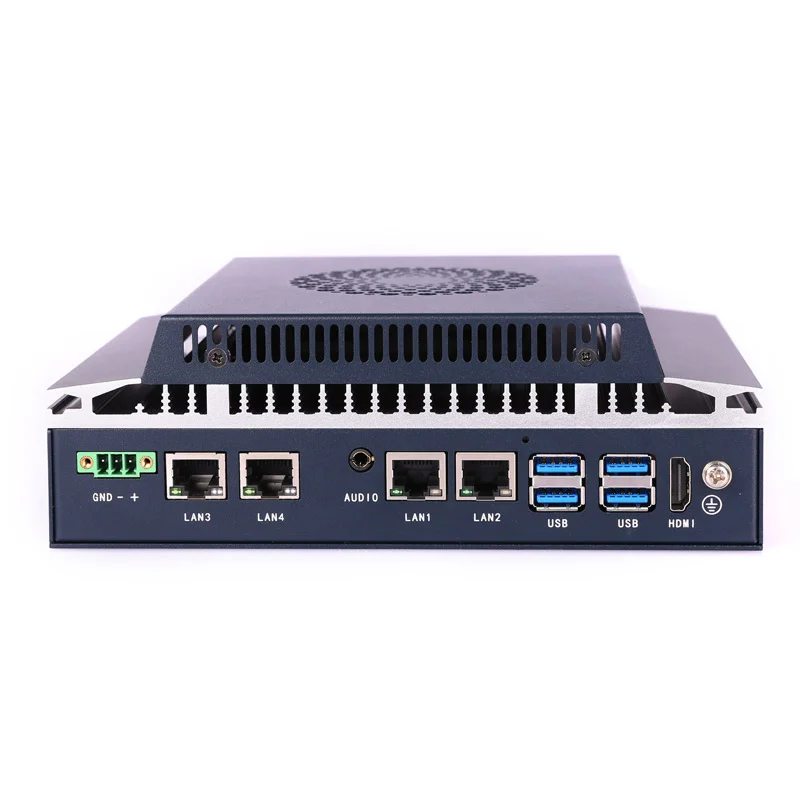

EPC-102B
Intel® Core™ i5-1235U · 12th Gen
- FeaturesThree-board FlexCore™ architecture (i-Core + i-Function + i-Connect) · 8× COM multi-serial · 4× LAN multi-network · high-speed DDR5 memory
- Best forMachine vision, CNC, multi-protocol data acquisition and motion control — scenarios needing PCI/PCIe expansion and multiple COM ports
Virtual EDID Customization
Customized · Dual HDMI · Virtual EDID
EPC-102O
Intel® Celeron® 7305 · 5C5T / 15W TDP
- FeaturesFlexCore™ modular · dual HDMI output · Virtual EDID keeps the signal alive · displays an image even with no monitor attached · DDR5
- Best forDigital signage, unattended terminals, lightweight HMI, multi-screen video walls, remote monitoring and similar customized scenarios
📞 Have other customization needs? Adjusting port counts / CPU platform upgrades / different power supplies / OEM branding — contact our sales engineers for a custom plan and quote.
EPC-10 SERIES · OTHER CPU PLATFORMS
Need a Different Compute Tier or Budget? Same Size, Different CPU
Same 229×160 compact chassis, same I/O specification — the standard EPC-102A is already the 12th Gen flagship, while the options below offer the same series in 10th Gen mainstream / J6412 low-power / J1900 economy tiers.
EPC-102A Selection Consultation
Tell us your project background, I/O and power requirements and volume needs — our engineers will respond within 24 hours with a full datasheet, quote and prototype evaluation plan.
