NVIDIA Jetson Nano Entry-Level AI
Powered by the NVIDIA® Jetson Nano™ platform, delivering 472 GFLOPS of Edge AI inference performance. Quad-core ARM® A57 + 128-core Maxwell™ GPU — a cost-effective choice for lightweight AI deployments.
EA-N100A · NVIDIA JETSON NANO™ · 472 GFLOPS
Compact Industrial-Grade Edge AI Vision Inference Platform powered by NVIDIA® Jetson Nano™
EA-N100A Jetson Nano 472 GFLOPS Edge AI Computer | Vision Inference
EA-N100A is a compact industrial Edge AI computer built on the NVIDIA® Jetson Nano™ platform, engineered for machine vision, intelligent gateway, industrial automation and IoT terminal deployments. It balances AI inference performance, low-power operation and industrial-grade reliability, delivering a cost-effective solution for lightweight AI applications at the edge.
Typical Applications
472GFLOPS
128Maxwell GPU Cores
5-10WLow-Power TDP
CompactIndustrial chassis
PRODUCT HIGHLIGHTS · ENTRY
EA-N100A — 11 Core Features
NVIDIA Jetson AI Performance + JetPack SDK Ecosystem + FlexCore™ Modular Architecture — an industrial-grade solution for Edge AI applications.
128-Core Maxwell GPU
128-core NVIDIA Maxwell™ architecture GPU with native CUDA acceleration. Ideal for vision inference, intelligent gateways and IoT edge applications.
JetPack SDK · CUDA · TensorRT
Natively compatibility the NVIDIA JetPack SDK (including CUDA / cuDNN / TensorRT / DeepStream / VisionWorks), supporting mainstream frameworks such as TensorFlow, PyTorch and ONNX for modelsl deployment.
1× Gigabit Ethernet
1× Gigabit Ethernet paired with USB 3.0 cameras / sensors to build lightweight Edge AI nodes and intelligent gateways.
HDMI 2.0 Output
1× HDMI 2.0 (1920×1200 @30Hz) high-definition display output for local HMI, debugging and on-site status visualization.
Compact I/O Configuration
1× USB 2.0 + 1× USB 3.0 (Type-A) + Mic-in + Line-out, covering essential vision input, HMI debugging and smart-terminal peripheral connectivity.
Compact Industrial chassis
Compact aluminum chassis + 5-10W low power, ideal for intelligent gateways, IoT edge nodes and embedded vision terminals — engineered for maintenance-free 24/7 operation.
9-24V DC Industrial Power
9-24V DC wide-voltage input with over-voltage / over-current / reverse-polarity protection.
FlexCore™ Modular Hardware Architecture
Built on the FlexCore™ four-element architecture: i-Core (Jetson compute module) + i-function expansion + i-Connect I/O + Smart Thermal. Jetson compute is upgradeable (N100 → N200 → N500).
SafeCore™ Industrial Reliability
Four coordinated protection mechanisms: ① Power protection (over-voltage / over-current / reverse-polarity / surge) + ② Backup power (smart Li-ion battery power-loss buffer) + ③ Startup/Shutdown control (auto power-on after AC recovery) + ④ System auto-recovery (watchdog + fault restart).
Industrial-Grade Aluminum chassis
6061 high-strength aluminum + sheet-metal structure delivers industrial chassis reliability. A cost-effective platform purpose-built for intelligent gateways, IoT terminals and lightweight AI applications.
PRODUCT GALLERY

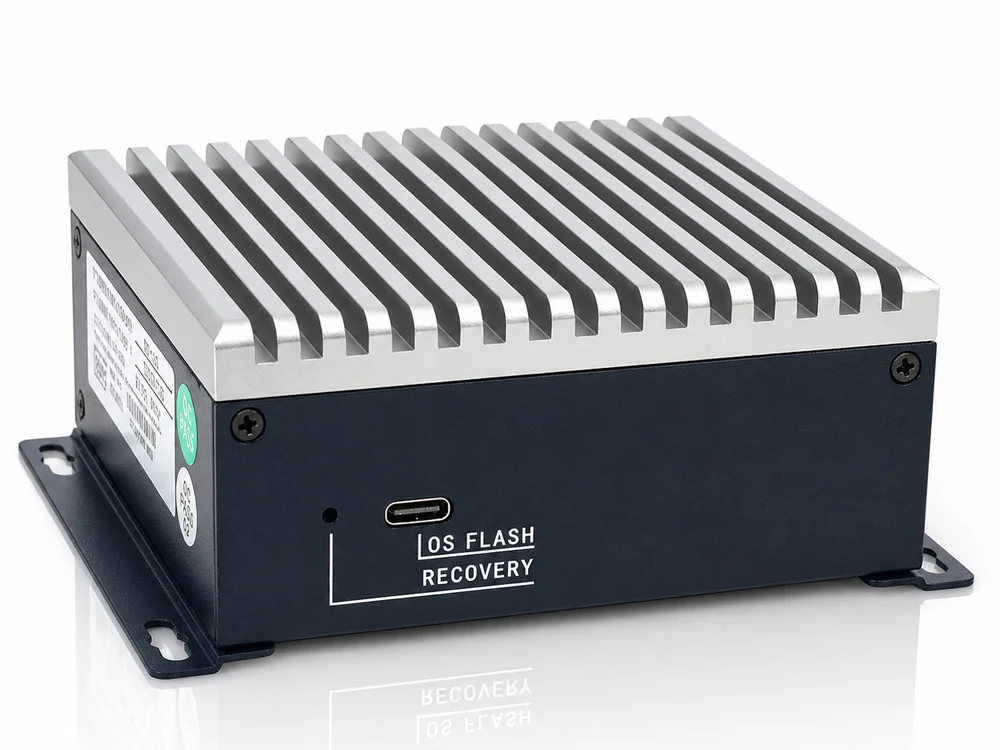

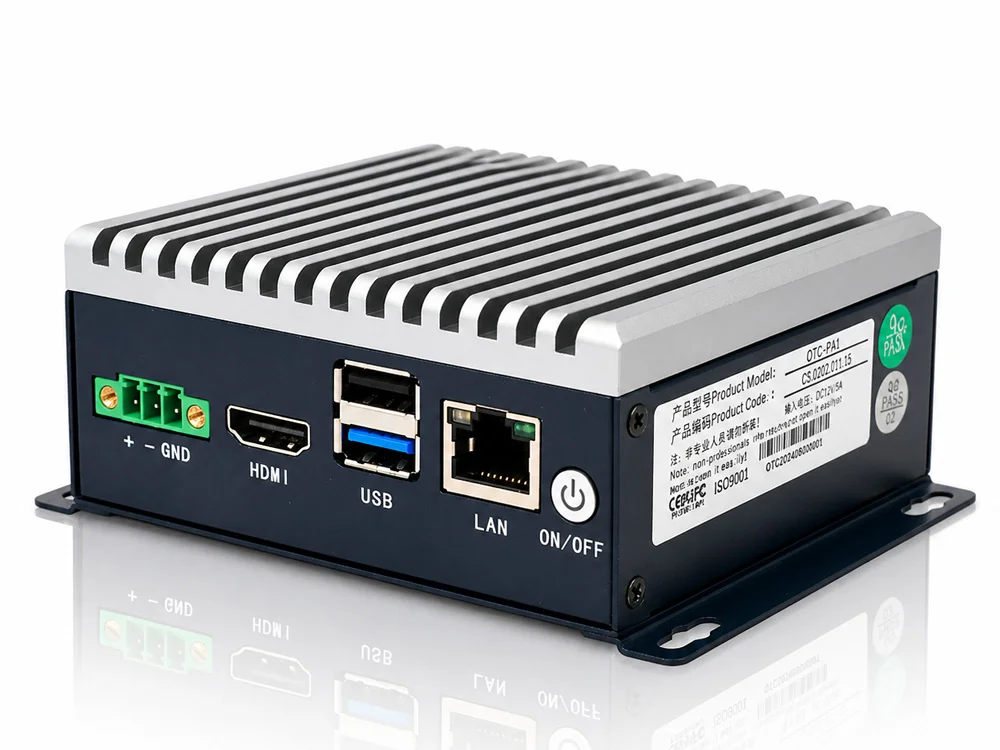

Product Gallery
SPECIFICATIONS
EA-N100A — Full Specifications
Datasheet V1.0 · Updated 2026-03-20 · NVIDIA Jetson modules and JetPack versions subject to sales confirmation.
Core Hardware
| Item | Specification |
|---|---|
| AI Module | NVIDIA Jetson Nano |
| AI Performance | 472 GFLOPS |
| GPU | 128-core NVIDIA Maxwell™ architecture GPU |
| CPU | Quad-core ARM® Cortex®-A57 MPCore processor |
| TDP | 5W – 10W |
| Display Output | HDMI 2.0 |
| Memory (RAM) | Single Socket, 4GB DDR4 |
| Storage | 32GB eMMC + M.2 SSD (minimum 256GB) |
| Operating System | Linux (NVIDIA JetPack 4.6) |
I/O interfaces
| Item | Specification |
|---|---|
| USB | 1 × USB 2.0, 1 × USB 3.0 (Type-A) |
| HDMI | 1 × HDMI 2.0 (1920×1200 @30Hz) |
| Gigabit Ethernet | 1 × Gigabit Ethernet Port |
| Audio | 1 × Mic-in, 1 × Line-out |
Power Input
| Item | Specification |
|---|---|
| Power Connector | 3-pin Phoenix terminal, supporting 9-36V DC wide-voltage input |
| Startup Mode | AT/ATX models selection switch |
| Auto Power-On | Hardware-level automatic recovery after AC restore |
Product Attributes
| Item | Specification |
|---|---|
| Dimensions | 116.9 (W) × 90 (D) × 45 (H) mm |
| Net Weight | 0.3 kg |
| Enclosure Material | 6061 High-Strength Aluminum Alloy |
| Mechanical Structure | Extruded aluminum + sheet-metal |
| Mounting Method | Desktop / Wall-Mount |
| Cooling | Passive (Fanless) |
| MTBF | 60,000 hrs |
Operating Environment
| Item | Specification |
|---|---|
| Operating Temperature | 0–50℃ (Wide-Temperature Optional) |
| Storage Temperature | -10–60℃ (Wide-Temperature Optional) |
| Relative Humidity | 10%–95%, Non-Condensing |
| EMC | CE, FCC (EN 55032 & EN 55035) |
| EMC Harmonics | EN IEC 61000-3-2 |
Certifications & Compliance
| Item | Specification |
|---|---|
| Factory Certification | ISO 9001:2015 |
| BIOS Customization | Logo customization supported |
I/O LAYOUT
Front & Rear Panel I/O Layout
Industrial interface distribution engineered for machine vision and Edge AI deployments — plug-and-play with industrial cameras, sensors, PLCs and displays.

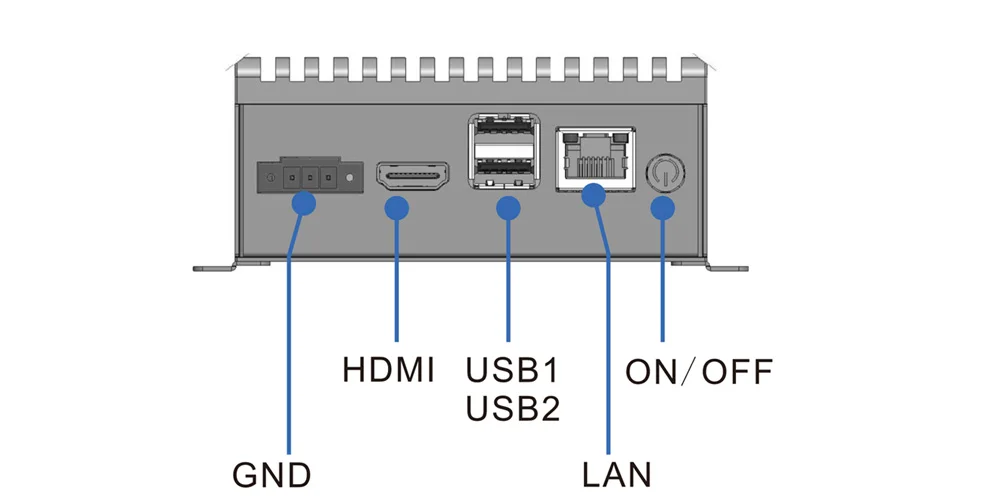

Front Panel
Rear Panel
DIMENSIONS

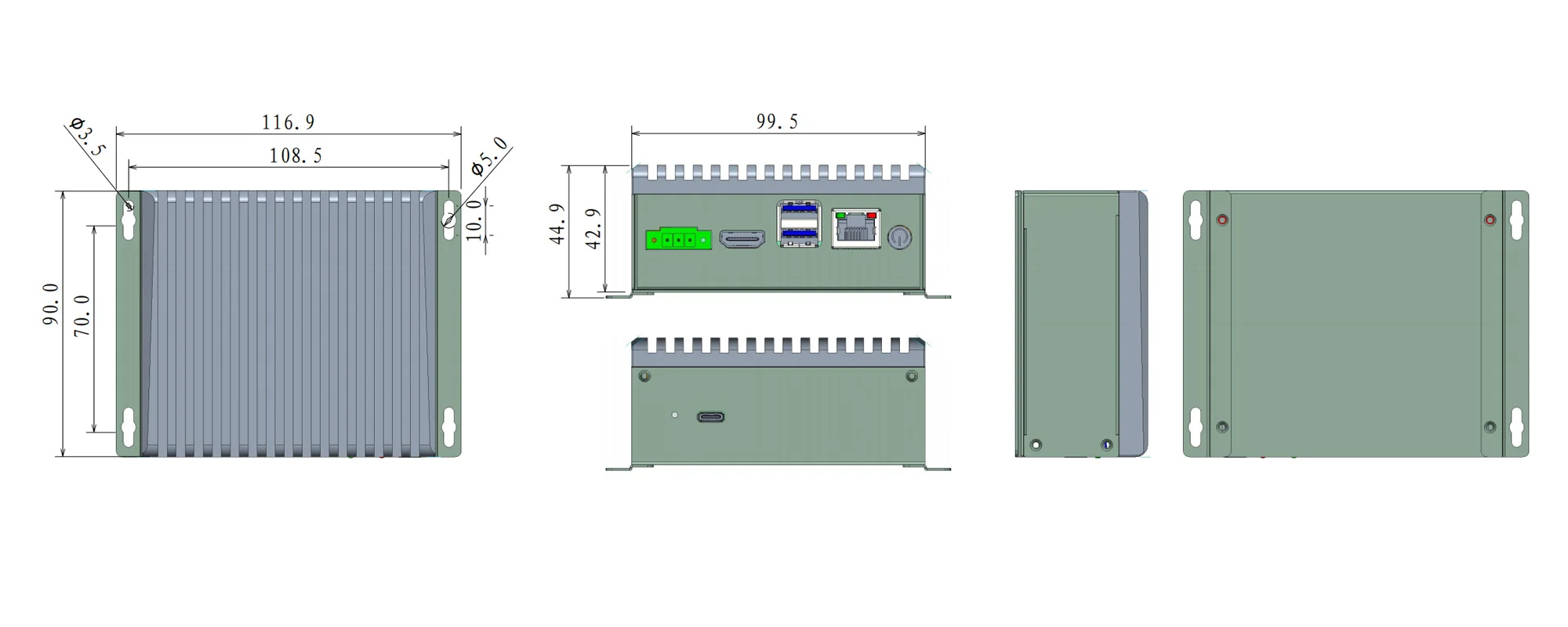

Three-View Dimensions (mm)
For detailed dimensions, refer to the datasheet or the three-view drawing below.
ORDERING INFORMATION
Ordering Information · Part Number
This series supports flexible NVIDIA Jetson module configuration per project (the same chassis is upgradeable). Contact sales for dedicated part numbers.
| No. | Part Number | Models | AI Module / Performance | Memory (RAM) | Storage |
|---|---|---|---|---|---|
| 01 | C5.02.07.068 | EA-N100A | Jetson Nano™ | 4GB LPDDR4 | SSD 256GB |
Note: NVIDIA Jetson modules are supplied subject to NVIDIA's official availability and project quantity. Jetson compute can be upgraded per project (N100 / N200 / N500 shared a common chassis upgrade path). Contact sales for dedicated configurations.
APPLICATIONS
EA-N100A — Typical Applications
Combining NVIDIA Jetson compute, industrial I/O and the JetPack ecosystem, EA-N100A is widely deployed across the following 4 Edge AI scenarios.
EA-N100A — Selection Inquiry
Tell us your AI modelsl scale, number of vision interfaces, on-site compute budget and order quantity. Our engineers will respond For 24 hours with a full datasheet, quotation and JetPack software compatibility assessment.
