10th Gen Core CPU
Intel® Core™ i3-10110U / i5-10210U / i7-10510U in three tiers. U-series low-power design balancing performance and efficiency.
EPC-309A · 10TH GEN INTEL® CORE™
A high-performance 10th Gen Intel® Core™ embedded computing platform for industrial control and multi-COM applications
EPC-309A 10th Gen i7 Fanless Embedded Box PC | 10× COM Extended
The CESIPC EPC-309A is a high-performance embedded computing platform for multi-COM unattended applications on the industrial floor. Built on the 10th Gen Intel® Core™ processor platform, it balances performance and efficiency, with dual Gigabit Ethernet and a rich set of industrial I/O (including 4× RS232 and 2× RS485), plus 9-36V wide-voltage DC power for demanding industrial power environments. It supports wireless communication expansion and integrates the FlexCore™ modular architecture with SafeCore™ reliability-enhancement technology, ensuring stable operation while delivering high serviceability and long-term reliability — ideal for industrial control, machine vision, data acquisition and edge computing.
Typical Applications
337Chassis length (mm)
6× COMRS232×4 + RS485×2
2× I210Gigabit + PTP
9-36Vwide-voltage input
PRODUCT HIGHLIGHTS
EPC-309A · Eleven Core Features
From core compute to industrial-grade protection — every design choice serves a clear purpose.
Dual Intel I210 + PTP
Dual Intel I210 Gigabit NICs with PTP clock synchronization — matched to industrial cameras and multi-device coordination for low latency, low packet loss and stable transmission.
Rich Industrial I/O
4× USB 3.0 + 2× USB 2.0 + 4× RS-232 + 2× RS-485 + 2× GbE + HDMI + VGA + audio. Multi-COM extended chassis.
Mini-PCIe Wireless Expansion
1× Mini-PCIe slot with optional dual-band Wi-Fi / Bluetooth / 4G / 5G modules, flexibly adapting to on-site networking.
9-36V Wide-voltage Phoenix Terminal
A 3-pin pluggable Phoenix terminal with 9-36V DC wide-voltage input. Four-way protection against over-voltage, over-current, reverse polarity and surge — easy and secure wiring.
FlexCore™ Modular Hardware Architecture
Built on the FlexCore™ four-element architecture: i-Core compute + i-Function expansion + i-Connect I/O + Smart Thermal control. Unified interfaces, structure and power with free expansion — a platform approach that cuts repeated development and maintenance costs.
Fanless Cooling
One-piece die-cast finned cooling in 6061 high-strength aluminum alloy with zero moving parts — maintenance-free, dust- and vibration-resistant, for industrial endurance.
SafeCore™ Industrial Reliability Enhancement
Four protection mechanisms working together: ① power protection (over-voltage / over-current / reverse polarity / surge) + ② backup power (smart lithium-battery power-loss buffering) + ③ start/stop control (auto power-on when energized) + ④ system self-recovery (watchdog + fault restart).
Hardware-level Auto Power-on
An independent power-logic circuit triggers the power-on signal, without relying on the BIOS. It restarts automatically once power is restored, keeping unattended deployments running continuously.
IP65 Front Panel + Aluminum
6061 high-strength aluminum alloy + sheet-metal structure for an industrial-grade rugged body. The IP65 front panel resists dust and splashing water, with TPM 2.0 + watchdog for dual security.
Multi-OS Support
Windows 10 / 11 · CentOS · Ubuntu 16.04 / 18.04 / 20.04 / 22.04. BIOS supports customization, boot logo and OEM branding.
PRODUCT GALLERY

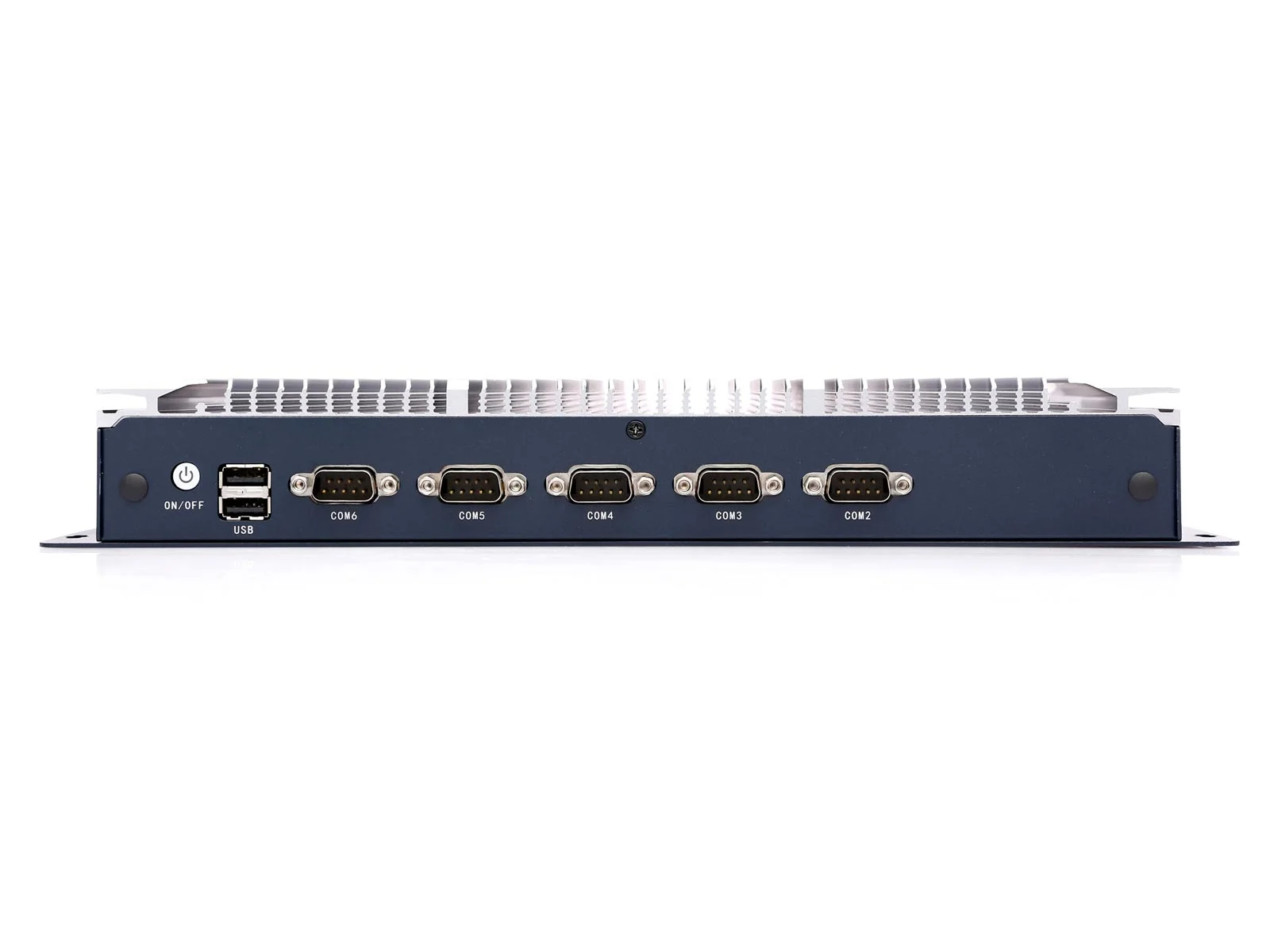

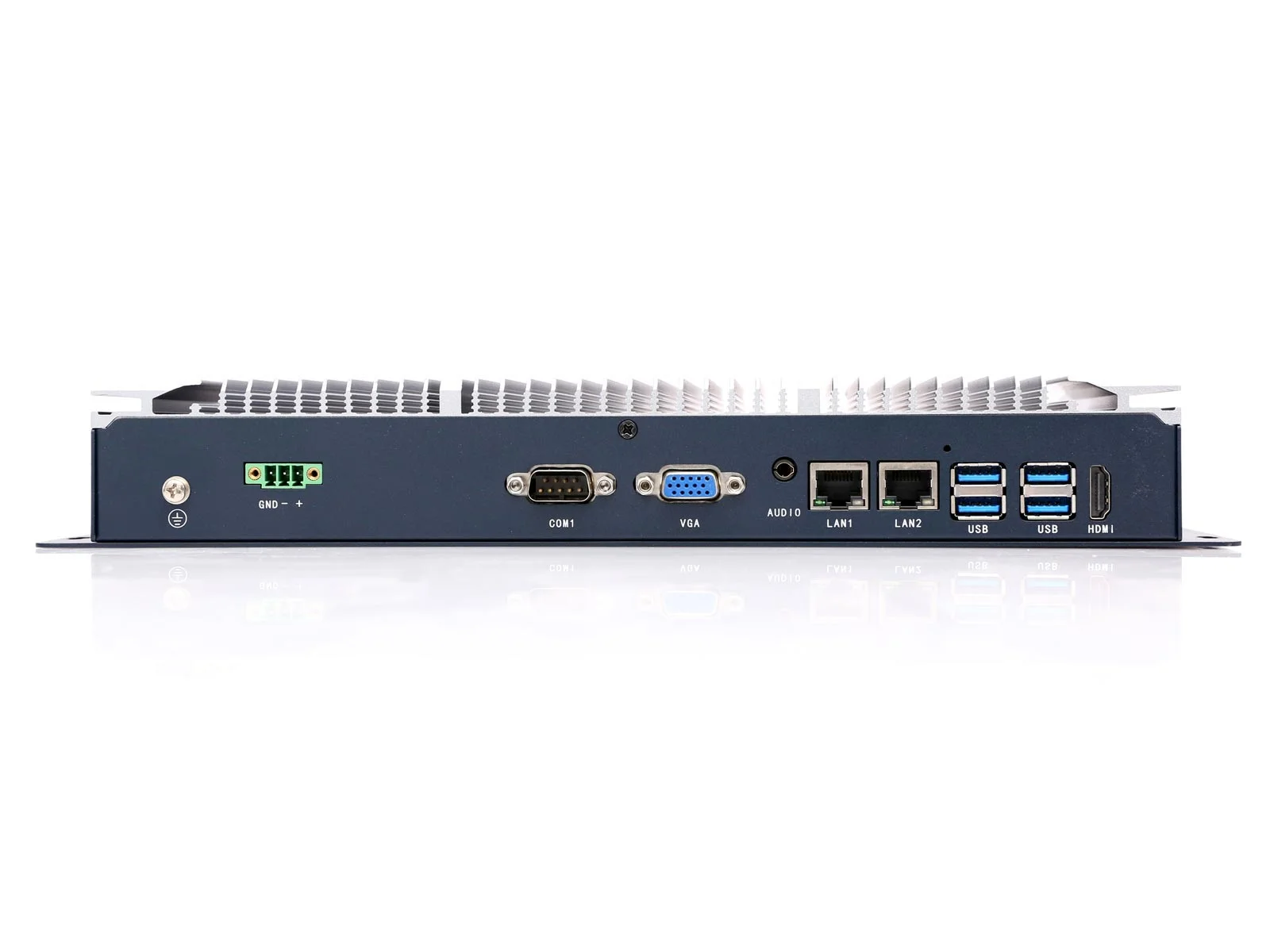

Product Gallery
SPECIFICATIONS
EPC-309A Full Specifications
Datasheet V1.0 · updated 2026-03-20 · due to chip market fluctuations, key chips may change; please confirm with sales.
Core Hardware
| Parameter | Intel® Core™ i3-10110U | Intel® Core™ i5-10210U | Intel® Core™ i7-10510U |
|---|---|---|---|
| Processor | i3-10110U | i5-10210U | i7-10510U |
| Cores | 2 | 4 | 4 |
| Threads | 4 | 8 | 8 |
| Frequency | 2.1~4.1 GHz | 1.6~4.2 GHz | 1.8~4.9 GHz |
| Cache | 4MB | 6MB | 8MB |
| TDP | 15W | ||
| Graphics | Intel UHD Graphics 620 | ||
| Memory | 4~32GB DDR4 | ||
| Storage | 1× M.2 SSD + 1× M.2 NVMe | ||
I/O Ports
| Item | Specification |
|---|---|
| USB 2.0 | 4 |
| USB 3.0 | 2 |
| RS232 | 4 |
| RS485 | 2 |
| VGA | 1 |
| HDMI | 1 |
| Gigabit Ethernet | 2 × Intel I210 |
| Audio | 3.5mm TRRS |
| Wi-Fi (optional) | Dual-band 2.4G/5G Wi-Fi module |
Power Input
| Item | Specification |
|---|---|
| Power Connector | 3-pin pluggable terminal block, 9–36V DC wide-range input |
| ATX Switch | 1× ATX power switch |
| Boot Mode | AT/ATX mode switch (built-in) |
Physical & General
| Item | Specification |
|---|---|
| Dimensions | 337 (L)×160 (W)×47.5 (H)mm |
| Mounting Dimensions | 327 (L)×100 (W)mm |
| Weight | 2.25 kg net weight |
| Enclosure Material | 6061 high-strength aluminum alloy |
| Mechanical Structure | Extruded aluminum + sheet-metal structure |
| Mounting | Bracket mounting / VESA wall mount |
| Reset Switch | 1× reset switch |
| TPM | TPM 2.0 |
| Watchdog | Hardware watchdog supported |
| MTBF | 60,000 hrs |
Operating Environment
| Item | Specification |
|---|---|
| Operating Temperature | 0~60℃ (wide temp -40~80℃ optional) |
| Storage Temperature | -10~70℃ (wide temp -40~80℃ optional) |
| Relative Humidity | 10%~90%, non-condensing |
| EMC | CE, FCC (EN 55032 & EN 55035) |
| EMC Harmonics | EN IEC 61000-3-2 |
Operating System
| Item | Specification |
|---|---|
| Windows | Windows 10 / Windows 11 |
| Linux | Ubuntu 16.04 / 18.04 / 20.04 / 22.04 |
Certifications & Compliance
| Item | Specification |
|---|---|
| Factory Certification | ISO9001: 2015 |
| BIOS Customization | BIOS / Boot LOGO / OEM |
I/O LAYOUT
Front & Rear Panel I/O Layout
4× RS-232 + 2× RS-485 multi-COM, multiple USB ports, dual Gigabit LAN + Mini-PCIe wireless expansion — a compact layout that's easy to connect and service.

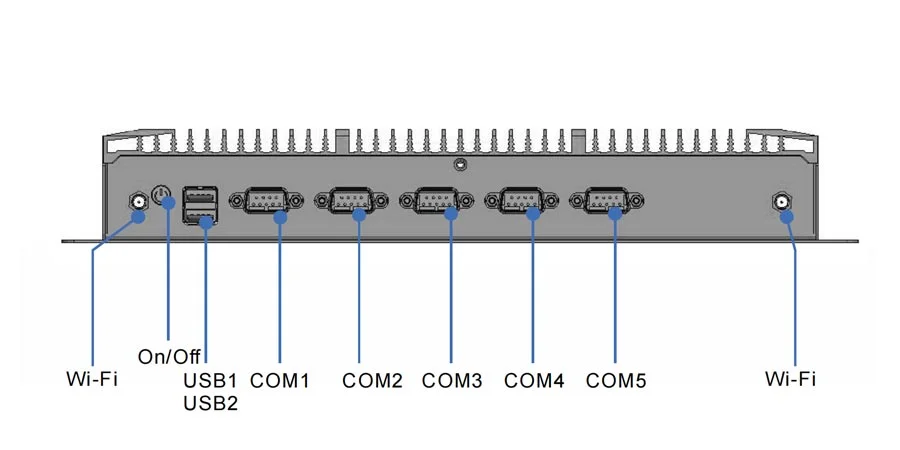

Front Panel

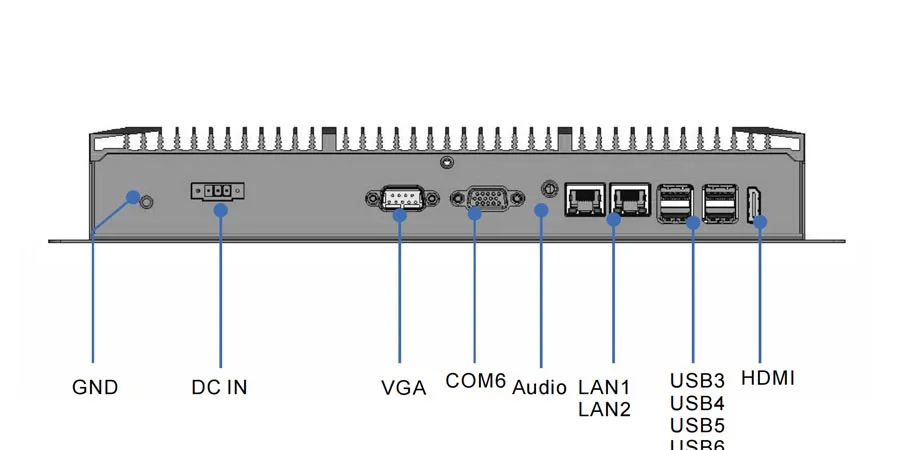

Rear Panel
DIMENSIONS

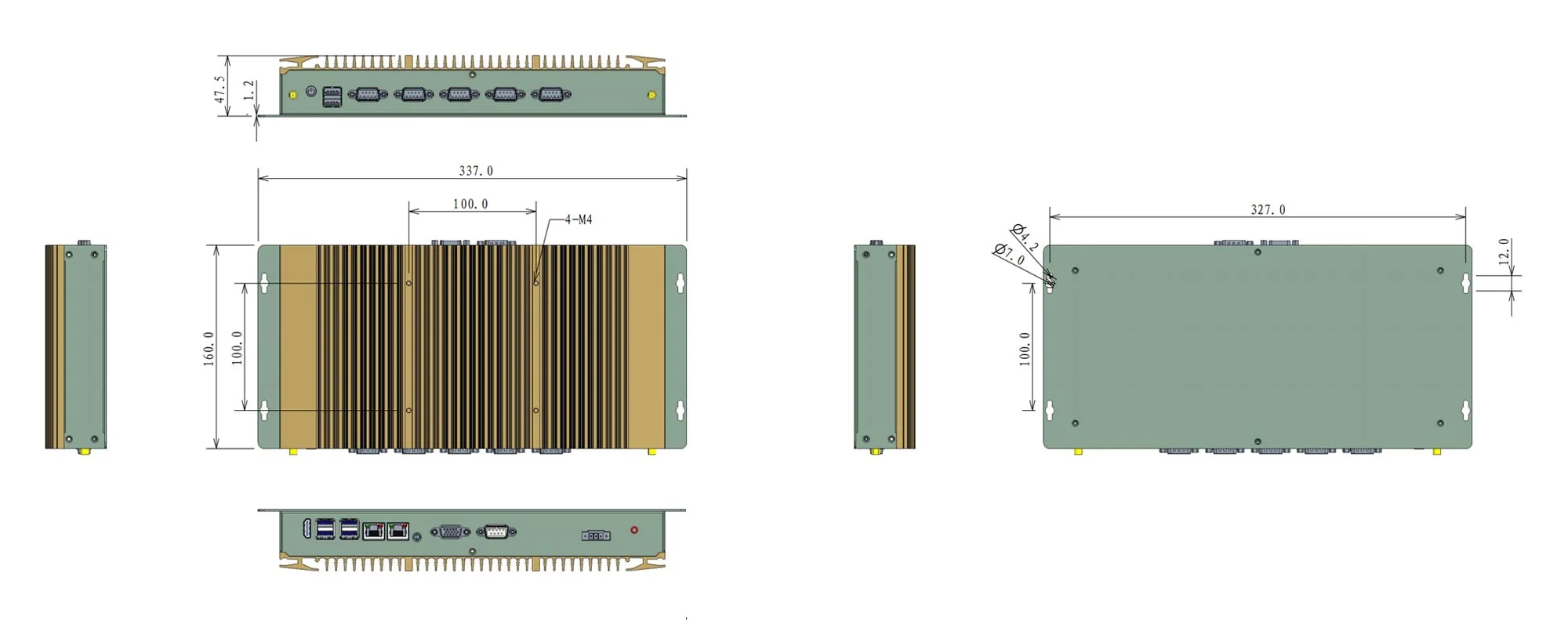

Dimensions — Three Views (mm)
Unit 337 × 160 × 47.5 mm · mounting dimensions 327 × 100 mm · net weight 2.25 kg · bracket mounting / VESA wall mount supported.
ORDERING INFORMATION
Ordering Information · Part Number
The standard configurations below can be ordered directly; for custom CPU / memory / storage, please contact sales.
| No. | Part Number | Model | Processor | Memory | Storage |
|---|---|---|---|---|---|
| 01 | C10.03.03.004 | EPC-309A | Intel® Core™ i5-10510U | 16GB DDR4 | SSD 2TB |
| 02 | C10.03.03.005 | EPC-309A | Intel® Core™ i5-10510U | 16GB DDR4 | SSD 512GB |
| 03 | C10.03.03.006 | EPC-309A | Intel® Core™ i3-10110U | 8GB DDR4 | SSD 256GB |
Note: Due to market fluctuations, key components such as the CPU model, memory and storage may change — please consult our sales team for the current configuration.
APPLICATIONS
EPC-309A Typical Applications
Powered by multiple COM ports, dual Gigabit LAN and modular expansion, the EPC-309A is widely deployed across the 4 industrial scenarios below.
CUSTOMIZATION · SAME-MODEL OPTIONS
EPC-309A Same-size Customization Options
Does the standard EPC-309A's I/O or expandability not fit your project? In the 337×160 10th Gen extended chassis you can choose FlexCore™ modular customization — a three-board swappable architecture with more I/O expansion, selected by scenario.
📞 Have other customization needs? Adjusting port counts / CPU platform upgrades / different power supplies / OEM branding — contact our sales engineers for a custom plan and quote.
