Standard 4U Rackmount
4U rackmount chassis compliant with 19″ standard cabinets. High-strength metal housing with a front USB + button industrial operation panel — ideal for centralized deployment in server and control rooms.
IPC-610-I SERIES · 4U RACK · 6-9TH GEN INTEL®
A standard 4U rackmount industrial computer for domestic-IT localization, secure deployment and high-reliability industrial applications
IPC-610-I Series Rackmount Industrial Server
The IPC-610-I Series is a standard 4U rackmount industrial computer platform, purpose-built for domestic localization, local-IT deployment and high-reliability industrial applications. It uses a high-strength metal chassis and supports flexible configuration of ATX / Micro ATX industrial motherboards across multiple generations of Intel® Core™ platforms — ideal for centralized deployment in server rooms, control rooms and on the industrial floor.
The unit provides a rich set of I/O, multiple drive bays and broad bus expandability, with PCIe x16, PCIe x4 and PCI expansion slots that accept acquisition cards, motion-control cards, communication cards, image-processing cards, graphics cards and other industrial add-in cards — making it easy to integrate machine vision, motion control, data acquisition, industrial automation and downstream systems.
Typical Applications
4Ustandard rackmount
LGA11516th-9th Gen Core
32GBDDR4 dual-channel
3+1SATA + mSATA
PRODUCT HIGHLIGHTS
IPC-610-I Series · Eleven Core Features
Server-grade chassis + domestic-IT localization support + FlexCore™ modularity — the top choice for critical-infrastructure scenarios.
LGA1151 Processor Socket
Supports Intel® 6th / 7th / 8th / 9th Gen Core™ i3 / i5 / i7 processors (LGA1151 socket). The CPU upgrades independently, with the CES-586A mainboard under long-term control.
Domestic IT Localization Support
Designed for critical-infrastructure scenarios such as government, defense, finance, energy and rail transit. Compatible with domestic operating systems (UOS / Kylin) and supports domestic application migration and certification testing.
Dual Display Output + Multi-I/O
VGA + HDMI dual display output, paired with rich I/O: USB 3.0 / 2.0 + RS-232 / RS-485 + Gigabit Ethernet + audio — covering the full range of industrial control, data acquisition and display output.
Multiple Drive Bays + mSATA
3× SATA III + 1× mSATA for RAID or redundant storage arrays. 32GB DDR4 dual-channel memory handles industrial data acquisition and video storage with ease.
Multi-bus Expansion
Micro ATX / ATX industrial mainboard options with multiple PCIe / PCI slots for add-in cards: motion control, multi-COM, capture, discrete GPU, NIC and more.
Dual Gigabit Ethernet
2× Intel Gigabit Ethernet for fast, stable industrial networking. Suited to multi-device coordination across PLCs, SCADA and vision servers.
9-36V Wide-voltage Industrial Power
9-36V DC wide-voltage input with four-way protection against over-voltage, over-current, reverse polarity and surge — riding out industrial grid spikes and transient voltage swings.
FlexCore™ Modular Hardware Architecture
Built on the FlexCore™ four-element architecture: i-Core compute + i-Function expansion + i-Connect I/O + Smart Thermal control. Unified interfaces, structure and power with free expansion.
SafeCore™ Industrial Reliability Enhancement
Four protection mechanisms working together: ① power protection (over-voltage / over-current / reverse polarity / surge) + ② backup power (smart lithium-battery power-loss buffering) + ③ start/stop control (auto power-on when energized) + ④ system self-recovery (watchdog + fault restart).
High-strength Metal Chassis
1.0~1.5 mm galvanized steel + aluminum front panel, IP30-rated, vibration- and EMI-resistant for long-term 7×24 operation. Watchdog + TPM 2.0 for dual security.

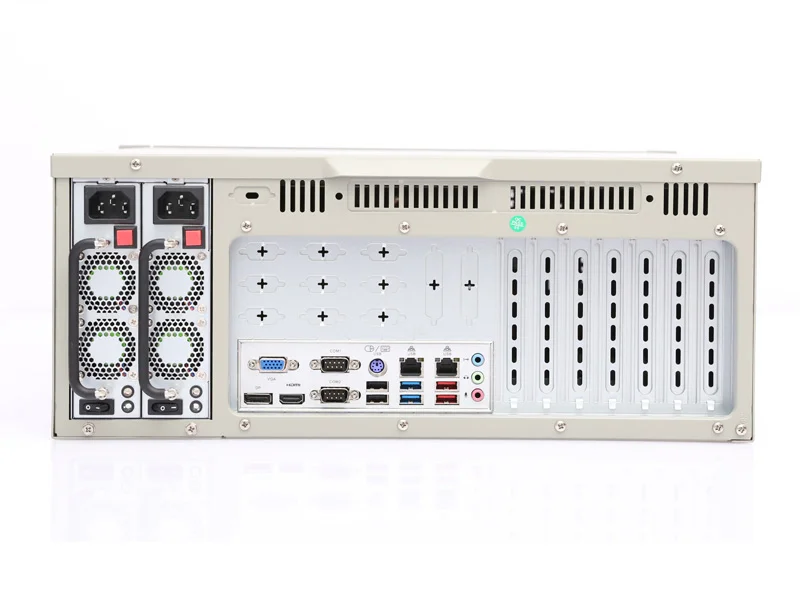

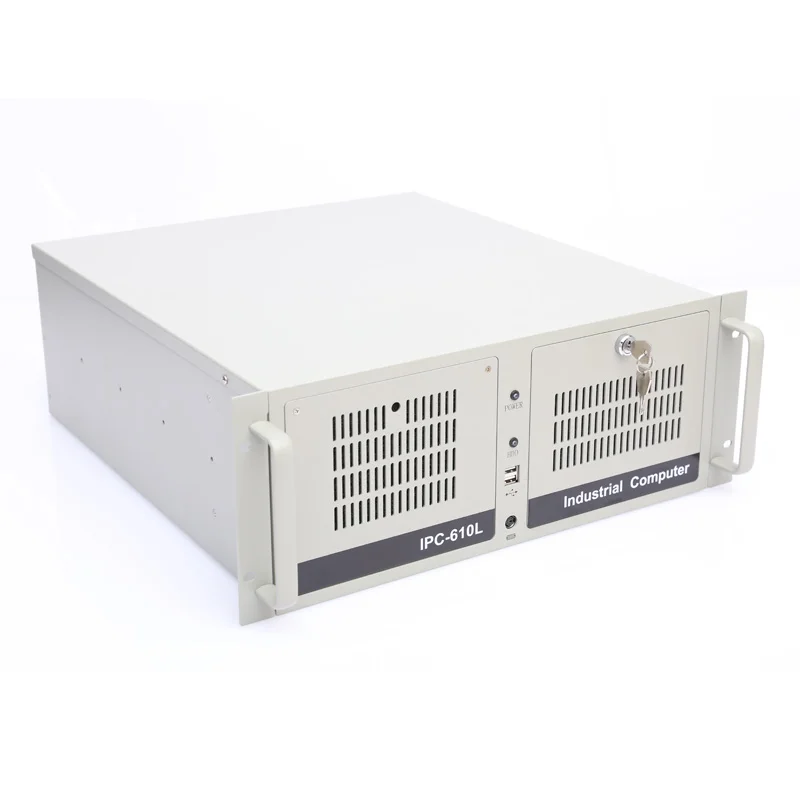

PRODUCT GALLERY
Product Gallery
SPECIFICATIONS
IPC-610-I Series Full Specifications
Datasheet V1.0 · updated 2026-03-20 · due to chip market fluctuations, key chips may change; please confirm with sales.
Core Hardware
| Item | Specification |
|---|---|
| Motherboard | CES-586A |
| Processor | Intel® 6th/7th/8th/9th Gen Core™ i3/i5/i7 (LGA1151 socket) |
| Chipset | Intel H110 PCH |
| Memory | 2× DDR4 DIMM slots, up to 32GB |
| Storage | 3× STATIII, 1 xmSATA |
I/O Ports
| Item | Specification |
|---|---|
| USB 2.0 | 6 |
| USB 3.0 | 4 |
| RS232 | 8 |
| RS485 | 2 |
| VGA | 1 |
| HDMI | 1 |
| Gigabit Ethernet | 2 × Intel I210 |
| Audio | 1xMic-in, 1x Line-in,1x Line-out |
| Wi-Fi (optional) | Dual-band 2.4G/5G Wi-Fi module |
Power Input
| Item | Specification |
|---|---|
| Power Connector | Standard ATX power supply |
| ATX Switch | 1× ATX power switch |
| Boot Mode | AT/ATX mode switch (built-in) |
Physical & General
| Item | Specification |
|---|---|
| Dimensions | 428mmx450mmx177mm |
| Mounting | 19″ rack mounting |
| Weight | 13 kg net weight |
| Enclosure Material | 1.2mmhigh-strength carbon structural steel, compliant with CCC, FCC and CE |
| Color | Industrial black or industrial gray |
| Reset Switch | 1× reset switch |
| TPM | TPM 2.0 |
| Watchdog | Hardware watchdog supported |
| MTBF | 100,000 hrs |
Operating Environment
| Item | Specification |
|---|---|
| Operating Temperature | -0~60℃ (wide temp -40~80℃ optional) |
| Storage Temperature | -10~70℃ (wide temp -40~80℃ optional) |
| Relative Humidity | 10%~90%, non-condensing |
| EMC | CE, FCC (EN 55032 & EN 55035) |
| EMC Harmonics | EN IEC 61000-3-2 |
Operating System
| Item | Specification |
|---|---|
| Windows | Windows 10 / Windows 11 |
| Linux | Ubuntu 16.04 / 18.04 / 20.04 / 22.04 |
Certifications & Compliance
| Item | Specification |
|---|---|
| Factory Certification | ISO9001: 2015 |
| BIOS Customization | BIOS / Boot LOGO / OEM |
I/O LAYOUT
Front & Rear Panel I/O Layout
Server-grade chassis with front/rear I/O partitioning for easy cabinet wiring and maintenance.

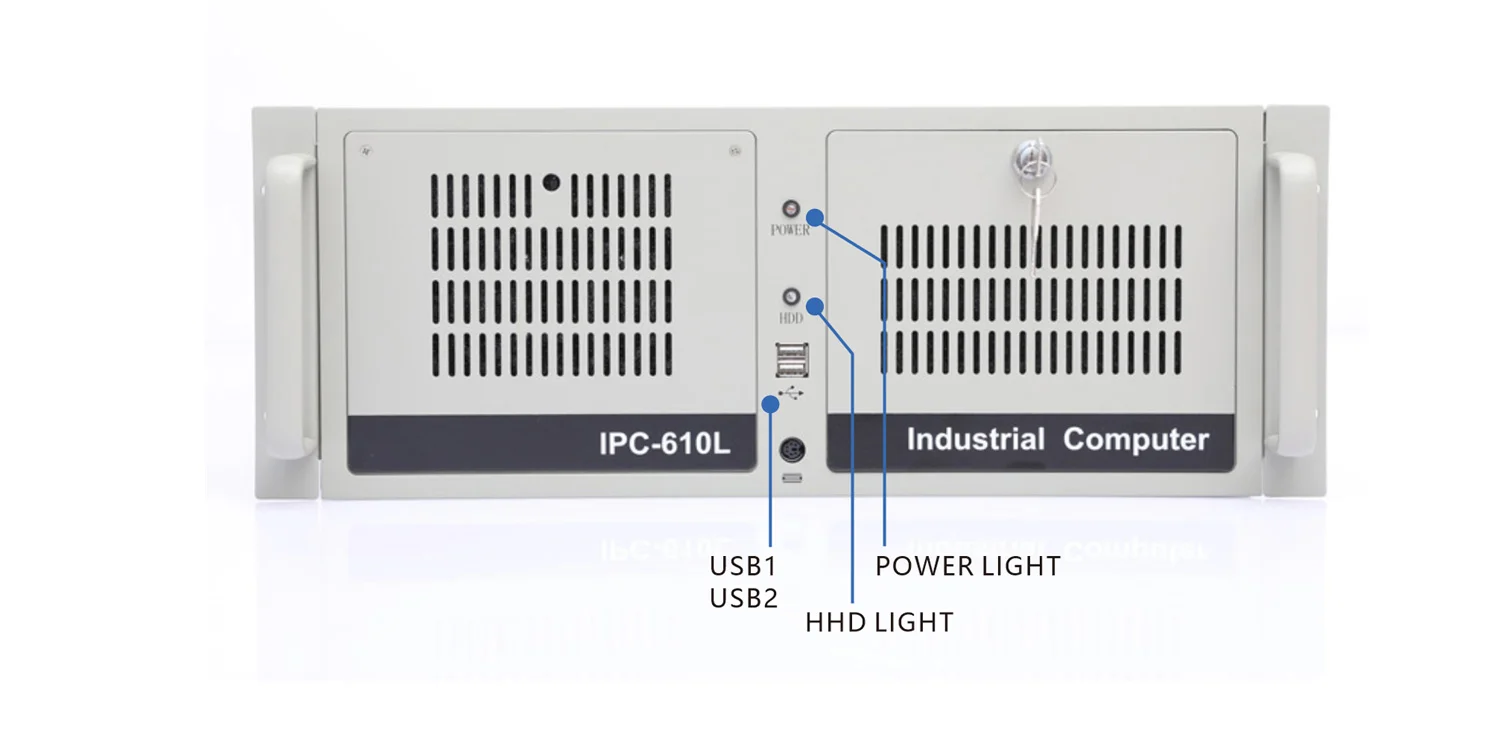

Front Panel

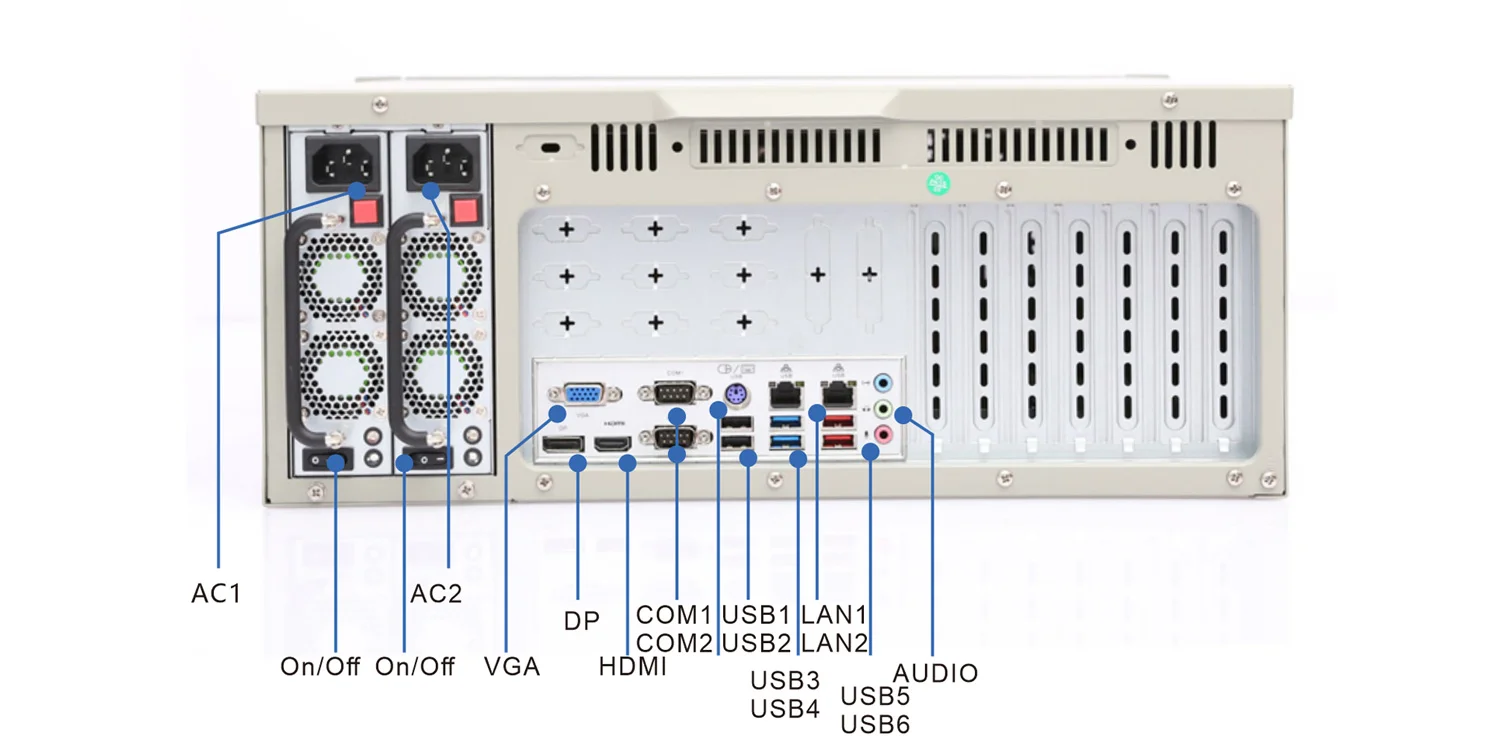

Rear Panel
DIMENSIONS

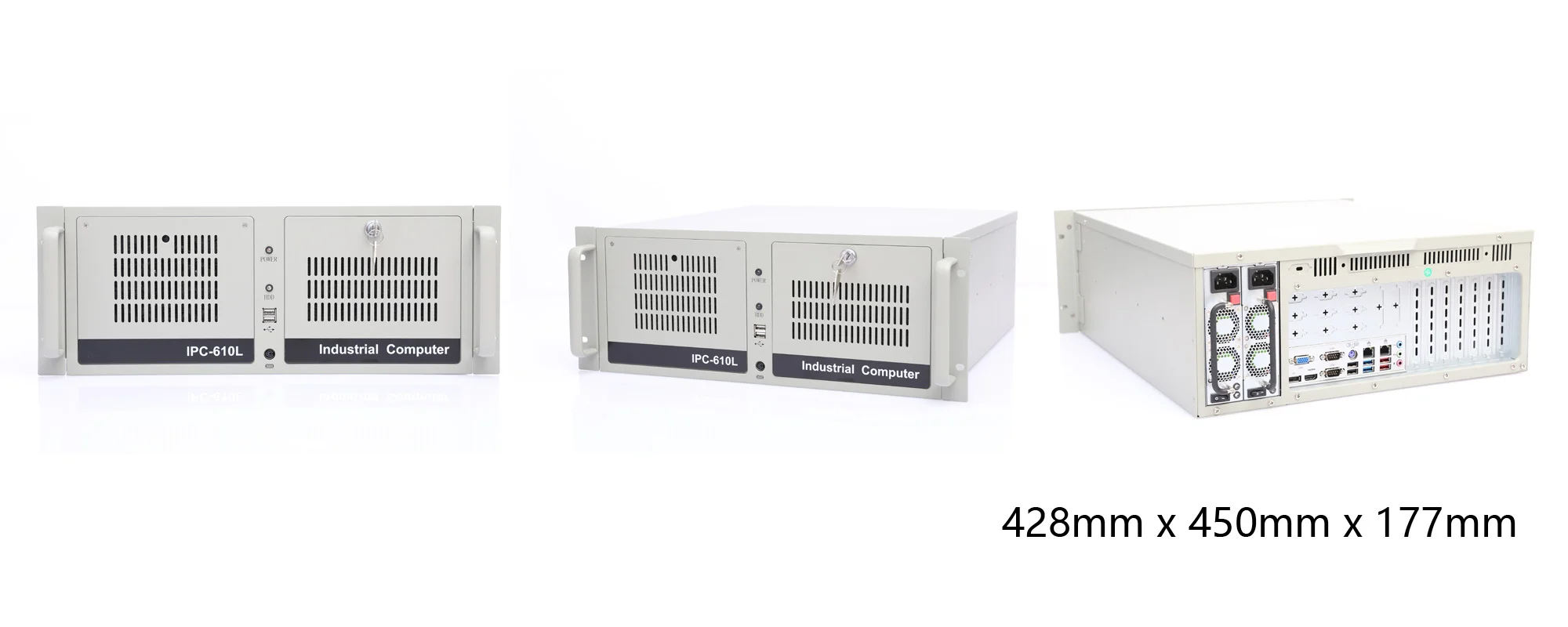

Dimensions — Three Views (mm)
4U rackmount structural dimensions · see the datasheet or the three views below for detailed data.
ORDERING INFORMATION
Ordering Information · Part Number
The table below shows typical configurations. This series supports free configuration of CPU / memory / storage / GPU / expansion boards — please confirm part numbers with sales.
| No. | Part Number | Model | Processor | Memory | Storage |
|---|---|---|---|---|---|
| 01 | C5.02.01.686 | IPC-610-I Series | Intel® Core™I5-12400 | 16GB DDR5 | SSD 1TGB |
Note: This series is a flexibly configurable industrial server, supporting project-level customization of the CPU platform, memory capacity, number of drives, graphics-card model, number of NICs and add-in cards. Please contact sales for the specific configuration.
APPLICATIONS
IPC-610-I Series Typical Applications
With a server-grade chassis, broad expandability and domestic-IT localization support, the IPC-610-I Series is widely deployed across the 4 scenarios below.
IPC-610-I Series Selection Consultation
Tell us your project background, CPU platform needs, domestic-IT requirements and volume — our engineers will respond within 24 hours with a full datasheet, quote and prototype evaluation plan.
