A 12th Gen Intel® Core™ modular embedded computing platform for industrial control and multi-LAN applications
The CESIPC EPC-102B is a high-performance modular embedded computing platform for unattended multi-LAN applications on the industrial floor. Built on the 12th Gen Intel® Core™ i5-1235U processor platform, it balances performance and efficiency, offering four Gigabit Ethernet ports and a rich set of industrial I/O, with support for 9-36V wide-voltage DC power to suit demanding industrial power environments. The unit uses a smart temperature-controlled fan cooling design and integrates the FlexCore™ modular architecture with SafeCore™ reliability-enhancement technology, ensuring stable operation while delivering high serviceability and long-term reliability — ideal for industrial control, machine vision, data acquisition and edge computing.
FlexCore™ four-element modularity (3 boards + smart thermal control) — upgrade compute, expand I/O and service features, all without replacing the whole unit.
i-Core compute + i-Function expansion (PoE / DIO / CAN / AI acceleration) + i-Connect I/O (multi-COM / LAN / comms, hot-swappable) + Smart Thermal control. Upgrade compute, expand I/O and service features — all without replacing the whole unit.
Intel® Core™ i5-1235U 10C12T, up to 4.4 GHz, Iris Xe 80EU. An industrial-grade SKU balancing performance and efficiency.
Dual Intel I210 Gigabit NICs with PTP clock synchronization — matched to industrial cameras and multi-device coordination for low latency, low loss and stable transmission.
4× USB 3.0 + 2× USB 2.0 + 2× RS-232 + 1× RS-485 + 2× GbE + HDMI + VGA + audio. High-density layout in a compact chassis.
The top i-Function I/O board can be swapped in the field, adding COM / CAN / digital I/O / Mini-PCIe and other expansions — upgrading without replacing the whole unit.
1× Mini-PCIe slot with optional dual-band Wi-Fi / Bluetooth / 4G / 5G modules, flexibly adapting to on-site networking.
A 3-pin pluggable Phoenix terminal with 9-36V DC wide-voltage input. Four-way protection against over-voltage, over-current, reverse polarity and surge — easy and secure wiring.
One-piece die-cast finned cooling in 6061 high-strength aluminum alloy with zero moving parts — maintenance-free, dust- and vibration-resistant, for industrial endurance.
Four protection mechanisms working together: ① power protection (over-voltage / over-current / reverse polarity / surge) + ② backup power (smart lithium-battery power-loss buffering) + ③ start/stop control (auto power-on when energized) + ④ system self-recovery (watchdog + fault restart).
6061 high-strength aluminum alloy + sheet-metal structure for an industrial-grade rugged body. The IP65 front panel resists dust and splashing water, with TPM 2.0 + watchdog for dual security.
Windows 10 / 11 · CentOS · Ubuntu 16.04 / 18.04 / 20.04 / 22.04. BIOS supports customization, boot logo and OEM branding.
Datasheet V1.0 · updated 2026-03-20 · due to chip market fluctuations, key chips may change; please confirm with sales.
| Item | Specification |
|---|---|
| Processor | i5-1235U |
| Cores | 10 (2P+8E) |
| Threads | 12 |
| Frequency | 1.3~4.4 GHz |
| Cache | 12 MB L3 Cache |
| TDP | 15W |
| Graphics | Intel Iris Xe Graphics (80 EUs) |
| Memory | 8~32 GB DDR5 |
| Storage | 2× M.2 2280 PCIe NVMe SSD |
| Item | Specification |
|---|---|
| USB 3.0 | 4 |
| HDMI | 1 |
| Gigabit Ethernet | 4 × Intel I210 |
| Audio | 3.5mm TRRS |
| Wi-Fi (optional) | Dual-band 2.4G/5G Wi-Fi module |
| Item | Specification |
|---|---|
| Power Connector | 3-pin pluggable terminal block, 9–36V DC wide-range input |

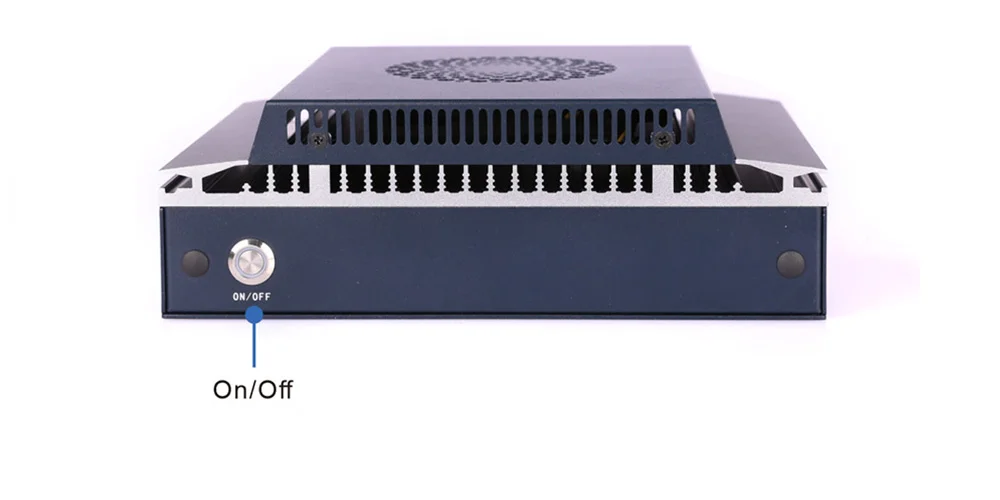

| ATX Switch | 1× ATX power switch |
| Boot Mode | AT/ATX mode switch (built-in) |
| Item | Specification |
|---|---|
| Dimensions | 195 (L)×160 (W)×64.5 (H)mm |
| Mounting Dimensions | 195 (L)×160 |
| Weight | 1.8 kg net weight |
| Enclosure Material | 6061 high-strength aluminum alloy |
| Mechanical Structure | Extruded aluminum + sheet-metal structure |
| Mounting | Bracket mounting / VESA wall mount |
| Reset Switch | 1× reset switch |
| TPM | TPM 2.0 |
| Watchdog | Hardware watchdog supported |
| MTBF | 60,000 hrs |
| Item | Specification |
|---|---|
| Operating Temperature | 0~60℃ (wide temp -40~80℃ optional) |
| Storage Temperature | -10~70℃ (wide temp -40~80℃ optional) |
| Relative Humidity | 10%~90%, non-condensing |
| EMC | CE, FCC (EN 55032 & EN 55035) |
| EMC Harmonics | EN IEC 61000-3-2 |
| Item | Specification |
|---|---|
| Windows | Windows 10 / Windows 11 |
| Linux | Ubuntu 16.04 / 18.04 / 20.04 / 22.04 |
| Item | Specification |
|---|---|
| Factory Certification | ISO9001: 2015 |
| BIOS Customization | BIOS / Boot LOGO / OEM |
The i-Function I/O board can be swapped in the field, adding features without replacing the whole unit — the core value of FlexCore™ modularity.
Unit 240 × 175 × 70 mm · mounting via bracket / VESA · net weight approx. 2.0 kg.
The standard configurations below can be ordered directly; for custom CPU / memory / storage / i-Function I/O boards, please contact sales.
| No. | Part Number | Model | Processor | Memory | Storage |
|---|---|---|---|---|---|
| 01 | C10.01.04.006 | EPC-102B | Intel® Core™ i5-1235U with smart fan | 16GB DDR5 | SSD 256GB |
| 02 | C10.01.04.008 | EPC-102B | Intel® Core™ i7-1255U with smart fan | 32GB DDR5 | SSD 512GB |
Note: Due to market fluctuations, key components such as the CPU model, memory and storage may change — please consult our sales team for the current configuration.

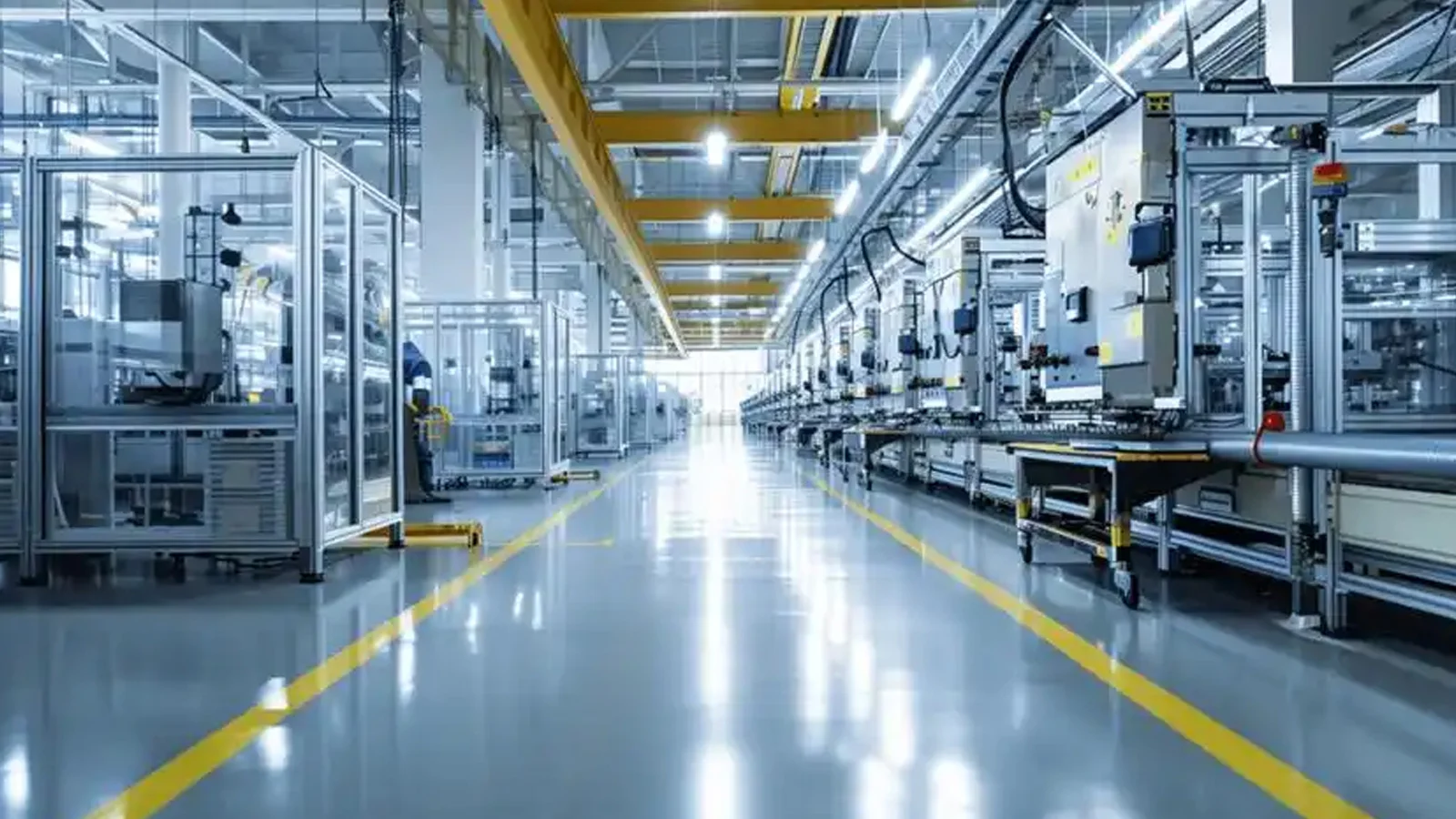

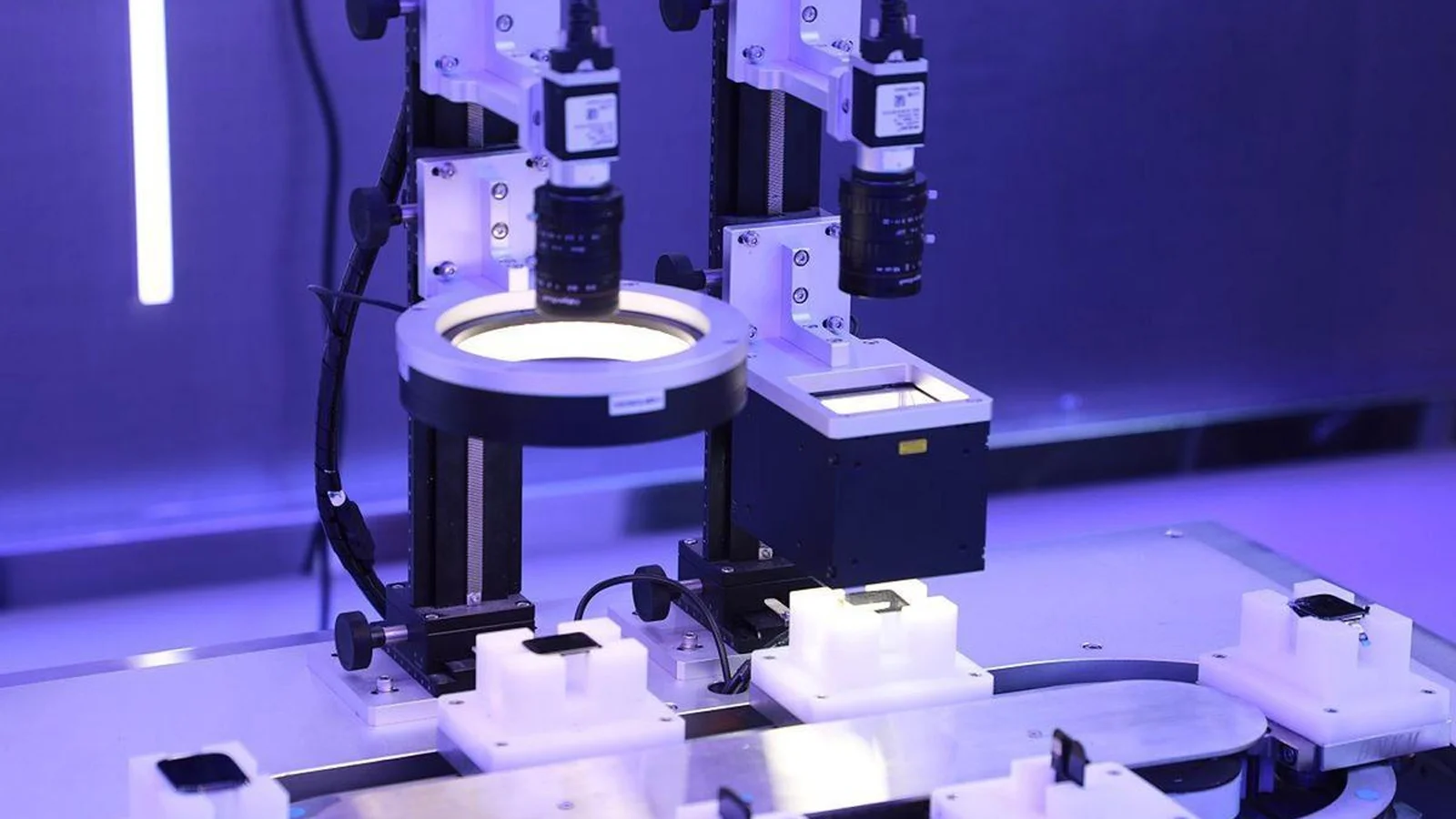

Built on FlexCore™ modularity and rich I/O expansion, the EPC-102B is widely deployed across the 4 industrial scenarios below.
Tell us your project background, I/O and power requirements and volume — our engineers will respond within 24 hours with a full datasheet, quote and prototype evaluation plan.
