Bay Trail-D J1900 Economy
Intel® Celeron® J1900 4C4T, 2.0 GHz base. Native Windows 7 support — the top choice for legacy-system compatibility.
UPC-206F · J1900 · BUILT-IN 4G LTE
A J1900 fanless industrial platform with built-in all-network 4G, for remote monitoring in remote areas
UPC-206F J1900 Quad-core Modular Universal Box PC | Built-in All-network 4G
The UPC-206F is a fanless industrial computer powered by the Intel® Celeron® J1900 processor with a built-in 4G full-network communication module supporting remote wireless data transmission — especially suited to remote areas where networking is hard to deploy. It provides 4 USB, 2 Gigabit LAN, 4 COM ports, HDMI display output and an external TF card slot, meeting a range of device connectivity and data acquisition needs. It is widely used in remote monitoring projects for infrastructure such as remote mountain areas and bridges, providing stable, efficient edge computing and communication support for smart-bridge, environmental-monitoring and similar scenarios.
Typical Applications
Built-in 4Gall-network LTE
J1900quad-core economy
SIM cardno external DTU
9-36Vwide-voltage input
PRODUCT HIGHLIGHTS
UPC-206F · Eleven Core Features
From core compute to industrial-grade protection — every design choice serves a clear purpose.
Built-in 4G LTE All-network
The unit integrates a 4G LTE full-network module + SIM card slot, uploading data without an external DTU. Ideal for remote sites, unattended deployments and remote monitoring.
Dual Gigabit Ethernet
2× Intel Gigabit Ethernet for multi-device coordination across PLCs, SCADA and vision systems. Low-latency, low-loss, stable transmission.
Rich Industrial I/O
USB 3.0/2.0 + RS-232/485 + GbE + HDMI + VGA multi-interface combination, covering the full range of industrial control, data acquisition and display output.
9-36V Wide-voltage Input
9-36V DC wide-voltage input via a Phoenix or 2-pin terminal, with four-way protection against over-voltage, over-current, reverse polarity and surge.
FlexCore™ Modular Hardware Architecture
Built on the FlexCore™ four-element architecture: i-Core compute + i-Function expansion + i-Connect I/O + Smart Thermal control. Unified interfaces, structure and power with free expansion.
Fanless Cooling
One-piece die-cast finned cooling in 6061 high-strength aluminum alloy with zero moving parts — maintenance-free, dust- and vibration-resistant, for industrial endurance.
SafeCore™ Industrial Reliability Enhancement
Four protection mechanisms working together: ① power protection (over-voltage / over-current / reverse polarity / surge) + ② backup power (smart lithium-battery power-loss buffering) + ③ start/stop control (auto power-on when energized) + ④ system self-recovery (watchdog + fault restart).
Hardware-level Auto Power-on
An independent power-logic circuit triggers the power-on signal, without relying on the BIOS. It restarts automatically once power is restored, keeping unattended deployments running continuously.
6061 Aluminum + VESA Wall Mount
6061 high-strength aluminum alloy + sheet-metal structure for an industrial-grade rugged body. VESA-standard wall mount, with TPM 2.0 + watchdog for dual security.
Windows 7 / 10 Compatible
Native Windows 7 support, also compatible with Windows 10 and mainstream Linux — meeting legacy-system compatibility needs on the industrial floor.
PRODUCT GALLERY

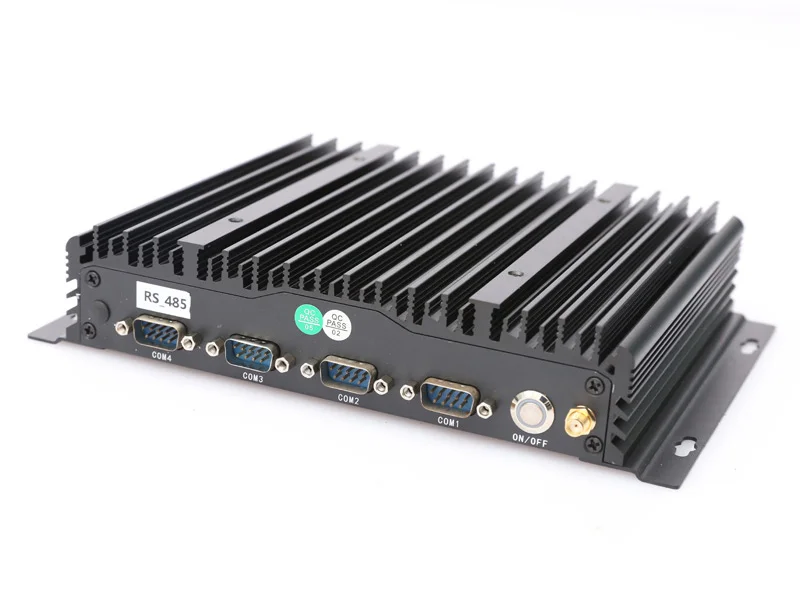

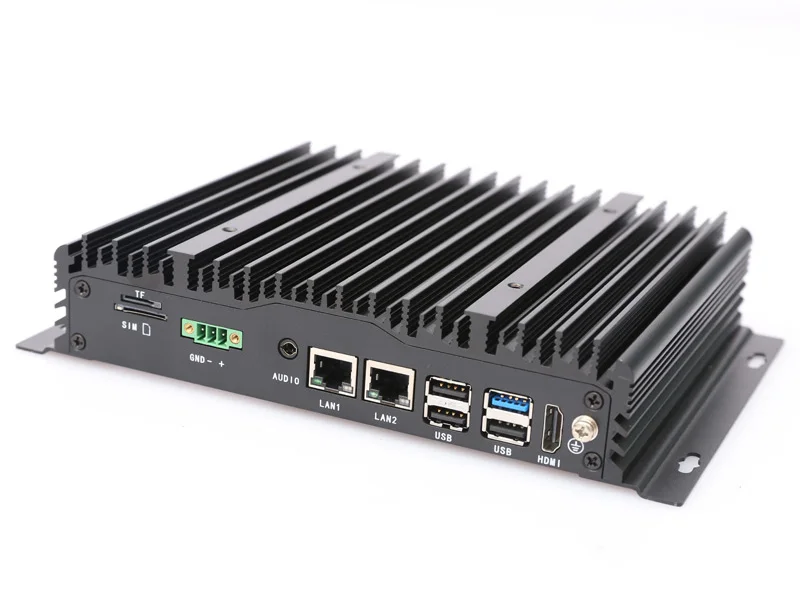

Product Gallery
SPECIFICATIONS
UPC-206F Full Specifications
Datasheet V1.0 · updated 2026-03-20 · due to chip market fluctuations, key chips may change; please confirm with sales.
Core Hardware
| Item | Specification |
|---|---|
| Processor | Intel® Celeron® J1900 |
| Cores | 4 |
| Threads | 4 |
| Frequency | 2.0~2.42 GHz |
| Cache | 2 MB L2 Cache |
| TDP | 10W |
| Graphics | Intel HD Graphics |
| Memory | DDR3L 4~8GB |
| Storage | 1× mSATA SSD |
I/O Ports
| Item | Specification |
|---|---|
| USB 2.0 | 3 |
| USB 3.0 | 1 |
| RS232 | 2 |
| RS485 | 1 |
| HDMI | 1 |
| Gigabit Ethernet | 2 × LAN |
| Audio | 3.5mm TRRS |
| Wi-Fi (optional) | Dual-band 2.4G/5G Wi-Fi module |
| 4G | 1 × 4G full-network |
| TF | 1 |
Power Input
| Item | Specification |
|---|---|
| Power Connector | 3-pin pluggable terminal block, 9–36V DC wide-range input |
| ATX Switch | 1× ATX power switch |
| Boot Mode | AT/ATX mode switch (built-in) |
Physical & General
| Item | Specification |
|---|---|
| Dimensions | 229 (L)×160 (W)×46 (H)mm |
| Mounting Dimensions | 219 (L)×100 (W)mm |
| Weight | 1.4 kg net weight |
| Enclosure Material | 6061 high-strength aluminum alloy |
| Mechanical Structure | Extruded aluminum + sheet-metal structure |
| Mounting | Bracket mounting / VESA wall mount |
| Reset Switch | 1× reset switch |
| TPM | TPM 2.0 |
| Watchdog | Hardware watchdog supported |
| MTBF | 60,000 hrs |
Operating Environment
| Item | Specification |
|---|---|
| Operating Temperature | 0~60℃ (wide temp -40~80℃ optional) |
| Storage Temperature | -10~70℃ (wide temp -40~80℃ optional) |
| Relative Humidity | 10%~90%, non-condensing |
| EMC | CE, FCC (EN 55032 & EN 55035) |
| EMC Harmonics | EN IEC 61000-3-2 |
Operating System
| Item | Specification |
|---|---|
| Windows | Windows 10 / Windows 11 |
| Linux | Ubuntu 16.04 / 18.04 / 20.04 / 22.04 |
Certifications & Compliance
| Item | Specification |
|---|---|
| Factory Certification | ISO9001: 2015 |
| BIOS Customization | BIOS / Boot LOGO / OEM |
I/O LAYOUT
Front & Rear Panel I/O Layout
Compact universal box chassis with front/rear I/O partitioning following industrial wiring conventions.

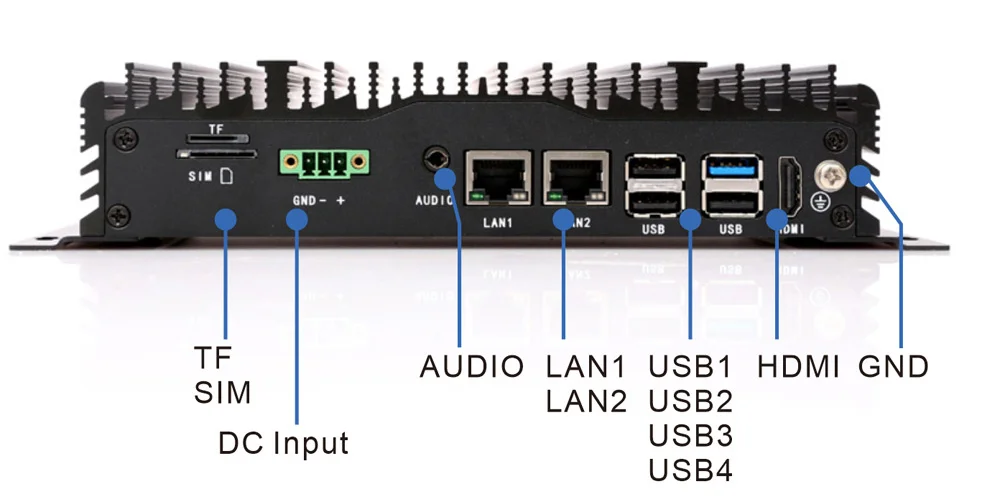

Front Panel

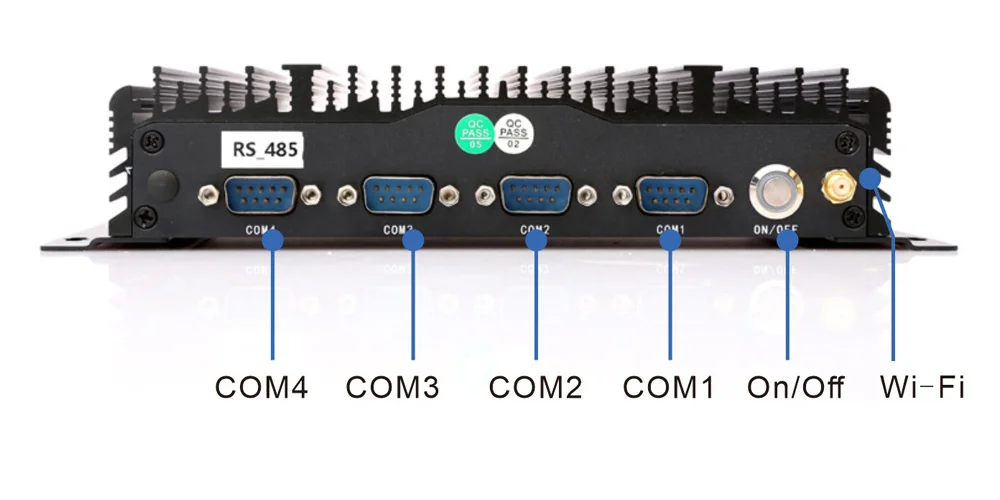

Rear Panel
DIMENSIONS

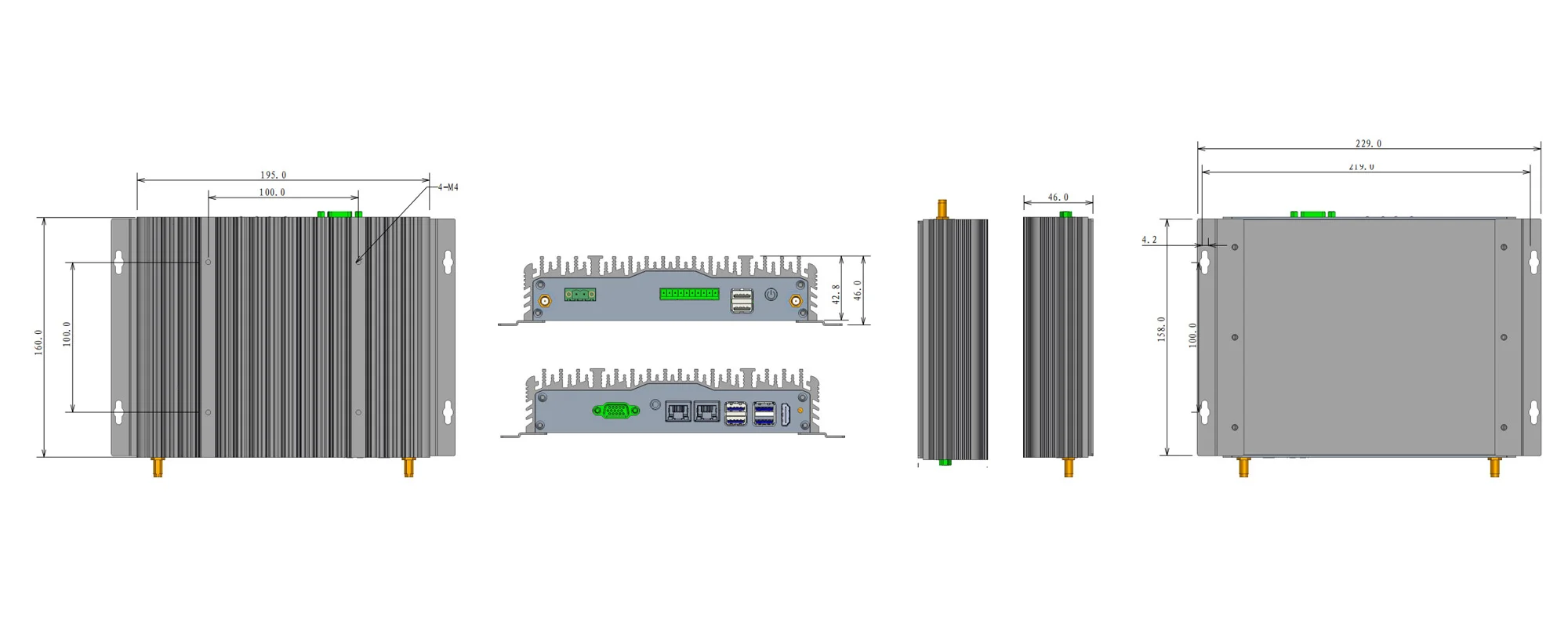

Dimensions — Three Views (mm)
See the datasheet or the three views below for detailed dimensions. VESA-standard wall mounting supported.
ORDERING INFORMATION
Ordering Information · Part Number
The standard configurations below can be ordered directly; for custom CPU / memory / storage / I/O boards, please contact sales.
| No. | Part Number | Model | Processor | Memory | Storage |
|---|---|---|---|---|---|
| 01 | C8.02.01.019 | UPC-206F | Intel® Celeron® J1900 | 4GB DDR3 | SSD 128GB |
| 03 | C8.02.01.021 | UPC-206F | Intel® Celeron® J1900 | 4GB DDR3 | SSD 1TB |
Note: Due to market fluctuations, key components such as the CPU model, memory and storage may change — please consult our sales team for the current configuration.
APPLICATIONS

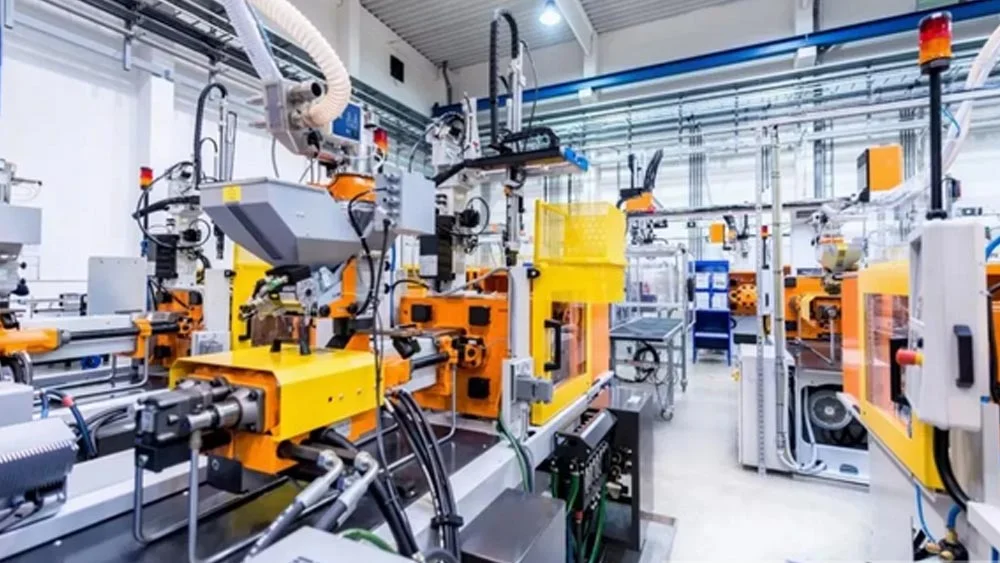

UPC-206F Typical Applications
Powered by rich I/O expansion and industrial reliability enhancements, the UPC-206F is widely deployed across the 4 industrial scenarios below.
CUSTOMIZATION · SAME-MODEL OPTIONS
UPC-206F Other Same-size Customized Versions
Does the UPC-206F (J1900 4G remote) not fit your project? On the same FlexCore™ modular base you can pick other customized configurations — selected by actual I/O, connectivity and reliability needs.
📞 Have other customization needs? Adjusting port counts / CPU platform upgrades / different power supplies / OEM branding — contact our sales engineers for a custom plan and quote. Lower budget / need a 7th Gen i7 legacy platform? See the UPC-108H 7th Gen i7 economy option →
UPC-206F Selection Consultation
Tell us your project background, I/O and power requirements and volume — our engineers will respond within 24 hours with a full datasheet, quote and prototype evaluation plan.
