FLEXCORE™ MODULAR BOARD SET

Mainboard Combinations

5 system schemes · 18 interface configurations · three-board modular design ── the i-Core compute board, i-Function expansion board and i-Connect I/O board combine freely to cover industrial PCs, panel PCs, AI edge and field operations.

Computei-CoreCPU platformExpandi-FunctionFunction moduleI/Oi-ConnectI/O routing
DESIGN PHILOSOPHY

Three Boards Separated · Bus-Coordinated · Freely Combined

FlexCore™ splits the traditional single-PCB industrial mainboard into three layers — compute / control / connectivity. i-Core carries the CPU, i-Function handles functional differences, and i-Connect integrates field I/O. Any layer can be upgraded independently, while the platform can be frozen for 5–7 years.

↓60%
R&D cycle
↓70%
BOM complexity
5–7 yrs
Long-term supply
5–50 units
Low MOQ
5 SCHEMES · 18 VARIANTS

5 system schemes · 18 interface variants

Every scheme shares the i-Core compute board platform ── simply by swapping the i-Function expansion board and i-Connect I/O board, you can derive system interface configurations tailored to different industrial scenarios.

A
Standard I/O · best value

Scheme A · Economy Base Interfaces

An economical combination for general industrial control ── a single LAN port plus standard USB / display / audio / power, with COM serial ports expandable as needed (0 / 3 / 5). It is the go-to configuration for entry-level ComputeOps™ industrial PCs.

Base I/OHDMI · 4×USB3.0 · 2×LAN · AUDIO · VGA · DC IN
Internal ModulesM.2 NVMe + M.2 PCIe · memory · LVDS/EDP · USB touchscreen
COM Expansion0 / 3×COM / 5×COM, three options
Typical ModelsEPC-102A / EPC-302A entry industrial PCs

3 interface variant configurations

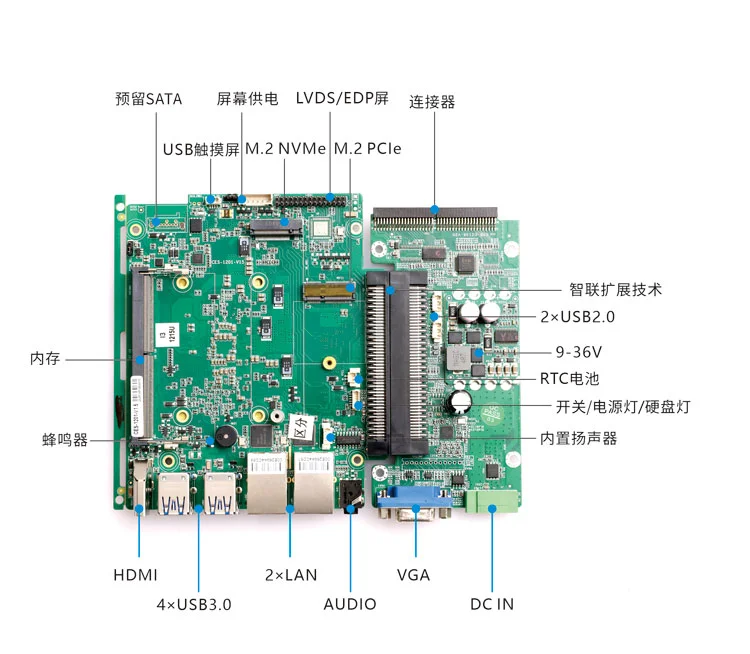

Scheme A · Economy base interfaces - base version
Base Version
No COM expansion · i-Core + i-Connect only

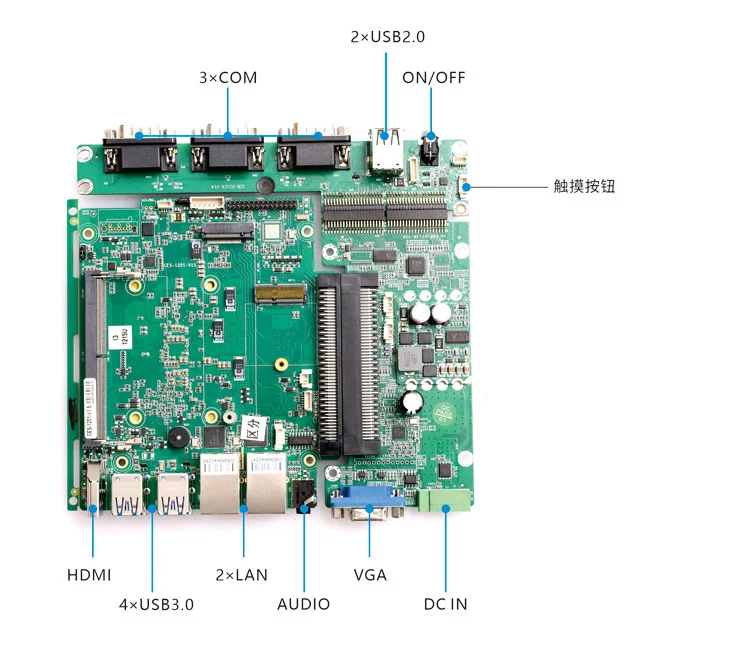

Scheme A · Economy base interfaces - 3×COM version
3×COM Version
i-Function adds 3 serial ports

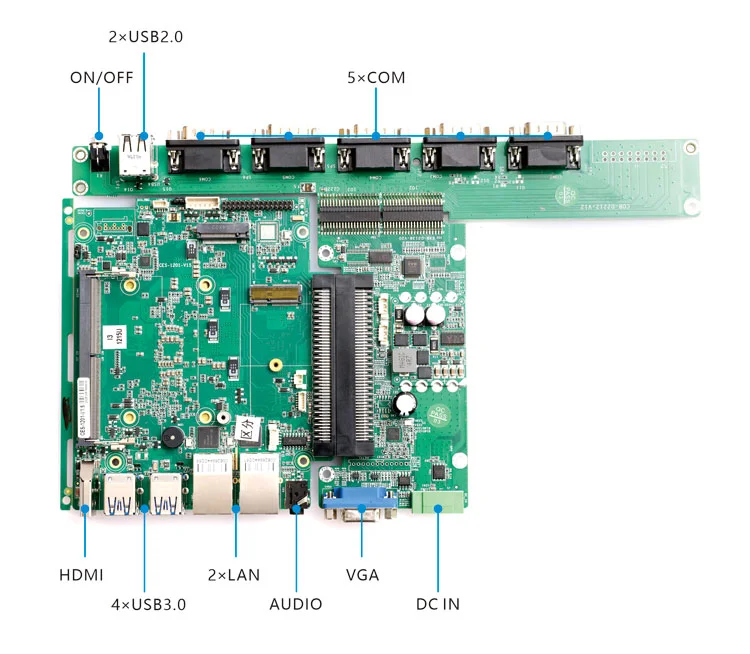

Scheme A · Economy base interfaces - 5×COM version
5×COM Version
i-Function adds 5 serial ports
B
Status LEDs + touch keys

Scheme B · Touch & Indicator Type

Building on Scheme A, it adds status LEDs (power / disk / status) and capacitive touch keys ── ideal for HMI systems that need panel interaction, common in FrontOps™ panel PCs and cabinet control panels.

Enhanced ModulesStatus LEDs · touch buttons · buzzer · ON/OFF switch
Base I/OHDMI · 4×USB3.0 · 2×LAN · AUDIO · VGA · DC IN
COM Expansion0 / 3×COM / 5×COM, three options
Typical ModelsEPC-S panel PCs / cabinet operator panels

3 interface variant configurations

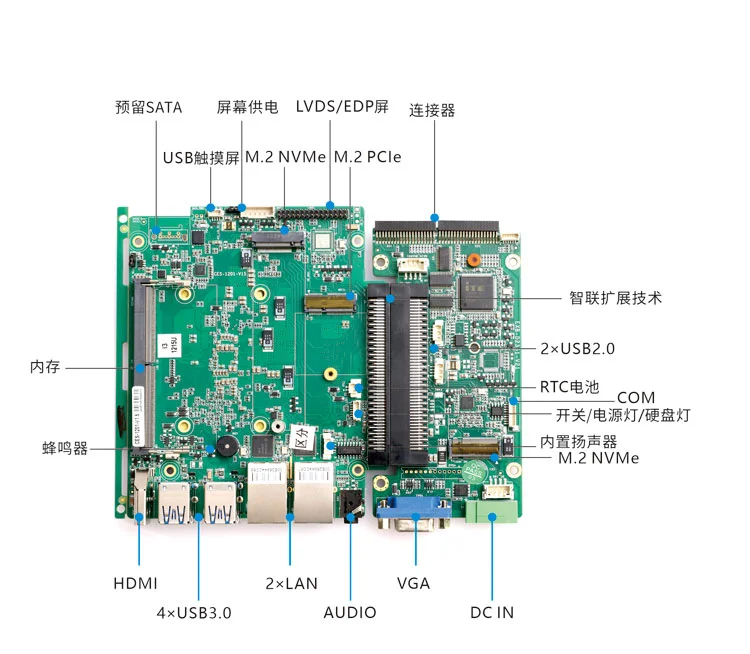

Scheme B · Touch & indicator type - base version
Base Version
Status LEDs + touch keys as standard

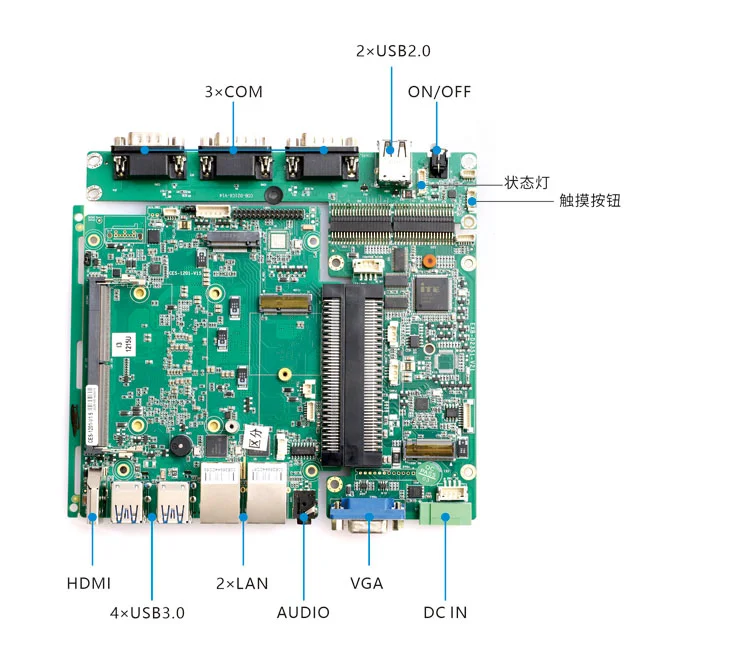

Scheme B · Touch & indicator type - 3×COM version
3×COM Version
+ 3 serial ports

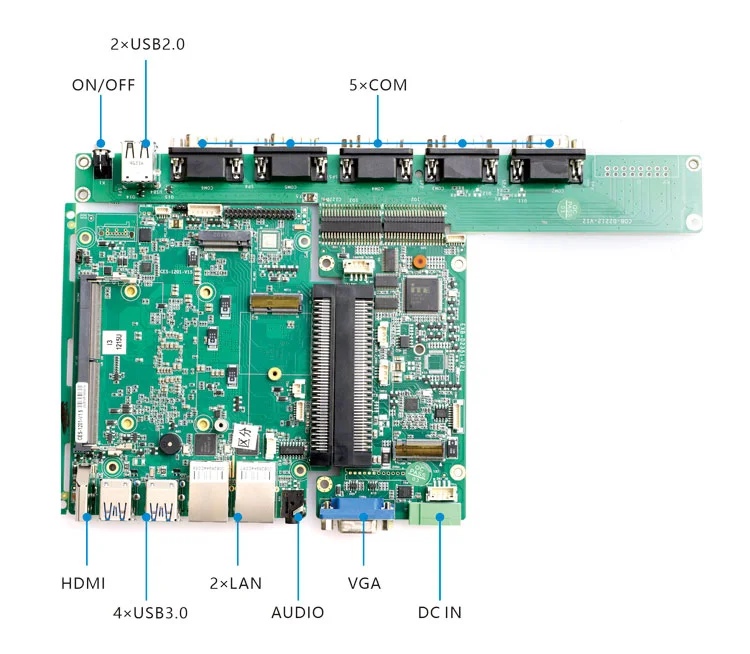

Scheme B · Touch & indicator type - 5×COM version
5×COM Version
+ 5 serial ports
C
Dual gigabit LAN · fan thermal control

Scheme C · Dual-LAN Industrial Network

For industrial networks that must separate internal and external traffic ── dual gigabit LAN ports connect to the OT fieldbus and the IT management network respectively, with an integrated smart fan thermal module. Ideal for machine-vision gateways and edge industrial PCs.

Network Enhancement2×LAN gigabit ports · independent MAC / IP
Smart ThermalOn-board temperature sensing · PWM fan control
Base I/OHDMI · 4×USB3.0 · AUDIO · VGA · DC IN
COM Expansion0 / 3×COM / 5×COM, three options

3 interface variant configurations

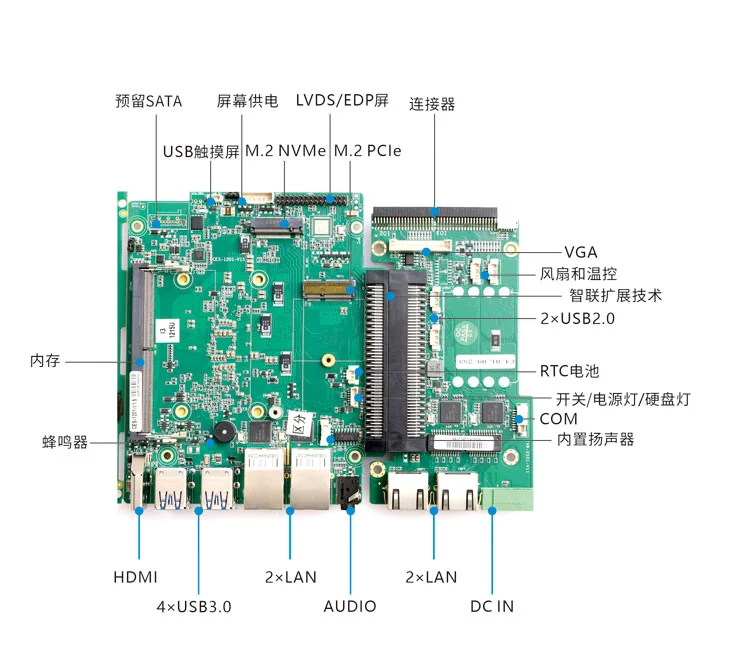

Scheme C · Dual-LAN industrial network - base version
Base Version
Dual LAN + fan thermal control

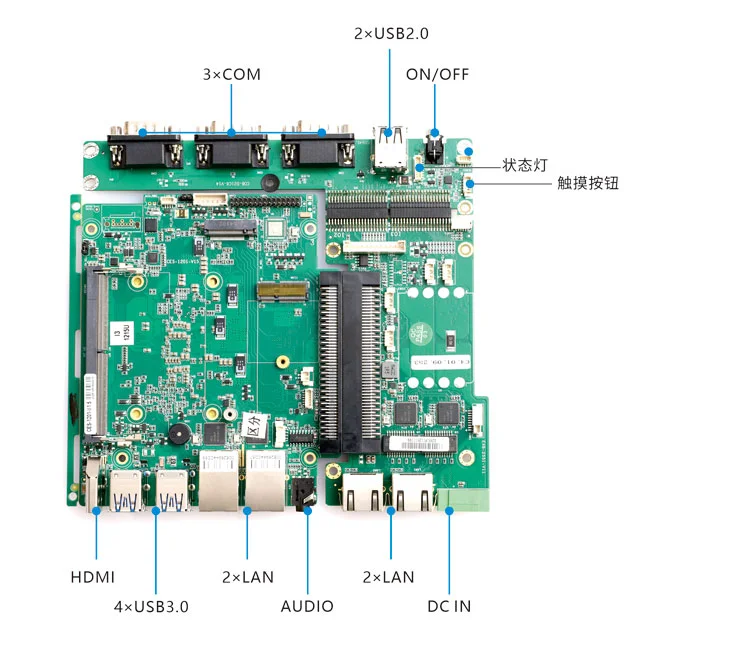

Scheme C · Dual-LAN industrial network - 3×COM version
3×COM Version
Dual LAN + status LEDs + 3×COM

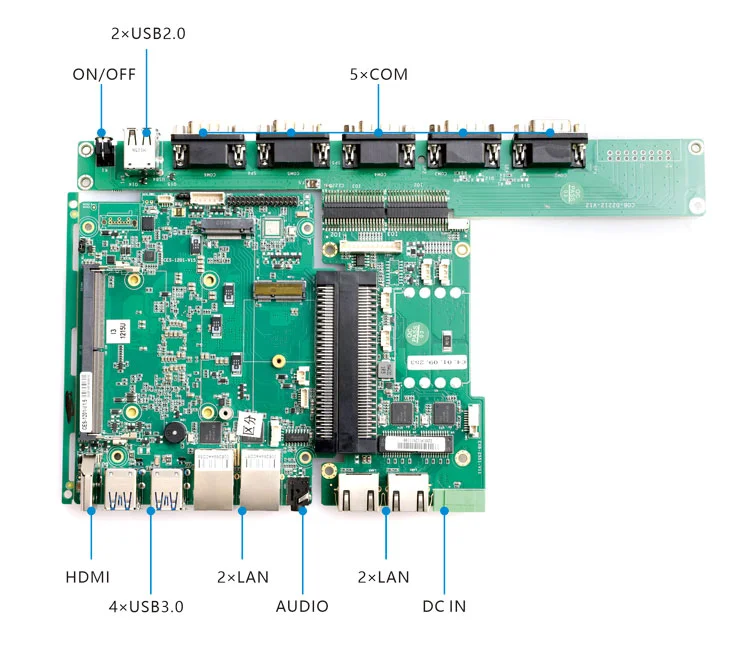

Scheme C · Dual-LAN industrial network - 5×COM version
5×COM Version
Dual LAN + 5 serial ports
D
16-channel GPIO · top pick for industrial automation

Scheme D · VGA + GPIO Industrial Control

The i-Function expansion board carries 16-channel GPIO (5V/24V selectable) ── connecting directly to PLCs, relays, sensors and other field devices. It is the most common interface combination for CNC machine-tool and semiconductor-equipment integration.

Industrial I/O16-channel GPIO · 5V / 24V level selectable
Video OutputHDMI + VGA dual display output
Base I/O4×USB3.0 · 2×LAN · AUDIO · DC IN
COM Expansion0 / 3 / 5×COM × with-or-without GPIO, 6 in total

6 interface variant configurations

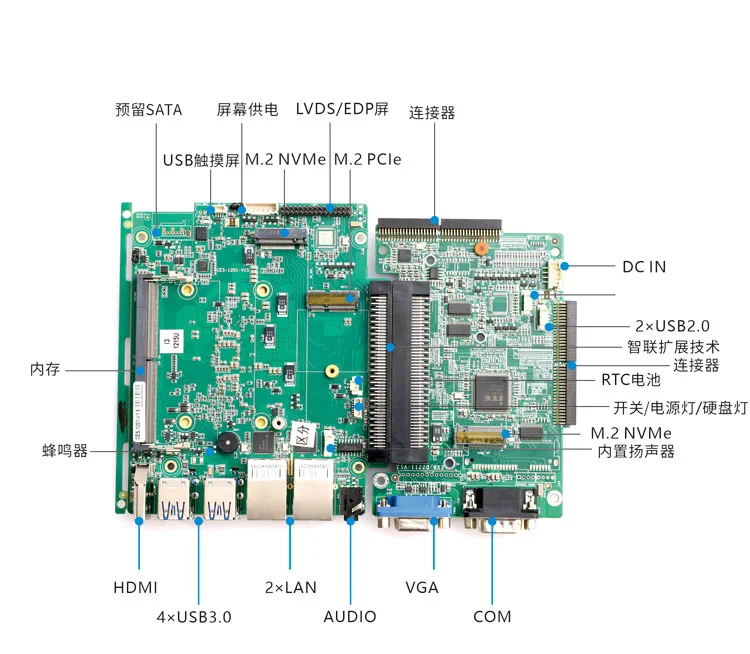

Scheme D · VGA + GPIO industrial control - VGA base version
VGA Base Version
i-Connect + VGA display

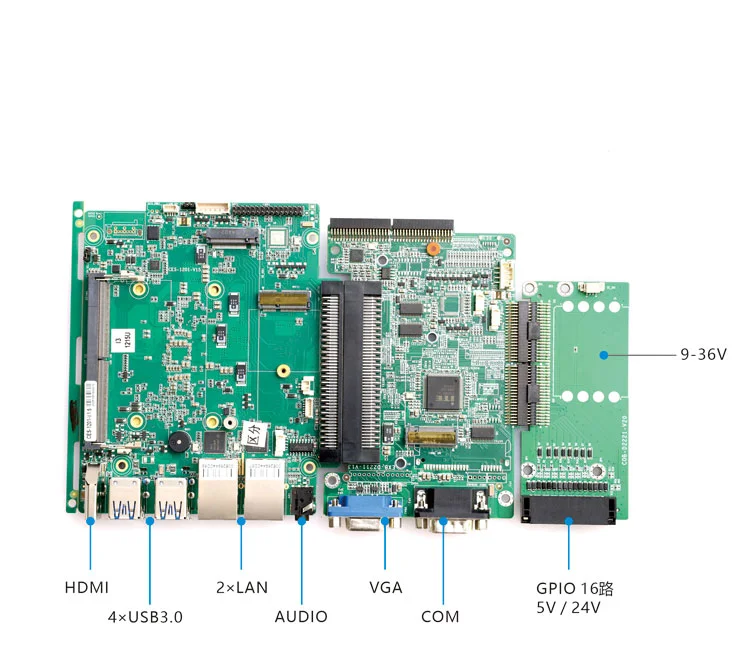

Scheme D · VGA + GPIO industrial control - with 16-channel GPIO
+ 16-channel GPIO
9-36V wide voltage + industrial GPIO

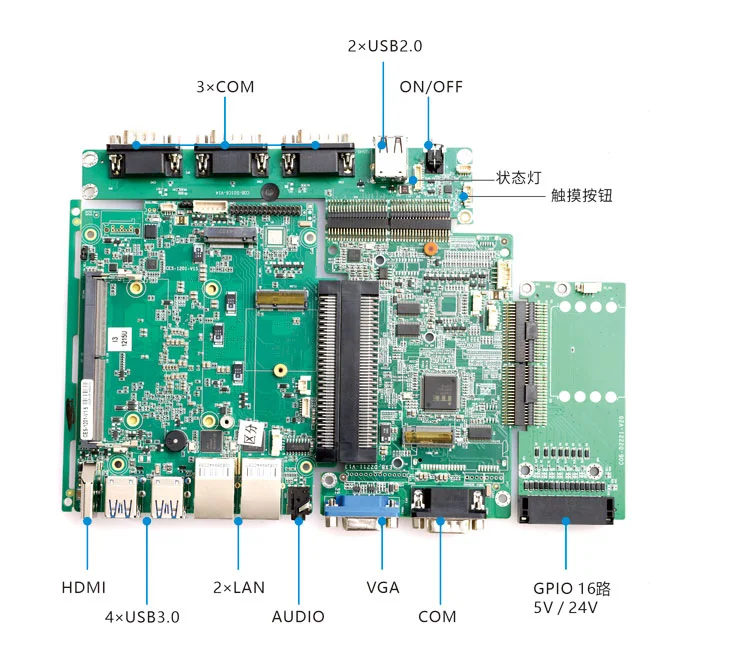

Scheme D · VGA + GPIO industrial control - 3×COM + GPIO
3×COM + GPIO
Status LEDs + touch + GPIO

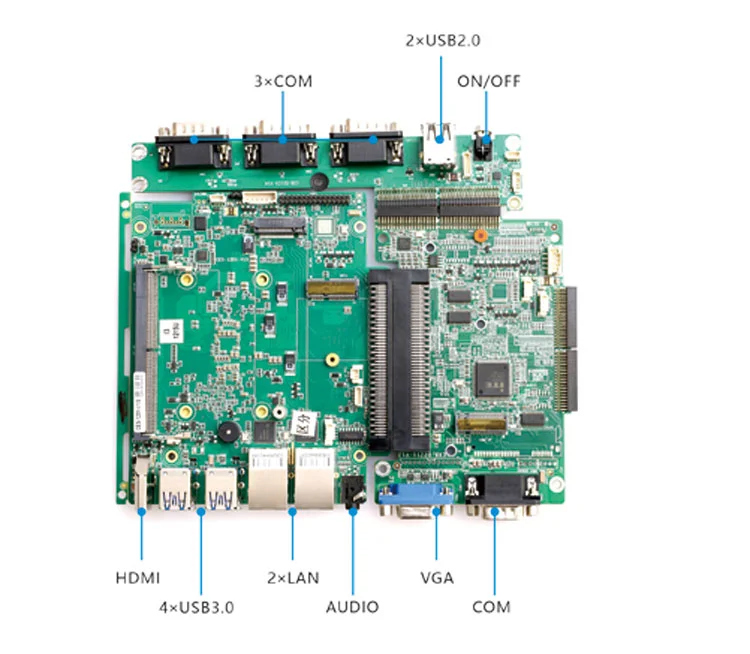

Scheme D · VGA + GPIO industrial control - 3×COM version
3×COM Version
3 serial ports only, no GPIO

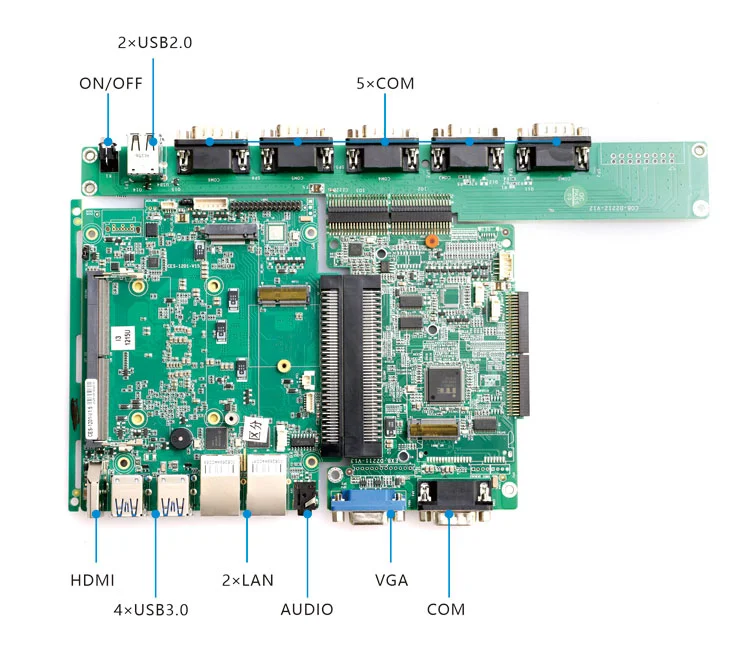

Scheme D · VGA + GPIO industrial control - 5×COM version
5×COM Version
5 serial ports

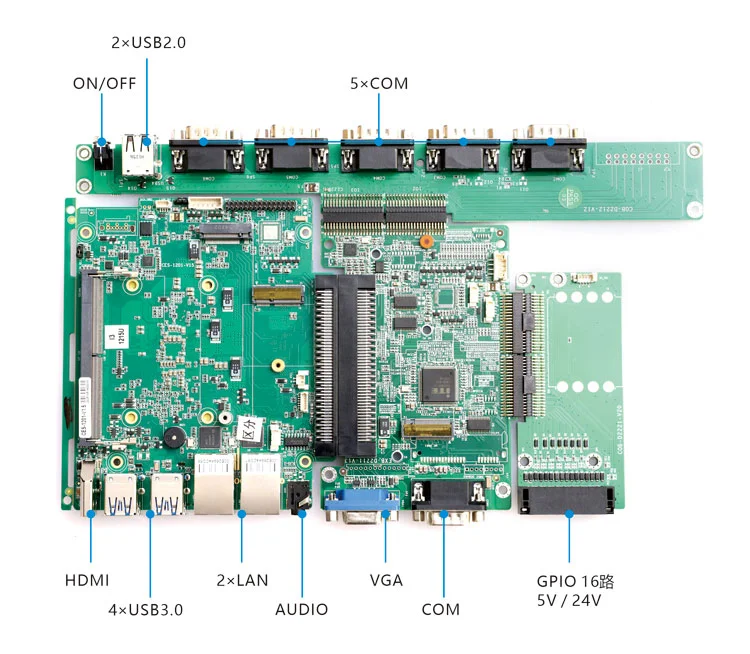

Scheme D · VGA + GPIO industrial control - 5×COM + GPIO
5×COM + GPIO
5 serial ports + industrial GPIO
E
3×HDMI output · video wall / multi-screen control

Scheme E · Multi-HDMI Video Wall

The i-Function expansion board provides 3×HDMI EDID outputs ── suited to video walls, multi-screen tiling, retail digital signage, surveillance displays and other scenarios that need several independent display outputs.

Multi-Screen Output3×HDMI independent EDID · 4K support
Industrial I/O16-channel GPIO · 5V / 24V level
Base I/OHDMI · 4×USB3.0 · 2×LAN · AUDIO · DC IN
COM Expansion0 / horizontal / 5×COM, three options

3 interface variant configurations

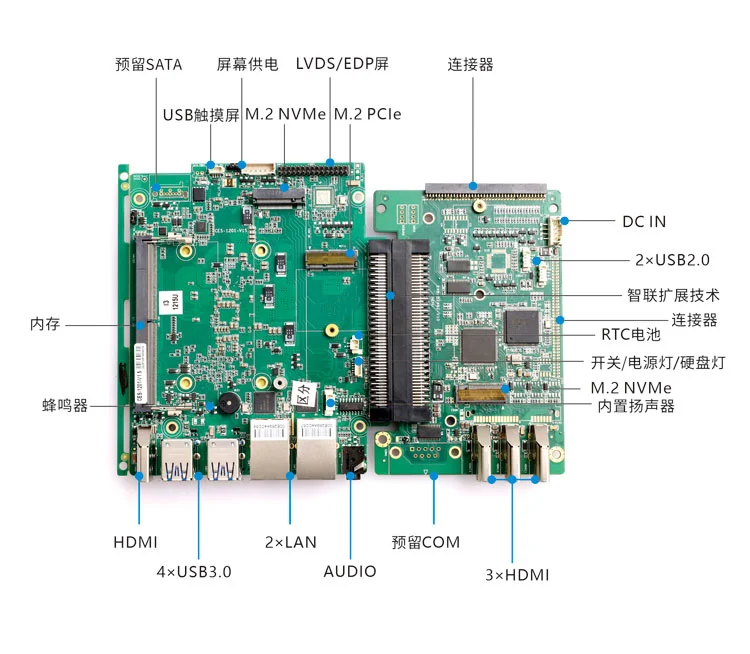

Scheme E · Multi-HDMI video wall - 3×HDMI base
3×HDMI Base
3 independent HDMI outputs

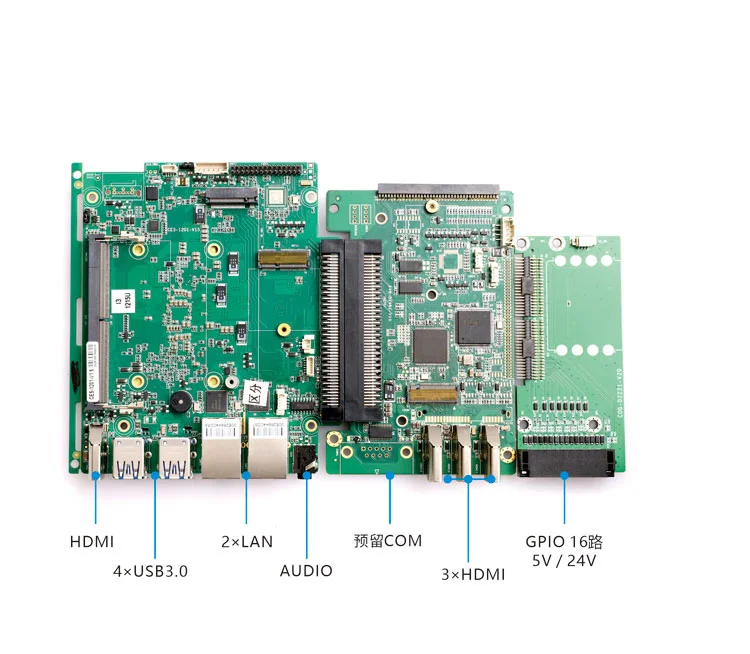

Scheme E · Multi-HDMI video wall - horizontal expansion version
Horizontal Expansion
3×HDMI + 16-channel GPIO

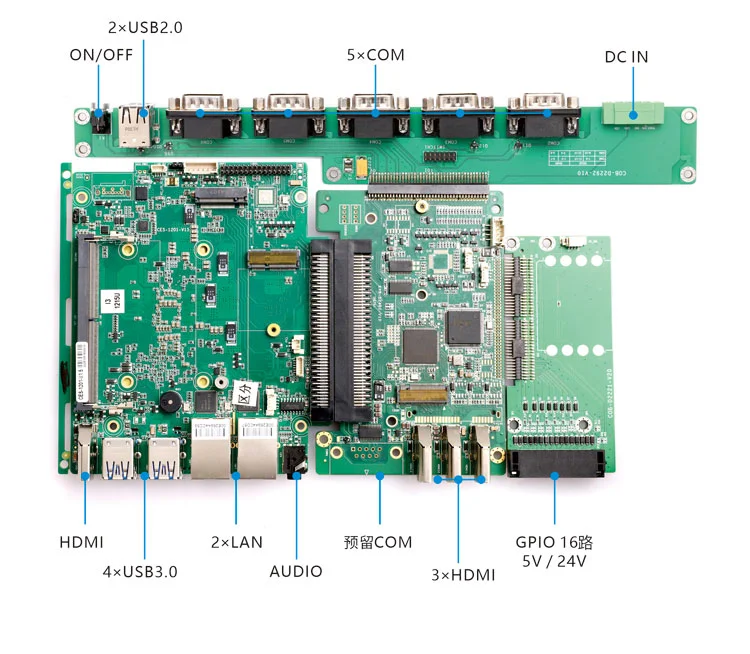

Scheme E · Multi-HDMI video wall - 5×COM + GPIO
5×COM + GPIO
Full-feature flagship: 5×COM + GPIO + 3×HDMI
EXPLORE THE 3 BOARDS

Dive into the three modules

See the design principles, product models and matching configurations for each module.

⚙

i-Core Compute Board

6 processor platforms · 8 standard mainboards. Full coverage of Intel Celeron / 7th–12th Gen Core, Phytium FT-2000 and Rockchip RK3588 / RK3568.

View boards → ◧

i-Function Expansion Board

Rich EXB series with many function expansions: HDMI / VGA, RS-232 / 485, CAN-FD, GPIO, 4G / 5G, Mini PCIe, M.2 and more.

View expansion boards → ⊕

i-Connect I/O Board

Industrial I/O interface routing ── integrating USB, LAN, serial, DI/DO, analog and other field interfaces, pluggable and swappable with no tooling.

View I/O boards →
START A PROJECT

Need help choosing FlexCore™ modules for your project?

Tell us your processor platform, I/O requirements and industrial scenario, and our engineers will reply within 24 hours with a complete plan, module combination advice and a prototype assessment.

Submit Your Requirements Call 0755-85286060
