10th Gen Core CPU
Intel® Core™ i3-10110U / i5-10210U / i7-10510U in three tiers. U-series low-power design balancing performance and efficiency.
UPC-302F · 14× USB · 10TH GEN
A 10th Gen Intel® Core™ fanless industrial computing platform with 14× USB, for airport systems, self-service kiosks and smart manufacturing
UPC-302F 12th Gen i7 Modular Universal Box PC | 14× USB Multi-peripheral
The CESIPC UPC-302F is a fanless embedded industrial PC built on the FlexCore™ modular architecture, powered by 12th Gen Intel® Core™ i3/i5/i7 processors. Its standout feature is 14 USB ports, which can simultaneously connect cameras, scanners, touchscreens and other peripherals — meeting the high-density device connectivity needs of self-service terminals, POS systems and laboratory automation. It supports 4× COM, 2× LAN, HDMI + VGA dual display output and 9~36V wide-voltage DC power, operates at 0~60℃ and uses a high-strength aluminum-alloy body — ideal for airport systems, smart manufacturing and industrial automation.
Typical Applications
14× USBhigh-density USB
10th Geni3 / i5 / i7
2× LANdual Gigabit
9-36Vwide-voltage input
PRODUCT HIGHLIGHTS
UPC-302F · Eleven Core Features
From core compute to industrial-grade protection — every design choice serves a clear purpose.
14× USB High-density
The unit provides 14 USB ports (a mix of USB 3.0 and USB 2.0). Purpose-designed for multi-peripheral scenarios such as airport self-service kiosks, retail POS and lab instruments.
Dual Gigabit Ethernet
2× Intel Gigabit Ethernet for multi-device coordination across PLCs, SCADA and vision systems. Low-latency, low-loss, stable transmission.
Mini-PCIe Wireless Expansion
1× Mini-PCIe slot with optional dual-band Wi-Fi / Bluetooth / 4G / 5G modules, flexibly adapting to on-site networking.
9-36V Wide-voltage Input
9-36V DC wide-voltage input via a Phoenix or 2-pin terminal, with four-way protection against over-voltage, over-current, reverse polarity and surge.
FlexCore™ Modular Hardware Architecture
Built on the FlexCore™ four-element architecture: i-Core compute + i-Function expansion + i-Connect I/O + Smart Thermal control. Unified interfaces, structure and power with free expansion.
Fanless Cooling
One-piece die-cast finned cooling in 6061 high-strength aluminum alloy with zero moving parts — maintenance-free, dust- and vibration-resistant, for industrial endurance.
SafeCore™ Industrial Reliability Enhancement
Four protection mechanisms working together: ① power protection (over-voltage / over-current / reverse polarity / surge) + ② backup power (smart lithium-battery power-loss buffering) + ③ start/stop control (auto power-on when energized) + ④ system self-recovery (watchdog + fault restart).
Hardware-level Auto Power-on
An independent power-logic circuit triggers the power-on signal, without relying on the BIOS. It restarts automatically once power is restored, keeping unattended deployments running continuously.
6061 Aluminum + VESA Wall Mount
6061 high-strength aluminum alloy + sheet-metal structure for an industrial-grade rugged body. VESA-standard wall mount, with TPM 2.0 + watchdog for dual security.
Multi-OS Support
Windows 10 / 11 · CentOS · Ubuntu 16.04 / 18.04 / 20.04 / 22.04. BIOS supports customization, boot logo and OEM branding.
PRODUCT GALLERY

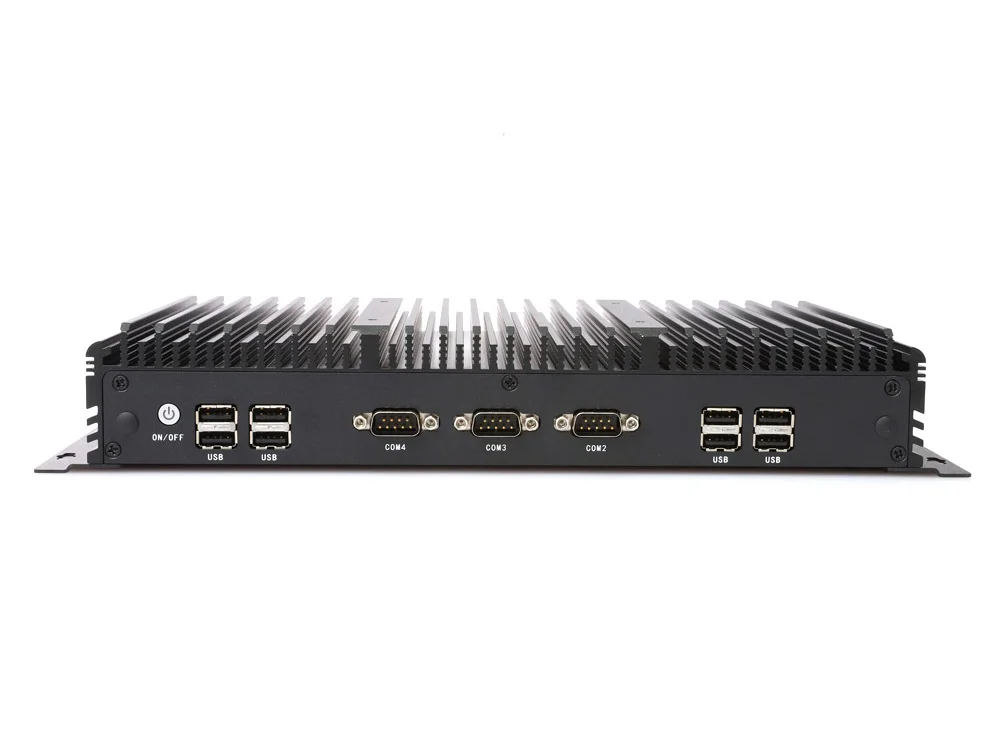

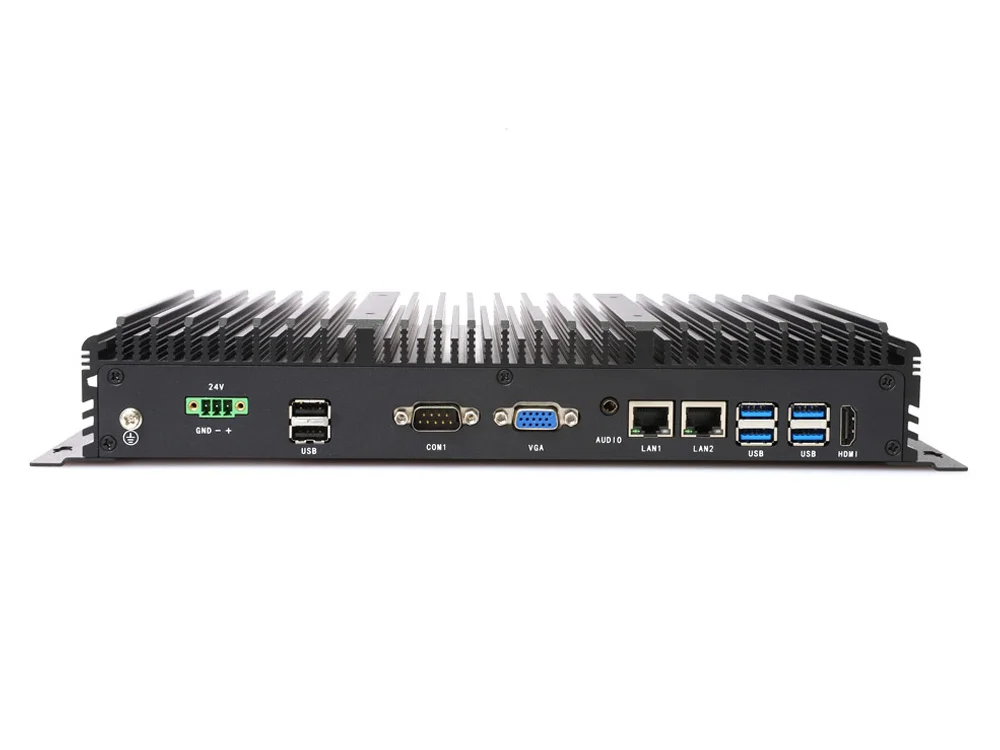

Product Gallery
SPECIFICATIONS
UPC-302F Full Specifications
Datasheet V1.0 · updated 2026-03-20 · due to chip market fluctuations, key chips may change; please confirm with sales.
Core Hardware
| Parameter | Intel® Core™ i3-10110U | Intel® Core™ i5-10210U | Intel® Core™ i7-10510U |
|---|---|---|---|
| Processor | i3-10110U | i5-10210U | i7-10510U |
| Cores | 2 | 4 | 4 |
| Threads | 4 | 8 | 8 |
| Frequency | 2.1~4.1 GHz | 1.6~4.2 GHz | 1.8~4.9 GHz |
| Cache | 4MB | 6MB | 8MB |
| TDP | 15W | ||
| Graphics | Intel UHD Graphics 620 | ||
| Memory | 4~32GB DDR4 | ||
| Storage | 1× M.2 SSD + 1× M.2 NVMe | ||
I/O Ports
| Item | Specification |
|---|---|
| USB 2.0 | 10 |
| USB 3.0 | 4 |
| RS232 | 3（DB9） |
| RS485 | 1（DB9） |
| VGA | 1 |
| HDMI | 1 |
| Gigabit Ethernet | 1 × Intel I210 GbE |
| Audio | 1 × 3.5mm |
| Expansion Slot | 1 × Mini PCIe |
| Wi-Fi (optional) | Not included by default |
| 4G (optional) | Not included by default |
Power Input
| Item | Specification |
|---|---|
| Power Connector | 3-pin Phoenix terminal, 12V DC standard input, 9~36V wide voltage optional |
| Boot Mode | AT / ATX mode toggle |
Physical & General
| Item | Specification |
|---|---|
| Dimensions | 337 (W)×160 (D)×47.5 (H)mm |
| Weight | 3.7 kg net weight |
| Enclosure Material | 6061 high-strength aluminum alloy |
| Mounting | Wall-mount / VESA |
| Cooling | Fanless |
Operating Environment
| Item | Specification |
|---|---|
| Operating Temperature | 0~50℃ (wide-temp -40~70℃ optional) |
| Storage Temperature | -10~60℃ |
| Relative Humidity | 10%~90%, non-condensing |
Operating System
| Item | Specification |
|---|---|
| Windows | Windows 10 / Windows 11 |
| Linux | Ubuntu 16.04 / 18.04 / 20.04 / 22.04 |
Certifications & Compliance
| Item | Specification |
|---|---|
| Factory Certification | ISO9001: 2015 |
| Product Certifications | CE / FCC / BIS (EN 55032 & EN 55035) |
| BIOS Customization | BIOS / Boot LOGO / OEM |
I/O LAYOUT
Front & Rear Panel I/O Layout
Compact universal box chassis with front/rear I/O partitioning following industrial wiring conventions.

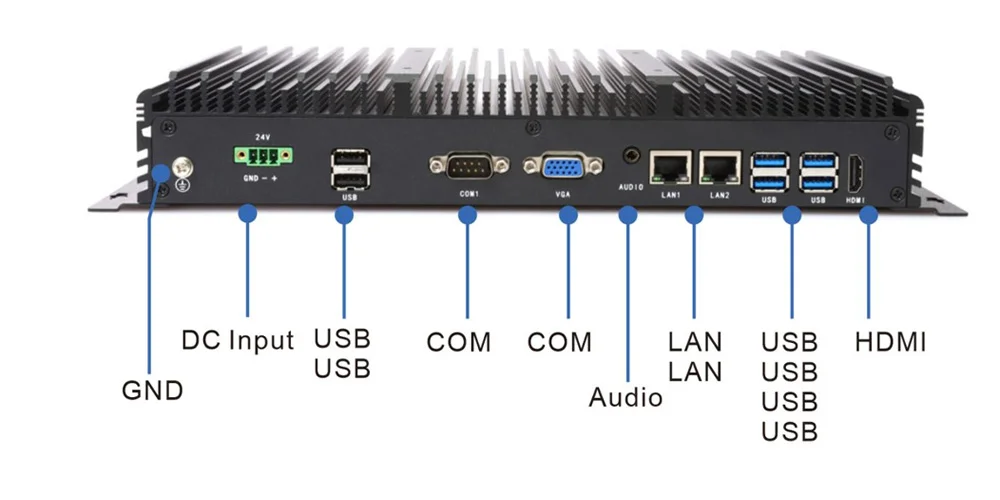

Front Panel

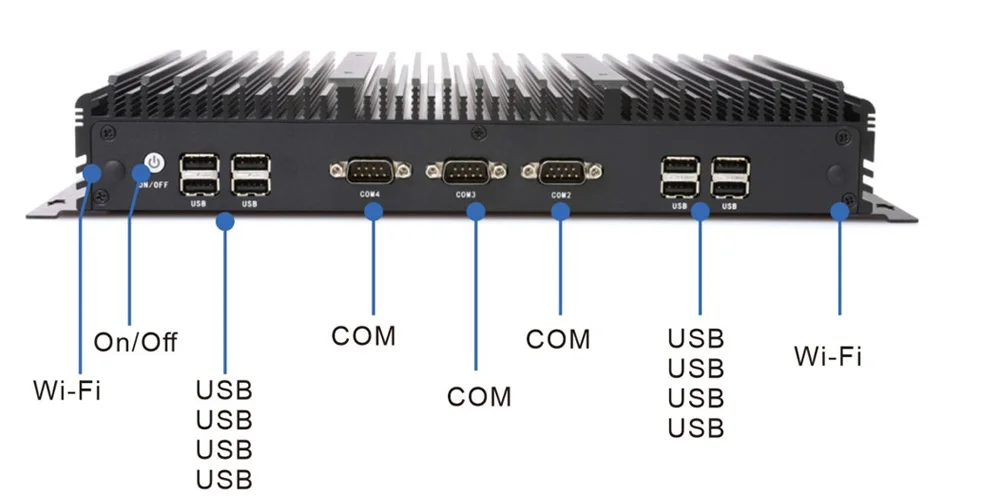

Rear Panel
DIMENSIONS

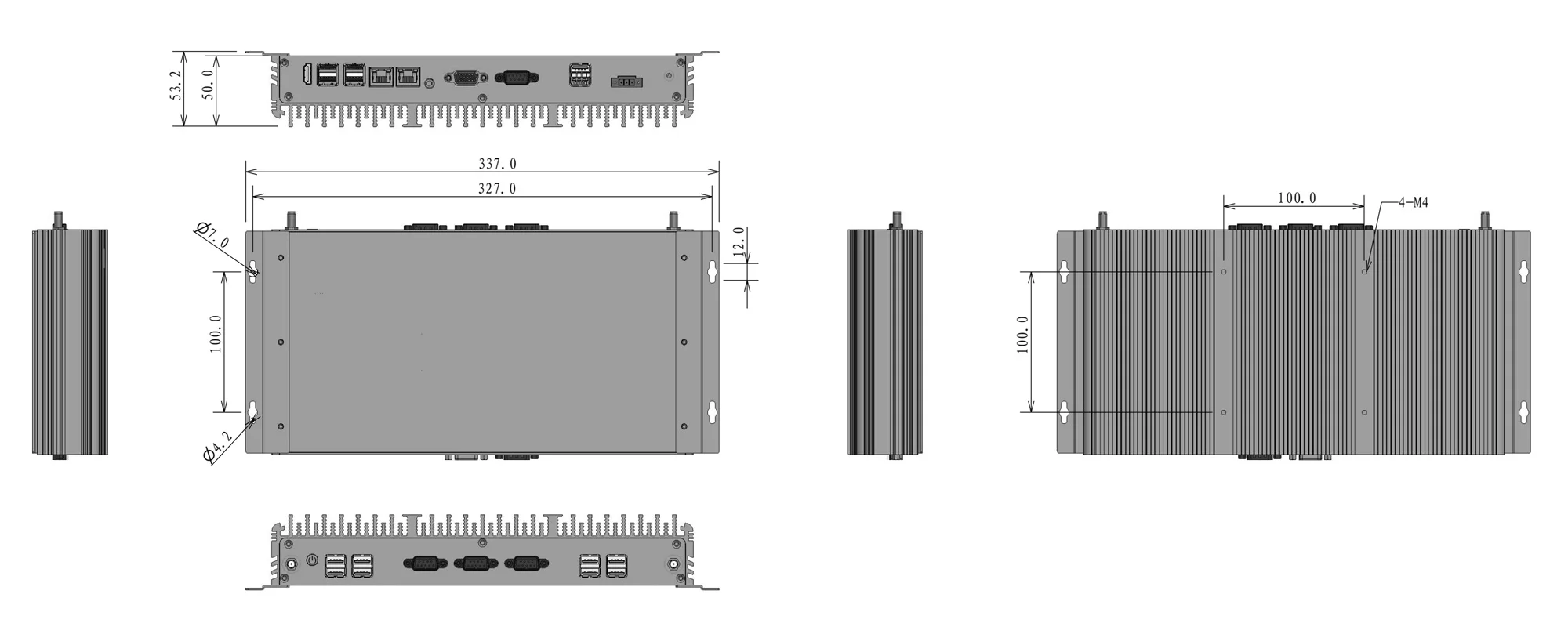

Dimensions — Three Views (mm)
See the datasheet or the three views below for detailed dimensions. VESA-standard wall mounting supported.
ORDERING INFORMATION
Ordering Information · Part Number
The standard configurations below can be ordered directly; for custom CPU / memory / storage / I/O boards, please contact sales.
| No. | Part Number | Model | Processor | Memory | Storage |
|---|---|---|---|---|---|
| 01 | C8.03.03.036 | UPC-302F | Intel® Core™ i7-10870U | 16GB DDR5 | mSATA 256GB |
| 02 | C8.03.03.037 | UPC-302F | Intel® Core™ i7-10710U | 16GB DDR5 | mSATA 128GB |
| 03 | C8.03.03.046 | UPC-302F | Intel® Core™ i7-10210U | 16GB DDR5 | SSD 1TB |
Note: Due to market fluctuations, key components such as the CPU model, memory and storage may change — please consult our sales team for the current configuration.
APPLICATIONS
UPC-302F Typical Applications

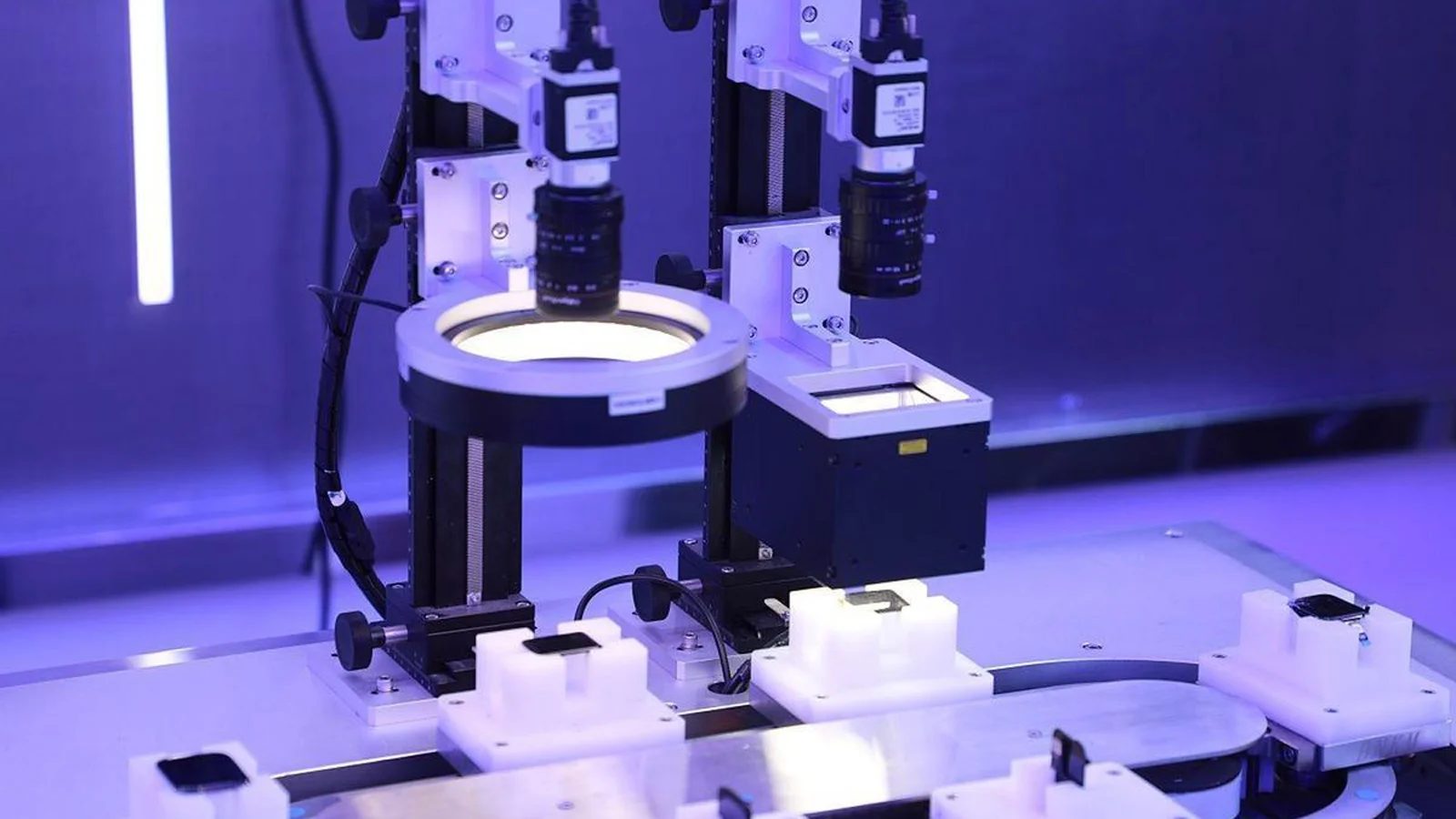

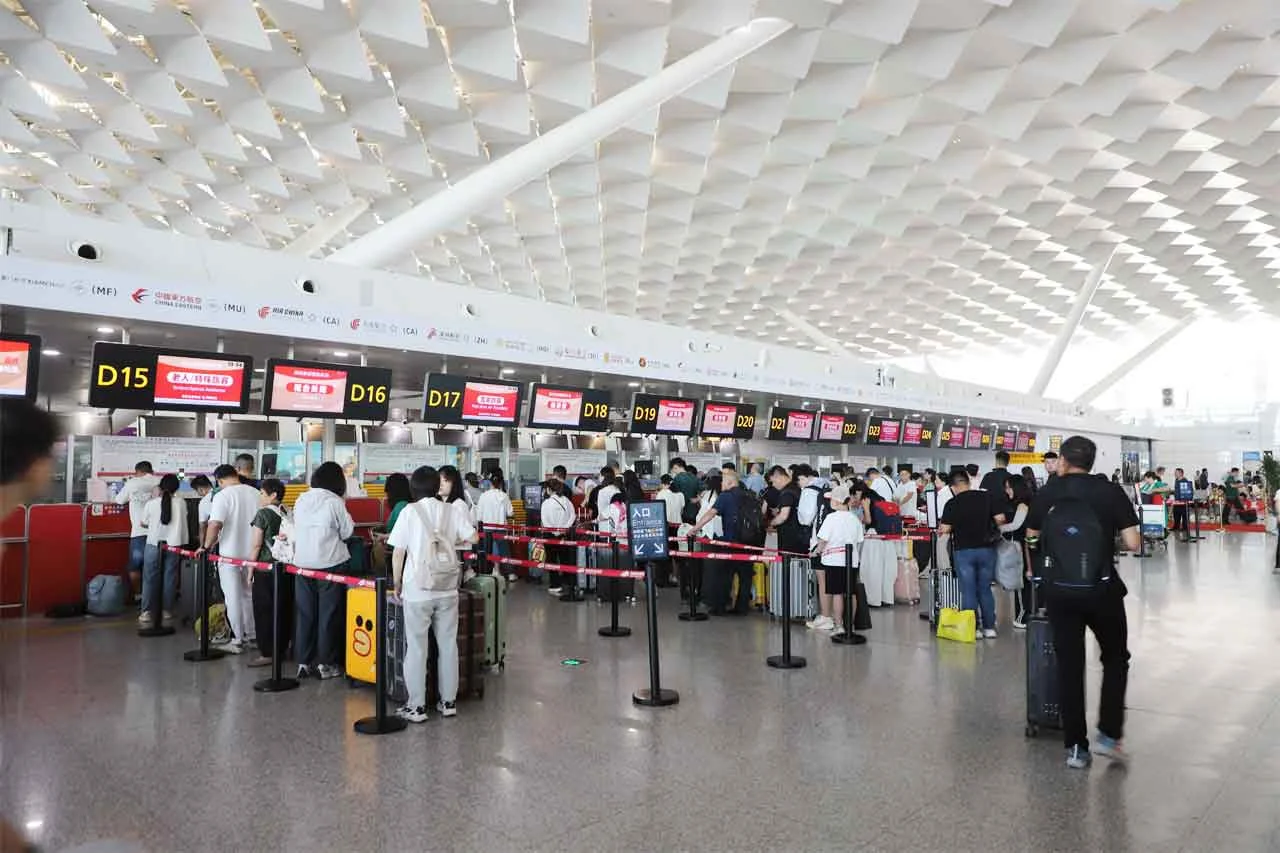

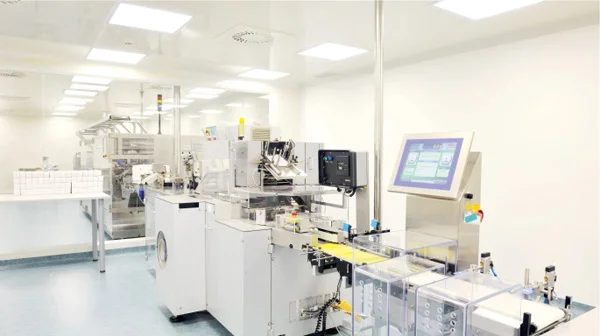

Powered by rich I/O expansion and industrial reliability enhancements, the UPC-302F is widely deployed across the 4 industrial scenarios below.
CUSTOMIZATION · SAME-MODEL OPTIONS
UPC-302F Other Same-size Customized Versions
Does the UPC-302F (12th Gen i7 multi-USB) not fit your project? On the same FlexCore™ modular base you can pick other customized configurations — selected by actual I/O, connectivity and reliability needs.
📞 Have other customization needs? Adjusting port counts / CPU platform upgrades / different power supplies / OEM branding — contact our sales engineers for a custom plan and quote.
