Bay Trail-D J1900 Economy
Intel® Celeron® J1900 4C4T, 2.0 GHz base. Native Windows 7 support — the top choice for legacy-system compatibility.
UPC-206E · INTEL® CELERON® J1900
A multi-I/O J1900 fanless industrial platform for industrial automation, rail transit and energy management
UPC-206E J1900 Quad-core Modular Universal Box PC | Multi-I/O Economy
The UPC-206E is a fanless industrial computer based on the Intel® Celeron® J1900 processor, with 6 USB ports, 2 Gigabit LAN ports and HDMI + VGA dual display output to meet a range of industrial device connectivity needs. It integrates a row of Phoenix terminals supporting 1× CAN bus, 1× RS485 and 1× RS232 communication interfaces, making it easy to interface with all kinds of industrial control equipment. It is ideal for industrial automation, rail transit, energy management and other applications with demanding communication-interface requirements.
Typical Applications
J1900quad-core economy
6× COMRS232 + RS485
2× LANdual Gigabit
9-36Vwide-voltage input
PRODUCT HIGHLIGHTS
UPC-206E · Eleven Core Features
From core compute to industrial-grade protection — every design choice serves a clear purpose.
Dual Gigabit Ethernet
2× Intel Gigabit Ethernet for multi-device coordination across PLCs, SCADA and vision systems. Low-latency, low-loss, stable transmission.
Rich Industrial I/O
4× USB 3.0 + 2× USB 2.0 + 4× RS-232 + 2× RS-485 + HDMI + VGA dual display output + audio. High-density multi-COM layout.
Mini-PCIe Wireless Expansion
1× Mini-PCIe slot with optional dual-band Wi-Fi / Bluetooth / 4G / 5G modules, flexibly adapting to on-site networking.
9-36V Wide-voltage Input
9-36V DC wide-voltage input via a Phoenix or 2-pin terminal, with four-way protection against over-voltage, over-current, reverse polarity and surge.
FlexCore™ Modular Hardware Architecture
Built on the FlexCore™ four-element architecture: i-Core compute + i-Function expansion + i-Connect I/O + Smart Thermal control. Unified interfaces, structure and power with free expansion.
Fanless Cooling
One-piece die-cast finned cooling in 6061 high-strength aluminum alloy with zero moving parts — maintenance-free, dust- and vibration-resistant, for industrial endurance.
SafeCore™ Industrial Reliability Enhancement
Four protection mechanisms working together: ① power protection (over-voltage / over-current / reverse polarity / surge) + ② backup power (smart lithium-battery power-loss buffering) + ③ start/stop control (auto power-on when energized) + ④ system self-recovery (watchdog + fault restart).
Hardware-level Auto Power-on
An independent power-logic circuit triggers the power-on signal, without relying on the BIOS. It restarts automatically once power is restored, keeping unattended deployments running continuously.
6061 Aluminum + VESA Wall Mount
6061 high-strength aluminum alloy + sheet-metal structure for an industrial-grade rugged body. VESA-standard wall mount, with TPM 2.0 + watchdog for dual security.
Windows 7 / 10 Compatible
Native Windows 7 support, also compatible with Windows 10 and mainstream Linux — meeting legacy-system compatibility needs on the industrial floor.
PRODUCT GALLERY

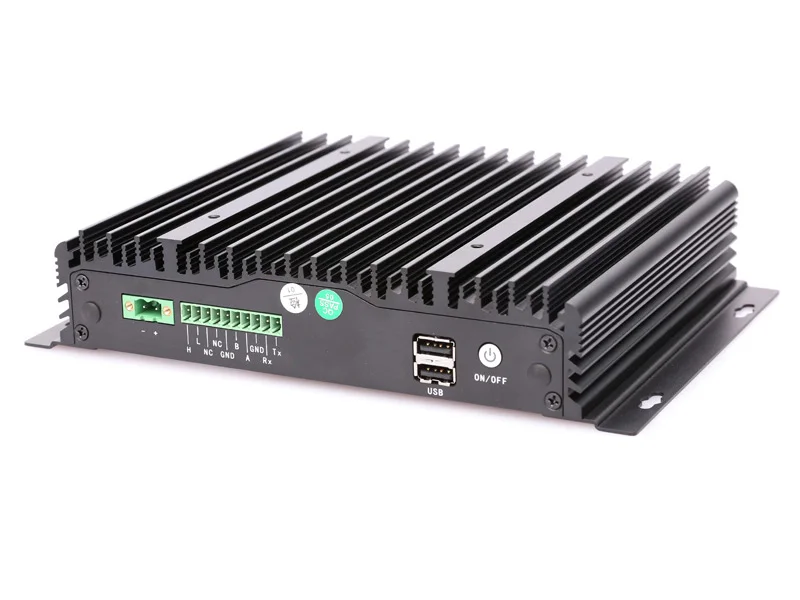

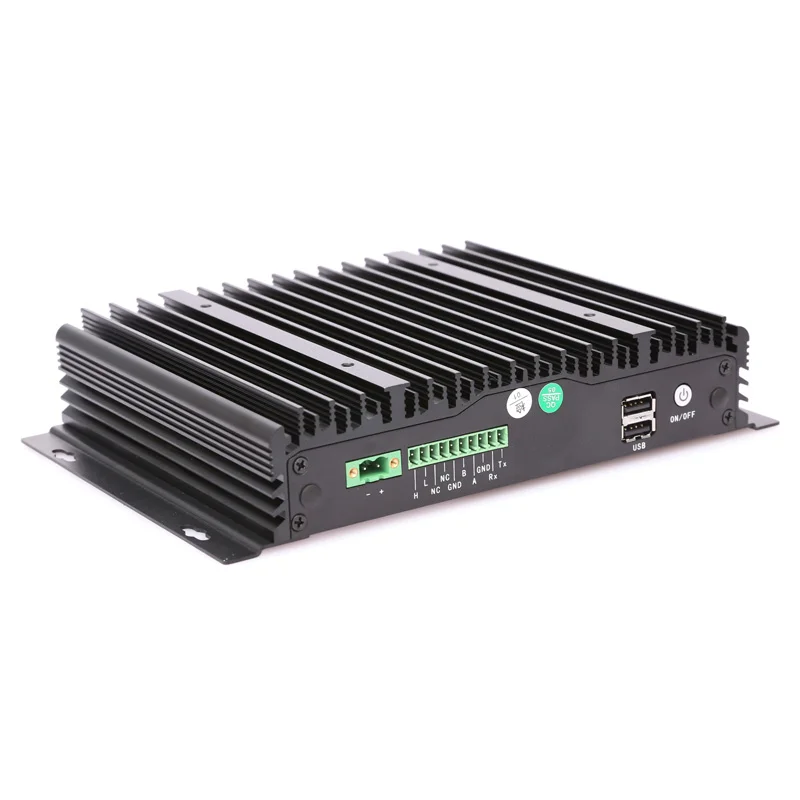

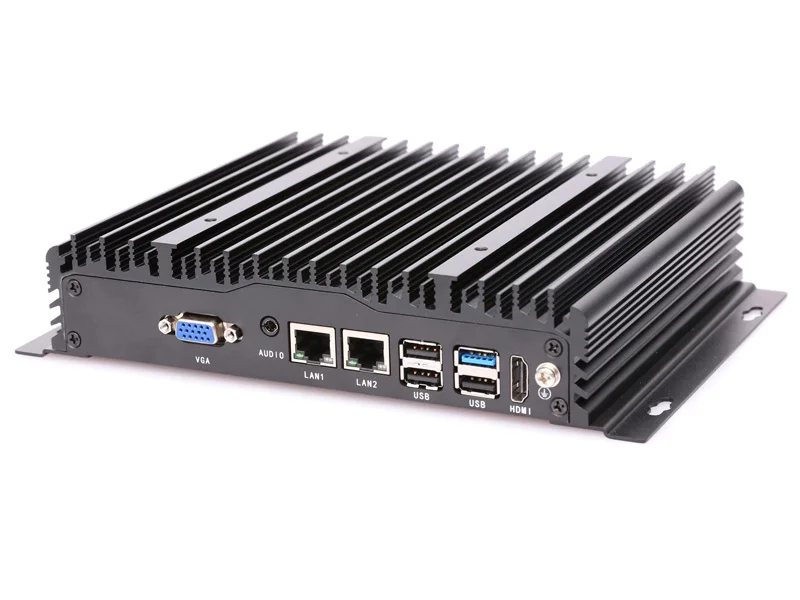

Product Gallery
SPECIFICATIONS
UPC-206E Full Specifications
Datasheet V1.0 · updated 2026-03-20 · due to chip market fluctuations, key chips may change; please confirm with sales.
Core Hardware
| Item | Specification |
|---|---|
| Processor | Intel® Celeron® J1900 |
| Cores | 4 |
| Threads | 4 |
| Frequency | 2.0~2.42 GHz |
| Cache | 2 MB L2 Cache |
| TDP | 10W |
| Graphics | Intel HD Graphics |
| Memory | DDR3L 4~8GB |
| Storage | 1× mSATA SSD |
I/O Ports
| Item | Specification |
|---|---|
| USB 2.0 | 5 |
| USB 3.0 | 1 |
| RS232 | 2 |
| RS485 | 1 |
| VGA | 1 |
| HDMI | 1 |
| Gigabit Ethernet | 2 × LAN |
| Audio | 3.5mm TRRS |
| Wi-Fi (optional) | Dual-band 2.4G/5G Wi-Fi module |
| CAN | 1× CAN bus |
Power Input
| Item | Specification |
|---|---|
| Power Connector | 1× row of 2-pin pluggable terminals, supports 9~36V DC wide-voltage input |
| ATX Switch | 1× ATX power switch |
| Boot Mode | AT/ATX mode switch (built-in) |
Physical & General
| Item | Specification |
|---|---|
| Dimensions | 229 (L)×160 (W)×46 (H)mm |
| Mounting Dimensions | 219 (L)×100 (W)mm |
| Weight | 1.4 kg net weight |
| Enclosure Material | 6061 high-strength aluminum alloy |
| Mechanical Structure | Extruded aluminum + sheet-metal structure |
| Mounting | Bracket mounting / VESA wall mount |
| Reset Switch | 1× reset switch |
| TPM | TPM 2.0 |
| Watchdog | Hardware watchdog supported |
| MTBF | 60,000 hrs |
Operating Environment
| Item | Specification |
|---|---|
| Operating Temperature | 0~60℃ (wide temp -40~80℃ optional) |
| Storage Temperature | -10~70℃ (wide temp -40~80℃ optional) |
| Relative Humidity | 10%~90%, non-condensing |
| EMC | CE, FCC (EN 55032 & EN 55035) |
| EMC Harmonics | EN IEC 61000-3-2 |
Operating System
| Item | Specification |
|---|---|
| Windows | Windows 10 / Windows 11 |
| Linux | Ubuntu 16.04 / 18.04 / 20.04 / 22.04 |
Certifications & Compliance
| Item | Specification |
|---|---|
| Factory Certification | ISO9001: 2015 |
| BIOS Customization | BIOS / Boot LOGO / OEM |
I/O LAYOUT
Front & Rear Panel I/O Layout
Compact universal box chassis with front/rear I/O partitioning following industrial wiring conventions.

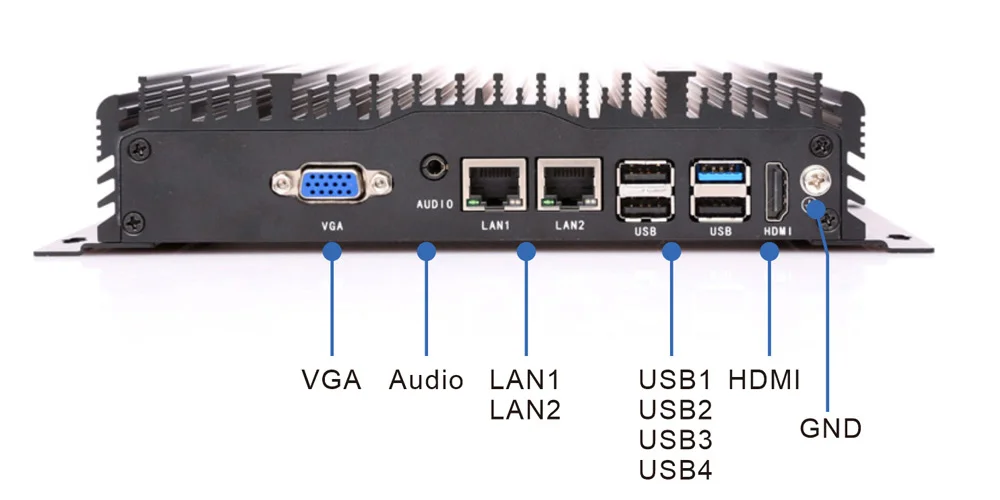

Front Panel

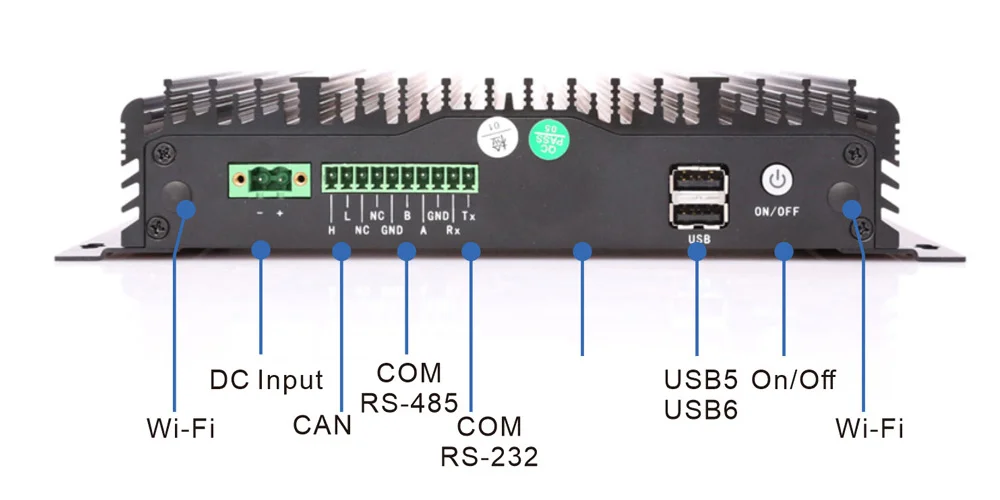

Rear Panel
DIMENSIONS

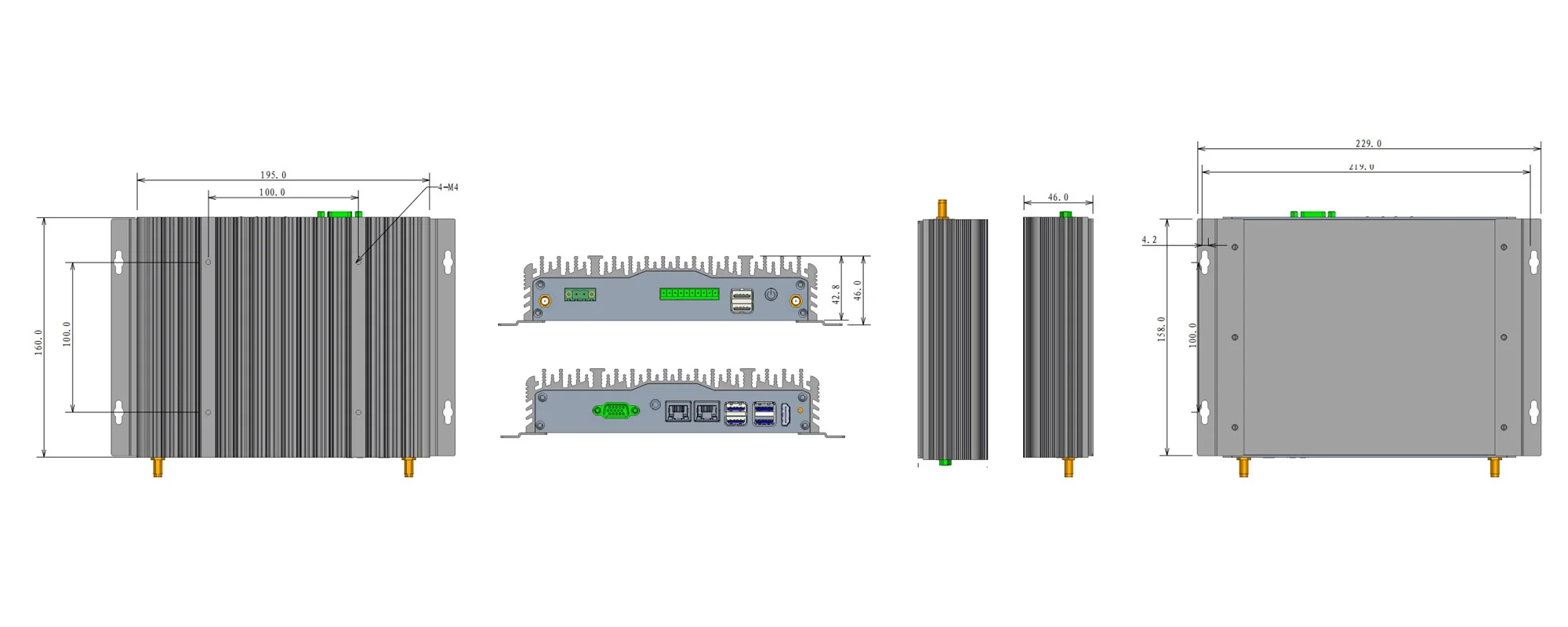

Dimensions — Three Views (mm)
See the datasheet or the three views below for detailed dimensions. VESA-standard wall mounting supported.
ORDERING INFORMATION
Ordering Information · Part Number
The standard configurations below can be ordered directly; for custom CPU / memory / storage / I/O boards, please contact sales.
| No. | Part Number | Model | Processor | Memory | Storage |
|---|---|---|---|---|---|
| 01 | C8.02.01.009 | UPC-206E | Intel® Celeron® J1900 | 4GB DDR3 | SSD 128GB |
| 02 | C8.02.01.017 | UPC-206E | Intel® Celeron® J1900 | 4GB DDR3 | SSD 512GB |
| 03 | C8.02.01.019 | UPC-206E | Intel® Celeron® J1900 | 4GB DDR3 | SSD 1TB |
Note: Due to market fluctuations, key components such as the CPU model, memory and storage may change — please consult our sales team for the current configuration.
APPLICATIONS

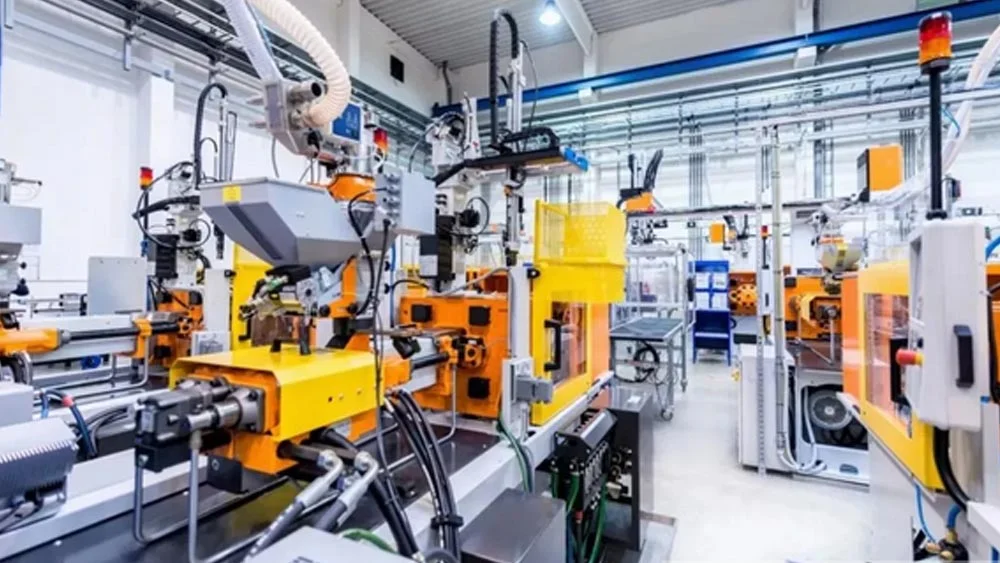

UPC-206E Typical Applications
Powered by rich I/O expansion and industrial reliability enhancements, the UPC-206E is widely deployed across the 4 industrial scenarios below.
