10th Gen Core CPU
Intel® Core™ i3-10110U / i5-10210U / i7-10510U in three tiers. Mainstream Core performance on a long-life embedded platform — the top choice for visual inspection.
EPC-109A · 10TH GEN INTEL® CORE™
A high-performance 10th Gen embedded computing platform for industrial control and machine vision
EPC-109A 10th Gen i7 Fanless Embedded Box PC | 6× COM, 2× LAN
The CESIPC EPC-109A is a high-performance embedded computing platform for multi-interface unattended applications on the industrial floor. Built on the 10th Gen Intel® Core™ processor platform, it offers i3/i5/i7 configurations balancing performance and efficiency, with dual Intel I210 Gigabit Ethernet and a rich set of industrial I/O, plus 9-36V wide-voltage DC power for demanding industrial power environments. It integrates the FlexCore™ modular architecture with SafeCore™ reliability-enhancement technology — ideal for industrial control, machine vision, data acquisition and edge computing.
Typical Applications
229Chassis width (mm)
2× I210Gigabit + PTP
DDR48-32GB
9-36Vwide-voltage input
PRODUCT HIGHLIGHTS
EPC-109A · Eleven Core Features
From 12th Gen compute to industrial-grade protection — every design choice serves a clear purpose.
Dual Intel I210 + PTP
Dual Intel I210 Gigabit NICs with PTP clock synchronization — matched to industrial cameras and multi-device coordination for low latency, low packet loss and stable transmission.
Rich Industrial I/O
4× USB 3.0 + 2× USB 2.0 + 2× RS-232 + 1× RS-485 + 2× GbE + HDMI + VGA + audio + 3.5mm TRRS.
Mini-PCIe Wireless Expansion
1× Mini-PCIe slot with optional dual-band Wi-Fi / Bluetooth / 4G / 5G modules, flexibly adapting to on-site networking.
9-36V Wide-voltage Phoenix Terminal
A 3-pin pluggable Phoenix terminal with 9-36V DC wide-voltage input. Four-way protection against over-voltage, over-current, reverse polarity and surge — easy and secure wiring.
FlexCore™ Modular Hardware Architecture
Built on the FlexCore™ four-element architecture: i-Core compute + i-Function expansion + i-Connect I/O + Smart Thermal control. Unified interfaces, structure and power with free expansion — a platform approach that cuts repeated development and maintenance costs.
Fanless Cooling
One-piece die-cast finned cooling in 6061 high-strength aluminum alloy with zero moving parts — maintenance-free, dust- and vibration-resistant, IP40-rated for industrial endurance.
SafeCore™ Industrial Reliability Enhancement
Four protection mechanisms working together: ① power protection (over-voltage / over-current / reverse polarity / surge) + ② backup power (smart lithium-battery power-loss buffering) + ③ start/stop control (auto power-on when energized) + ④ system self-recovery (watchdog + fault restart).
Hardware-level Auto Power-on
An independent power-logic circuit triggers the power-on signal, without relying on the BIOS. It restarts automatically once power is restored, keeping unattended deployments running continuously.
IP65 Front Panel + Aluminum
6061 high-strength aluminum alloy + sheet-metal structure for an industrial-grade rugged body. The IP65 front panel resists dust and splashing water, with TPM 2.0 + watchdog for dual security.
Multi-OS Support
Windows 10 / 11 · CentOS · Ubuntu 16.04 / 18.04 / 20.04 / 22.04. BIOS supports customization, boot logo and OEM branding.
PRODUCT GALLERY

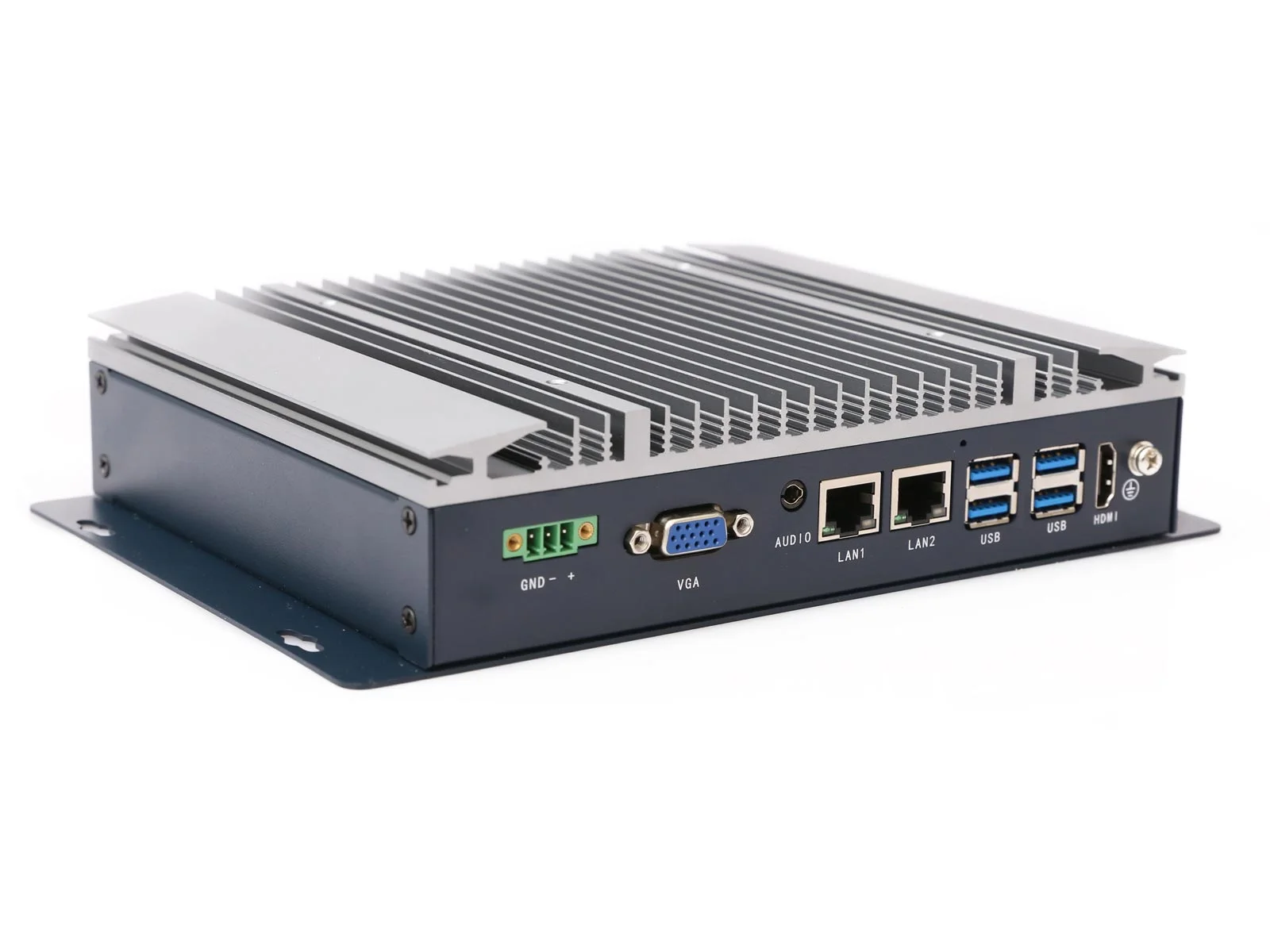

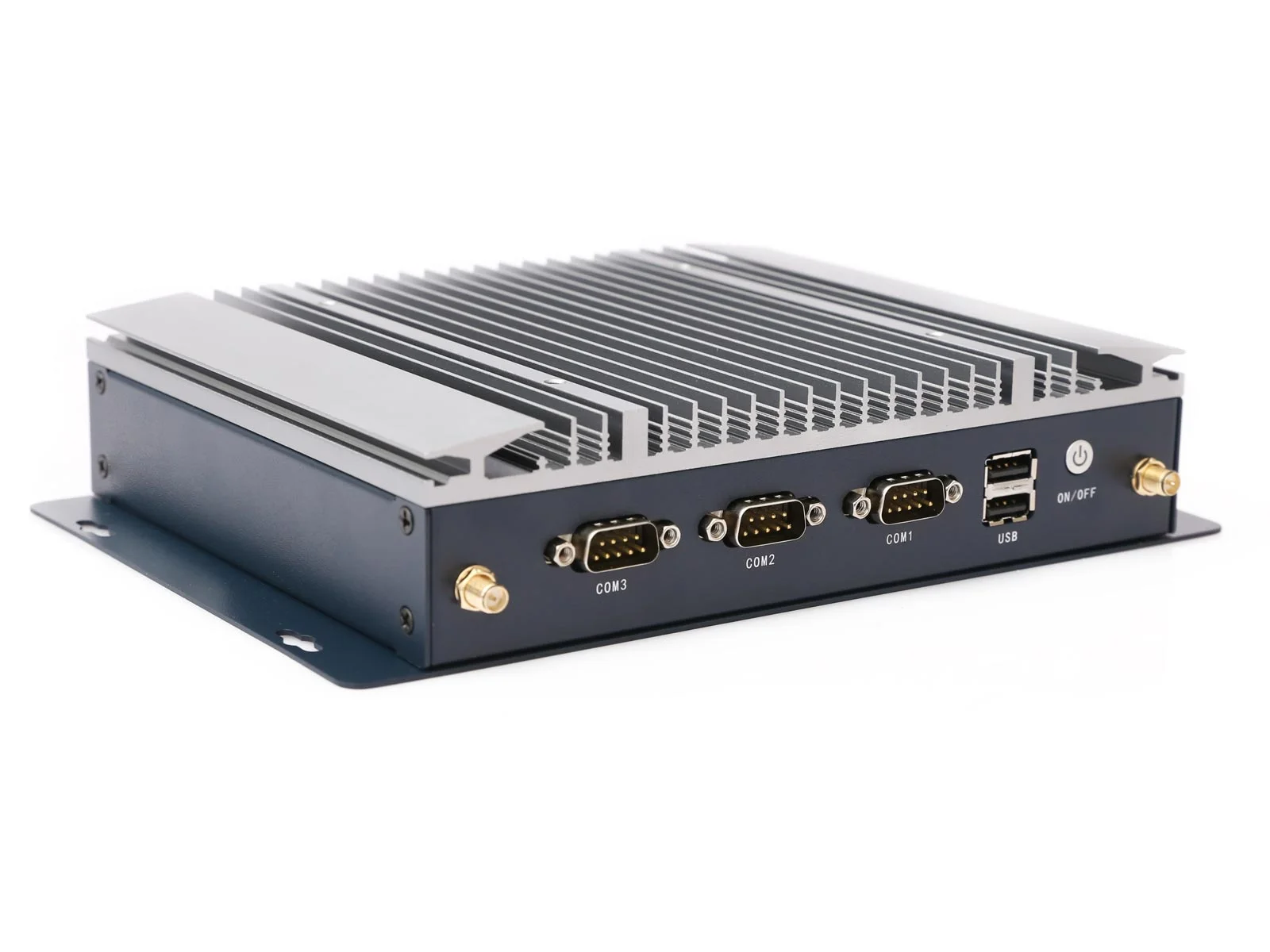

Product Gallery
SPECIFICATIONS
EPC-109A Full Specifications
Datasheet V1.0 · updated 2026-03-20 · due to chip market fluctuations, key chips may change; please confirm with sales.
Core Hardware
| Parameter | Intel® Core™ i3-10110U | Intel® Core™ i5-10210U | Intel® Core™ i7-10510U |
|---|---|---|---|
| Processor | i3-10110U | i5-10210U | i7-10510U |
| Cores | 2 | 4 | 4 |
| Threads | 4 | 8 | 8 |
| Frequency | 2.1~4.1 GHz | 1.6~4.2 GHz | 1.8~4.9 GHz |
| Cache | 4 MB L3 Cache | 6 MB L3 Cache | 8 MB L3 Cache |
| TDP | 15W | ||
| Graphics | Intel UHD Graphics 620 | ||
| Memory | 4~32GB DDR4 | ||
| Storage | 1× mSATA SSD + 1× M.2 2280 PCIe NVMe SSD | ||
I/O Ports
| Item | Specification |
|---|---|
| USB 2.0 | 2 |
| USB 3.0 | 4 |
| RS232 | 2 |
| RS485 | 1 |
| VGA | 1 |
| HDMI | 1 |
| Gigabit Ethernet | 2 × Intel I210 |
| Audio | 3.5mm TRRS |
| Wi-Fi (optional) | Dual-band 2.4G/5G Wi-Fi module |
Power Input
| Item | Specification |
|---|---|
| Power Connector | 3-pin pluggable terminal block, 9–36V DC wide-range input |
| ATX Switch | 1× ATX power switch |
| Boot Mode | AT/ATX mode switch (built-in) |
Physical & General
| Item | Specification |
|---|---|
| Dimensions | 229 (L)×160 (W)×47 (H)mm |
| Mounting Dimensions | 219 (L)×100 (W)mm |
| Weight | 1.48 kg net weight |
| Enclosure Material | 6061 high-strength aluminum alloy |
| Mechanical Structure | Extruded aluminum + sheet-metal structure |
| Mounting | Bracket mounting / VESA wall mount |
| Reset Switch | 1× reset switch |
| TPM | TPM 2.0 |
| Watchdog | Hardware watchdog supported |
| MTBF | 60,000 hrs |
Operating Environment
| Item | Specification |
|---|---|
| Operating Temperature | 0~60℃ (wide temp -40~80℃ optional) |
| Storage Temperature | -10~70℃ (wide temp -40~80℃ optional) |
| Relative Humidity | 10%~90%, non-condensing |
| EMC | CE, FCC (EN 55032 & EN 55035) |
| EMC Harmonics | EN IEC 61000-3-2 |
Operating System
| Item | Specification |
|---|---|
| Windows | Windows 10 / Windows 11 |
| Linux | Ubuntu 16.04 / 18.04 / 20.04 / 22.04 |
Certifications & Compliance
| Item | Specification |
|---|---|
| Factory Certification | ISO9001: 2015 |
| BIOS Customization | BIOS / Boot LOGO / OEM |
I/O LAYOUT
Front & Rear Panel I/O Layout
High-speed DDR5 memory, dual PCIe NVMe SSDs, dual I210 Gigabit LAN and Mini-PCIe wireless expansion — a compact layout that's easy to connect and service.
Front Panel

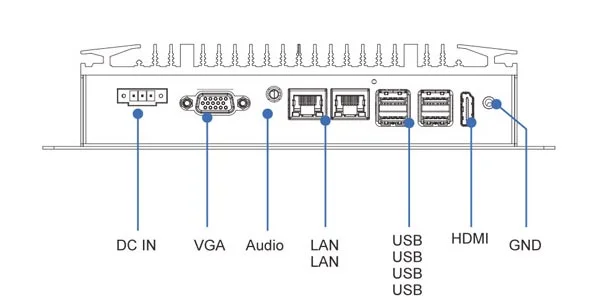

Rear Panel
DIMENSIONS

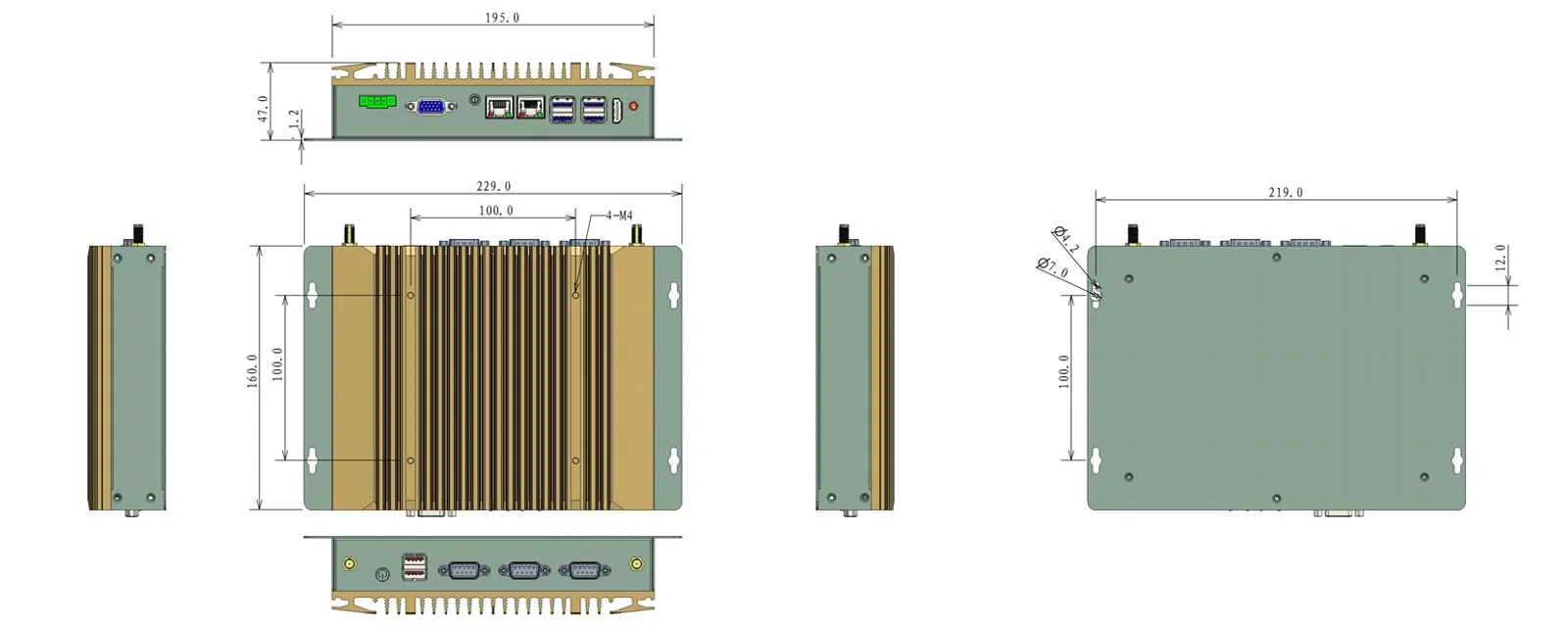

Dimensions — Three Views (mm)
Unit 229 × 160 × 47 mm · mounting dimensions 219 × 100 mm · net weight 1.48 kg · bracket mounting / VESA wall mount supported.
ORDERING INFORMATION
Ordering Information · Part Number
The 4 standard configurations below can be ordered directly; for custom CPU / memory / storage, please contact sales.
| No. | Part Number | Model | Processor | Memory | Storage |
|---|---|---|---|---|---|
| 01 | C10.01.03.001 | EPC-109A | Intel® Core™ i3-10110U | 8GB DDR4 | SSD 256GB |
| 02 | C10.01.09.002 | EPC-109A | Intel® Core™ i5-10210U | 8GB DDR4 | SSD 256GB |
| 03 | C10.01.09.003 | EPC-109A | Intel® Core™ i7-10510U | 8GB DDR4 | SSD 256GB |
| 04 | C10.01.03.007 | EPC-109A | Intel® Core™ i3-10510U | 16GB DDR4 | SSD 256GB |
Note: Due to market fluctuations, key components such as the CPU model, memory and storage may change — please consult our sales team for the current configuration.
APPLICATIONS
EPC-109A Typical Applications
Powered by dual I210 NICs, PTP clock synchronization and rich I/O expansion, the EPC-109A is widely deployed across the 4 industrial scenarios below.
