An industrial-grade edge AI computing platform for visual inference and real-time decision-making, built on NVIDIA Jetson Orin™ NX
The EA-N500A is an industrial-grade edge AI computing platform built on the NVIDIA Jetson™ platform, designed for visual inference, real-time inspection and edge intelligent control. It supports Jetson Orin™ NX 16GB / 8GB series modules, so you can flexibly choose the compute configuration to suit each project. The unit integrates 4× PoE Gigabit network ports for unified power and data transmission to industrial cameras and vision terminals, plus a rich set of industrial interfaces including USB 3.0, Ethernet, serial, CAN and GPIO. With 9–36V wide-voltage input, a SafeCore™ industrial-grade reliability design and an industrial-grade structure, the EA-N500 runs stably in demanding industrial environments with electromagnetic interference, temperature extremes and vibration — a reliable platform for machine vision and edge AI deployment.
NVIDIA Jetson AI compute + JetPack SDK ecosystem + FlexCore™ modularity — an industrial-grade solution for edge AI applications.
Powered by the Jetson Orin™ NX 16GB / 8GB module, delivering up to 157 TOPS of edge AI compute. An 8-core A78AE CPU + 1024-core Ampere GPU suits visual recognition, object detection, video analytics and real-time decision-making.
1024-core NVIDIA Ampere GPU + 32 Tensor Cores, supporting INT8 / FP16 deep-learning inference. Low-latency local inference with no reliance on the cloud.
Natively compatible with the NVIDIA JetPack SDK (including CUDA / cuDNN / TensorRT / DeepStream / VisionWorks), supporting model deployment for TensorFlow, PyTorch, ONNX and other mainstream frameworks.
4× PoE Gigabit Ethernet ports power and carry data for industrial cameras, vision terminals and IP cameras directly, with no external PoE switch — simplifying machine-vision deployment.
1× HDMI 2.1 (8K30) high-resolution display output for industrial-vision large screens, video walls and medical-imaging visualization.
4× USB 3.0 + 2× COM (RS-232 / RS-485 optional) + 1× CAN + 8-channel GPIO. Covers the full range of industrial control, data acquisition and bus communication.
The unit integrates 2× Wi-Fi antennas + a Mini-PCIe slot, with optional 4G / 5G LTE all-network modules — flexibly adapting to on-site networking.
A 3-pin pluggable Phoenix terminal with 9-36V DC wide-voltage input. Four-way protection against over-voltage, over-current, reverse polarity and surge — riding out industrial grid spikes.
Built on the FlexCore™ four-element architecture: i-Core compute (Jetson module) + i-Function expansion + i-Connect I/O + Smart Thermal control. Jetson compute is upgradeable (N100 → N200 → N500).
Four protection mechanisms working together: ① power protection (over-voltage / over-current / reverse polarity / surge) + ② backup power (smart lithium-battery power-loss buffering) + ③ start/stop control (auto power-on when energized) + ④ system self-recovery (watchdog + fault restart).
6061 high-strength aluminum alloy + sheet-metal structure, built to withstand complex industrial sites with EMI, temperature extremes and vibration. Designed for machine vision, AOI defect detection, robot control and medical-imaging AI.
Datasheet V1.0 · updated 2026-03-20 · NVIDIA Jetson module and JetPack version subject to confirmation by sales.
| Parameter | NVIDIA Jetson Orin™ NX 16G | NVIDIA Jetson Orin™ NX 8G |
|---|---|---|
| AI Module | Jetson Orin™ NX 16G | Jetson Orin™ NX 8G |
| AI Compute | 157 TOPS | 117 TOPS |
| GPU | 1024-core Ampere, 32 Tensor Cores, 1173MHz | |
| CPU | 8-core A78AE v8.2, 2.0GHz, 2MB L2+4MB L3 | 6-core A78AE v8.2, 2.0GHz, 1.5MB L2+4MB L3 |
| TDP | 10W ~ 25W | 10W ~ 20W |
| Display Output | 1× 8K30, HDMI 2.1 | |
| Memory | 16GB LPDDR5 | 8GB LPDDR5 |
| Storage | M.2 NVMe SSD | |
| Operating System | JetPack 6.x (Ubuntu 22.04 LTS, L4T) | |
| Item | Specification |
|---|---|
| USB 3.0 | 4 × USB 3.0 |
| RS232 | 2 × RS232 (COM selectable RS-232/RS-485) |
| RS485 | 2 × RS485 (COM selectable RS-232/RS-485) |
| HDMI | 1 × HDMI 2.1（8K30） |
| Gigabit Ethernet | 4 × PoE Gigabit Ethernet ports |
| CAN Bus | 1 × CAN |
| GPIO | 8 channels (4 in / 4 out) |
| Wi-Fi | 2× Wi-Fi antennas |
| 4G/5G (optional) | LTE full-network (4G/5G optional) |
| Item | Specification |
|---|---|
| Power Connector | 3-pin Phoenix terminal, supports 9~36V DC wide-voltage input |
| Boot Mode | AT/ATX mode toggle switch |
| Auto-start Design | Hardware-level auto power-on restore when energized |
| Item | Specification |
|---|---|
| Dimensions | 229 (W)×160 (D)×64.5 (H)mm |
| Weight | 3 kg net weight |
| Enclosure Material | 6061 high-strength aluminum alloy |
| Mechanical Structure | Extruded aluminum profile + sheet-metal structure |
| Mounting | Wall-mount / desktop installation |
| Cooling System | CESIPC smart thermal-control system |
| MTBF | 60,000 hrs |
| Item | Specification |
|---|---|
| Operating Temperature | 0~50℃ (wide-temp optional) |
| Storage Temperature | -10~60℃ (wide-temp optional) |
| Relative Humidity | 10%~95%，non-condensing |
| EMC | CE, FCC (EN 55032 & EN 55035) |
| EMC Harmonics | EN IEC 61000-3-2 |
| Item | Specification |
|---|---|
| Factory Certification | ISO9001: 2015 |

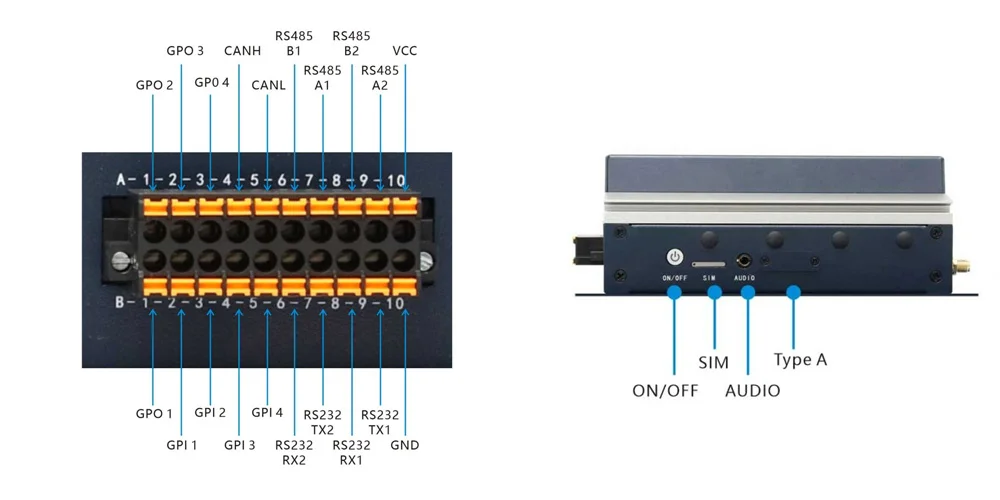

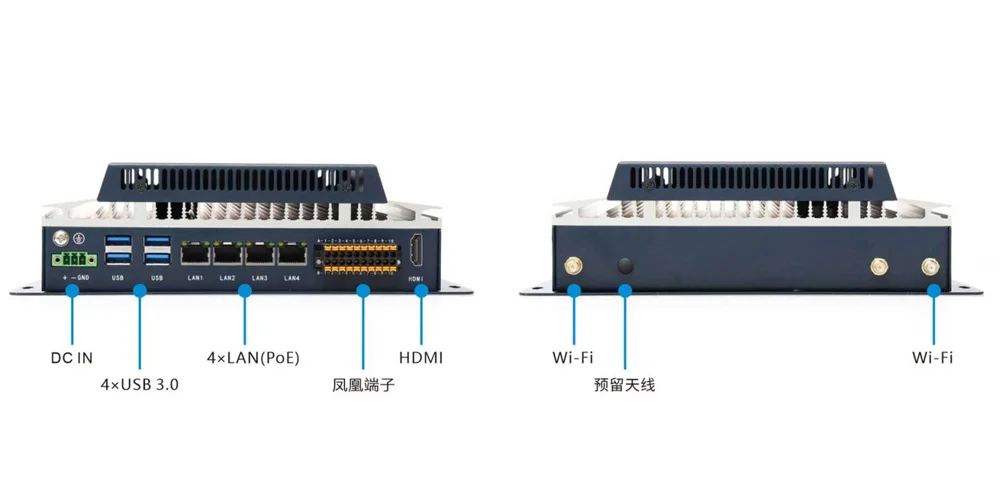

Industrial I/O laid out for machine vision and edge AI deployment, with plug-and-play support for industrial cameras, sensors, PLCs and displays.

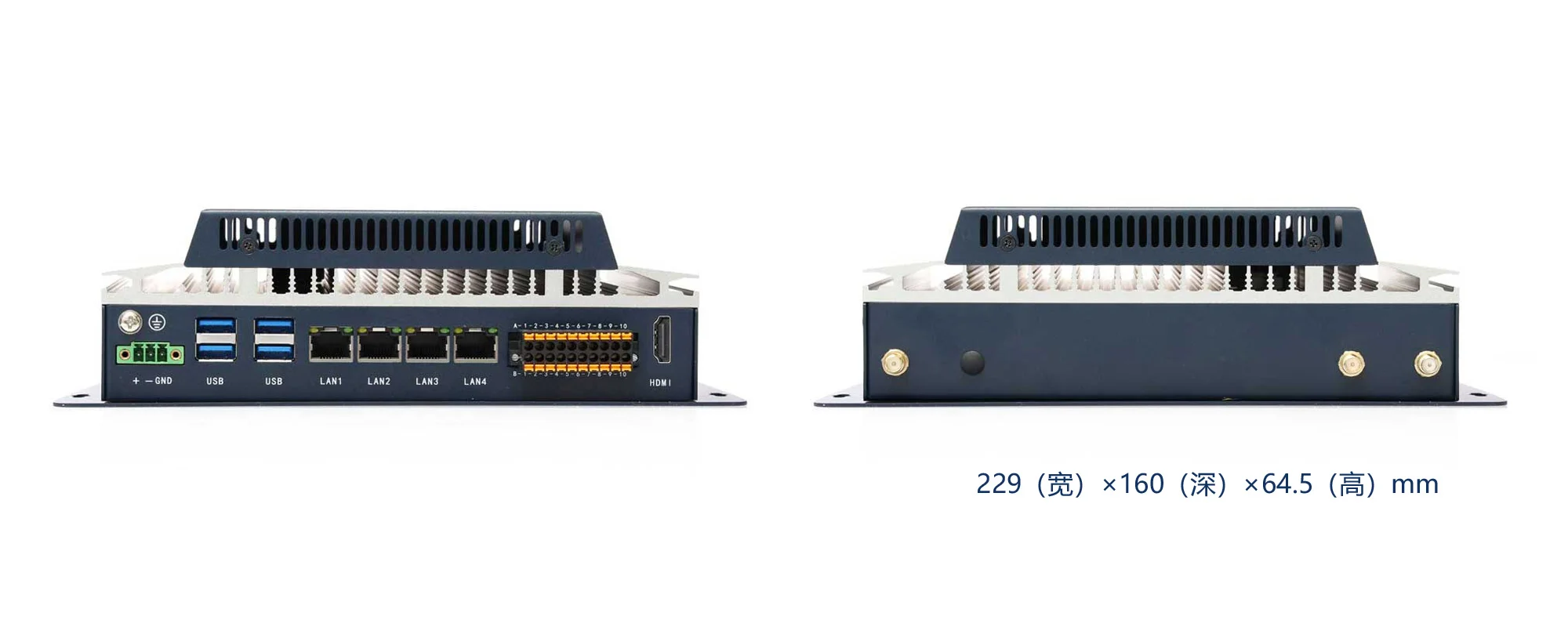

See the datasheet or the three views below for detailed dimensions.
This series supports flexible NVIDIA Jetson module selection per project (upgradeable in the same chassis) — please confirm part numbers with sales.
| No. | Part Number | Model | AI Module / Compute | Memory | Storage |
|---|---|---|---|---|---|
| 01 | C5.02.07.138 | EA-N500A | NVIDIA Jetson Orin NX 16GB / 157 TOPS | 16GB LPDDR5 | SSD 512GB |
Note: NVIDIA Jetson modules are supplied according to NVIDIA's official supply cycle and project volume. Jetson compute can be upgraded per project (N100 / N200 / N500 share a common chassis with an upward upgrade path) — please consult sales for the specific configuration.

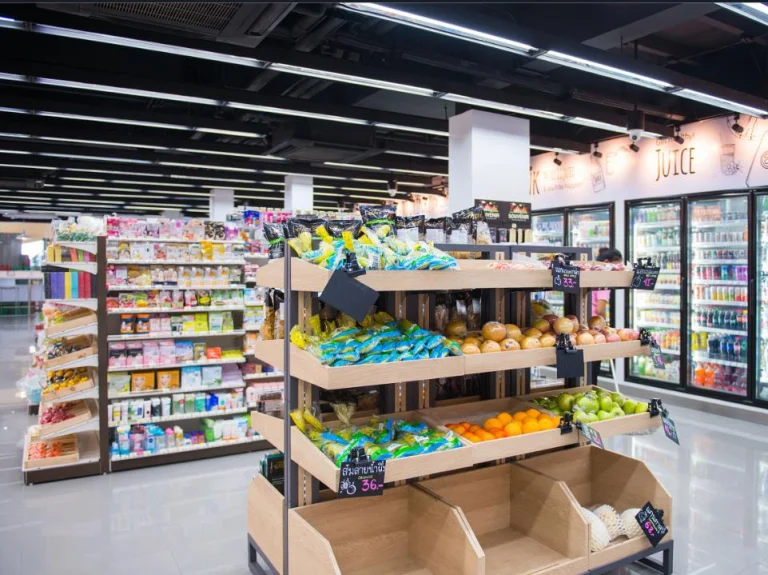

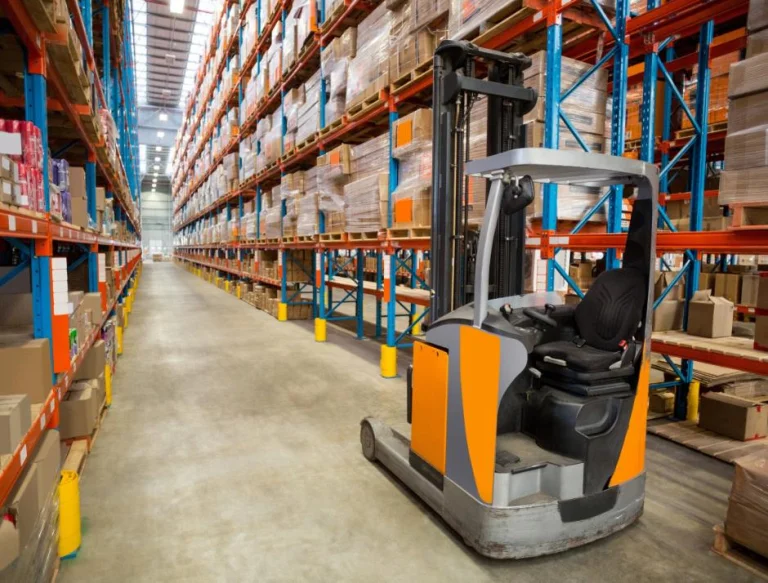

Built on NVIDIA Jetson compute, industrial I/O and the JetPack ecosystem, the EA-N500A is widely deployed across the 4 edge AI scenarios below.
Tell us your AI model size, number of vision interfaces, on-site compute budget and volume — our engineers will respond within 24 hours with a full datasheet, quote and JetPack software-compatibility evaluation.
