EPC-W1222A widescreen industrial panel PC (16:9) - front view - CESIPC
EPC-W12 SERIES · 12.5" 16:9 · 4 CPU TIERS

EPC-W12 12.5" Widescreen
Industrial Panel PC Series

12.5" 16:9 P-CAP 10-point capacitive touch + IP65 front panel + FHD 1920×1080 industrial display. One screen, one I/O spec, 4 CPU tiers (12th Gen flagship / 10th Gen mainstream / J6412 Low-Power / J1900 Economy) — choose by compute, budget or long-life needs.

12.5"16:9 P-CAP Industrial Screen
4 TiersCPU Configurations
IP65Dust & Water-Resistant Front
9-36VWide-Range Phoenix Terminal
View 4 Models Series Selection Advice
4 CPU TIERS · SAME PANEL

EPC-W12 Series · 4-Model Selection

Same 12.5" P-CAP touchscreen + same IP65 front panel + same I/O spec; only the processor platform differs — select by compute / budget / compatibility.

EPC-W1222A widescreen industrial panel PC (16:9) - front view - CESIPC 12th Gen Flagship
EPC-W12 · 12th Gen i3-i7

EPC-W1222A

Intel® Core™ i3 / i5 / i7 12th Gen U-Series

  • Processori3-1215U / i5-1235U / i7-1255U
  • PerformanceUp to 10C12T · Iris Xe Graphics · DDR5 32GB
  • Display12.5" · FHD 1920×1080 · P-CAP 10-point
  • ProtectionIP65 front panel · 9-36V wide-range
View Details Get a Quote
EPC-W1262A widescreen industrial panel PC (16:9) - front view - CESIPC Economy Multi-I/O
EPC-W12 · J1900 Economy

EPC-W1262A

Intel® Celeron® J1900 (Bay Trail-D)

  • ProcessorJ1900 · 4C4T · 2.0 GHz
  • PerformanceNative Win 7 · legacy OS support · DDR3 8GB
  • Display12.5" · FHD 1920×1080 · P-CAP 10-point
  • ProtectionIP65 front panel · 9-36V wide-range
View Details Get a Quote
EPC-W1272A widescreen industrial panel PC (16:9) - front view - CESIPC Low-Power Upgrade
EPC-W12 · J6412 Low-Power

EPC-W1272A

Intel® Celeron® J6412 (Elkhart Lake)

  • ProcessorJ6412 · 4C4T · up to 2.6 GHz
  • Performance10nm process · 10W TDP · DDR4 16GB
  • Display12.5" · FHD 1920×1080 · P-CAP 10-point
  • ProtectionIP65 front panel · 9-36V wide-range
View Details Get a Quote

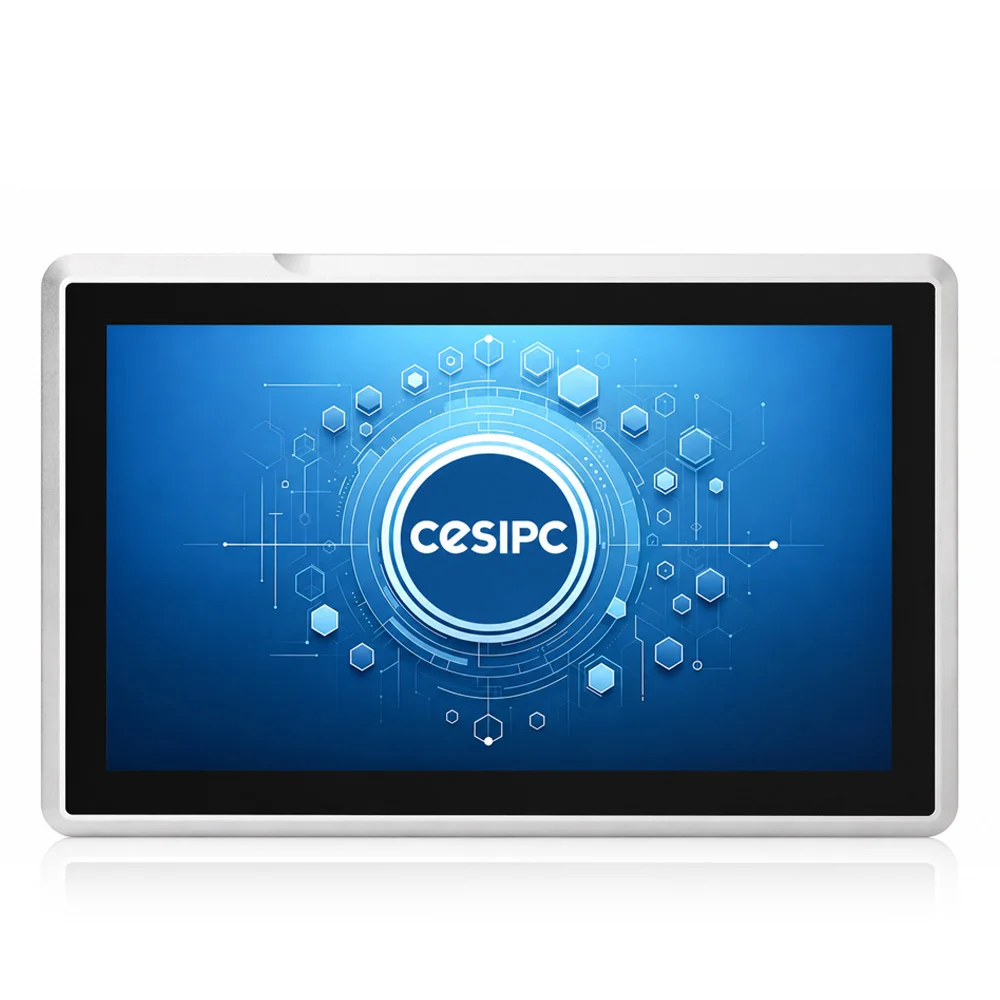

EPC-W1292A widescreen industrial panel PC (16:9) - front view - CESIPC 10th Gen Mainstream
EPC-W12 · 10th Gen i3-i7

EPC-W1292A

Intel® Core™ i3 / i5 / i7 10th Gen U-Series

  • Processori3-10110U / i5-10210U / i7-10510U
  • PerformanceLow-power U-Series · industrial-grade stability · DDR4 32GB
  • Display12.5" · FHD 1920×1080 · P-CAP 10-point
  • ProtectionIP65 front panel · 9-36V wide-range
View Details Get a Quote
SIDE-BY-SIDE COMPARE

4-Model Spec Comparison

Parameter / ModelEPC-W1222AEPC-W1262AEPC-W1272AEPC-W1292A
CPU Platform12th Gen i3-i7J1900 EconomyJ6412 Low-Power10th Gen i3-i7
Processor Modeli3-1215U / i5-1235U / i7-1255UJ1900 · 4C4T · 2.0 GHzJ6412 · 4C4T · up to 2.6 GHzi3-10110U / i5-10210U / i7-10510U
Memory8-32GB DDR52-8GB DDR34-16GB DDR48-32GB DDR4
Typical UsePerformance flagship · edge AI / machine visionEconomy · equipment control / legacy OSLow-power · workstation HMI / instrument panelBalanced mainstream · industrial control / data acquisition
SHARED PLATFORM

EPC-W12 Series Shared Platform Features

Four CPU variants share the same panel / I/O / power / mounting spec — the panel PC expression of FlexCore™ Modular.

01

12.5" P-CAP Industrial Touch

Projected-capacitive (P-CAP) touch with 10-point multi-touch, FHD 1920×1080 industrial panel, 350 cd/m² brightness and 50,000-hour backlight life.

02

IP65 Dust- & Water-Resistant Front

High-strength 6061 aluminum alloy with sheet-metal chassis and an IP65-rated front panel — resists dust, oil and washdown splash for long-term stable operation.

03

Panel-Mount / VESA Dual Mounting

Embedded panel mounting (standard cutout) plus VESA 75×75 wall mounting — covers both control-cabinet embedding and standalone wall deployment.

04

Rich Industrial I/O

4× USB 3.0 + 2× USB 2.0 + 4× RS-232 + 2× RS-485 + 2× GbE + HDMI + VGA + audio — high-density multi-serial layout.

05

FlexCore™ Four-Element Modularity

i-Core smart core + i-Function expansion + i-Connect I/O + Smart Thermal control — keep the panel long-term, upgrade the mainboard on demand.

06

SafeCore™ Industrial Reliability

Four-layer protection: power protection + backup power + power on/off control (auto power-on) + system self-recovery (watchdog) for 7×24 steady operation.

APPLICATIONS

EPC-W12 Series Typical Applications

🏭 Industrial Equipment Control 📊 Data Acquisition 🚊 Smart Transportation ⚡ Energy Management 🛒 Self-Service Kiosks 📷 Machine Vision HMI 🎛 Industrial Operator Station 🏬 Warehousing & Logistics
EXPLORE OTHER SIZES

Other Screen-Size Sub-Series

Ten screen-size sub-series, from 10" square to 23.6" wide. Each sub-series also offers 4 CPU configurations.

EPC-S1022A industrial touch panel PC - front view - CESIPC
10" · 4:3

EPC-S10 Series

10" square screen · XGA 1024×768

View →
EPC-S1222A embedded industrial panel PC (standard screen) - front view - CESIPC
12" · 4:3

EPC-S12 Series

12" square screen · XGA 1024×768

View →
EPC-S1522A industrial touch panel PC - front view - CESIPC
15" · 4:3

EPC-S15 Series

15" square screen · XGA 1024×768

View →
EPC-S1722A embedded industrial panel PC (standard screen) - front view - CESIPC
17" · 5:4

EPC-S17 Series

17" square screen · SXGA 1280×1024

View →
EPC-S1922A embedded industrial panel PC (standard screen) - front view - CESIPC
19" · 5:4

EPC-S19 Series

19" square screen · SXGA 1280×1024

View →
EPC-W1222A widescreen industrial panel PC (16:9) - front view - CESIPC
12.5" · 16:9

EPC-W12 Series

12.5" widescreen · FHD 1920×1080

Current Series
EPC-W1522A widescreen industrial panel PC (16:9) - front view - CESIPC
15.6" · 16:9

EPC-W15 Series

15.6" widescreen · FHD 1920×1080

View →
EPC-W1822A widescreen industrial panel PC (16:9) - front view - CESIPC
18.5" · 16:9

EPC-W18 Series

18.5" widescreen · FHD 1920×1080

View →
EPC-W2122A industrial touch panel PC - front view - CESIPC
21.5" · 16:9

EPC-W21 Series

21.5" widescreen · FHD 1920×1080

View →
EPC-W2422A industrial touch panel PC - front view - CESIPC
23.6" · 16:9

EPC-W24 Series

23.6" large screen · FHD 1920×1080

View →
← EPC-S19 (19") Back to Standard Industrial Panel PC Series EPC-W15 (15.6") →

EPC-W12 Series Selection Consultation

Tell us your project background, screen-size requirements, I/O and power needs, and order volume. Our engineers will reply within 24 hours with a full datasheet, quotation and sample-evaluation plan.
