12.5" widescreen P-CAP 10-point capacitive touch + IP65 front panel, powered by Intel® Celeron® J6412 — an industrial touch panel PC
The EPC-W1272A is a 12.5-inch low-power industrial touch panel PC designed for space-constrained equipment integration, production-line workstations and on-site HMI operation. The 12.5-inch widescreen format balances display area with mounting flexibility, fitting cabinet door panels, small machines, operator terminals and mobile workstations. It suits industrial control, equipment management, data acquisition, line dashboards and unattended terminals — a reliable choice for compact, on-site industrial digitalization.
12.5" widescreen P-CAP industrial touchscreen + IP65 front panel + FlexCore™ Modular — the standard answer for industrial HMI / on-site visualization.
Projected-capacitive touch (P-CAP) with 10-point multi-touch, FHD TFT LED LCD at 1920 × 1080 resolution and a 300-350 cd/m² standard industrial panel (high-bright 500-1000 nits optional). 50,000-hour backlight life.
IP65-rated front panel protection with a 6061 high-strength aluminum alloy + sheet-metal structure. Withstands dust, oil and washdown spray on the factory floor for stable long-term operation.
Intel® Celeron® J6412 4C4T, up to 2.6 GHz Boost and just 10W TDP. 10 nm process for low heat and high stability.
Supports embedded panel mounting (12.5" widescreen standard cutout) and VESA 75×75 wall mounting. Both methods cover control-cabinet embedding and standalone wall deployment.
The touchscreen and mainboard are decoupled by design: the display stays available long-term while the mainboard can be upgraded per project for more compute. A single form factor spans i3 to i7 / J1900 to J6412 CPU versions, lowering maintenance cost through platformization.
4× USB 3.0 + 2× USB 2.0 + 4× RS-232 + 2× RS-485 + 2× GbE + HDMI + VGA + audio. High-density layout with multiple serial ports.
1× Mini-PCIe expansion slot for optional dual-band Wi-Fi / Bluetooth / 4G / 5G communication modules, flexibly adapting to shop-floor wireless networking and remote monitoring.
3-pin pluggable Phoenix terminal with 9-36V DC wide-range input. Quad protection against overvoltage / overcurrent / reverse polarity / surge.
Die-cast 6061 high-strength aluminum-alloy finned heat dissipation with zero moving parts — maintenance-free, dust- and vibration-resistant.
Built on the FlexCore™ four-element architecture: i-Core smart core + i-Function expansion + i-Connect interface + Smart Thermal management. Unified interface · unified structure · unified power · free expansion.
Four protection mechanisms work in concert: ① power protection (overvoltage/overcurrent/reverse polarity/surge) + ② backup power (smart lithium-battery power-loss buffering) + ③ start/stop control (auto power-on after restore) + ④ system self-recovery (watchdog + fault restart).
Datasheet V1.0 · Updated 2026-03-20 · Due to chip market fluctuations, key components may change; final specs subject to sales confirmation.
| Parameter | Specification |
|---|---|
| Processor | Intel® Celeron® J6412 |
| Cores | 4 |
| Threads | 4 |
| Frequency | 2.0~2.6 GHz |
| Cache | 4 MB L3 Cache，1.5 MB L2 Cache |
| TDP | 10W |
| Display | Intel UHD Graphics 32EU |
| Memory | DDR4 4~32 GB |
| Storage | 1× M.2 2242 SSD |
| Parameter | Specification |
|---|---|
| USB 2.0 | 5 |
| USB 3.0 | 1 |
| RS232 | 2 |
| RS485 | 1 |
| VGA | 1 |
| HDMI | 1 |
| Gigabit Ethernet | 2 × LAN |
| Audio | 3.5mm TRRS |
| Wi-Fi (optional) | Dual-Band 2.4G/5G Wi-Fi Card |
| 4G/5G (optional) | 4G/5G LTE (optional) |
| Parameter | Specification |
|---|---|
| Power Connector | 1× 3-pin pluggable terminal, 9~36V DC wide voltage |
| ATX Switch | 1× ATX Power Switch |
| Power-On Mode | AT/ATX Mode Switch (built-in) |
| Parameter | Specification |
|---|---|
| Dimensions | 404.2 (L) ×253.5 (W) ×75.1 (H) mm |
| Mounting Dimensions | 388.0 (L) ×237.3 (W) mm (panel cutout) |
| Weight | 5.1 kg net weight |
| Housing Material | 6061 High-Strength Aluminum Alloy |
| Mechanical Structure | Extruded Aluminum + Sheet Metal |
| Mounting | Panel Mount / VESA 75×75 Wall Mount |
| Reset Switch | 1× Reset Switch |
| MTBF | 60,000 hrs |
| Parameter | Specification |
|---|---|
| Operating Temperature | 0~60℃ (wide-temp -40~80℃ optional) |
| Storage Temperature | -10~70℃ (wide-temp -40~80℃ optional) |
| Relative Humidity | 10%~90%, non-condensing |
| EMC | CE、FCC（EN 55032 & EN 55035） |
| EMC Harmonics | EN IEC 61000-3-2 |
| Parameter | Specification |
|---|---|
| Display Size | 12.5" (16:9) |
| Display Type | FHD TFT LED LCD |
| Resolution | 1920 × 1080 |
| Colors | 16.7M |
| Brightness | 350 cd/m² |
| Contrast Ratio | 500:1 |
| Backlight Life | 50,000 hrs |
| Touch Technology | Projected Capacitive (P-CAP), 10-point |
| Touch Protection | IP65 (front panel) |
| Parameter | Specification |
|---|---|
| Windows | Windows 7 / Windows 10 / Windows 11 |
| Linux | Ubuntu 16.04 / 18.04 / 20.04 / 22.04 |
| Parameter | Specification |
|---|---|
| Factory Certification | ISO9001: 2015 |
| BIOS Customization | BIOS / Boot LOGO / OEM |

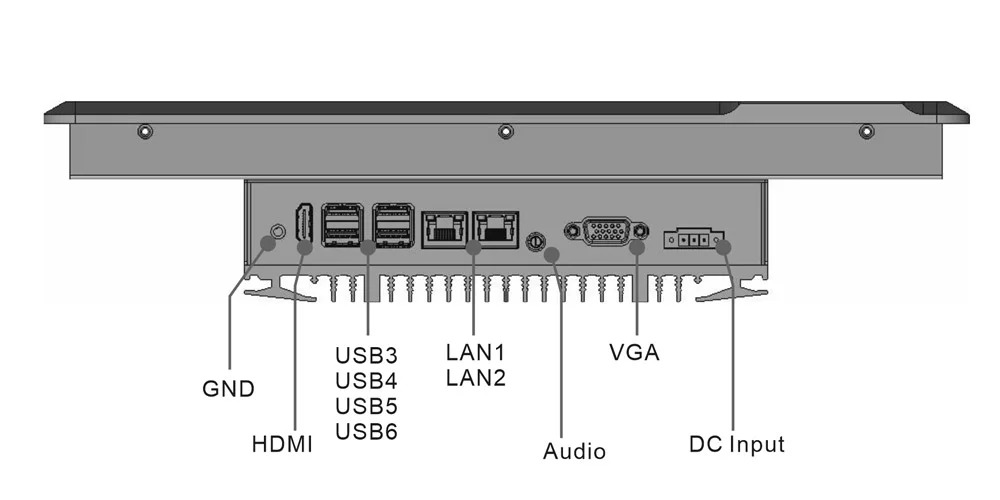

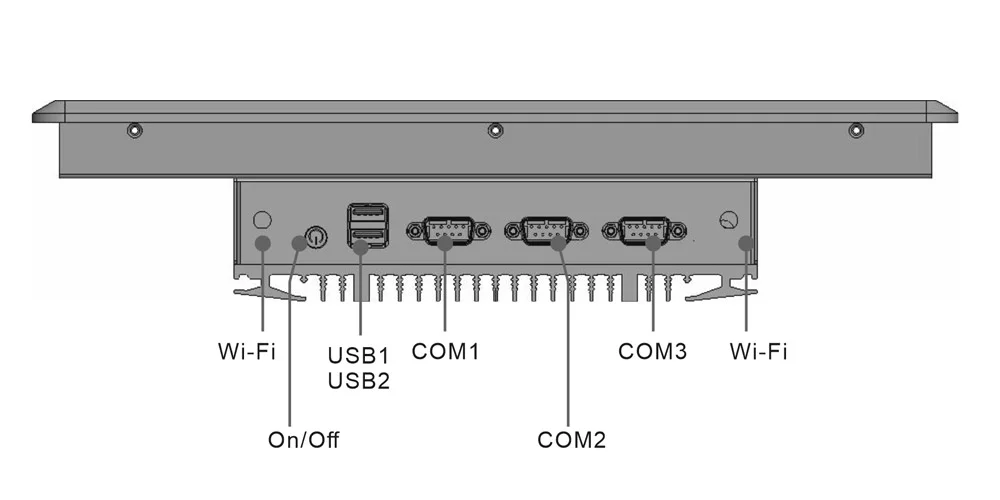

All I/O is centralized on the rear of the panel PC, keeping the front panel clean at IP65 for embedded console deployment.
Tell us your project background, screen-size requirements, I/O and power needs, and order volume. Our engineers will reply within 24 hours with a full datasheet, quotation and sample-evaluation plan.
