12.5" P-CAP Capacitive Touch + 10-Point
Projected capacitive (P-CAP) with 10-point multi-touch, FHD TFT LED LCD at 1920 × 1080, 300-350 cd/m² standard industrial display (500-1000 nits high-bright optional). 50,000-hour backlight life.
EPC-W1292A · 12.5" P-CAP · 10TH GEN INTEL® CORE™
10th Gen Intel® Core™ industrial panel PC with a 12.5-inch widescreen P-CAP 10-point capacitive touchscreen and IP65 front bezel
EPC-W1292A 10th Gen i7 12.5-inch Widescreen Industrial Panel PC | P-CAP + IP65
The EPC-W1292A is a 12.5-inch high-performance industrial panel PC designed for space-constrained equipment integration, line workstations, machine control and on-site HMI operation. Its 12.5-inch widescreen format balances display area with mounting flexibility, making it well suited to cabinet doors, compact machines, operator terminals and mobile workstations. It is ideal for industrial control, data acquisition, equipment networking, production dashboards and unattended terminals — a reliable choice for high-performance deployment in compact industrial environments.
Typical Applications
12.5"P-CAP 10-point touch
IP65front-panel protection
350 nitsindustrial display (high-bright option)
9-36Vwide-voltage input
PRODUCT HIGHLIGHTS
Eleven Core Features of the EPC-W1292A
12.5-inch widescreen P-CAP touchscreen + IP65 front panel + FlexCore™ modularity — the standard answer for industrial HMI and on-site visualization.
IP65 Dust- and Water-Resistant Front Panel
IP65-rated front-panel protection with a 6061 high-strength aluminum alloy + sheet-metal structure. Withstands dust, oil and wash-down splash on the plant floor for long-term stable operation.
10th Gen Intel Core
Three options: Intel® Core™ i3-10110U / i5-10210U / i7-10510U. Low-power U-series design balances performance and energy efficiency.
Panel-Mount / VESA Dual Mounting
Supports panel-mount installation (12.5-inch widescreen standard cutout) and VESA 75×75 wall mounting. Both methods cover cabinet embedding and standalone wall deployment.
Separated Display + Mainboard Design
Separated touchscreen and mainboard design: the display stays available long-term while the mainboard is upgraded per project. One form factor spans i3 to i7 / J1900 to J6412 CPU variants, lowering maintenance cost through a platform approach.
Rich Industrial I/O
4× USB 3.0 + 2× USB 2.0 + 4× RS-232 + 2× RS-485 + 2× GbE + HDMI + VGA + audio. High-density multi-serial layout.
Mini-PCIe Wireless Expansion
1× Mini-PCIe slot for an optional dual-band Wi-Fi / Bluetooth / 4G / 5G module, ideal for shop-floor wireless networking and remote monitoring.
9-36V Wide-Voltage Phoenix Terminal
3-pin pluggable Phoenix terminal with 9-36V DC wide-voltage input. Four-way protection against over-voltage, over-current, reverse polarity and surge.
Fanless
Die-cast 6061 high-strength aluminum alloy finned heat sink with zero moving parts — maintenance-free, dust- and vibration-resistant.
FlexCore™ Modular Hardware Architecture
Built on the FlexCore™ four-element architecture: i-Core compute board + i-Function expansion + i-Connect interface + Smart Thermal management. Unified interface, structure and power supply with free expandability.
SafeCore™ Industrial Reliability Enhancement
Four coordinated protection mechanisms: ① power protection (over-voltage / over-current / reverse / surge) + ② backup power (smart lithium-battery ride-through) + ③ power control (auto power-on) + ④ self-recovery (watchdog + fault restart).
PRODUCT GALLERY

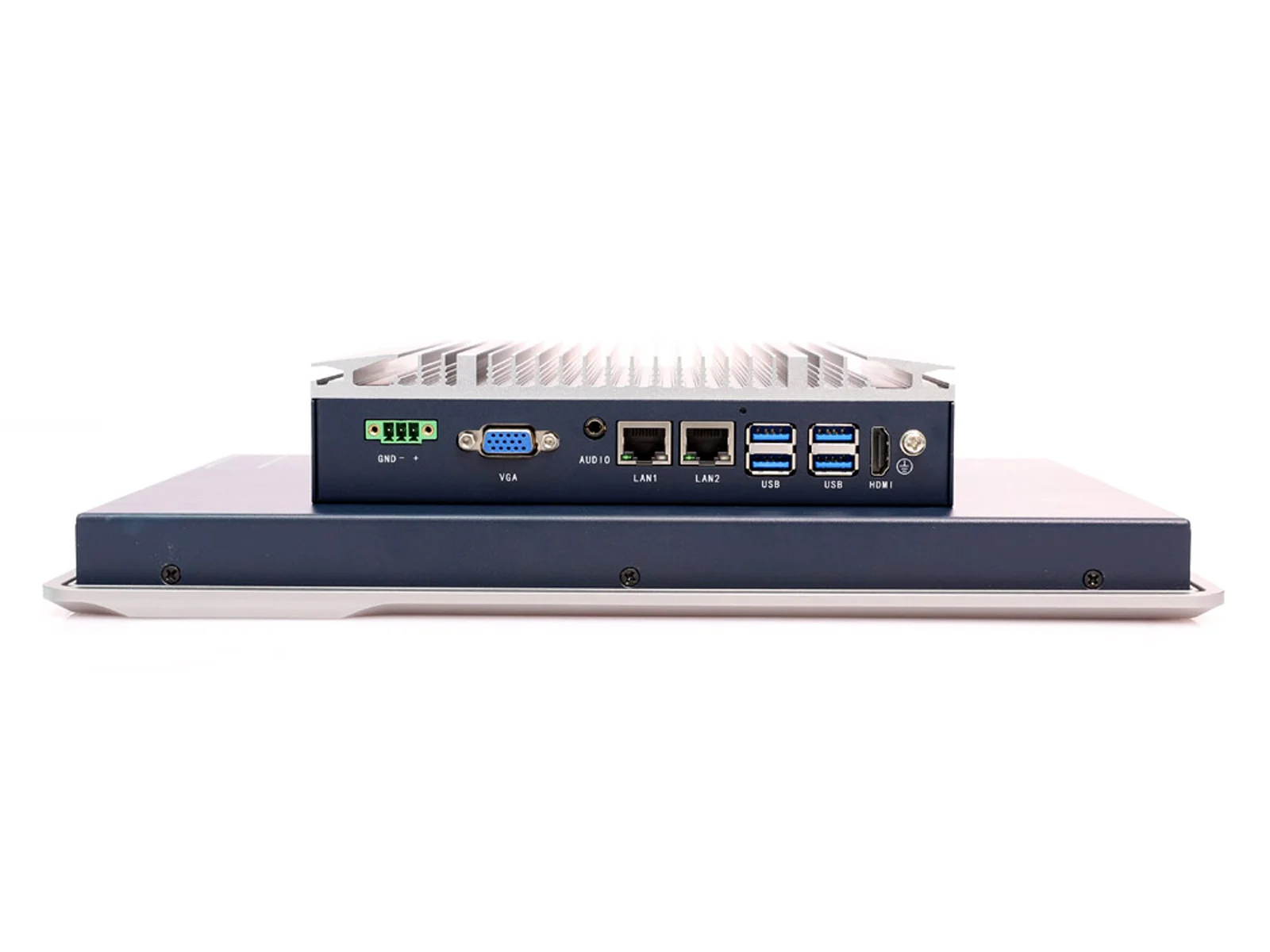

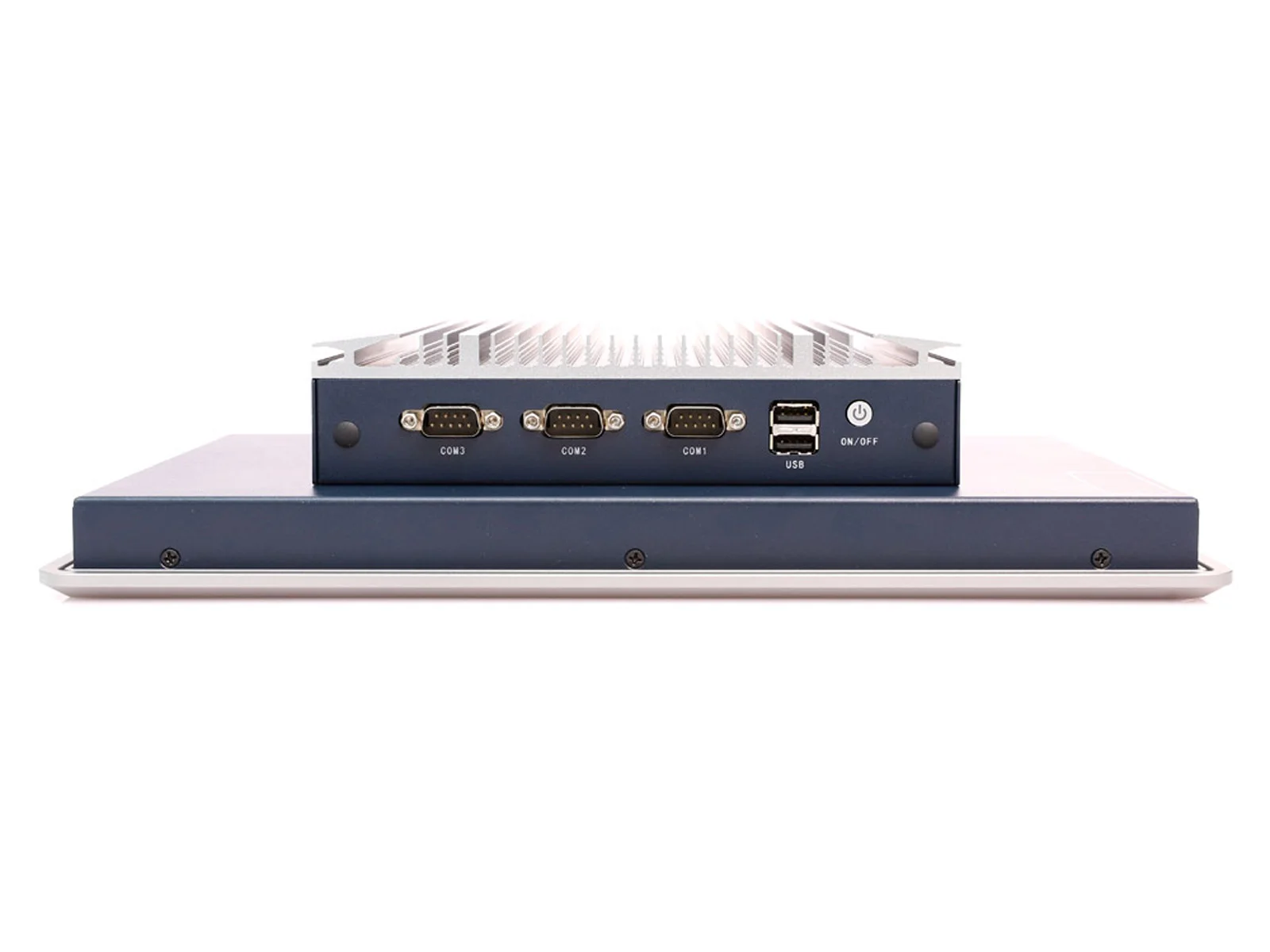

Product Gallery
SPECIFICATIONS
EPC-W1292A Full Specifications
Datasheet version V1.0 · Updated 2026-03-20 · Due to chip market fluctuations, key components may change; please confirm with sales.
Core Hardware
| Parameter | Intel® Core™ i3-10110U | Intel® Core™ i5-10210U | Intel® Core™ i7-10510U |
|---|---|---|---|
| Processor | i3-10110U | i5-10210U | i7-10510U |
| Cores | 2 | 4 | 4 |
| Threads | 4 | 8 | 8 |
| Frequency | 2.1~4.1 GHz | 1.6~4.2 GHz | 1.8~4.9 GHz |
| Cache | 4MB | 6MB | 8MB |
| TDP | 15W | ||
| Graphics | Intel UHD Graphics 620 | ||
| Memory | 4~32GB DDR4 | ||
| Storage | 1× M.2 SSD + 1× M.2 NVMe | ||
I/O Ports
| Parameter | Specification |
|---|---|
| USB 2.0 | 2 |
| USB 3.0 | 4 |
| RS232 | 2 |
| RS485 | 1 |
| VGA | 1 |
| HDMI | 1 |
| Gigabit Ethernet | 2 × LAN |
| Audio | 3.5mm TRRS |
| Wi-Fi (optional) | Dual-band 2.4G/5G Wi-Fi module |
| 4G/5G (optional) | 4G/5G LTE multi-carrier (optional) |
Power Input
| Parameter | Specification |
|---|---|
| Power Connector | 3-pin pluggable terminal block, 9~36V DC wide-voltage input |
| ATX Switch | 1× ATX power switch |
| Boot Mode | AT/ATX mode switch (built-in) |
Physical & General
| Parameter | Specification |
|---|---|
| Dimensions | 404.2 (W) × 253.5 (H) × 75.1 (D)mm |
| Mounting Dimensions | 388.0 (W) × 237.3 (H) mm (panel cutout) |
| Weight | 5.1 KG net weight |
| Enclosure Material | 6061 high-strength aluminum alloy |
| Mechanical Structure | Aluminum extrusion + sheet metal structure |
| Mounting | Panel mount / VESA 75×75 wall mount |
| Reset Switch | 1× reset switch |
| MTBF | 60,000 hrs |
Operating Environment
| Parameter | Specification |
|---|---|
| Operating Temperature | 0~60°C (wide-temp -40~80°C optional) |
| Storage Temperature | -10~70°C (wide-temp -40~80°C optional) |
| Relative Humidity | 10%~90%, non-condensing |
| EMC | CE、FCC（EN 55032 & EN 55035） |
| EMC Harmonics | EN IEC 61000-3-2 |
Touch & Display
| Parameter | Specification |
|---|---|
| Display Size | 12.5" (16:9) |
| Display Type | FHD TFT LED LCD |
| Resolution | 1920 × 1080 |
| Colors | 16.7M |
| Brightness | 350 cd/m² |
| Contrast Ratio | 500:1 |
| Backlight Life | 50,000 hrs |
| Touch Technology | Projected capacitive (P-CAP), 10-point |
| Touch Protection | IP65 (front panel) |
Operating System
| Parameter | Specification |
|---|---|
| Windows | Windows 7 / Windows 10 / Windows 11 |
| Linux | Ubuntu 16.04 / 18.04 / 20.04 / 22.04 |
Certifications & Compliance
| Parameter | Specification |
|---|---|
| Factory Certification | ISO9001: 2015 |
| BIOS Customization | BIOS / Boot LOGO / OEM |
I/O LAYOUT
Side / Rear Panel I/O Layout
All I/O is concentrated at the rear, keeping the front panel a clean IP65 surface for easy panel-mount console deployment.

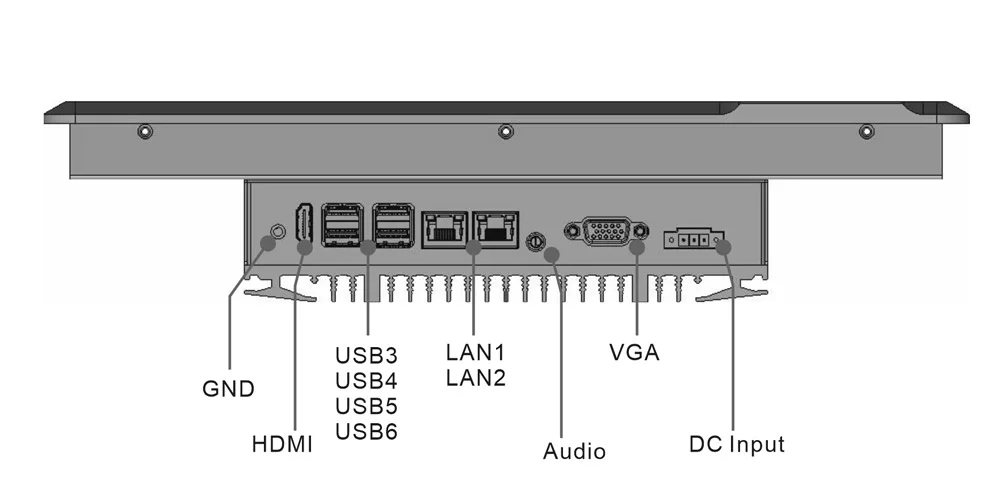

Side / Top Panel

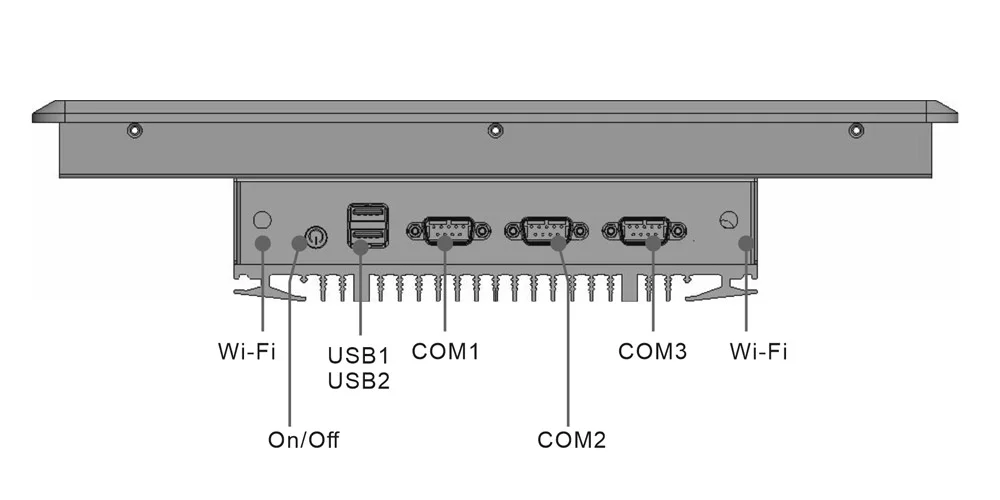

Bottom / Rear Panel
DIMENSIONS

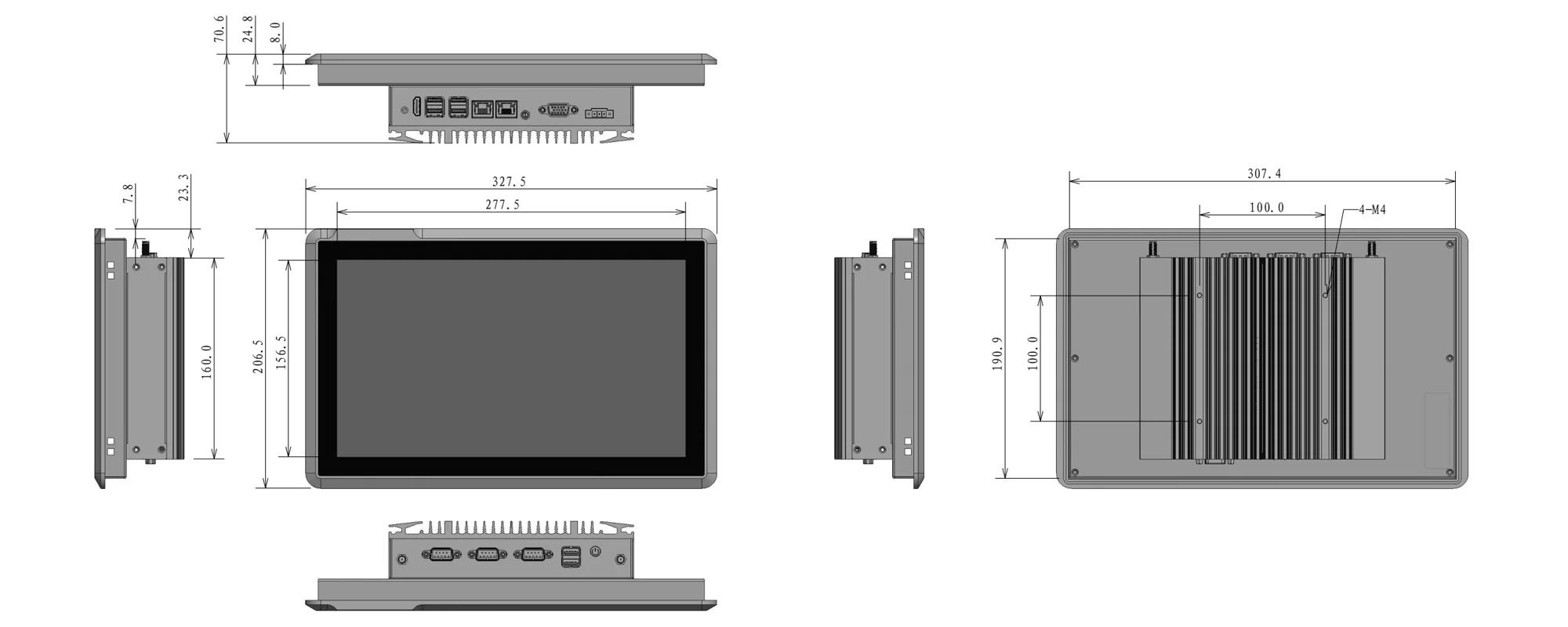

Dimensions (mm)
12.5-inch widescreen standard cutout · panel mount + VESA 75×75 dual mounting.
ORDERING INFORMATION
Ordering Information · Part Number
The standard configurations below can be ordered directly. For custom CPU / memory / storage / I/O boards, please contact sales.
| No. | Part Number | Model | Processor + Touchscreen | Memory | Storage |
|---|---|---|---|---|---|
| 01 | C11.01.03.017 | EPC-W1292A | Intel® i3-10110U, 12.5" P-CAP | 8GB RAM | SSD 256GB |
| 02 | C11.01.03.018 | EPC-W1292A | Intel® I5-10210U, 12.5" P-CAP | 8GB RAM | SSD 256GB |
| 03 | C11.01.03.019 | EPC-W1292A | Intel® I7-10510U, 12.5" P-CAP | 8GB RAM | SSD 256GB |
Note: Due to market fluctuations, key components such as CPU, memory and storage may change. Please confirm exact configuration with our sales team.
APPLICATIONS
EPC-W1292A Typical Applications
With its 12.5-inch widescreen P-CAP touch, IP65 protection and multi-serial expansion, the EPC-W1292A is widely deployed across the following four industrial scenarios.
EPC-W1292A Selection Consulting
Tell us your project background, screen-size, I/O and power requirements, and order quantity. Our engineers will respond within 24 hours with a full datasheet, quotation and sample-evaluation plan.
