EPC-S1522A industrial touch panel PC - front main view - CESIPC
EPC-S15 SERIES · 15" 4:3 · 4 CPU TIERS

EPC-S15 15" Square Screen
Industrial Panel PC Series

15" 4:3 P-CAP 10-point capacitive touch + IP65 front panel + XGA 1024×768 industrial display. One screen, one interface standard, 4 CPU configurations (12th Gen flagship / 10th Gen workhorse / J6412 Low-Power / J1900 Economy) matched to compute, budget and long-lifecycle needs.

15"4:3 P-CAP Industrial Display
4CPU Configurations
IP65Dust- & Water-Resistant Front Panel
9-36VWide-Voltage Phoenix Terminal
View 4 Models Series Selection Consultation
4 CPU TIERS · SAME PANEL

EPC-S15 Series · 4-Model Selection

Same 15" P-CAP touchscreen + same IP65 front panel + same I/O spec; only the processor platform differs — select by compute / budget / compatibility.

EPC-S1522A industrial touch panel PC - front main view - CESIPC 12th Gen Flagship
EPC-S15 · 12th Gen i3-i7

EPC-S1522A

Intel® Core™ i3 / i5 / i7 12th Gen U-series

  • Processori3-1215U / i5-1235U / i7-1255U
  • PerformanceUp to 10C/12T · Iris Xe iGPU · DDR5 32GB
  • Display15" · XGA 1024×768 · P-CAP 10-point
  • ProtectionIP65 front panel · 9-36V wide voltage
View Details Inquire

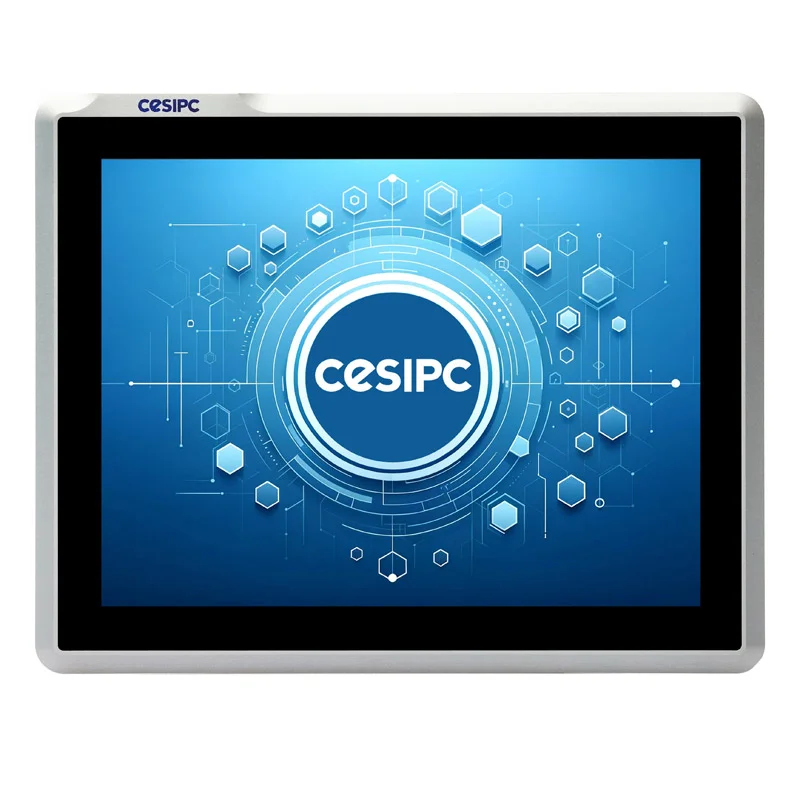

EPC-S1562A industrial touch panel PC - front main view - CESIPC Economy Multi-I/O
EPC-S15 · J1900 Economy

EPC-S1562A

Intel® Celeron® J1900 (Bay Trail-D)

  • ProcessorJ1900 · 4C4T · 2.0 GHz
  • PerformanceNative Win 7 · legacy-OS compatible · DDR3 8GB
  • Display15" · XGA 1024×768 · P-CAP 10-point
  • ProtectionIP65 front panel · 9-36V wide voltage
View Details Inquire
EPC-S1572A industrial touch panel PC - front main view - CESIPC Low-Power Upgrade
EPC-S15 · J6412 Low-Power

EPC-S1572A

Intel® Celeron® J6412 (Elkhart Lake)

  • ProcessorJ6412 · 4C4T · up to 2.6 GHz
  • Performance10nm process · 10W TDP · DDR4 16GB
  • Display15" · XGA 1024×768 · P-CAP 10-point
  • ProtectionIP65 front panel · 9-36V wide voltage
View Details Inquire
EPC-S1592A industrial touch panel PC - front main view - CESIPC 10th Gen Workhorse
EPC-S15 · 10th Gen i3-i7

EPC-S1592A

Intel® Core™ i3 / i5 / i7 10th Gen U-series

  • Processori3-10110U / i5-10210U / i7-10510U
  • PerformanceU-series low power · industrial-grade stability · DDR4 32GB
  • Display15" · XGA 1024×768 · P-CAP 10-point
  • ProtectionIP65 front panel · 9-36V wide voltage
View Details Inquire
SIDE-BY-SIDE COMPARE

4-Model Spec Comparison

Parameter / ModelEPC-S1522AEPC-S1562AEPC-S1572AEPC-S1592A
CPU Platform12th Gen i3-i7J1900 EconomyJ6412 Low-Power10th Gen i3-i7
Processori3-1215U / i5-1235U / i7-1255UJ1900 · 4C4T · 2.0 GHzJ6412 · 4C4T · up to 2.6 GHzi3-10110U / i5-10210U / i7-10510U
Memory8-32GB DDR52-8GB DDR34-16GB DDR48-32GB DDR4
Typical UsePerformance flagship · edge intelligence / machine visionEconomy · equipment control / legacy-OS compatibilityLow-power · workstation HMI / instrument panelBalanced mainstream · industrial control / data acquisition
SHARED PLATFORM

EPC-S15 Series Shared Platform Features

Four CPU variants share the same panel / I/O / power / mounting spec — the panel PC expression of FlexCore™ Modular.

01

15" P-CAP Industrial Touch

Projected capacitive touch (P-CAP), 10-point multitouch, XGA 1024×768 industrial display, 350 cd/m² brightness, 50,000-hour backlight life.

02

IP65 Dust- & Water-Resistant Front Panel

6061 high-strength aluminum-alloy + sheet-metal structure with an IP65-rated front panel. Withstands industrial dust, oil and washdown spray for long-term stable operation.

03

Panel Mount / VESA Dual Mounting

Embedded panel mounting (standard cutout) + standard VESA 75×75 wall mounting. Covers cabinet-embedded and standalone wall deployment.

04

Rich Industrial I/O

4× USB 3.0 + 2× USB 2.0 + 4× RS-232 + 2× RS-485 + 2× GbE + HDMI + VGA + audio. High-density multi-serial layout.

05

FlexCore™ Four-Element Modular

i-Core + i-Function expansion + i-Connect I/O + Smart Thermal. The screen stays serviceable long-term while the mainboard is upgraded on demand.

06

SafeCore™ Industrial-Grade Reliability

Quad protection: power protection + backup power + power-cycle control (auto power-on) + system self-recovery (watchdog). Built for 24/7 steady operation.

APPLICATIONS

EPC-S15 Series Typical Applications

🏭 Industrial Equipment Control 📊 Data Acquisition 🚊 Smart Transportation ⚡ Energy Management 🛒 Self-Service Kiosks 📷 Machine Vision HMI 🎛 Industrial Operator Station 🏬 Warehousing & Logistics
EXPLORE OTHER SIZES

Other Screen-Size Sub-Series

Ten screen-size sub-series, from 10" square to 23.6" wide. Each sub-series also offers 4 CPU configurations.

EPC-S1022A industrial touch panel PC - front main view - CESIPC
10" · 4:3

EPC-S10 Series

10" Square Screen · XGA 1024×768

View →
EPC-S1222A embedded industrial panel PC (standard screen) - front main view - CESIPC
12" · 4:3

EPC-S12 Series

12" Square Screen · XGA 1024×768

View →
EPC-S1522A industrial touch panel PC - front main view - CESIPC
15" · 4:3

EPC-S15 Series

15" Square Screen · XGA 1024×768

Current Series
EPC-S1722A embedded industrial panel PC (standard screen) - front main view - CESIPC
17" · 5:4

EPC-S17 Series

17" Square Screen · SXGA 1280×1024

View →
EPC-S1922A embedded industrial panel PC (standard screen) - front main view - CESIPC
19" · 5:4

EPC-S19 Series

19" Square Screen · SXGA 1280×1024

View →
EPC-W1222A widescreen industrial panel PC (16:9) - front main view - CESIPC
12.5" · 16:9

EPC-W12 Series

12.5" Widescreen · FHD 1920×1080

View →
EPC-W1522A widescreen industrial panel PC (16:9) - front main view - CESIPC
15.6" · 16:9

EPC-W15 Series

15.6" Widescreen · FHD 1920×1080

View →
EPC-W1822A widescreen industrial panel PC (16:9) - front main view - CESIPC
18.5" · 16:9

EPC-W18 Series

18.5" Widescreen · FHD 1920×1080

View →
EPC-W2122A industrial touch panel PC - front main view - CESIPC
21.5" · 16:9

EPC-W21 Series

21.5" Widescreen · FHD 1920×1080

View →
EPC-W2422A industrial touch panel PC - front main view - CESIPC
23.6" · 16:9

EPC-W24 Series

23.6" Large Screen · FHD 1920×1080

View →
← EPC-S12 (12") Back to Standard Industrial Panel PC Series EPC-S17 (17") →

EPC-S15 Series Selection Consultation

Tell us your project background, screen-size needs, I/O and power requirements and order quantity, and our engineers will reply within 24 hours with a full datasheet + quotation + prototype evaluation plan.

Inquire Now Call 0755-85286060 Download Datasheet
