EPC-W2122A industrial panel PC - front main view - CESIPC
EPC-W21 SERIES · 21.5" 16:9 · 4 CPU TIERS

EPC-W21 21.5-inch Widescreen
Industrial Panel PC Series

21.5" 16:9 P-CAP 10-point capacitive touch + IP65 front panel + FHD 1920×1080 industrial display. One display, one I/O spec, 4 CPU options (12th Gen flagship / 10th Gen mainstream / J6412 low-power / J1900 value) — choose by compute power, budget or long-life needs.

21.5"16:9 P-CAP industrial display
4CPU options
IP65dust- and water-resistant front panel
9-36Vwide-voltage Phoenix terminal
View 4 Models Series Selection Consulting
4 CPU TIERS · SAME PANEL

EPC-W21 Series · 4 Models to Choose From

Same 21.5" P-CAP touchscreen, same IP65 front panel, same I/O spec — only the processor platform differs. Choose by compute power, budget or compatibility.

EPC-W2122A industrial panel PC - front main view - CESIPC 12th Gen Flagship
EPC-W21 · 12th Gen i3-i7

EPC-W2122A

Intel® Core™ i3 / i5 / i7 12th Gen U-series

  • Processori3-1215U / i5-1235U / i7-1255U
  • PerformanceUp to 10C/12T · Iris Xe graphics · DDR5 32GB
  • Display21.5" · FHD 1920×1080 · P-CAP 10-point
  • ProtectionIP65 front panel · 9-36V wide-voltage
View Details Get a Quote

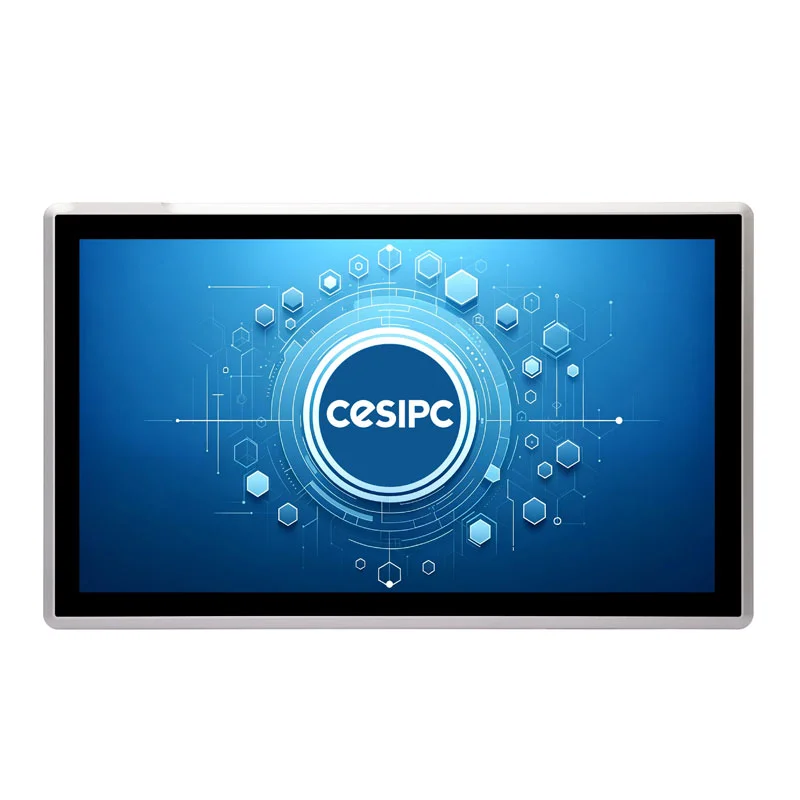

EPC-W2162A industrial panel PC - front main view - CESIPC Value Multi-I/O
EPC-W21 · J1900 Value

EPC-W2162A

Intel® Celeron® J1900 (Bay Trail-D)

  • ProcessorJ1900 · 4C/4T · 2.0 GHz
  • PerformanceNative Win 7 · legacy-OS compatible · DDR3 8GB
  • Display21.5" · FHD 1920×1080 · P-CAP 10-point
  • ProtectionIP65 front panel · 9-36V wide-voltage
View Details Get a Quote
EPC-W2172A industrial panel PC - front main view - CESIPC Low-Power Upgrade
EPC-W21 · J6412 Low-Power

EPC-W2172A

Intel® Celeron® J6412 (Elkhart Lake)

  • ProcessorJ6412 · 4C/4T · up to 2.6 GHz
  • Performance10 nm process · 10W TDP · DDR4 16GB
  • Display21.5" · FHD 1920×1080 · P-CAP 10-point
  • ProtectionIP65 front panel · 9-36V wide-voltage
View Details Get a Quote
EPC-W2192A widescreen industrial panel PC (16:9) - front main view - CESIPC 10th Gen Mainstream
EPC-W21 · 10th Gen i3-i7

EPC-W2192A

Intel® Core™ i3 / i5 / i7 10th Gen U-series

  • Processori3-10110U / i5-10210U / i7-10510U
  • PerformanceLow-power U-series · industrial-grade stability · DDR4 32GB
  • Display21.5" · FHD 1920×1080 · P-CAP 10-point
  • ProtectionIP65 front panel · 9-36V wide-voltage
View Details Get a Quote
SIDE-BY-SIDE COMPARE

4-Model Spec Comparison

Parameter / ModelEPC-W2122AEPC-W2162AEPC-W2172AEPC-W2192A
CPU Platform12th Gen i3-i7J1900 ValueJ6412 Low-Power10th Gen i3-i7
Processori3-1215U / i5-1235U / i7-1255UJ1900 · 4C/4T · 2.0 GHzJ6412 · 4C/4T · up to 2.6 GHzi3-10110U / i5-10210U / i7-10510U
Memory8-32GB DDR52-8GB DDR34-16GB DDR48-32GB DDR4
Typical UsePerformance flagship · edge intelligence / machine visionValue · equipment control / legacy-OSLow-power · workstation HMI / instrument panelBalanced mainstream · industrial control / data acquisition
SHARED PLATFORM

EPC-W21 Series Shared Platform Features

All four CPU variants share the same display, I/O, power and mounting spec — FlexCore™ modularity applied to industrial panel PCs.

01

21.5" P-CAP Industrial Touch

Projected capacitive (P-CAP), 10-point multi-touch, FHD 1920×1080 industrial display, 350 cd/m² brightness, 50,000-hour backlight life.

02

IP65 Dust- and Water-Resistant Front Panel

6061 high-strength aluminum alloy + sheet-metal structure with an IP65-rated front panel. Withstands dust, oil and wash-down splash on the plant floor for long-term stable operation.

03

Panel-Mount / VESA Dual Mounting

Panel-mount installation (standard cutout) + VESA 75×75 wall mounting. Covers cabinet embedding and standalone wall deployment.

04

Rich Industrial I/O

4× USB 3.0 + 2× USB 2.0 + 4× RS-232 + 2× RS-485 + 2× GbE + HDMI + VGA + audio. High-density multi-serial layout.

05

FlexCore™ Four-Element Modularity

i-Core + i-Function expansion + i-Connect interface + Smart Thermal management. Keep the display long-term, upgrade the mainboard as needed.

06

SafeCore™ Industrial Reliability

Four-way protection: power protection + backup power + power control (auto power-on) + self-recovery (watchdog). 7×24 stable long-run operation.

APPLICATIONS

EPC-W21 Series Typical Applications

🏭 Industrial Equipment Control 📊 Data Acquisition 🚊 Smart Transportation ⚡ Energy Management 🛒 Self-Service Kiosk 📷 Machine Vision HMI 🎛 Industrial Operator Station 🏬 Warehousing & Logistics
EXPLORE OTHER SIZES

Other Screen-Size Sub-Series

Ten screen-size sub-series, from a 10-inch square screen to a 23.6-inch large widescreen — each sub-series also offers 4 CPU options.

EPC-S1022A industrial panel PC - front main view - CESIPC
10" · 4:3

EPC-S10 Series

10-inch square · XGA 1024×768

View →
EPC-S1222A embedded industrial panel PC (standard screen) - front main view - CESIPC
12" · 4:3

EPC-S12 Series

12-inch square · XGA 1024×768

View →
EPC-S1522A industrial panel PC - front main view - CESIPC
15" · 4:3

EPC-S15 Series

15-inch square · XGA 1024×768

View →
EPC-S1722A embedded industrial panel PC (standard screen) - front main view - CESIPC
17" · 5:4

EPC-S17 Series

17-inch square · SXGA 1280×1024

View →
EPC-S1922A embedded industrial panel PC (standard screen) - front main view - CESIPC
19" · 5:4

EPC-S19 Series

19-inch square · SXGA 1280×1024

View →
EPC-W1222A widescreen industrial panel PC (16:9) - front main view - CESIPC
12.5" · 16:9

EPC-W12 Series

12.5-inch widescreen · FHD 1920×1080

View →
EPC-W1522A widescreen industrial panel PC (16:9) - front main view - CESIPC
15.6" · 16:9

EPC-W15 Series

15.6-inch widescreen · FHD 1920×1080

View →
EPC-W1822A widescreen industrial panel PC (16:9) - front main view - CESIPC
18.5" · 16:9

EPC-W18 Series

18.5-inch widescreen · FHD 1920×1080

View →
EPC-W2122A industrial panel PC - front main view - CESIPC
21.5" · 16:9

EPC-W21 Series

21.5-inch widescreen · FHD 1920×1080

Current Series
EPC-W2422A industrial panel PC - front main view - CESIPC
23.6" · 16:9

EPC-W24 Series

23.6-inch large screen · FHD 1920×1080

View →
← EPC-W18 (18.5") Back to Standard Industrial Panel PC Series EPC-W24 (23.6") →

EPC-W21 Series Selection Consulting

Tell us your project background, screen-size, I/O and power requirements, and order quantity. Our engineers will respond within 24 hours with a full datasheet, quotation and sample-evaluation plan.
