15" P-CAP Capacitive Touch + 10-point
Projected capacitive touch (P-CAP) with 10-point multitouch, XGA TFT LED LCD 1024 × 768 resolution, 300-350 cd/m² standard industrial display (500-1000 nits high-brightness optional). 50,000-hour backlight life.
EPC-S1522A · 15" P-CAP · 12TH GEN INTEL® CORE™
15" P-CAP 10-point capacitive touch + IP65 front panel — a 12th Gen Intel® Core™ industrial panel PC
EPC-S1522A 12th Gen Core i7 15" Industrial Panel PC | P-CAP + IP65 Front Panel
The EPC-S1522A industrial panel PC is a highly reliable embedded computing platform for multi-interface, unattended industrial sites. It uses a 15-inch 4:3 industrial-grade XGA TFT LCD with projected capacitive P-CAP 10-point touch and an IP65 front panel, suited to factory, warehouse, transportation and other demanding field environments. The core compute is built on the EPC-102A modular architecture with a 12th Gen Intel® Core™ i3/i5/i7 processor, dual gigabit Ethernet and rich industrial I/O, supporting 9-36V wide-voltage DC input. Combining FlexCore™ Modular architecture and SafeCore™ Reliability enhancement, it achieves high serviceability and long-term reliability for industrial control, data acquisition and HMI applications.
Typical Applications
15"P-CAP 10-point Touch
IP65Front-Panel Protection
350 nitsIndustrial Display (High-Bright Optional)
9-36VWide-Voltage Input
PRODUCT HIGHLIGHTS
EPC-S1522A Eleven Core Features
15" P-CAP industrial touchscreen + IP65 front panel + FlexCore™ Modular — the standard answer for industrial HMI / on-site visualization.
IP65 Dust- & Water-Resistant Front Panel
IP65-rated front-panel protection with a 6061 high-strength aluminum-alloy + sheet-metal structure. Withstands industrial dust, oil and washdown spray for long-term stable operation.
12th Gen Intel Core
Intel® Core™ i3-1215U / i5-1235U / i7-1255U in three tiers. A 10C/12T performance cluster with Iris Xe integrated graphics balances performance and efficiency.
Panel Mount / VESA Dual Mounting
Supports embedded panel mounting (15" standard cutout) and standard VESA 75×75 wall mounting, covering both cabinet-embedded and standalone wall deployment.
Separable Screen + Mainboard, Integrated Build
Separable touchscreen and mainboard design: the screen stays serviceable long-term while the mainboard is upgraded per project. One form factor spans i3 to i7 / J1900 to J6412 CPU variants, lowering maintenance cost through platformization.
Rich Industrial I/O
4× USB 3.0 + 2× USB 2.0 + 4× RS-232 + 2× RS-485 + 2× GbE + HDMI + VGA + audio. High-density multi-serial layout.
Mini-PCIe Wireless Expansion
1× Mini-PCIe expansion slot with optional dual-band Wi-Fi / Bluetooth / 4G / 5G communication modules, flexibly adapting to workshop wireless networking and remote monitoring.
9-36V Wide-Voltage Phoenix Terminal
3-pin pluggable Phoenix terminal with 9-36V DC wide-voltage input. Quad protection against over-voltage / over-current / reverse polarity / surge.
Fanless Cooling
A 6061 high-strength aluminum-alloy die-cast finned heatsink with zero moving parts — maintenance-free, dust- and vibration-resistant.
FlexCore™ Modular Hardware Architecture
Built on the FlexCore™ four-element architecture: i-Core + i-Function expansion + i-Connect I/O + Smart Thermal. Unified interface · unified structure · unified power · free expansion.
SafeCore™ Industrial-Grade Reliability
Four coordinated protection mechanisms: ① power protection (over-voltage / over-current / reverse polarity / surge) + ② backup power (smart lithium-battery outage buffer) + ③ power-cycle control (auto power-on after outage) + ④ system self-recovery (watchdog + fault restart).

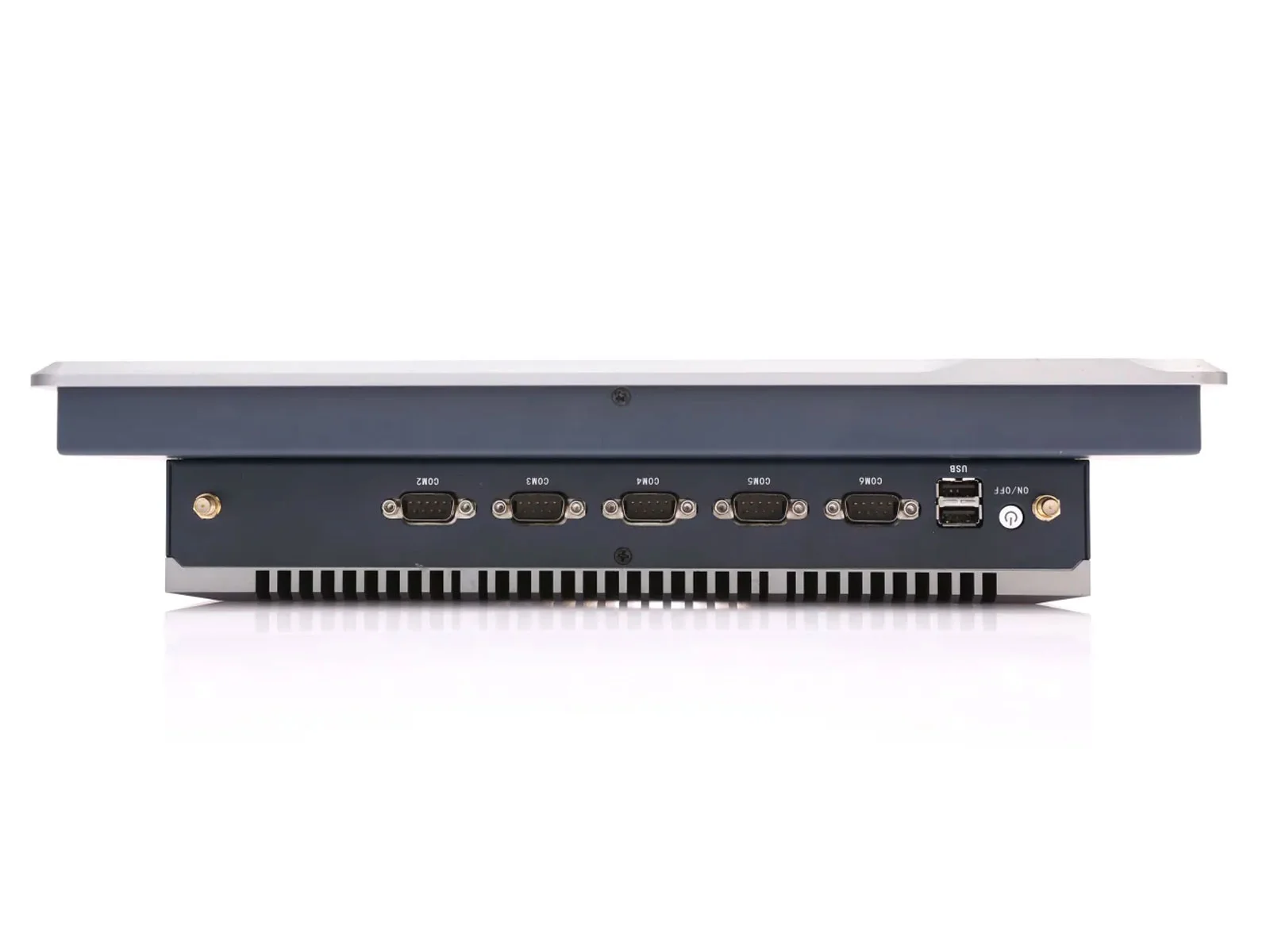

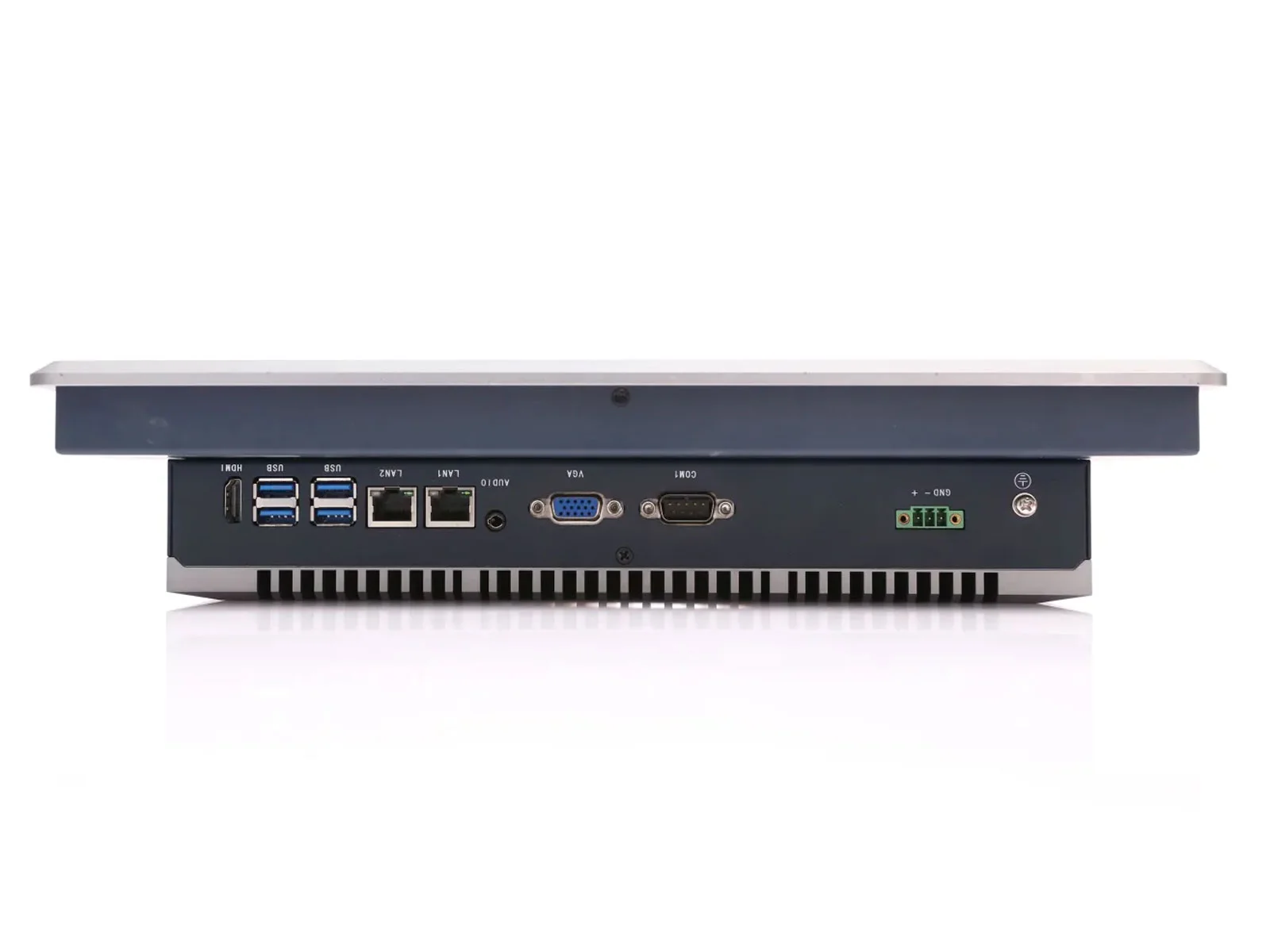

PRODUCT GALLERY
Product Gallery
SPECIFICATIONS
EPC-S1522A Full Specifications
Datasheet V1.0 · Updated 2026-03-20 · Due to chip market fluctuations, key components may change; final specs subject to sales confirmation.
Core Hardware
| Parameter | Intel® Core™ i3-1215U | Intel® Core™ i5-1235U | Intel® Core™ i7-1255U |
|---|---|---|---|
| Processor | i3-1215U | i5-1235U | i7-1255U |
| Cores | 6 (2P+4E) | 10 (2P+8E) | 10 (2P+8E) |
| Threads | 8 | 12 | 12 |
| Frequency | 1.2~4.4 GHz | 1.3~4.4 GHz | 1.7~4.7 GHz |
| Cache | 10 MB L3 Cache | 12 MB L3 Cache | 12 MB L3 Cache |
| TDP | 15W | 15W | 9W |
| Display | Intel UHD Graphics (64 EUs) | Intel Iris Xe Graphics (80 EUs) | Intel Iris Xe Graphics (96 EUs) |
| Memory | 4~32 GB DDR5 | ||
| Storage | PCIe 2× M.2 SSD | ||
I/O Interfaces
| Parameter | Specification |
|---|---|
| USB 2.0 | 2 |
| USB 3.0 | 4 |
| RS232 | 4 |
| RS485 | 2 |
| VGA | 1 |
| HDMI | 1 |
| Gigabit Ethernet | 2 × Intel I210 |
| Audio | 3.5mm TRRS |
| Wi-Fi (optional) | Dual-Band 2.4G/5G Wi-Fi Card |
| 4G/5G (optional) | 4G/5G LTE (optional) |
Power Input
| Parameter | Specification |
|---|---|
| Power Connector | 1× 3-pin pluggable terminal, 9~36V DC wide voltage |
| ATX Switch | 1× ATX Power Switch |
| Power-On Mode | AT/ATX Mode Switch (built-in) |
Physical Attributes
| Parameter | Specification |
|---|---|
| Dimensions | 359.9 (L) ×283.9 (W) ×75.1 (H) mm |
| Mounting Dimensions | 342.4 (L) ×269.4 (W) mm (panel cutout) |
| Weight | 4.3 kg net weight |
| Housing Material | 6061 High-Strength Aluminum Alloy |
| Mechanical Structure | Extruded Aluminum + Sheet Metal |
| Mounting | Panel Mount / VESA 75×75 Wall Mount |
| Reset Switch | 1× Reset Switch |
| TPM | TPM 2.0 |
| Watchdog | Hardware watchdog supported |
| MTBF | 60,000 hrs |
Operating Environment
| Parameter | Specification |
|---|---|
| Operating Temperature | 0~60℃ (wide-temp -40~80℃ optional) |
| Storage Temperature | -10~70℃ (wide-temp -40~80℃ optional) |
| Relative Humidity | 10%~90%, non-condensing |
| EMC | CE、FCC（EN 55032 & EN 55035） |
| EMC Harmonics | EN IEC 61000-3-2 |
Touch & Display
| Parameter | Specification |
|---|---|
| Display Size | 15" (4:3) |
| Display Type | XGA TFT LED LCD |
| Resolution | 1024 × 768 |
| Colors | 16.2M |
| Brightness | 350 cd/m² |
| Contrast Ratio | 500:1 |
| Backlight Life | 50,000 hrs |
| Touch Technology | Projected Capacitive (P-CAP), 10-point |
| Touch Protection | IP65 (front panel) |
Operating System
| Parameter | Specification |
|---|---|
| Windows | Windows 10 / Windows 11 |
| Linux | Ubuntu 16.04 / 18.04 / 20.04 / 22.04 |
Certification & Compliance
| Parameter | Specification |
|---|---|
| Factory Certification | ISO9001: 2015 |
| BIOS Customization | BIOS / Boot LOGO / OEM |
I/O LAYOUT
Side / Rear Panel I/O Layout
All I/O is centralized on the rear of the panel PC, keeping the front panel clean at IP65 for embedded console deployment.

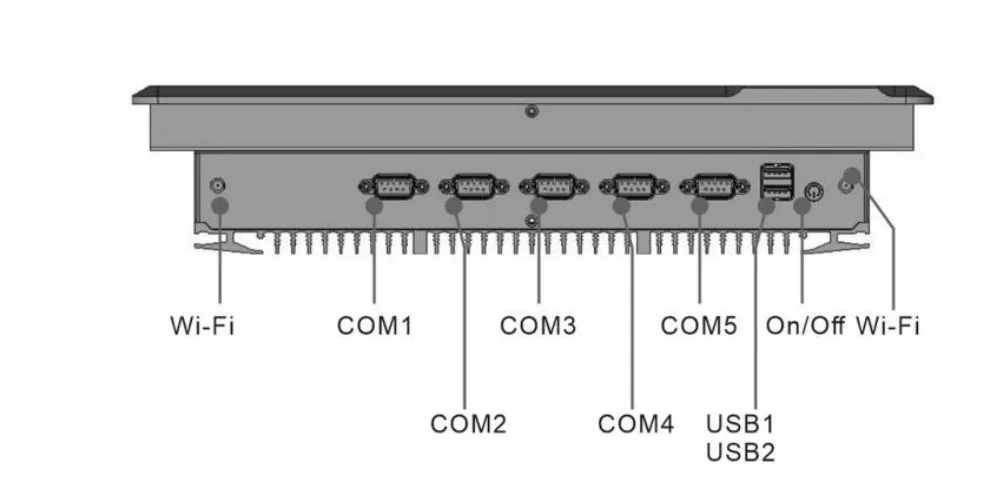

Side / Top Panel

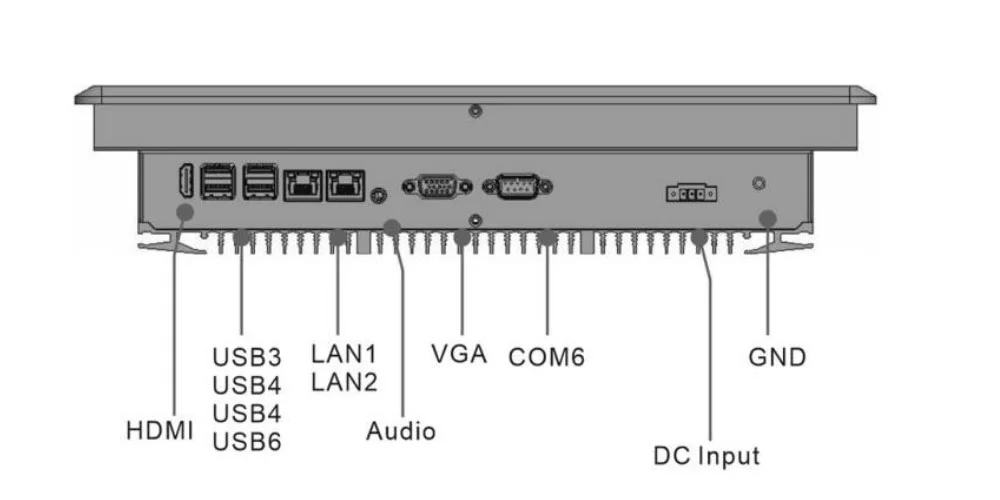

Bottom / Rear Panel
DIMENSIONS

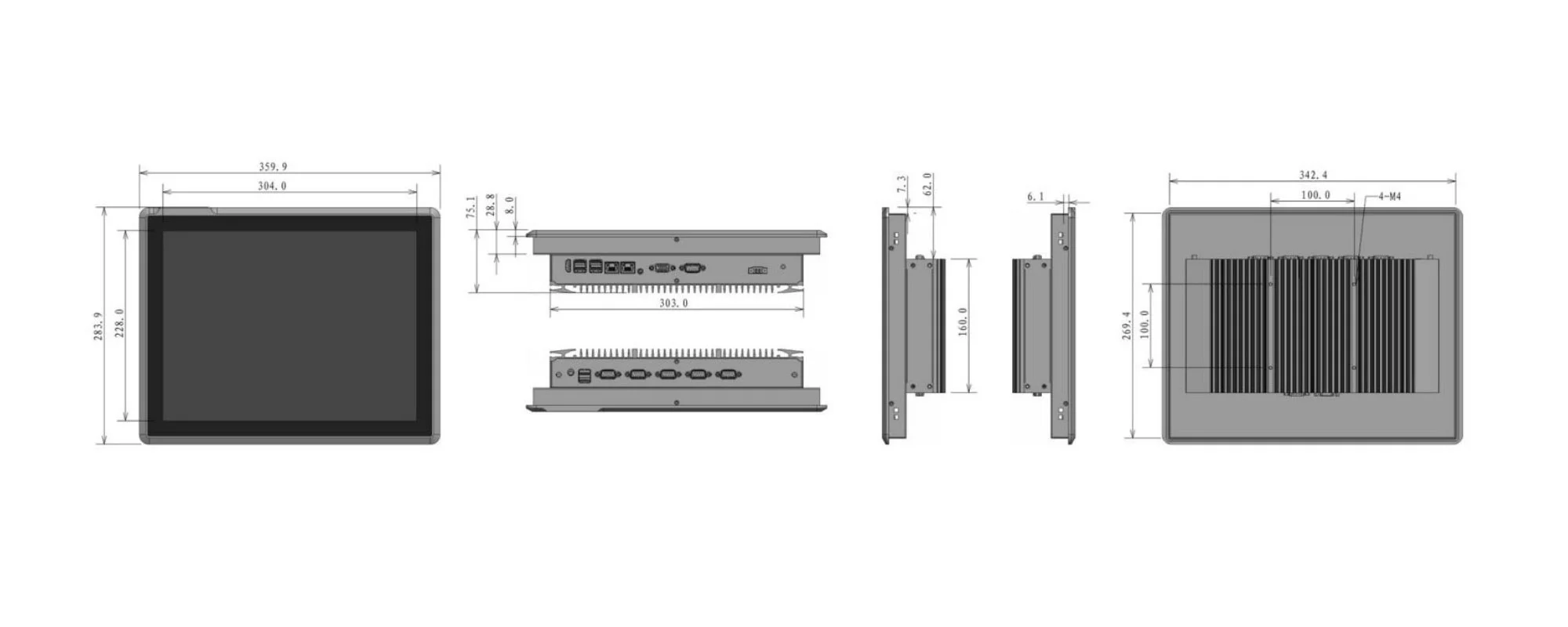

Three-View Dimensions (mm)
15" standard cutout · panel mount + VESA 75×75 dual mounting.
ORDERING INFORMATION
Ordering Information · Part Number
The standard configurations below can be ordered directly; for custom CPU / memory / storage / I/O boards, please contact sales.
| No. | Part Number | Model | Processor + Touchscreen | Memory | Storage |
|---|---|---|---|---|---|
| 01 | C20.03.02.001 | EPC-S1522A | Intel® Core™ i3-1215U，15" P-CAP | 8GB DDR5 | SSD 256GB |
| 02 | C20.03.02.002 | EPC-S1522A | Intel® Core™ i5-1235U，15" P-CAP | 8GB DDR5 | SSD 256GB |
| 03 | C20.03.02.003 | EPC-S1522A | Intel® Core™ i7-1255U，15" P-CAP | 8GB DDR5 | SSD 256GB |
| 04 | C20.03.02.004 | EPC-S1522A | Intel® Core™ i7-1255U，15" P-CAP | 16GB DDR5 | SSD 512GB |
Note: Due to chip-market fluctuations, key components such as CPU, memory and storage may change; please consult our sales team for details.
APPLICATIONS
EPC-S1522A Typical Applications
Built on a 15" P-CAP industrial touchscreen + IP65 protection + multi-serial expansion, EPC-S1522A is widely deployed across the following 4 types of industrial sites.
