10.1" P-CAP Multi-Touch
10.1" industrial TFT panel + P-CAP projected-capacitive touch / 10-point. Glove-touch capable, with a waterproof microphone, stereo speakers and outdoor sunlight readability.
TPC-1082A · L1 TOOL COMPUTER · 10.1"
10.1" square screen · 7th-gen Core mainstream · an Intel® Core™ i3-7100U dual-core tool computer
TPC-1082A 7th-Gen Core 10.1 inch 4G/5G Rugged Industrial Tablet
The TPC-1082A is a 10.1-inch industrial-grade rugged handheld terminal built for on-site equipment maintenance, mobile data capture and outdoor field work. Powered by an Intel® 7th-generation Core™ i5 / i7 processor, it balances performance with low power draw to handle multitasking and industrial workloads. Its high-strength rugged enclosure carries IP65 protection, standing up to vibration, shock, dust and demanding environments. The 10.1-inch HD display supports capacitive touch and glove operation for both portability and efficient handling. With its rich wired and wireless interfaces and expansion options, it serves as a reliable mobile computing platform for warehousing & logistics, inspection & maintenance, public safety, emergency command and outdoor surveying.
Typical Applications
10.1"FHD P-CAP touch
IP65Full-unit dust & splash protection
1.2 mDrop-proof / rugged
4G/5GUniversal network + BeiDou
PRODUCT HIGHLIGHTS · L1 TOOL COMPUTER
TPC-1082A · Eight Core Features
Tool computer · 10.1" square screen · 7th-gen Core mainstream — field-grade compute + industrial ruggedness + multi-mode connectivity.
MIL-Grade Rugged + 1.2 m Drop-Proof
Aluminum-alloy body + TPU corner bumpers, passing a 1.2 m drop test, with full-unit IP65 dust and splash protection for sustained work in harsh outdoor environments.
Swappable Battery + Long Runtime
The onboard lithium battery is field-replaceable, delivering 8+ hours of continuous operation. Ships with a standard DC 12V adapter; USB Type-C fast charging optional.
Intel® Core™ i3-7100U Dual-Core
Intel® Core™ i3-7100U · industrial-grade low-power design. Paired with 4–8GB RAM + 128GB+ SSD for on-site data capture and local processing.
4G + GPS / BeiDou Dual-Mode Positioning
Huawei 4G universal-network module + GPS / BeiDou dual-mode positioning. Real-time uplink for inspection, dispatch, track tracing and geofence alerts. Optional 5G module.
Wi-Fi + Bluetooth + Multi-Wireless
IEEE 802.11 Wi-Fi + Bluetooth dual-mode wireless. Optional NFC / RFID (second-gen ID card recognition) / fingerprint modules make it a true multi-purpose terminal.
Rich Industrial I/O
USB 3.0 + USB 2.0 + Gigabit LAN + HDMI + RS-232 — a full set of industrial interfaces, plus front and rear cameras (2MP front / 5MP rear) for on-site evidence capture.
Win 7 / Win 10 / Ubuntu Multi-OS
Validated for Win 7 / Win 10 / Ubuntu multi-OS deployment, with optional BIOS customization / boot logo / OEM branding.
PRODUCT GALLERY

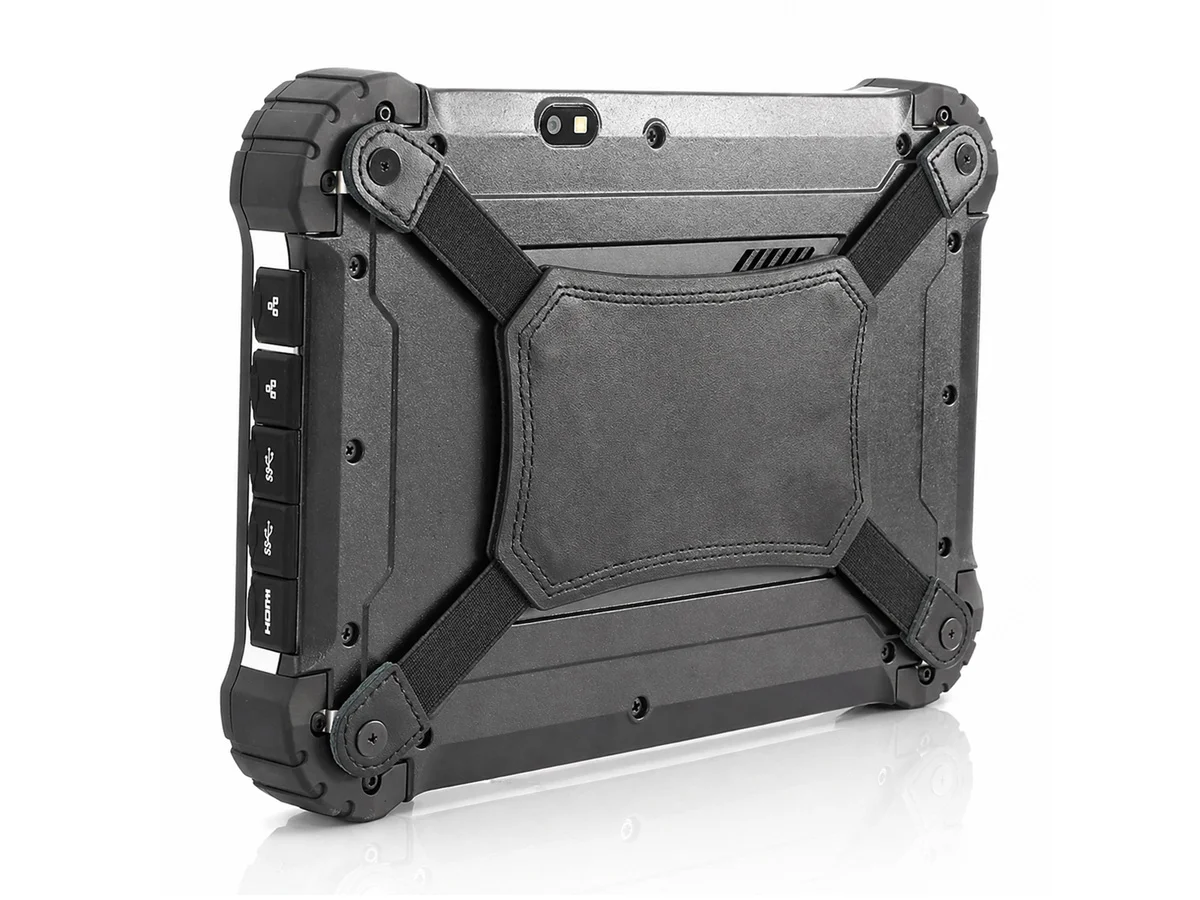

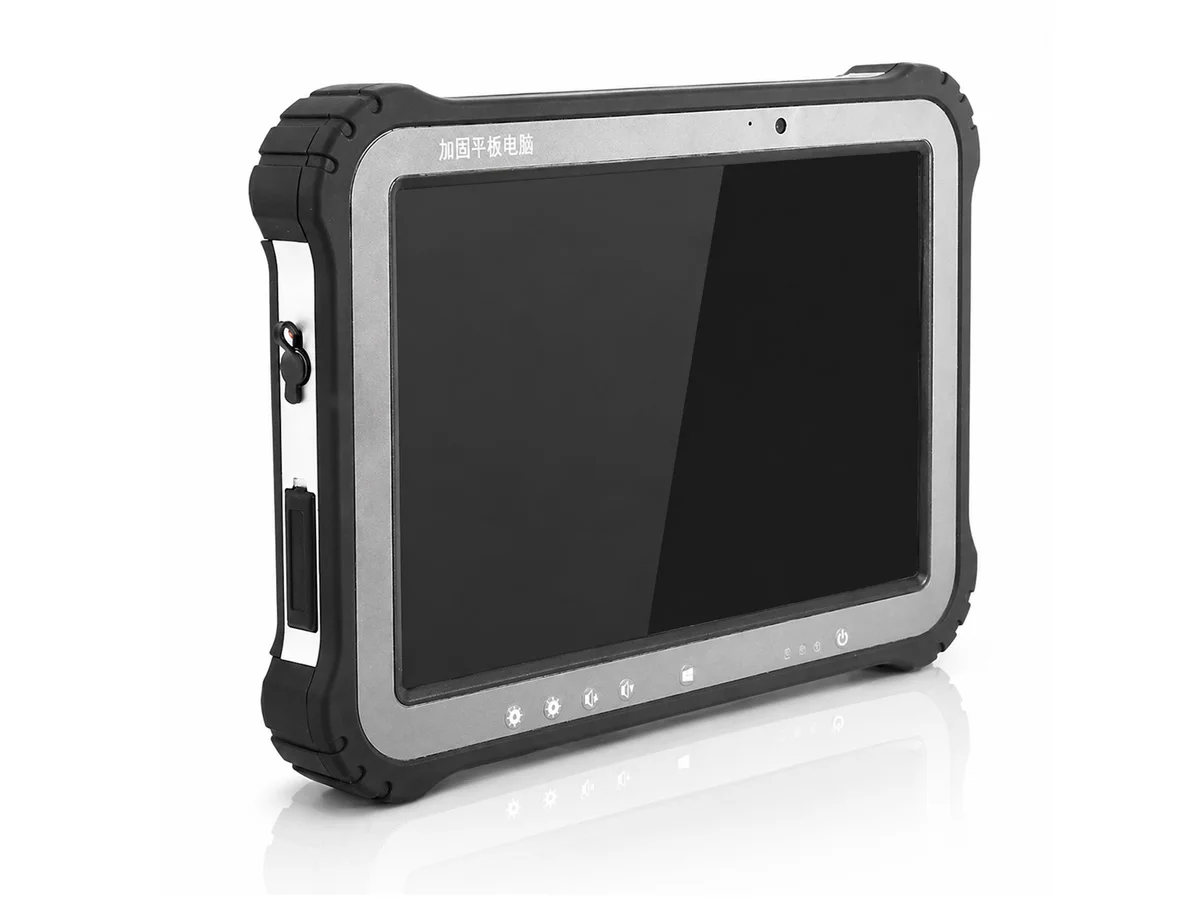

Product Views
SPECIFICATIONS
TPC-1082A · Full Specifications
Datasheet version V1.0 · Due to chip-market fluctuations, key components may change; final configuration is subject to sales confirmation.
Core Hardware
| Parameter | Intel® Core™ i3-7100U | Intel® Core™ i5-7360U | Intel® Core™ i7-7560U |
|---|---|---|---|
| Processor | Intel® Core™ i5-7360U | ||
| Memory | DDR4, 4GB standard (4–16GB optional) | ||
| Storage | 1× mSATA SSD, 128GB standard (256GB / 512GB / 1TB optional) | ||
I/O Interfaces
| Parameter | Specification |
|---|---|
| USB | 2 × USB 3.0 |
| LAN | 2× RJ45 (100/1000M) Intel® I210 ports |
| Wireless | IEEE 802.11 Wi-Fi + Bluetooth |
| Audio | Line out / Line in + built-in speaker, MIC |
| Expansion slot | 1× Mini PCIe |
| Serial | 1× RS-232 (RS-422/RS-485 optional) |
| Display output | 1× HDMI (dual-display clone supported) |
| Expansion | 4G / 5G, GPS, BeiDou, NFC, RFID, RS-232, fingerprint |
| SIM slot | 1× 4G SIM slot (standard SIM) |
| DC IN | 1× 3-pin aviation connector (DC 12V IN) |
Display & Interaction
| Parameter | Specification |
|---|---|
| Touch | Projected-capacitive touch (P-CAP), 10-point |
| Display | 10.1-inch TFT LCD |
| Resolution | 1280 × 800 |
| Brightness | 400 cd/m² |
| Contrast | 500:1 |
| Microphone | Waterproof microphone |
| Buttons | Volume +, Volume -, Power switch |
| Camera | 2MP front / 5MP rear |
| Indicators | Steady green when on, off when powered down; red/blue dual-color charging breathing light (red breathing while charging, blue when full, off when not charging) |
| Battery | 4000mAh lithium battery, up to 4 hours runtime |
Performance & Environment
| Parameter | Specification |
|---|---|
| Operating temperature | 0℃ to 50℃ (wide-temp optional) |
| Storage temperature | -20 to 70℃ |
| Relative humidity | 5% to 95%, non-condensing |
| Power input | DC 12V 3A |
| TDP | 20W |
| Ingress protection | Full-unit IP65 |
| Drop rating | 1.2 m |
| EMC | EN IEC 61000-3-2 |
| MTBF | 60,000 hours |
| Reference standards | GJB322A / JGB150A |
| Battery | 4000mAh lithium battery, up to 4 hours runtime |
| Certifications | CE, FCC (EN 55032 & EN 55035) |
| Manufacturing | ISO9001: 2015 |
Other Attributes
| Parameter | Specification |
|---|---|
| Dimensions | 278.0mm × 198.0mm × 30mm (excluding bumpers) |
| Construction | Aluminum alloy + TPU corner bumpers |
| Weight | 1500g net |
| Mounting | Handheld, shoulder-strap |
| Color | Bright silver, black bumpers |
| Customization | BIOS customization / boot logo / OEM |
Operating System
| Parameter | Specification |
|---|---|
| OS | WIN7 / WIN10 |
| Linux | Ubuntu 16.04 / 18.04 / 20.04 / 22.04 |
I/O LAYOUT
Front & Rear Panel I/O Layout
Tool computer with industrial-grade interfaces — fast on-site connection and multi-device collaboration.

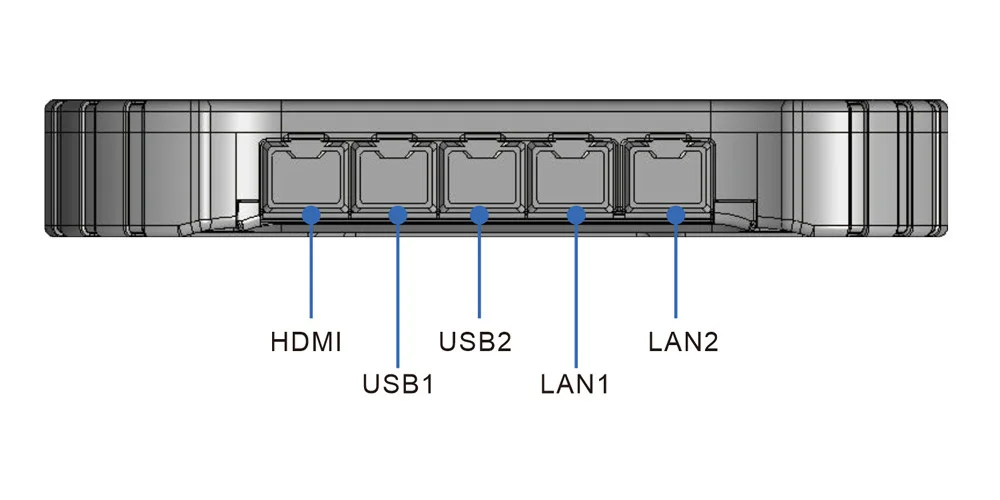

Side / Top panel

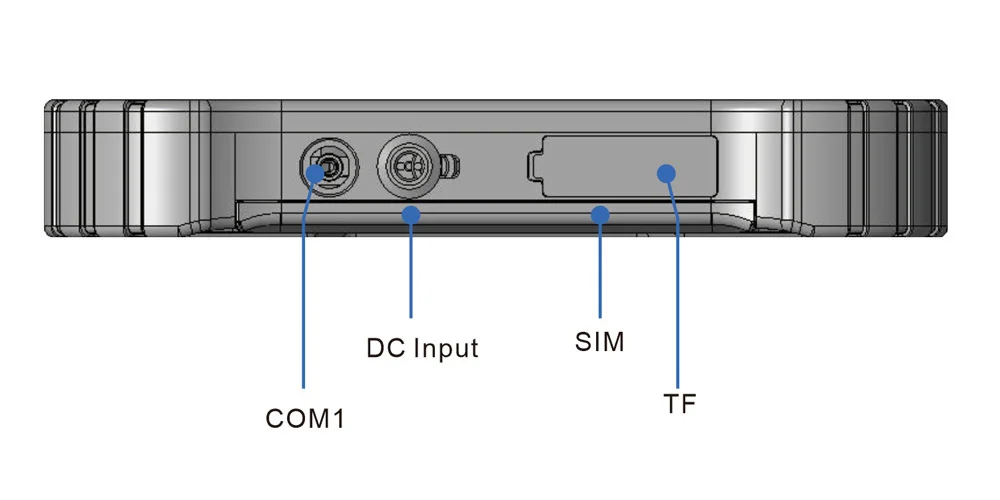

Bottom / Rear panel
DIMENSIONS

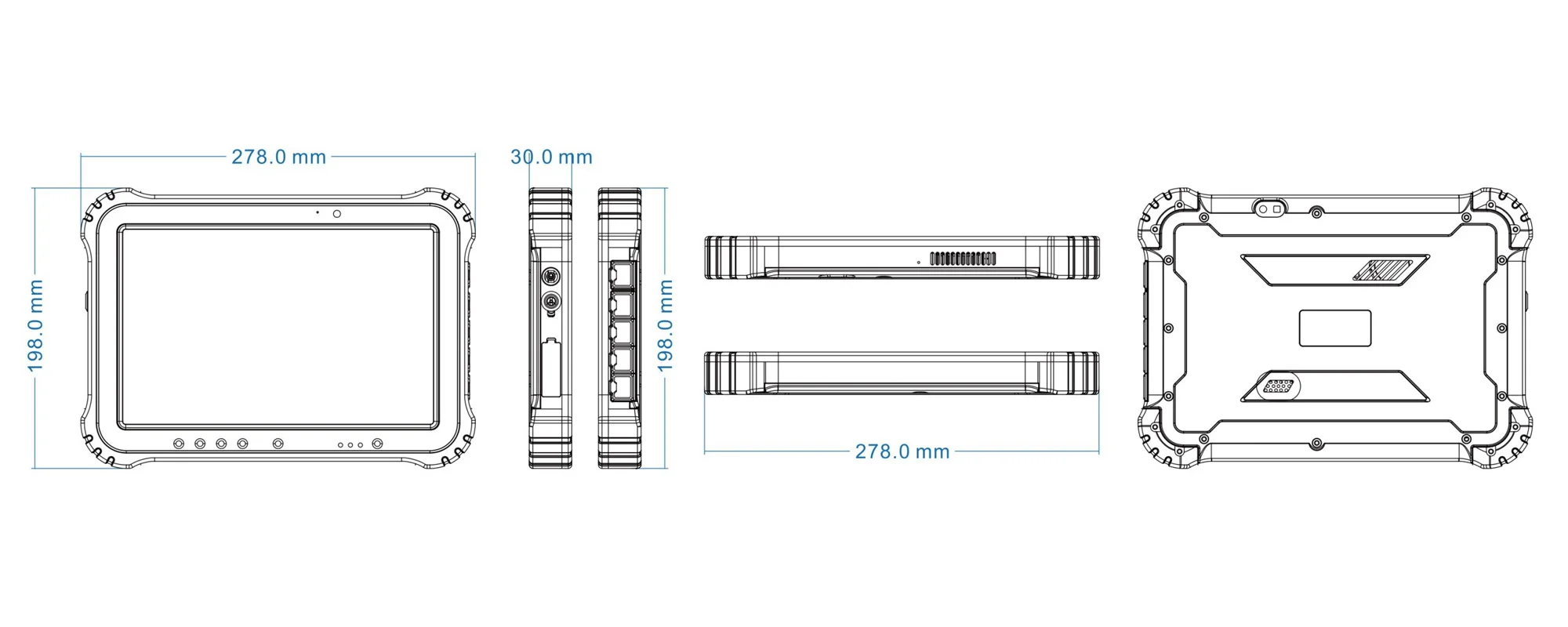

Three-View Dimensions (mm)
10.1" square screen · 7th-gen Core mainstream — three-view drawing and mounting dimensions.
ORDERING INFORMATION
Ordering Information · Part Number
Wireless modules (4G/5G/BeiDou), expansion modules, battery capacity and wide-temp versions are customized per project.
| No. | Part Number | Model | Main Configuration | Memory | Storage |
|---|---|---|---|---|---|
| 01 | C5.02.05.070 | TPC-1082A | I5-7360U | 8GB DDR | SSD 128GB |
| 02 | C5.02.05.426 | TPC-1082A | I5-7360U | 16GB DDR | SSD 1TGB |
| 03 | C5.02.05.424 | TPC-1082A | I7-7560U | 8GB DDR | SSD 512GB |
Note: Due to market fluctuations, key components such as CPU, memory and storage may vary. Wireless / expansion modules / wide-temp / encrypted versions are customized per project — please consult our sales team.
APPLICATIONS
TPC-1082A · Typical Applications
Tool computer · field-grade compute + full-mode connectivity + industrial ruggedness, covering power / emergency / unmanned / coordinated-control scenarios.
TPC-1082A Selection Consulting
Tell us your project background (power / emergency / unmanned / maritime / coordinated control), the expansion modules you need (4G/5G/satellite/BeiDou/RFID/AI), order quantity and field environment, and our engineers will reply within 24 hours with a full datasheet, quotation and sample-evaluation plan.
