10.1" P-CAP Multi-Touch
10.1" industrial TFT panel + P-CAP projected-capacitive touch / 10-point. Glove-touch capable, with a waterproof microphone, stereo speakers and outdoor sunlight readability.
TPC-1062A · L1 TOOL COMPUTER · 10.1"
10.1" square screen · J1900 economy · an Intel® Celeron® J1900 quad-core tool computer
TPC-1062A J1900 10.1 inch Economy Rugged Industrial Tablet
The TPC-1062A is a 10.1-inch rugged industrial handheld tablet powered by an Intel® Celeron® J1900 quad-core, quad-thread processor. It carries a rich I/O complement — one Gigabit LAN port, two USB ports, HDMI, headphone/microphone jacks, two serial ports and a spare interface. For mobile networking it uses a Huawei 4G universal-network module, while a front and a rear camera enable on-site photo capture. For fast data entry, an RFID reader on the back supports second-generation national ID card recognition. For positioning, the handheld tablet can be fitted with both GPS and BeiDou.
Typical Applications
10.1"P-CAP multi-touch
IP65Full-unit dust & splash protection
1.2 mDrop-proof / industrial rugged
4G + GPSUniversal network + BeiDou dual-mode
PRODUCT HIGHLIGHTS · L1 TOOL COMPUTER
TPC-1062A · Eight Core Features
Tool computer · 10.1" square screen · J1900 economy — field-grade compute + industrial ruggedness + multi-mode connectivity.
MIL-Grade Rugged + 1.2 m Drop-Proof
Aluminum-alloy body + TPU corner bumpers, passing a 1.2 m drop test, with full-unit IP65 dust and splash protection for sustained work in harsh outdoor environments.
Swappable Battery + Long Runtime
The onboard lithium battery is field-replaceable, delivering 8+ hours of continuous operation. Ships with a standard DC 12V adapter; USB Type-C fast charging optional.
Intel® Celeron® J1900 Quad-Core
Intel® Celeron® J1900 · industrial-grade low-power design. Paired with 4–8GB RAM + 128GB+ SSD for on-site data capture and local processing.
4G + GPS / BeiDou Dual-Mode Positioning
Huawei 4G universal-network module + GPS / BeiDou dual-mode positioning. Real-time uplink for inspection, dispatch, track tracing and geofence alerts. Optional 5G module.
Wi-Fi + Bluetooth + Multi-Wireless
IEEE 802.11 Wi-Fi + Bluetooth dual-mode wireless. Optional NFC / RFID (second-gen ID card recognition) / fingerprint modules make it a true multi-purpose terminal.
Rich Industrial I/O
USB 3.0 + USB 2.0 + Gigabit LAN + HDMI + RS-232 — a full set of industrial interfaces, plus front and rear cameras (2MP front / 5MP rear) for on-site evidence capture.
Win 7 / Win 10 / Ubuntu Multi-OS
Validated for Win 7 / Win 10 / Ubuntu multi-OS deployment, with optional BIOS customization / boot logo / OEM branding.

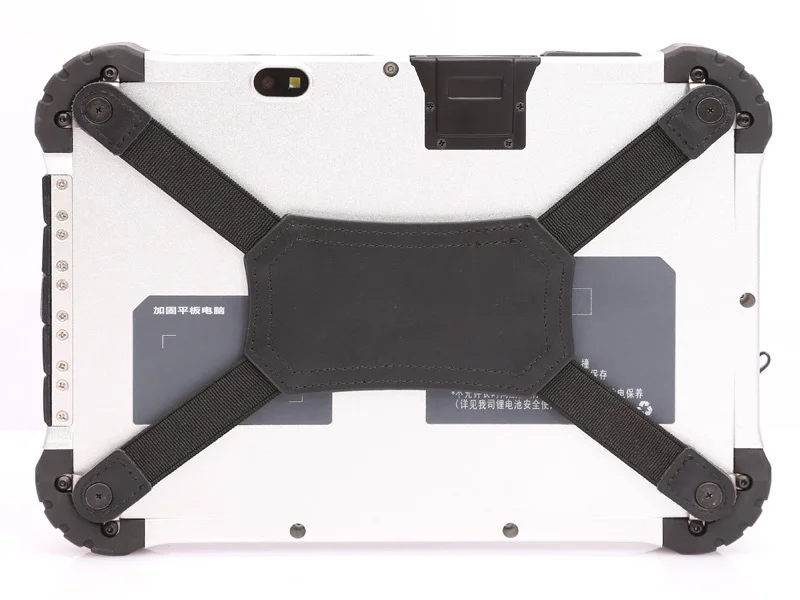

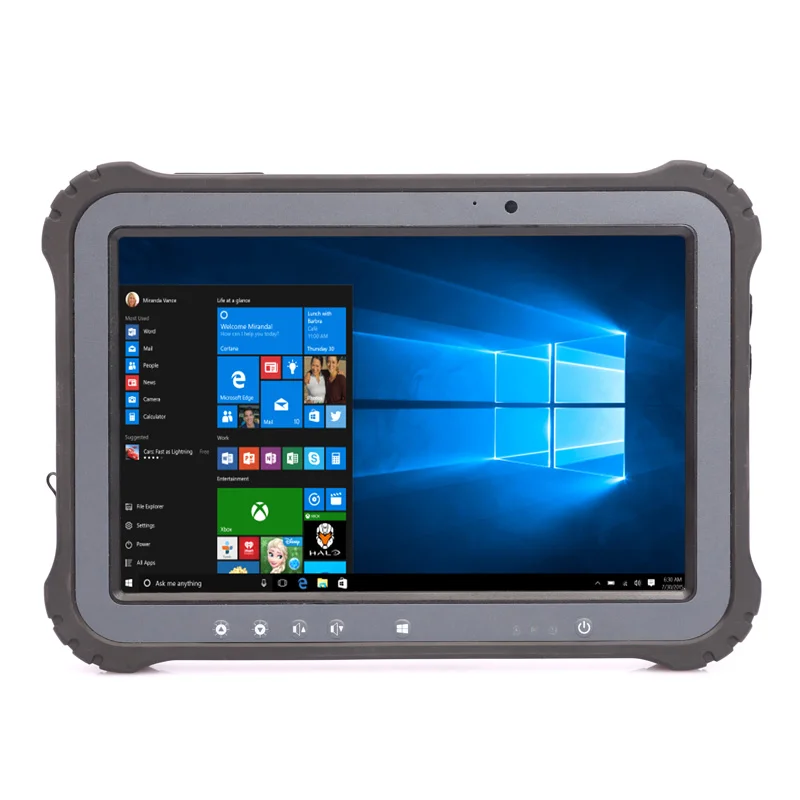

PRODUCT GALLERY
Product Views
SPECIFICATIONS
TPC-1062A · Full Specifications
Datasheet version V1.0 · Due to chip-market fluctuations, key components may change; final configuration is subject to sales confirmation.
Core Hardware
| Parameter | Specification |
|---|---|
| Processor | Intel® Celeron® J1900 |
| Chipset | Bay Trail |
| Memory | DDR3L 4~8 GB |
| Storage | 1× mSATA SSD |
I/O Interfaces
| Parameter | Specification |
|---|---|
| USB | 1 × USB 3.0, 1 × USB 2.0 |
| LAN | 1× RJ45 (100/1000M) port |
| Wireless | IEEE 802.11 Wi-Fi + Bluetooth |
| Audio | Line out / Line in + built-in speaker, MIC |
| Expansion | 4G / 5G, GPS, BeiDou, NFC, RFID, RS-232, fingerprint |
Display & Interaction
| Parameter | Specification |
|---|---|
| Touch | Projected-capacitive touch (P-CAP), 10-point |
| Display | 10.1-inch TFT LCD |
| Resolution | 1280 × 800 |
| Brightness | 300 cd/m² |
| Contrast | 500:1 |
| Microphone | Waterproof microphone |
| Buttons | Volume +, Volume -, Power switch |
| Indicators | Steady green when on, off when powered down; red/blue dual-color charging breathing light (red breathing while charging, blue when full, off when not charging) |
Performance & Environment
| Parameter | Specification |
|---|---|
| Operating temperature | 0℃ to 50℃ (wide-temp optional) |
| Storage temperature | -20 to 70℃ |
| Relative humidity | 5% to 95%, non-condensing |
| Power input | DC 12V 3A |
| TDP | 20W |
| Ingress protection | Full-unit IP65 |
| Drop rating | 1.2 m |
| EMC | EN IEC 61000-3-2 |
| MTBF | 60,000 hours |
| Reference standards | GJB322A / JGB150A |
| Certifications | CE, FCC (EN 55032 & EN 55035) |
| Manufacturing | ISO9001: 2015 |
Other Attributes
| Parameter | Specification |
|---|---|
| Dimensions | 275.0mm × 193.0mm × 23.5mm (excluding bumpers) |
| Construction | Aluminum alloy + TPU corner bumpers |
| Weight | 1300g net |
| Mounting | Handheld, shoulder-strap |
| Color | Bright silver, black bumpers |
| Customization | BIOS customization / boot logo / OEM |
Operating System
| Parameter | Specification |
|---|---|
| OS | WIN7 / WIN10 |
| Linux | Ubuntu 16.04 / 18.04 / 20.04 / 22.04 |

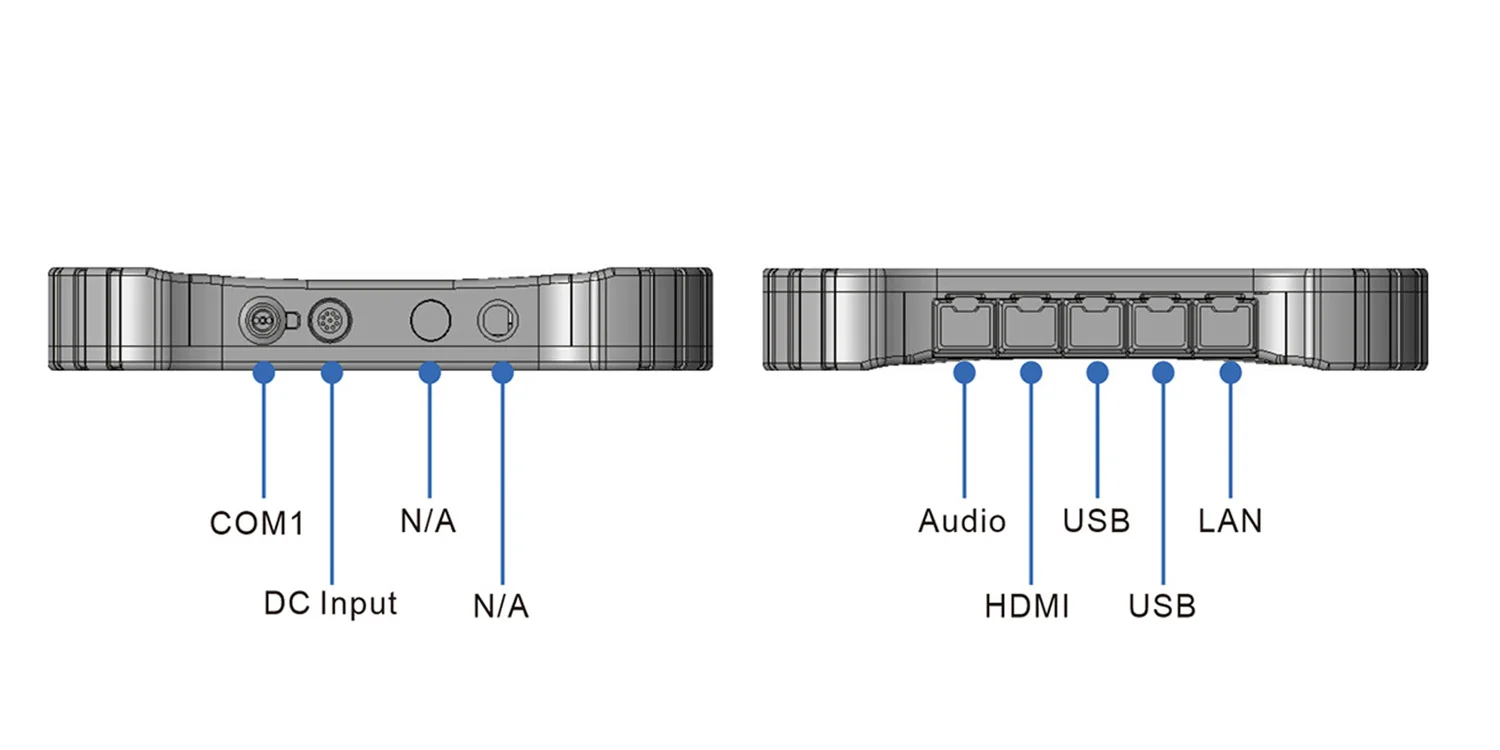

I/O LAYOUT
Front & Rear Panel I/O Layout
Tool computer with industrial-grade interfaces — fast on-site connection and multi-device collaboration.
Side / Top panel
Bottom / Rear panel

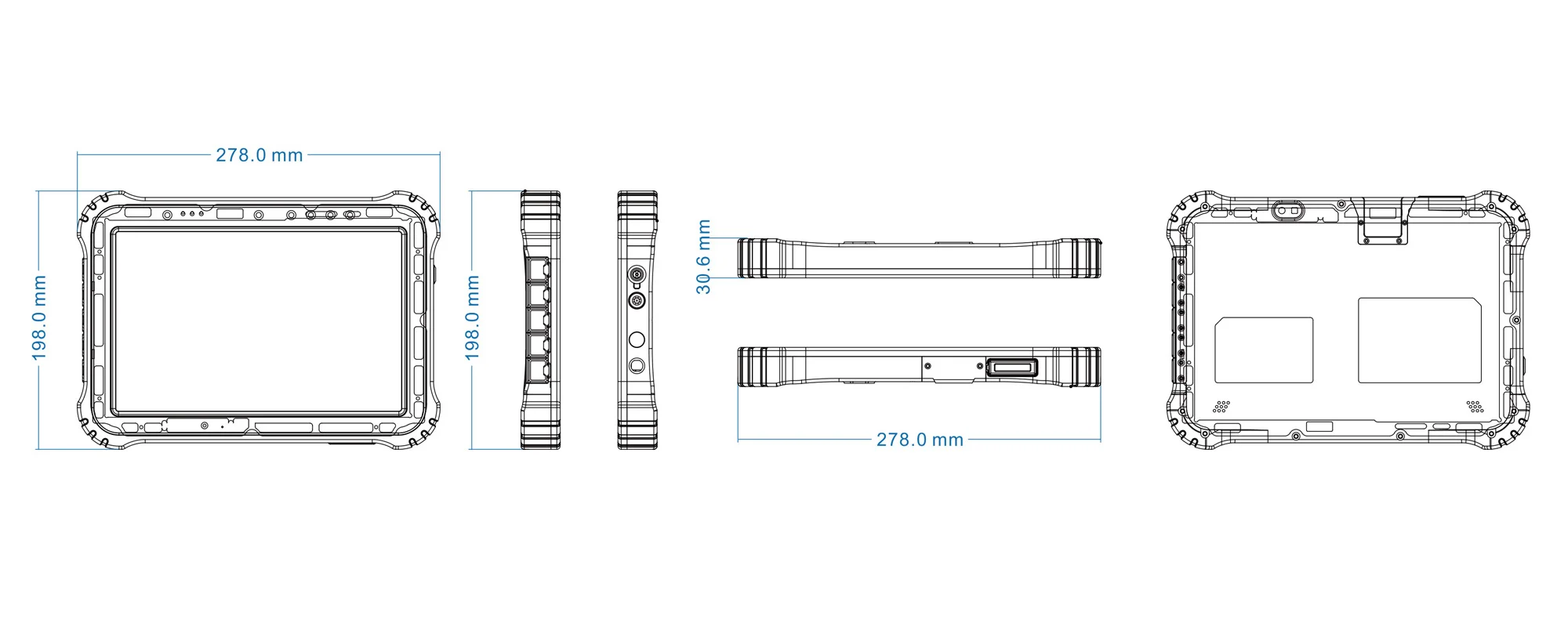

DIMENSIONS
Three-View Dimensions (mm)
10.1" square screen · J1900 economy — three-view drawing and mounting dimensions.
ORDERING INFORMATION
Ordering Information · Part Number
Wireless modules (4G/5G/BeiDou), expansion modules, battery capacity and wide-temp versions are customized per project.
| No. | Part Number | Model | Main Configuration | Memory | Storage |
|---|---|---|---|---|---|
| 01 | C5.02.05.092 | TPC-1062A | J1900 | 4GB DDR | SSD 128GB |
| 02 | C5.02.05.090 | TPC-1062A | J1900 | 4GB DDR | SSD 256GB |
Note: Due to market fluctuations, key components such as CPU, memory and storage may vary. Wireless / expansion modules / wide-temp / encrypted versions are customized per project — please consult our sales team.
APPLICATIONS
TPC-1062A · Typical Applications
Tool computer · field-grade compute + full-mode connectivity + industrial ruggedness, covering power / emergency / unmanned / coordinated-control scenarios.
