21.5" P-CAP Capacitive Touch + 10-Point
Projected capacitive (P-CAP) with 10-point multi-touch, FHD TFT LED LCD at 1920 × 1080, 300-350 cd/m² standard industrial display (500-1000 nits high-bright optional). 50,000-hour backlight life.
UTC-W2182A · 21.5" P-CAP MULTI-TOUCH · INTEL® CORE™ I7-7560U
Intel® Core™ i7-7560U modular industrial panel PC with a 21.5-inch widescreen P-CAP 10-point capacitive touchscreen and IP65 front bezel · pumped-storage local monitoring (Type A)
UTC-W2182A i7-7560U 21.5-inch Multi-Touch Modular Panel PC | P-CAP + FlexCore™
The CESIPC UTC-W2182A industrial panel PC is a highly reliable embedded computing platform for multi-interface, unattended applications on the plant floor. It features a 21.5-inch 16:9 industrial-grade FHD TFT LED LCD at 1920×1080 with projected-capacitive P-CAP 10-point touch and an IP65-rated front panel, suited to demanding factory, warehouse and transportation environments. Built on the UTC-308A modular architecture with 7th Gen Intel® Core™ i3/i5/i7 processors, it offers dual Gigabit Ethernet and rich industrial I/O, and supports 9-36V wide-voltage DC power. Combining the FlexCore™ modular architecture with SafeCore™ reliability enhancement, it delivers high serviceability and long-term reliability for industrial control, data acquisition and HMI applications.
Typical Applications
21.5"16:9 FHD
i7-7560UIris Plus graphics
Energy Monitoringpumped-storage dedicated
9-36Vwide-voltage input
PRODUCT HIGHLIGHTS
Eleven Core Features of the UTC-W2182A
Pumped-storage local monitoring (Type A) · FlexCore™ modular · SafeCore™ reliability enhancement — for industrial HMI and on-site visualization.
Dedicated to Pumped-Storage Local Monitoring

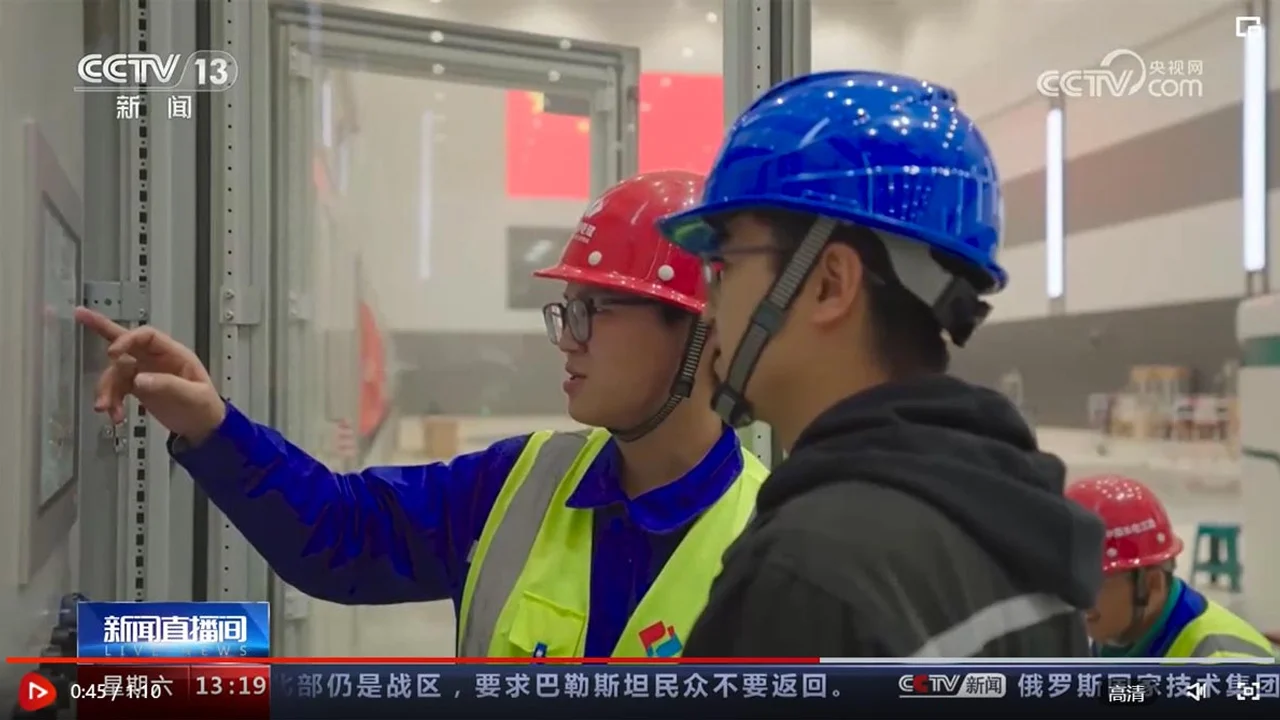

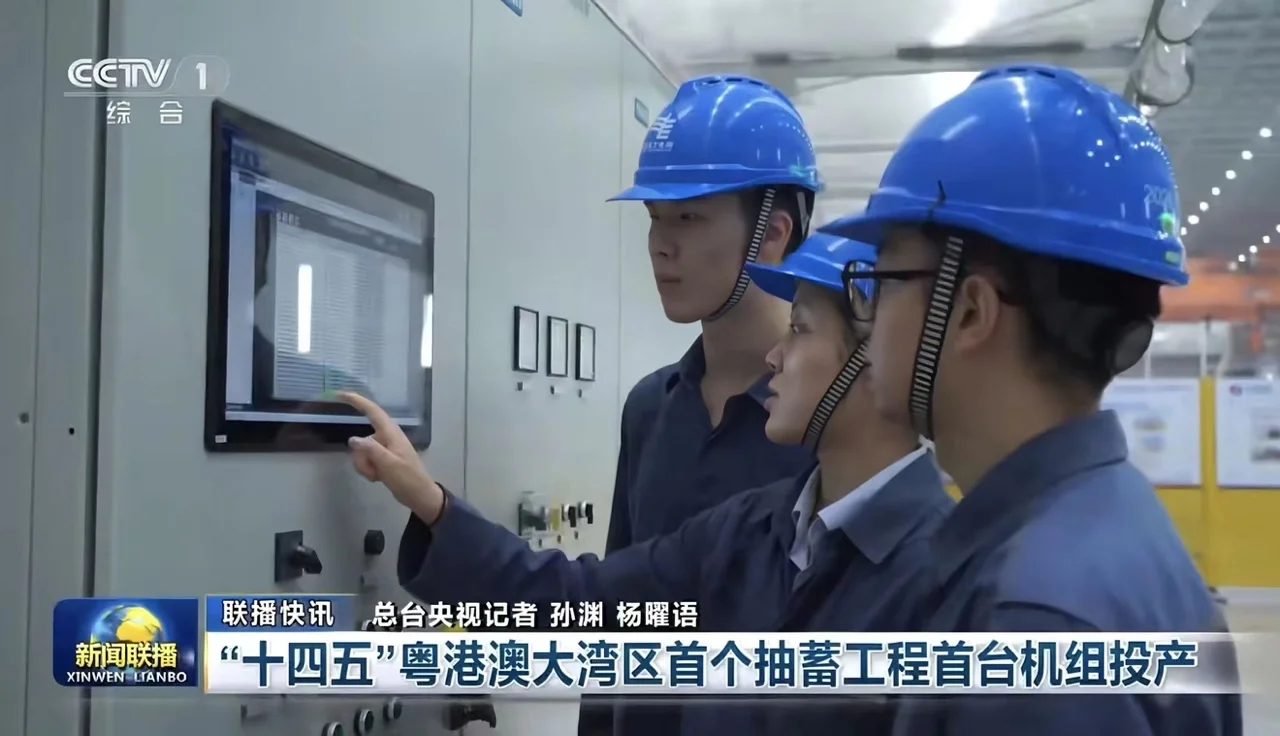

A local monitoring and visualization platform for critical infrastructure such as the Meizhou (Guangdong) and Fukang (Xinjiang) pumped-storage power stations. Adapts to EM station dispatch protocols and enables on-site reading of key parameters, reducing heavy dependence on central SCADA.
Intel Core i7-7560U + Iris Plus
Intel® Core™ i7-7560U dual-core / four-thread, up to 3.8 GHz, with integrated Iris Plus Graphics 640 (48 EUs) — a CPU + GPU combination optimized for visualization and monitoring.
IP65 Dust- and Water-Resistant Front Panel
IP65-rated front-panel protection with a 6061 high-strength aluminum alloy + sheet-metal structure. Withstands dust, oil and wash-down splash on the plant floor for long-term stable operation.
Panel-Mount / VESA Dual Mounting
Supports panel-mount installation (21.5-inch widescreen standard cutout) and VESA 75×75 wall mounting — cabinet embedding and standalone wall deployment.
Rich Industrial I/O
4× USB 3.0 + 2× USB 2.0 + 4× RS-232 + 2× RS-485 + 2× GbE + HDMI + VGA + audio. High-density multi-serial layout.
Mini-PCIe Wireless Expansion
1× Mini-PCIe slot for an optional dual-band Wi-Fi / Bluetooth / 4G / 5G module, ideal for shop-floor wireless networking and remote monitoring.
9-36V Wide-Voltage Phoenix Terminal
3-pin pluggable Phoenix terminal with 9-36V DC wide-voltage input. Four-way protection against over-voltage, over-current, reverse polarity and surge.
FlexCore™ Modular Hardware Architecture
Built on the FlexCore™ four-element architecture: i-Core compute board + i-Function expansion + i-Connect interface + Smart Thermal management. Unified interface, structure and power supply with free expandability.
SafeCore™ Industrial Reliability Enhancement
Four coordinated protection mechanisms: ① power protection (over-voltage / over-current / reverse / surge) + ② backup power (smart lithium-battery ride-through) + ③ power control (auto power-on) + ④ self-recovery (watchdog + fault restart).
Multi-OS Support
Windows 10 / 11 · CentOS · Ubuntu 16.04 / 18.04 / 20.04 / 22.04. BIOS supports customization, boot logo and OEM branding.
PRODUCT GALLERY

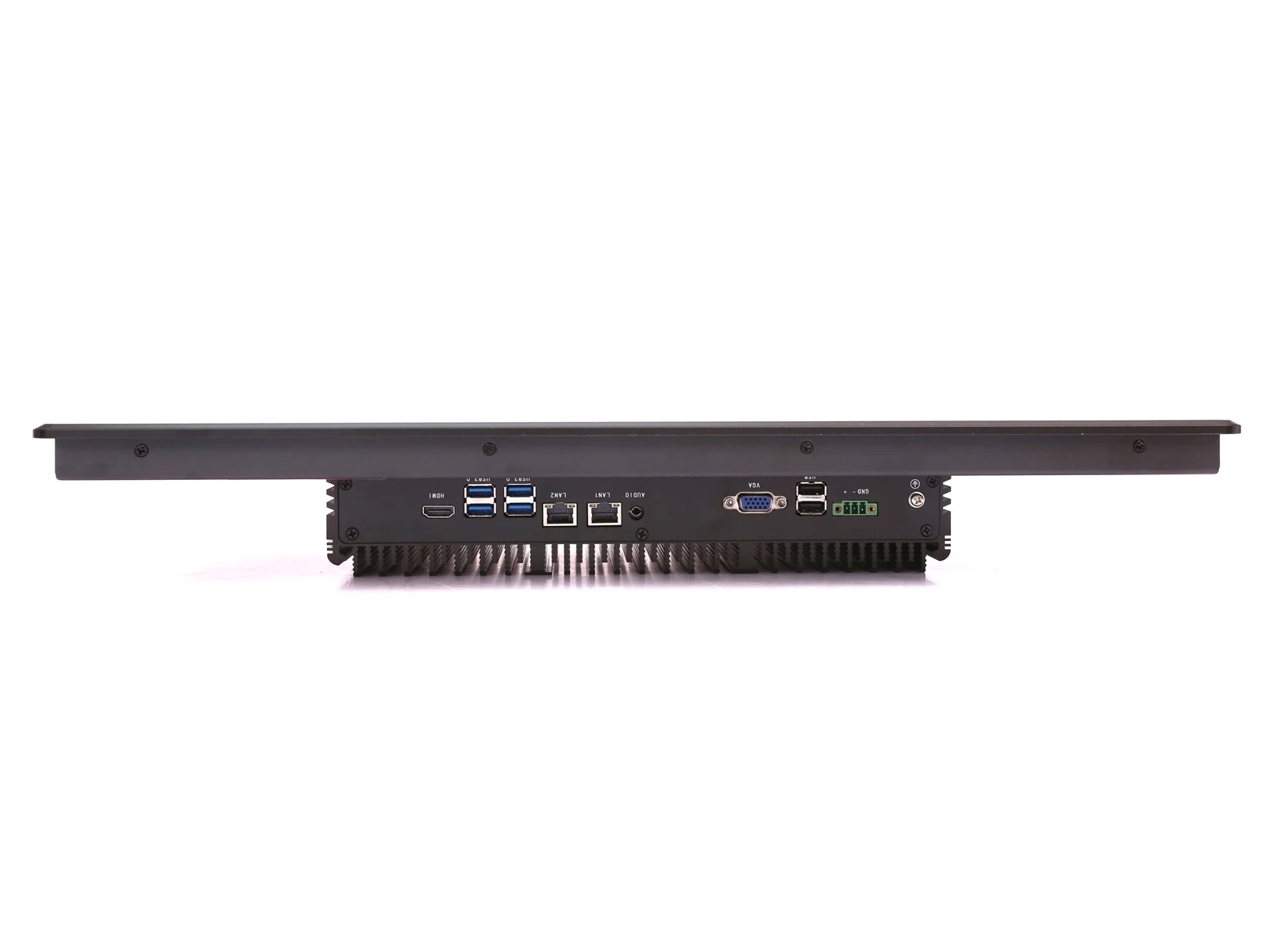

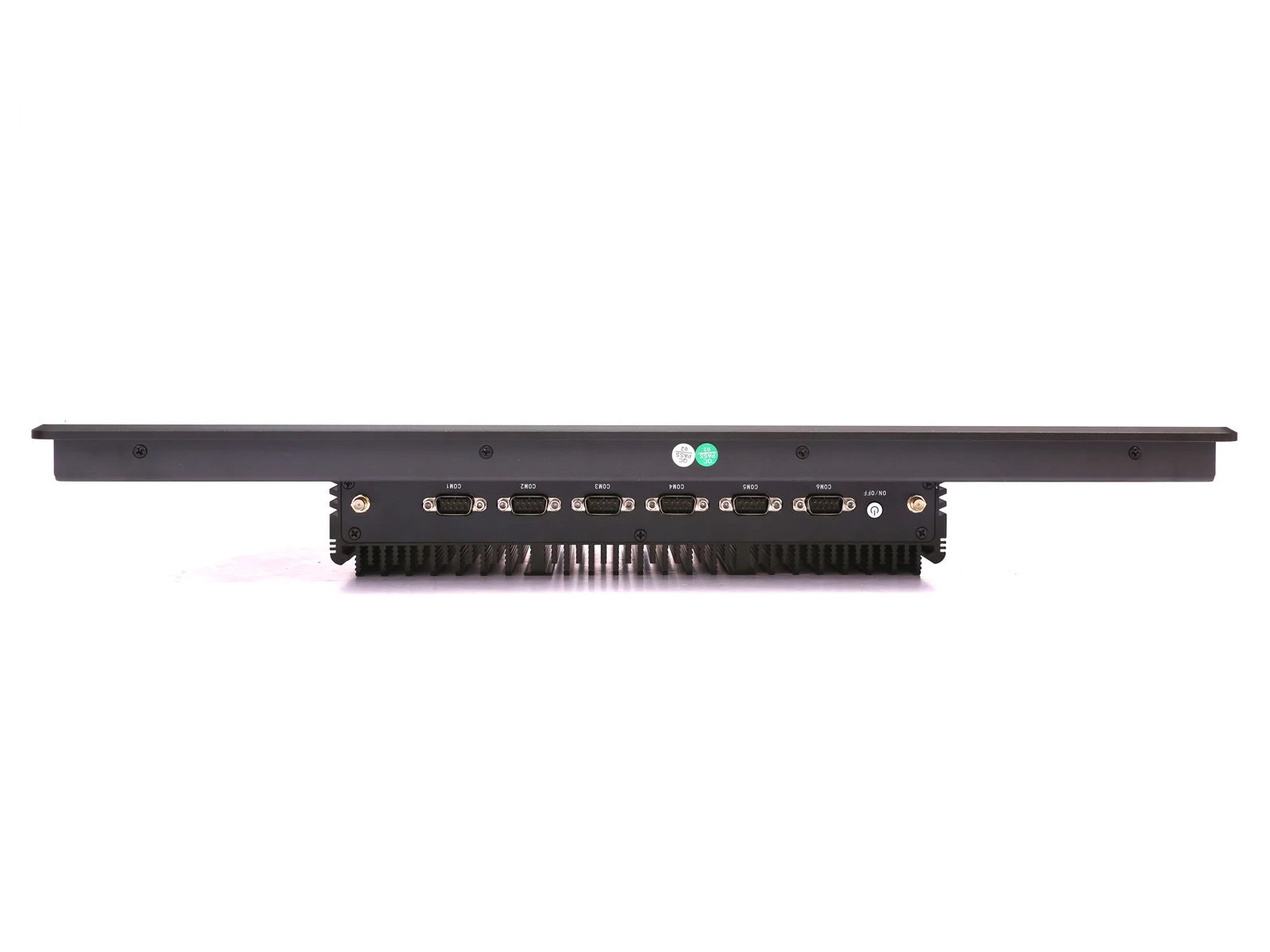

Product Gallery
SPECIFICATIONS
UTC-W2182A Full Specifications
Datasheet version V1.0 · Updated 2026-03-20 · Due to chip market fluctuations, key components may change; please confirm with sales.
Core Hardware
| Parameter | Specification |
|---|---|
| Processor | I7-7560U |
| Cores | 2 |
| Threads | 4 |
| Frequency | 2.40 GHz-3.80 GHz |
| Cache | 4 MB L3 Cache |
| TDP | 15W |
| Graphics | Intel UHD Graphics 620 |
| Memory | 16GB DDR4 |
| Storage | 512G SSD |
I/O Ports
| Parameter | Specification |
|---|---|
| USB 2.0 | 2 |
| USB 3.0 | 4 |
| RS232 | 4 |
| RS485 | 2 |
| VGA | 1 |
| HDMI | 1 |
| Gigabit Ethernet | 2 × Intel I210 |
| Audio | 3.5mm TRRS |
| Wi-Fi (optional) | Dual-band 2.4G/5G Wi-Fi module |
| 4G/5G (optional) | 4G/5G LTE multi-carrier (optional) |
Power Input
| Parameter | Specification |
|---|---|
| Power Connector | 3-pin pluggable terminal block, 9~36V DC wide-voltage input |
| ATX Switch | 1× ATX power switch |
| Boot Mode | AT/ATX mode switch (built-in) |
Physical & General
| Parameter | Specification |
|---|---|
| Dimensions | 530.0(L)x326.6(W)x75.0(H)mm |
| Mounting Dimensions | 513.0(L)x303.0(W)mm |
| Weight | 8KG net weight |
| Enclosure Material | 6061 high-strength aluminum alloy |
| Mechanical Structure | Aluminum extrusion + sheet metal structure |
| Mounting | Panel mount / VESA 75×75 wall mount |
| Reset Switch | 1× reset switch |
| TPM | TPM 2.0 |
| Watchdog | Hardware watchdog supported |
| MTBF | 60,000 hrs |
Operating Environment
| Parameter | Specification |
|---|---|
| Operating Temperature | 0~60°C (wide-temp -40~80°C optional) |
| Storage Temperature | -10~70°C (wide-temp -40~80°C optional) |
| Relative Humidity | 10%~90%, non-condensing |
| EMC | CE、FCC（EN 55032 & EN 55035） |
| EMC Harmonics | EN IEC 61000-3-2 |
Touch & Display
| Parameter | Specification |
|---|---|
| Display Size | 21.5" (16:9) |
| Display Type | FHD TFT LED LCD |
| Resolution | 1920 × 1080 |
| Colors | 16.7M |
| Brightness | 350 cd/m² |
| Contrast Ratio | 500:1 |
| Backlight Life | 50,000 hrs |
| Touch Technology | Projected capacitive (P-CAP), 10-point |
| Touch Protection | IP65 (front panel) |
Operating System
| Parameter | Specification |
|---|---|
| Windows | Windows 10 / Windows 11 |
| Linux | Ubuntu 16.04 / 18.04 / 20.04 / 22.04 |
Certifications & Compliance
| Parameter | Specification |
|---|---|
| Factory Certification | ISO9001: 2015 |
| BIOS Customization | BIOS / Boot LOGO / OEM |
I/O LAYOUT

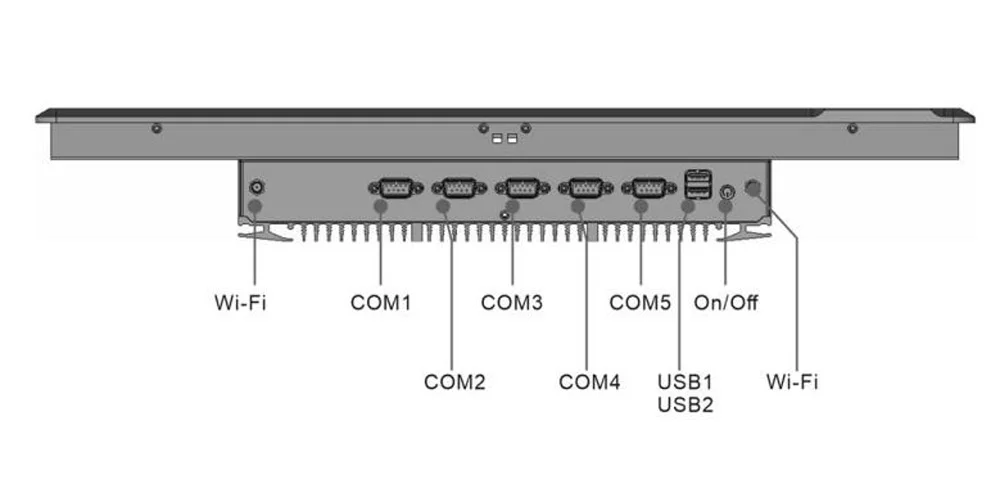

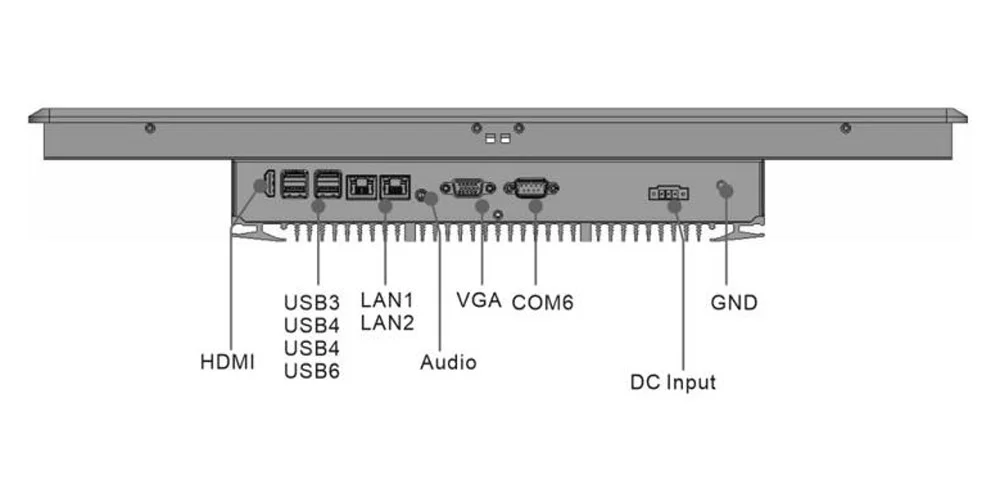

Side / Rear Panel I/O Layout
All I/O is concentrated at the rear, keeping the front panel a clean IP65 surface for easy panel-mount console deployment.
Side / Top Panel
Bottom / Rear Panel
DIMENSIONS

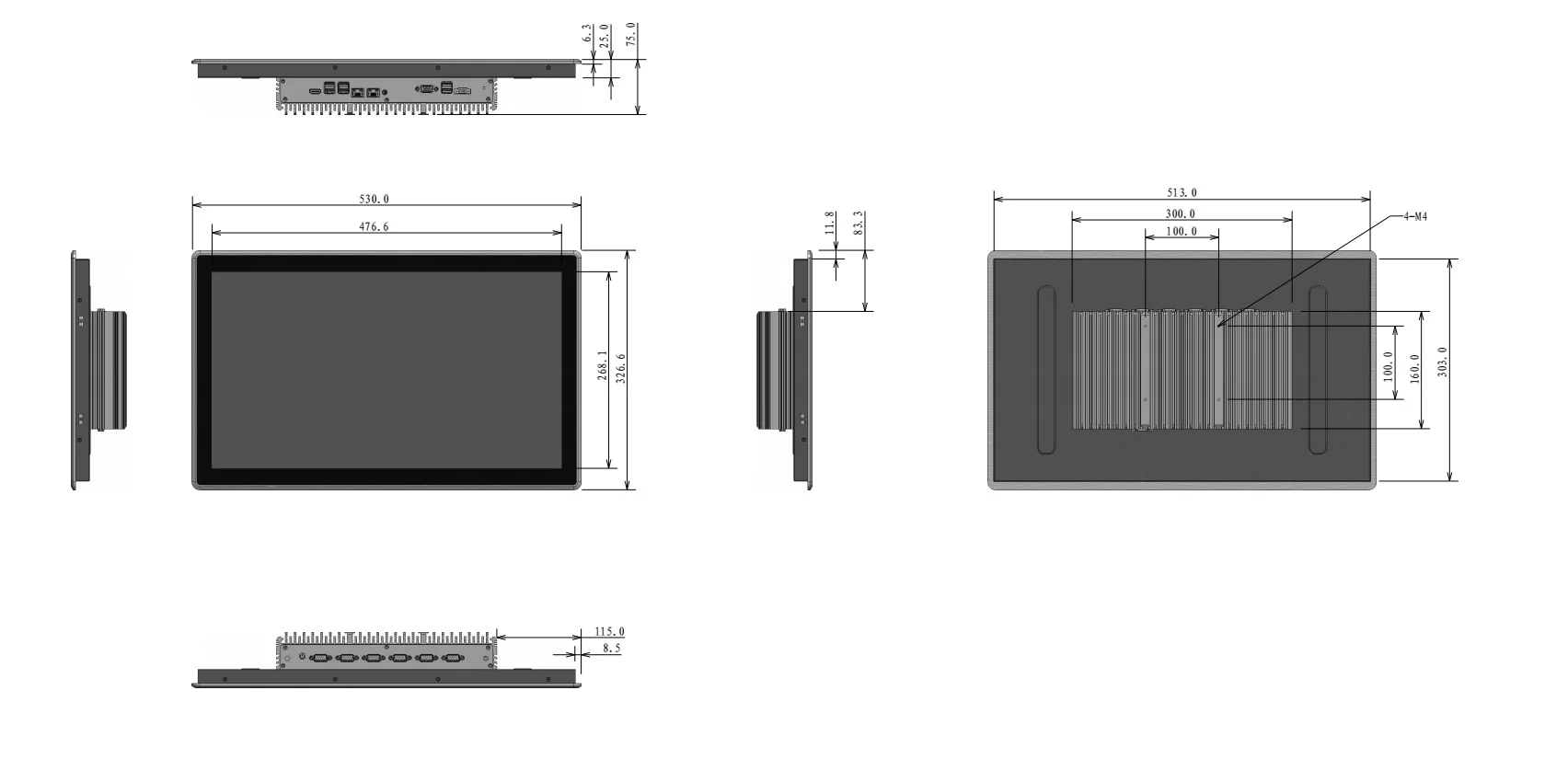

Dimensions (mm)
21.5-inch widescreen standard cutout · panel mount + VESA 75×75 dual mounting.
ORDERING INFORMATION
Ordering Information · Part Number
The standard configurations below can be ordered directly. For custom CPU / memory / storage / I/O boards, please contact sales.
| No. | Part Number | Model | Processor + Touchscreen | Memory | Storage |
|---|---|---|---|---|---|
| 01 | C9.03.02.072 | UTC-W2182A | Intel® Core™ I3-7130U，21.5" P-CAP | 8GB DDR4 | SSD 128GB |
| 02 | C9.03.02.026 | UTC-W2182A | Intel® Core™ I5-7360U，21.5" P-CAP | 8GB DDR4 | SSD 512GB |
| 03 | C9.03.02.025 | UTC-W2182A | Intel® Core™ I7-7560U，21.5" P-CAP | 16GB DDR4 | SSD 512GB |
Note: Due to market fluctuations, key components such as CPU, memory and storage may change. Please confirm exact configuration with our sales team.
APPLICATIONS
UTC-W2182A Typical Applications
With its 21.5-inch widescreen P-CAP 10-point capacitive touch, IP65 protection and FlexCore™ modularity, the UTC-W2182A is widely deployed across the following industrial scenarios.
