17" P-CAP Capacitive Touch + 10-Point
Projected-capacitive touch (P-CAP) with 10-point multi-touch, SXGA TFT LED LCD at 1280 × 1024, 300-350 cd/m² standard industrial display (500-1000 nits high-brightness optional). 50,000-hour backlight life.
EPC-S1722E · 17" P-CAP MULTI-TOUCH · 12TH GEN INTEL® CORE™
A 12th-Gen Intel® Core™ modular industrial panel PC with a 17" square-screen P-CAP 10-point capacitive touch and IP65 front bezel · enhanced 12th-Gen industrial console
EPC-S1722E 17" 12th-Gen i7 Modular Multi-Touch Panel PC | P-CAP + FlexCore™
The EPC-S1722E is a 17-inch industrial panel PC with 4 Intel® I210 Gigabit LAN ports, built for industrial control, machine vision, equipment networking, warehousing & logistics and unattended on-site applications. It features a 17-inch 5:4 SXGA industrial display with P-CAP 10-point capacitive touch and an IP65-rated front bezel. The core platform runs Intel® 12th-Gen Core™ i3 / i5 / i7 processors with a rich set of industrial interfaces, meeting the needs of multi-segment networking, industrial-camera connectivity, equipment control, data acquisition and on-site digital deployment — a reliable solution for industrial automation.
Typical Applications
17"5:4 SXGA
12th Geni3 / i5 / i7
EnhancedReinforced Modularity
9-36VWide-Range Input
PRODUCT HIGHLIGHTS
EPC-S1722E Eleven Core Features
Enhanced 12th Gen control station · FlexCore™ Modular · enhanced SafeCore™ Reliability — for industrial HMI and on-site visualization.
E Enhanced · Modular Upgrade
Swappable i-Function interface board: the base and enhanced SKUs share the same display. The E suffix denotes a modular expansion-interface upgrade (multi-serial / DIO / CAN configured on demand).
12th-Gen Intel® Core™ Compute
Three options across Intel® Core™ i3-1215U / i5-1235U / i7-1255U. Up to a 10C12T performance cluster with Iris Xe integrated graphics, balancing performance and efficiency.
IP65 Dust- and Water-Resistant Front Panel
IP65-rated front panel protection with a 6061 high-strength aluminum alloy + sheet-metal structure. Withstands dust, oil and washdown spray on the factory floor for stable long-term operation.
Panel Mount / VESA Dual Mounting
Supports both embedded panel mounting (17" square-screen standard cutout) and VESA 75×75 wall mounting. Deploy embedded in a control cabinet or standalone on a wall.
Rich Industrial I/O
4× USB 3.0 + 2× USB 2.0 + 4× RS-232 + 2× RS-485 + 2× GbE + HDMI + VGA + audio. High-density layout with multiple serial ports.
Mini-PCIe Wireless Expansion
1× Mini-PCIe expansion slot for optional dual-band Wi-Fi / Bluetooth / 4G / 5G communication modules, flexibly adapting to shop-floor wireless networking and remote monitoring.
9-36V Wide-Range Phoenix Terminal
3-pin pluggable Phoenix terminal with 9-36V DC wide-range input. Quad protection against overvoltage / overcurrent / reverse polarity / surge.
FlexCore™ Modular Hardware Architecture
Built on the FlexCore™ four-element architecture: i-Core smart core + i-Function expansion + i-Connect interface + Smart Thermal management. Unified interface · unified structure · unified power · free expansion.
SafeCore™ Industrial-Grade Reliability
Four protection mechanisms work in concert: ① power protection (overvoltage/overcurrent/reverse polarity/surge) + ② backup power (smart lithium-battery power-loss buffering) + ③ start/stop control (auto power-on after restore) + ④ system self-recovery (watchdog + fault restart).
Multi-OS Support
Windows 10 / 11 · CentOS · Ubuntu 16.04 / 18.04 / 20.04 / 22.04. Supports BIOS customization, Boot LOGO and OEM branding.

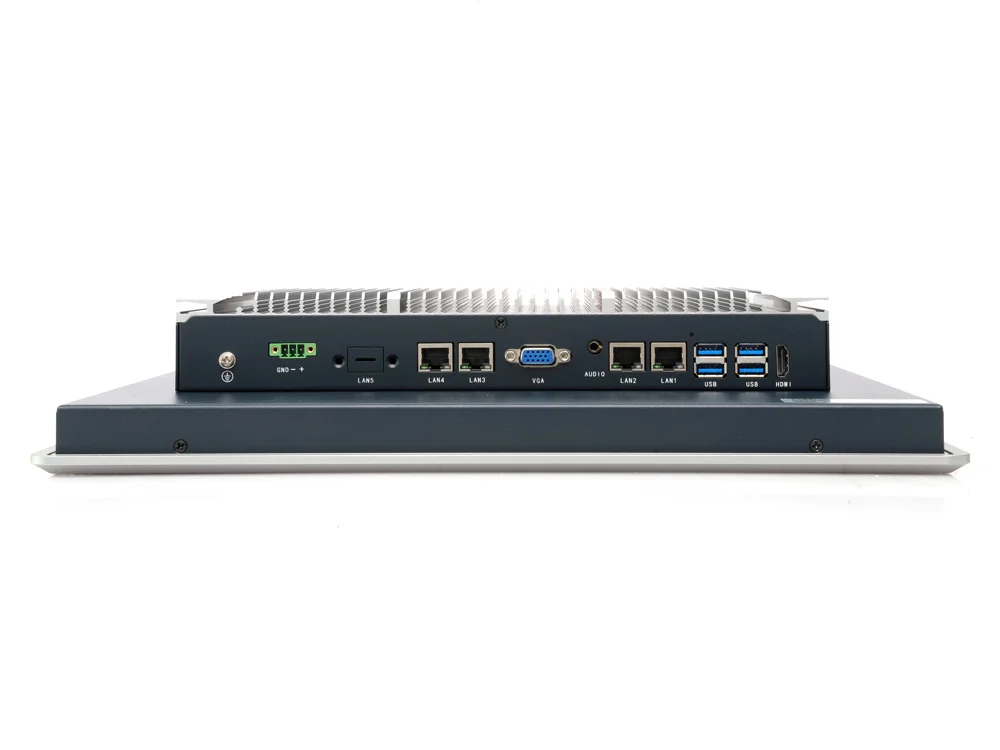

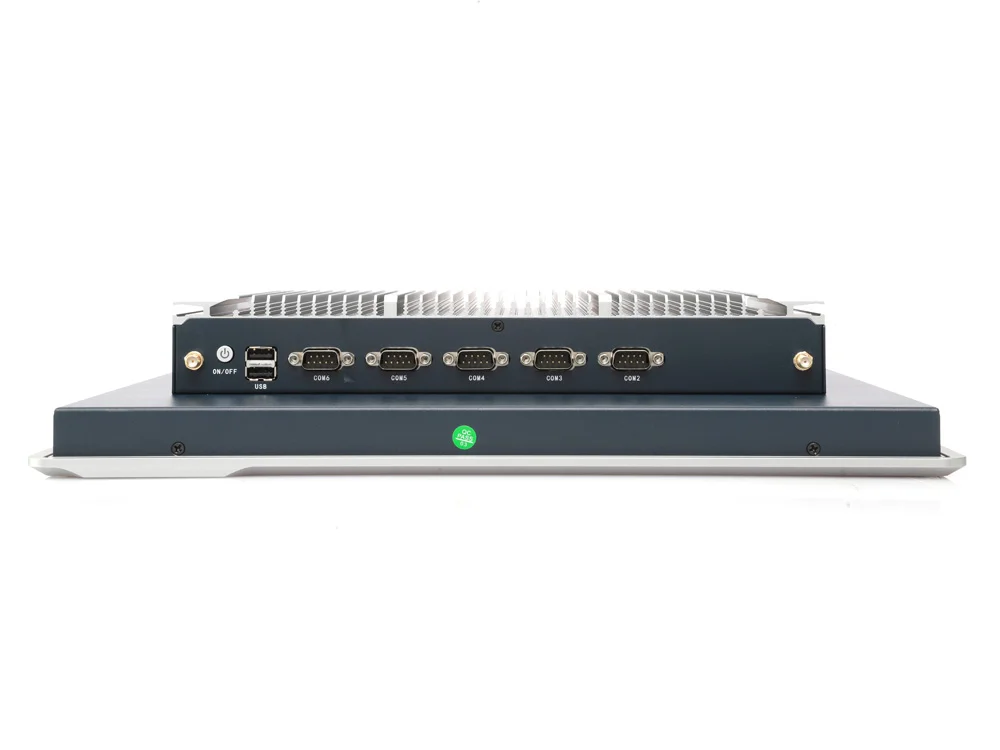

PRODUCT GALLERY
Product Gallery
SPECIFICATIONS
EPC-S1722E Full Specifications
Datasheet V1.0 · Updated 2026-03-20 · Due to chip market fluctuations, key components may change; final specs subject to sales confirmation.
Core Hardware
| Parameter | Intel® Core™ i3-1215U | Intel® Core™ i5-1235U | Intel® Core™ i7-1255U |
|---|---|---|---|
| Processor | i3-1215U | i5-1235U | i7-1255U |
| Cores | 6 (2P+4E) | 10 (2P+8E) | 10 (2P+8E) |
| Threads | 8 | 12 | 12 |
| Frequency | 1.2~4.4 GHz | 1.3~4.4 GHz | 1.7~4.7 GHz |
| Cache | 10 MB L3 Cache | 12 MB L3 Cache | 12 MB L3 Cache |
| TDP | 15W | ||
| Display | Intel UHD Graphics (64 EUs) | Intel Iris Xe Graphics (80 EUs) | Intel Iris Xe Graphics (96 EUs) |
| Memory | 8~32 GB DDR5 | ||
| Storage | 2× M.2 2280 PCIe NVMe SSD | ||
I/O Interfaces
| Parameter | Specification |
|---|---|
| USB 2.0 | 2 |
| USB 3.0 | 4 |
| RS232 | 3 |
| RS485 | 2 |
| VGA | 1 |
| HDMI | 1 |
| Gigabit Ethernet | 4 × Intel I210 |
| Audio | 3.5mm TRRS |
| Wi-Fi (optional) | Dual-Band 2.4G/5G Wi-Fi Card |
| 4G/5G (optional) | 4G/5G LTE (optional) |
Power Input
| Parameter | Specification |
|---|---|
| Power Connector | 1× 3-pin pluggable terminal, 9~36V DC wide voltage |
| ATX Switch | 1× ATX Power Switch |
| Power-On Mode | AT/ATX Mode Switch (built-in) |
Physical Attributes
| Parameter | Specification |
|---|---|
| Dimensions | 397.0 (L) ×321.0 (W) ×75.1 (H) mm |
| Mounting Dimensions | 374.6 (L) ×312.6 (W) mm (panel cutout) |
| Weight | 5.2 kg net weight |
| Housing Material | 6061 High-Strength Aluminum Alloy |
| Mechanical Structure | Extruded Aluminum + Sheet Metal |
| Mounting | Panel Mount / VESA 75×75 Wall Mount |
| Reset Switch | 1× Reset Switch |
| TPM | TPM 2.0 |
| MTBF | 60,000 hrs |
Operating Environment
| Parameter | Specification |
|---|---|
| Operating Temperature | 0~60℃ (wide-temp -40~80℃ optional) |
| Storage Temperature | -10~70℃ (wide-temp -40~80℃ optional) |
| Relative Humidity | 10%~90%, non-condensing |
| EMC | CE, FCC (EN 55032 & EN 55035) |
| EMC Harmonics | EN IEC 61000-3-2 |
Touch & Display
| Parameter | Specification |
|---|---|
| Display Size | 17" (4:3) |
| Display Type | SXGA TFT LED LCD |
| Resolution | 1280 × 1024 |
| Colors | 16.2M |
| Brightness | 350 cd/m² |
| Contrast Ratio | 500:1 |
| Backlight Life | 50,000 hrs |
| Touch Technology | Projected Capacitive (P-CAP), 10-point |
| Touch Protection | IP65 (front panel) |
Operating System
| Parameter | Specification |
|---|---|
| Windows | Windows 10 / Windows 11 |
| Linux | Ubuntu 16.04 / 18.04 / 20.04 / 22.04 |
Certification & Compliance
| Parameter | Specification |
|---|---|
| Factory Certification | ISO9001: 2015 |
| BIOS Customization | BIOS / Boot LOGO / OEM |
I/O LAYOUT
Side / Rear Panel I/O Layout
All I/O is centralized on the rear of the panel PC, keeping the front panel clean at IP65 for embedded console deployment.

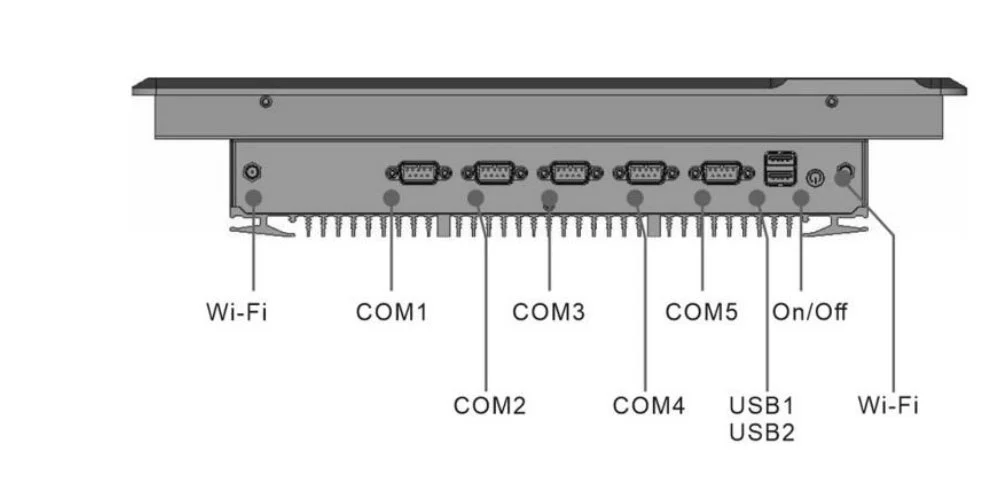

Side / Top Panel

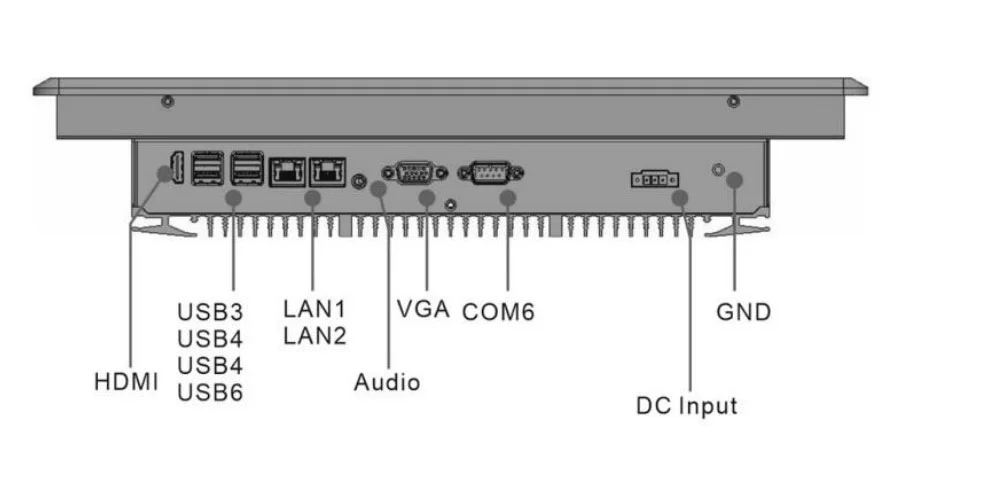

Bottom / Rear Panel
DIMENSIONS

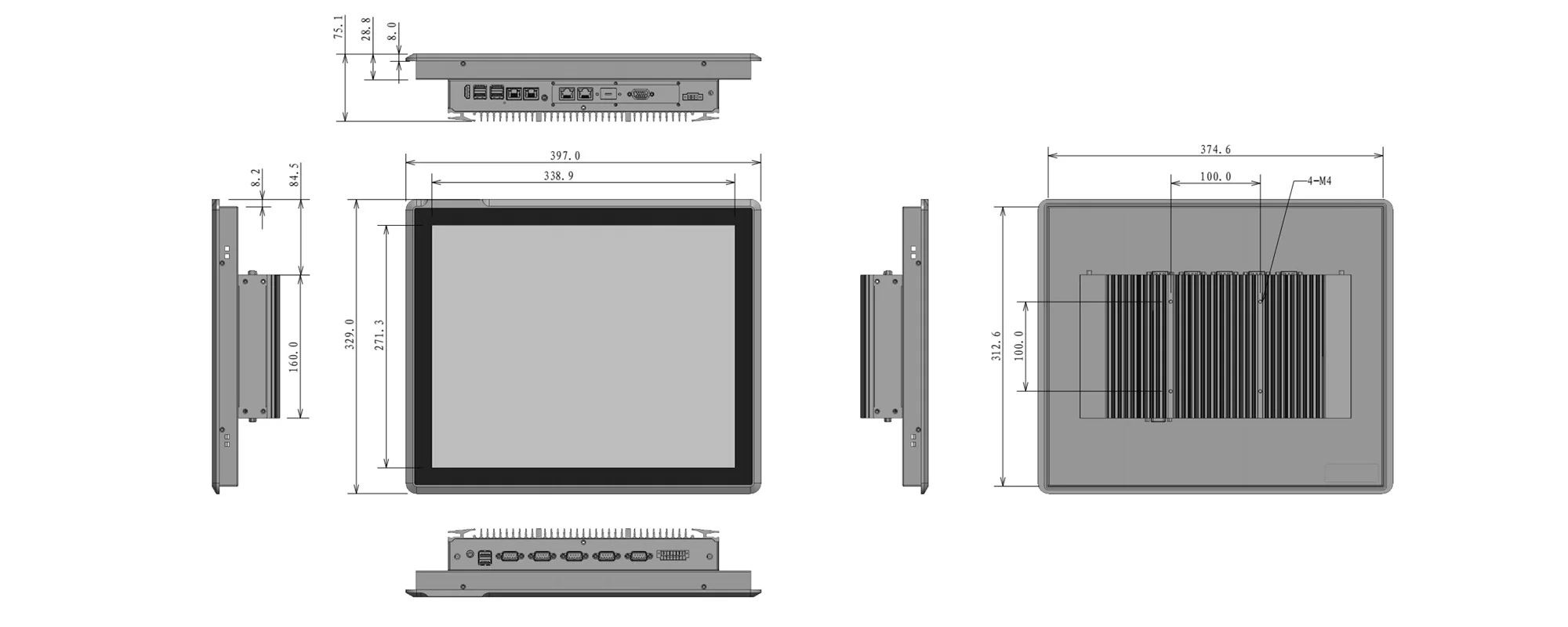

Three-View Dimensions (mm)
17" square-screen standard cutout · panel mount + VESA 75×75 dual mounting.
ORDERING INFORMATION
Ordering Information · Part Number
The standard configurations below can be ordered directly; for custom CPU / memory / storage / I/O boards, please contact sales.
| No. | Part Number | Model | Processor + Touchscreen | Memory | Storage |
|---|---|---|---|---|---|
| 01 | C11.01.04.028 | EPC-S1722E | Intel® Core™ i3-1215U，17" P-CAP | 8GB RAM | SSD 256GB |
| 02 | C11.01.04.008 | EPC-S1722E | Intel® Core™ i5-1235U，17" P-CAP | 16GB RAM | SSD 512GB |
| 03 | C11.01.04.036 | EPC-S1722E | Intel® Core™ i7-1255U，17" P-CAP | 16GB RAM | SSD 512GB |
Note: Due to market fluctuations, key components such as CPU model, memory and storage may change; please contact our sales team for details.
APPLICATIONS
EPC-S1722E Typical Applications
Built on a 17" square-screen P-CAP 10-point capacitive touchscreen + IP65 protection + FlexCore™ Modular, the EPC-S1722E is widely deployed across the following industrial sites.
STANDARD VERSION · VALUE ENTRY
EPC-S1722E Also Available as Standard (Value Entry)
The EPC-S1722E (17" 5:4 modular touch) is the FlexCore™ Modular custom version. If your project does not need serviceable maintenance or long-term upgradeability, the standard EPC-S1722A offers the same performance in a more compact body at a lower cost — the value entry point in this size.
