13.3" P-CAP Capacitive Touch + 10-Point
Projected capacitive (P-CAP) with 10-point multi-touch, FHD TFT LED LCD at 1920 × 1080, 300-350 cd/m² standard industrial display (500-1000 nits high-bright optional). 50,000-hour backlight life.
EPC-W1392T · 13.3" P-CAP MULTI-TOUCH · 10TH GEN INTEL® CORE™
10th Gen Intel® Core™ modular industrial panel PC with a 13.3-inch widescreen P-CAP 10-point capacitive touchscreen and IP65 front bezel · 10th Gen mainstream · vision inspection
EPC-W1392T 10th Gen i7 13.3-inch Widescreen Multi-Touch Panel PC | P-CAP + FlexCore™
The EPC-W1392T is a 13.3-inch high-performance widescreen industrial panel PC built for vision inspection, equipment control, data acquisition and unattended HMI applications. It features a 13.3-inch Full HD industrial display with P-CAP 10-point capacitive touch and an IP65-rated front panel, plus a front capacitive touch power button used to start the equipment — disabled during operation to prevent accidental touch. The platform runs 10th Gen Intel® Core™ i3 / i5 / i7 processors with dual Gigabit Ethernet and rich industrial interfaces, and supports 9–36V wide-voltage input — a reliable solution for high-performance human-machine interaction and edge control on the plant floor.
Typical Applications
13.3"16:9 FHD
10th Geni3 / i5 / i7
P-CAP10-point capacitive
9-36Vwide-voltage input
PRODUCT HIGHLIGHTS
Eleven Core Features of the EPC-W1392T
10th Gen Mainstream · Vision Inspection · FlexCore™ modular · SafeCore™ reliability enhancement — for industrial HMI and on-site visualization.
13.3" Compact Workstation Panel
13.3-inch 16:9 compact body with an FHD industrial display, ideal for space-constrained workstations, operator consoles, AGV/MES terminals and local HMI for vision systems. The separated display/mainboard structure simplifies on-site maintenance.
10th Gen Intel Core
Three options: Intel® Core™ i3-10110U / i5-10210U / i7-10510U. Low-power U-series design balances performance and energy efficiency.
IP65 Dust- and Water-Resistant Front Panel
IP65-rated front-panel protection with a 6061 high-strength aluminum alloy + sheet-metal structure. Withstands dust, oil and wash-down splash on the plant floor for long-term stable operation.
Panel-Mount / VESA Dual Mounting
Supports panel-mount installation (13.3-inch widescreen standard cutout) and VESA 75×75 wall mounting — cabinet embedding and standalone wall deployment.
Rich Industrial I/O
4× USB 3.0 + 2× USB 2.0 + 4× RS-232 + 2× RS-485 + 2× GbE + HDMI + VGA + audio. High-density multi-serial layout.
Mini-PCIe Wireless Expansion
1× Mini-PCIe slot for an optional dual-band Wi-Fi / Bluetooth / 4G / 5G module, ideal for shop-floor wireless networking and remote monitoring.
9-36V Wide-Voltage Phoenix Terminal
3-pin pluggable Phoenix terminal with 9-36V DC wide-voltage input. Four-way protection against over-voltage, over-current, reverse polarity and surge.
FlexCore™ Modular Hardware Architecture
Built on the FlexCore™ four-element architecture: i-Core compute board + i-Function expansion + i-Connect interface + Smart Thermal management. Unified interface, structure and power supply with free expandability.
SafeCore™ Industrial Reliability Enhancement
Four coordinated protection mechanisms: ① power protection (over-voltage / over-current / reverse / surge) + ② backup power (smart lithium-battery ride-through) + ③ power control (auto power-on) + ④ self-recovery (watchdog + fault restart).
Multi-OS Support
Windows 10 / 11 · CentOS · Ubuntu 16.04 / 18.04 / 20.04 / 22.04. BIOS supports customization, boot logo and OEM branding.

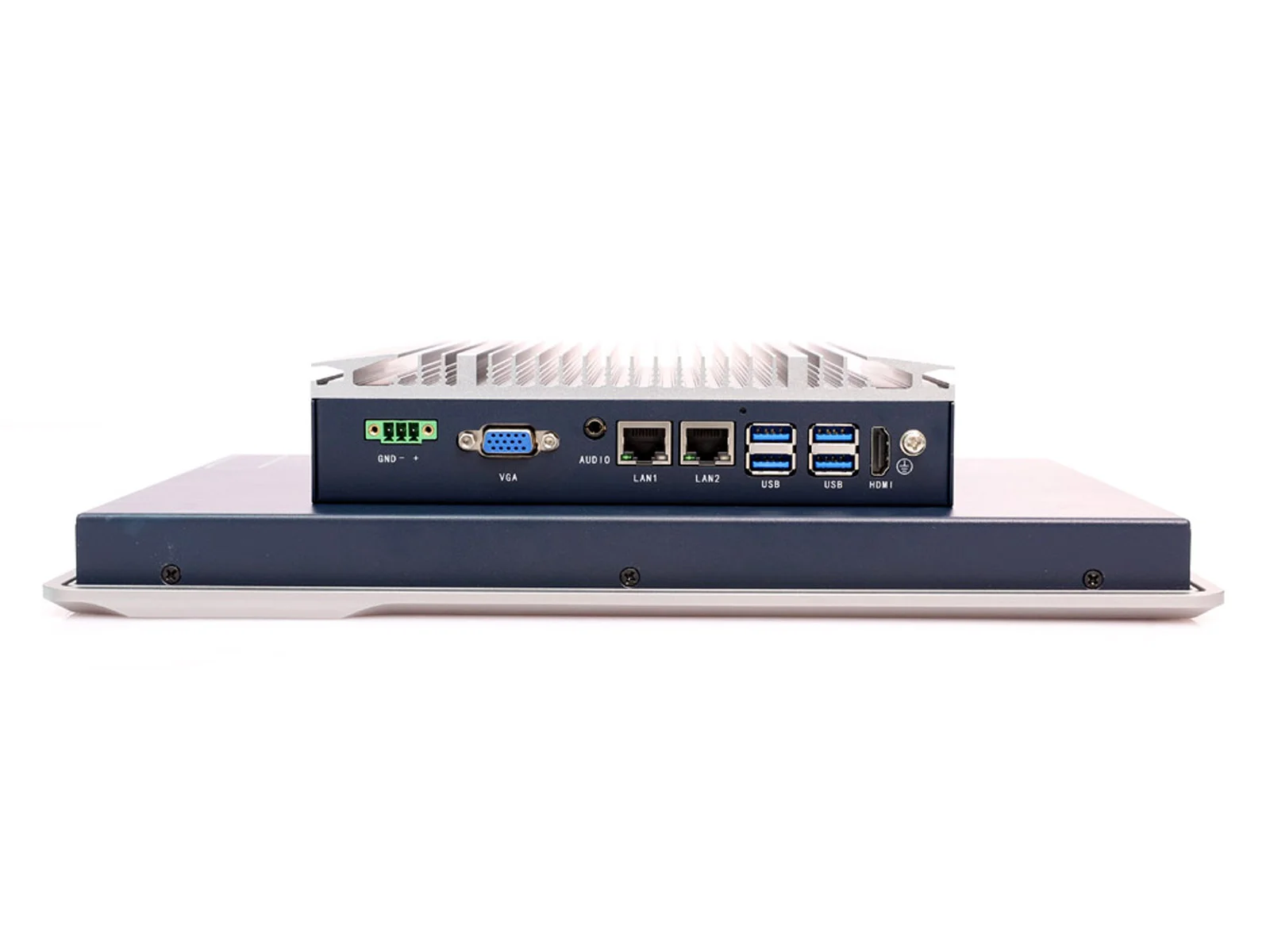

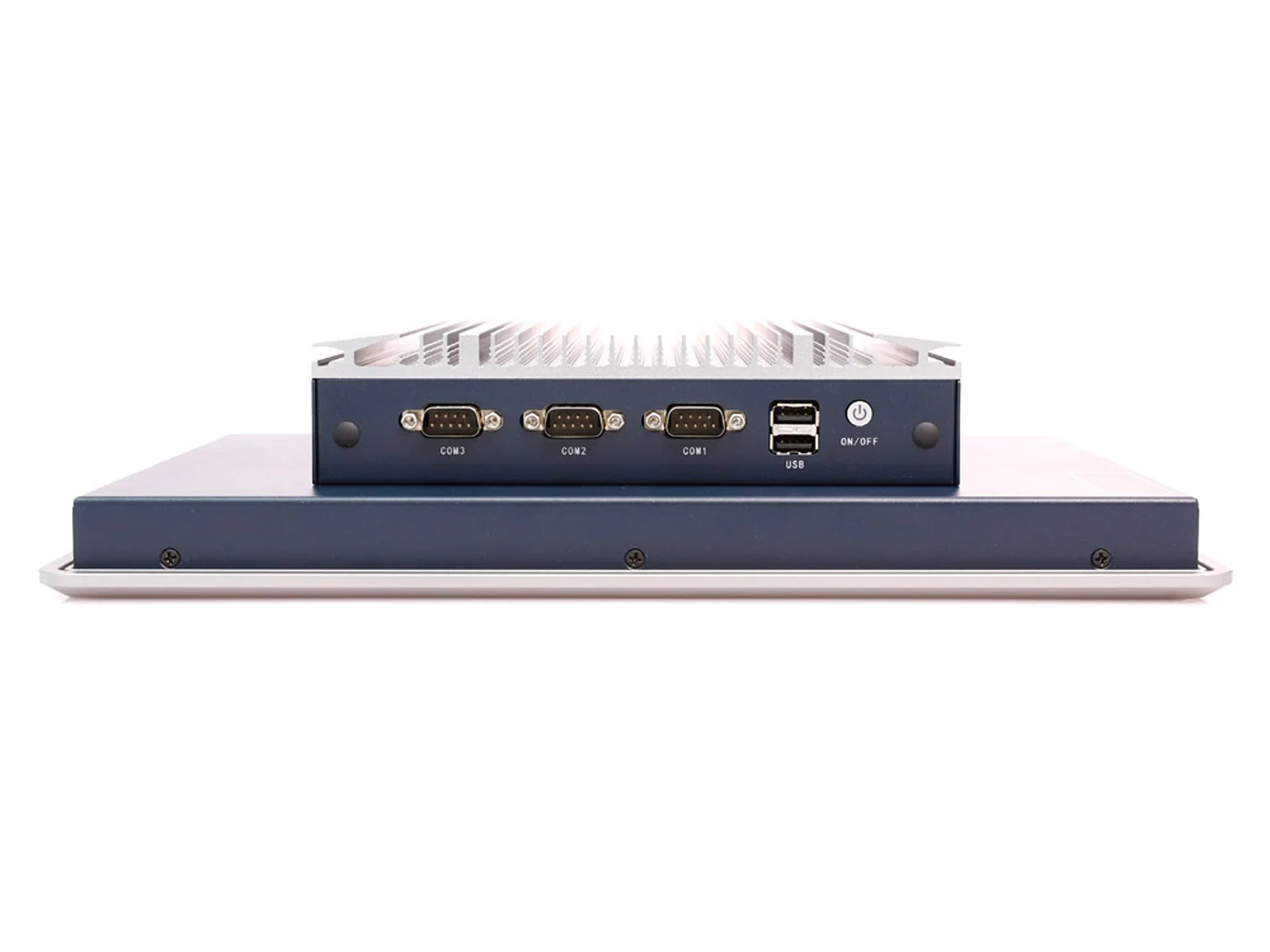

PRODUCT GALLERY
Product Gallery
SPECIFICATIONS
EPC-W1392T Full Specifications
Datasheet version V1.0 · Updated 2026-03-20 · Due to chip market fluctuations, key components may change; please confirm with sales.
Core Hardware
| Parameter | Intel® Core™ i3-10110U | Intel® Core™ i5-10210U | Intel® Core™ i7-10510U |
|---|---|---|---|
| Processor | i3-10110U | i5-10210U | i7-10510U |
| Cores | 2 | 4 | 4 |
| Threads | 4 | 8 | 8 |
| Frequency | 2.1~4.1 GHz | 1.6~4.2 GHz | 1.8~4.9 GHz |
| Cache | 4MB | 6MB | 8MB |
| TDP | 15W | ||
| Graphics | Intel UHD Graphics 620 | ||
| Memory | 4~32GB DDR4 | ||
| Storage | 1× M.2 SSD + 1× M.2 NVMe | ||
I/O Ports
| Parameter | Specification |
|---|---|
| USB 2.0 | 2 |
| USB 3.0 | 4 |
| RS232 | 2 |
| RS485 | 1 |
| VGA | 1 |
| HDMI | 1 |
| Gigabit Ethernet | 2 × Intel I210 |
| Audio | 3.5mm TRRS |
| Wi-Fi (optional) | Dual-band 2.4G/5G Wi-Fi module |
| 4G/5G (optional) | 4G/5G LTE multi-carrier (optional) |
Power Input
| Parameter | Specification |
|---|---|
| Power Connector | 3-pin pluggable terminal block, 9~36V DC wide-voltage input |
| ATX Switch | 1× ATX power switch |
| Boot Mode | AT/ATX mode switch (built-in) |
Physical & General
| Parameter | Specification |
|---|---|
| Dimensions | 345.2 (W) × 233.6 (H) × 74.6 (D)mm |
| Mounting Dimensions | 325.1 (W) × 213.5 (H) mm (panel cutout) |
| Weight | 3.0 KG net weight |
| Enclosure Material | 6061 high-strength aluminum alloy |
| Mechanical Structure | Aluminum extrusion + sheet metal structure |
| Mounting | Panel mount / VESA 75×75 wall mount |
| Reset Switch | 1× reset switch |
| Programmable Button | Front programmable button (custom functions) |
| TPM | TPM 2.0 |
| Watchdog | Hardware watchdog supported |
| MTBF | 60,000 hrs |
Operating Environment
| Parameter | Specification |
|---|---|
| Operating Temperature | 0~60°C (wide-temp -40~80°C optional) |
| Storage Temperature | -10~70°C (wide-temp -40~80°C optional) |
| Relative Humidity | 10%~90%, non-condensing |
| EMC | CE、FCC（EN 55032 & EN 55035） |
| EMC Harmonics | EN IEC 61000-3-2 |
Touch & Display
| Parameter | Specification |
|---|---|
| Display Size | 13.3" (16:9) |
| Display Type | FHD TFT LED LCD |
| Resolution | 1920 × 1080 |
| Colors | 16.7M |
| Brightness | 350 cd/m² |
| Contrast Ratio | 500:1 |
| Backlight Life | 50,000 hrs |
| Touch Technology | Projected capacitive (P-CAP), 10-point |
| Touch Protection | IP65 (front panel) |
Operating System
| Parameter | Specification |
|---|---|
| Windows | Windows 10 / Windows 11 |
| Linux | Ubuntu 16.04 / 18.04 / 20.04 / 22.04 |
Certifications & Compliance
| Parameter | Specification |
|---|---|
| Factory Certification | ISO9001: 2015 |
| BIOS Customization | BIOS / Boot LOGO / OEM |
I/O LAYOUT
Side / Rear Panel I/O Layout
All I/O is concentrated at the rear, keeping the front panel a clean IP65 surface for easy panel-mount console deployment.

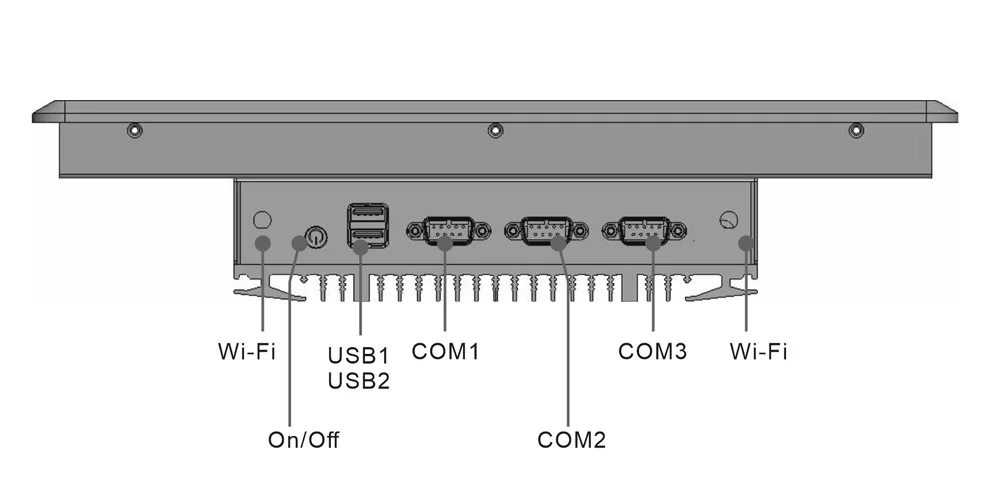

Side / Top Panel

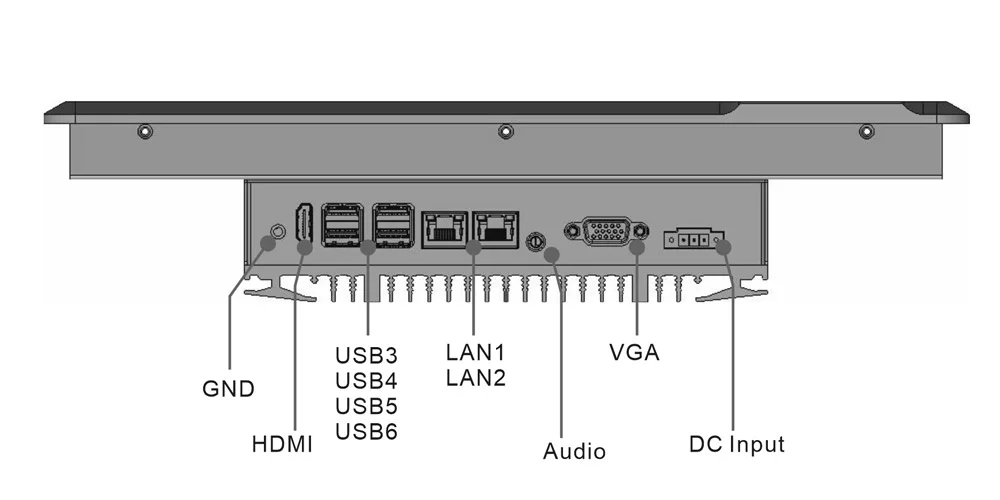

Bottom / Rear Panel
DIMENSIONS

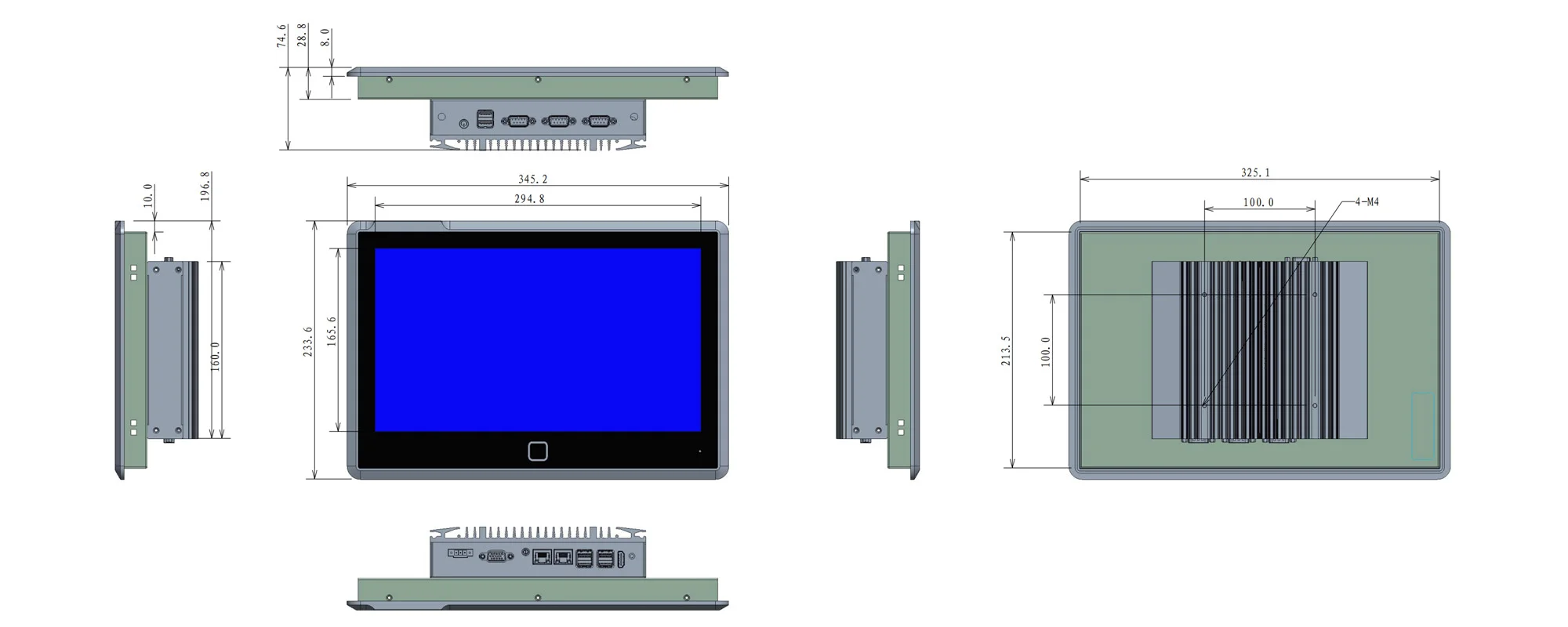

Dimensions (mm)
13.3-inch widescreen standard cutout · panel mount + VESA 75×75 dual mounting.
ORDERING INFORMATION
Ordering Information · Part Number
The standard configurations below can be ordered directly. For custom CPU / memory / storage / I/O boards, please contact sales.
| No. | Part Number | Model | Processor + Touchscreen | Memory | Storage |
|---|---|---|---|---|---|
| 01 | C11.01.03.014 | EPC-W1392T | Intel® Core™ i3-10110U，13.3" P-CAP | 8GB RAM | SSD 128GB |
| 02 | C11.01.03.015 | EPC-W1392T | Intel® Core™ i5-10210U，13.3" P-CAP | 8GB RAM | SSD 256GB |
| 03 | C11.01.03.016 | EPC-W1392T | Intel® Core™ i7-10510U，13.3" P-CAP | 8GB RAM | SSD 256GB |
Note: Due to market fluctuations, key components such as CPU, memory and storage may change. Please confirm exact configuration with our sales team.
