EPC-W1322T widescreen industrial panel PC (16:9) - front main view - CESIPC
EPC-W13 SERIES · 13.3" 16:9 FHD · 4 CPU TIERS

EPC-W13 13.3-inch
Modular Widescreen Industrial Panel PC

13.3" 16:9 FHD 1920×1080 P-CAP 10-point capacitive touch + IP65 front panel. One compact body, one I/O spec, 4 CPU options (12th Gen flagship / 10th Gen mainstream / J6412 low-power / J1900 value) — choose by compute power, budget or long-life needs.

13.3"16:9 FHD
4CPU options
P-CAP10-point capacitive
9-36Vwide-voltage Phoenix terminal
View 4 Models Series Selection Consulting
4 CPU TIERS · SAME PANEL

EPC-W13 Series · 4 Models to Choose From

Same 13.3" P-CAP touchscreen, same IP65 front panel, same I/O spec — only the processor platform differs. Choose by compute power, budget or compatibility.

EPC-W1322T widescreen industrial panel PC (16:9) - front main view - CESIPC 12th Gen Flagship
EPC-W13 · 12th Gen i3-i7

EPC-W1322T

Intel® Core™ i3 / i5 / i7 12th Gen U-series

  • Processori3-1215U / i5-1235U / i7-1255U
  • PerformanceUp to 10C/12T · Iris Xe graphics
  • Display13.3" · FHD 1920×1080 · P-CAP 10-point
  • ProtectionIP65 front panel · 9-36V wide-voltage
View Details Get a Quote
EPC-W1362T widescreen industrial panel PC (16:9) - front main view - CESIPC Value Multi-I/O
EPC-W13 · J1900 Value

EPC-W1362T

Intel® Celeron® J1900 (Bay Trail-D)

  • ProcessorJ1900 · 4C/4T · 2.0 GHz
  • PerformanceNative Win 7 · legacy-OS compatible
  • Display13.3" · FHD 1920×1080 · P-CAP 10-point
  • ProtectionIP65 front panel · 9-36V wide-voltage
View Details Get a Quote

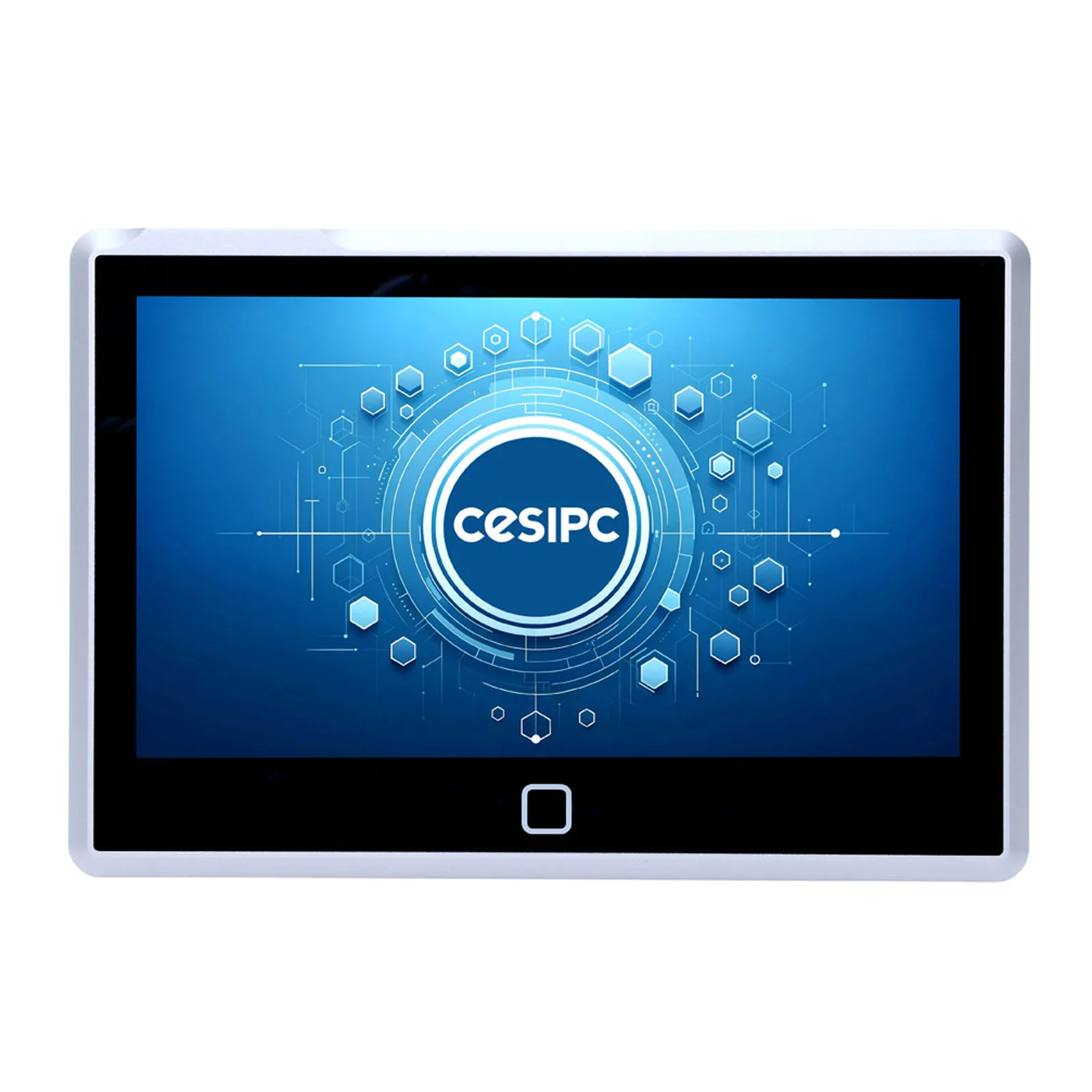

EPC-W1372T widescreen industrial panel PC (16:9) - front main view - CESIPC Low-Power Upgrade
EPC-W13 · J6412 Low-Power

EPC-W1372T

Intel® Celeron® J6412 (Elkhart Lake)

  • ProcessorJ6412 · 4C/4T · 2.6 GHz boost
  • Performance10 nm process · 10W TDP
  • Display13.3" · FHD 1920×1080 · P-CAP 10-point
  • ProtectionIP65 front panel · 9-36V wide-voltage
View Details Get a Quote
EPC-W1392T widescreen industrial panel PC (16:9) - front main view - CESIPC 10th Gen Mainstream
EPC-W13 · 10th Gen i3-i7

EPC-W1392T

Intel® Core™ i3 / i5 / i7 10th Gen U-series

  • Processori3-10110U / i5-10210U / i7-10510U
  • PerformanceLow-power U-series · industrial-grade stability
  • Display13.3" · FHD 1920×1080 · P-CAP 10-point
  • ProtectionIP65 front panel · 9-36V wide-voltage
View Details Get a Quote
SIDE-BY-SIDE COMPARE

4-Model Spec Comparison

Parameter / ModelEPC-W1322TEPC-W1362TEPC-W1372TEPC-W1392T
CPU Platform12th Gen i3-i7J1900 ValueJ6412 Low-Power10th Gen i3-i7
Processori3-1215U / i5-1235U / i7-1255UJ1900 · 4C/4T · 2.0 GHzJ6412 · 4C/4T · 2.6 GHz boosti3-10110U / i5-10210U / i7-10510U
Memory8-32GB DDR52-8GB DDR34-16GB DDR48-32GB DDR4
Typical UsePerformance flagship · edge intelligenceValue · HMI workstationLow-power · compact workstationBalanced mainstream · vision inspection
SHARED PLATFORM

EPC-W13 Series Shared Platform Features

01

13.3" 16:9 FHD P-CAP

P-CAP projected-capacitive 10-point multi-touch, FHD 1920×1080 industrial display, 350 cd/m² brightness.

02

IP65 Dust- and Water-Resistant Front Panel

6061 high-strength aluminum alloy + sheet-metal structure. Withstands dust, oil and wash-down splash on the plant floor.

03

Compact Body · Workstation Deployment

The 13.3-inch compact body suits space-constrained workstations, AGV control, local HMI for vision systems and MES terminals.

04

Panel-Mount / VESA Dual Mounting

Panel-mount installation + VESA 75×75 wall mounting — covering cabinet and standalone deployment.

05

FlexCore™ Four-Element Modularity

i-Core + i-Function + i-Connect + Smart Thermal. Keep the display, upgrade the mainboard.

06

SafeCore™ Industrial Reliability

Four-way protection: power protection + backup power + power control + self-recovery. 7×24 stable operation.

APPLICATIONS

EPC-W13 Series Typical Applications

🏭 Industrial Equipment Control 📊 Data Acquisition 🤖 AGV / AMR Control 📷 Vision System HMI 🎛 Compact Workstation 🚊 Smart Transportation Terminal ⚡ Energy Field Monitoring 🏬 MES / WMS Terminal

EPC-W13 Series Selection Consulting

Tell us your project background, I/O and power requirements, and order quantity. Our engineers will respond within 24 hours with a full datasheet, quotation and sample-evaluation plan.
