15" 5-Wire Resistive Touch + Glove Operation
5-wire resistive touchscreen that responds to gloved hands, finger cots and oily/wet fingers, XGA TFT LED LCD 1024 × 768, 350 cd/m² industrial display. 50,000-hour backlight life.
EPC-S1521O-SR · 15" 5-WIRE RESISTIVE · 12TH GEN INTEL® CORE™
15" square-screen 5-wire resistive touch + IP65 front panel — a 12th Gen Intel® Core™ modular industrial panel PC · glove touch · durable in oily environments
EPC-S1521O-SR 12th Gen Core i7 15" Resistive-Touch Panel PC | 5-Wire + IP65
The EPC-S1521O-SR is a 15" highly reliable embedded touch computing platform purpose-built for rubber / tire vulcanization workshops, running stably amid high temperature, humidity, heavy dust, strong vibration and 24-hour continuous operation. Hardened against the corrosion, oil, vibration and long-term unattended demands typical of vulcanization sites and powered by an Intel® 12th Gen Core™ processor, it provides a stable, safe HMI and control-compute platform for vulcanizers, molding machines and presses. It suits local equipment control, shop-floor data acquisition, process-parameter management, equipment networking and rubber-line digitalization — a dependable solution for industrial automation in the vulcanization industry.
Typical Applications
15"5-Wire Resistive Touch
i3-1215USingle 12th Gen SKU
Oil-ResistantGlove-Operable
9-36VWide-Voltage Input
PRODUCT HIGHLIGHTS
EPC-S1521O-SR Eleven Core Features
Gloved touch · oil-resistant durability · FlexCore™ Modular · enhanced SafeCore™ Reliability — for industrial HMI and on-site visualization.
Strong Vibration Resistance · Rubber Vulcanization
A 5-wire resistive touchscreen + one-piece die-cast metal structure + vibration-damping components, purpose-designed for rubber vulcanization, presses, injection molding and casting and other high-vibration environments, fully operable with gloves.
Single 12th Gen Core SKU
Intel® Core™ i3-1215U, 6 cores / 8 threads, up to 4.4 GHz. U-series low power + Iris Xe graphics; a single SKU simplifies the project supply chain.
IP65 Dust- & Water-Resistant Front Panel
IP65-rated front-panel protection with a 6061 high-strength aluminum-alloy + sheet-metal structure. Withstands industrial dust, oil and washdown spray for long-term stable operation.
Panel Mount / VESA Dual Mounting
Supports embedded panel mounting (15" square-screen standard cutout) and standard VESA 75×75 wall mounting for both cabinet-embedded and standalone wall deployment.
Rich Industrial I/O
4× USB 3.0 + 2× USB 2.0 + 4× RS-232 + 2× RS-485 + 2× GbE + HDMI + VGA + audio. High-density multi-serial layout.
Mini-PCIe Wireless Expansion
1× Mini-PCIe expansion slot with optional dual-band Wi-Fi / Bluetooth / 4G / 5G communication modules, flexibly adapting to workshop wireless networking and remote monitoring.
9-36V Wide-Voltage Phoenix Terminal
3-pin pluggable Phoenix terminal with 9-36V DC wide-voltage input. Quad protection against over-voltage / over-current / reverse polarity / surge.
FlexCore™ Modular Hardware Architecture
Built on the FlexCore™ four-element architecture: i-Core + i-Function expansion + i-Connect I/O + Smart Thermal. Unified interface · unified structure · unified power · free expansion.
SafeCore™ Industrial-Grade Reliability
Four coordinated protection mechanisms: ① power protection (over-voltage / over-current / reverse polarity / surge) + ② backup power (smart lithium-battery outage buffer) + ③ power-cycle control (auto power-on after outage) + ④ system self-recovery (watchdog + fault restart).
Multi-OS Support
Windows 10 / 11 · CentOS · Ubuntu 16.04 / 18.04 / 20.04 / 22.04. BIOS customization, Boot LOGO and OEM branding supported.
PRODUCT GALLERY

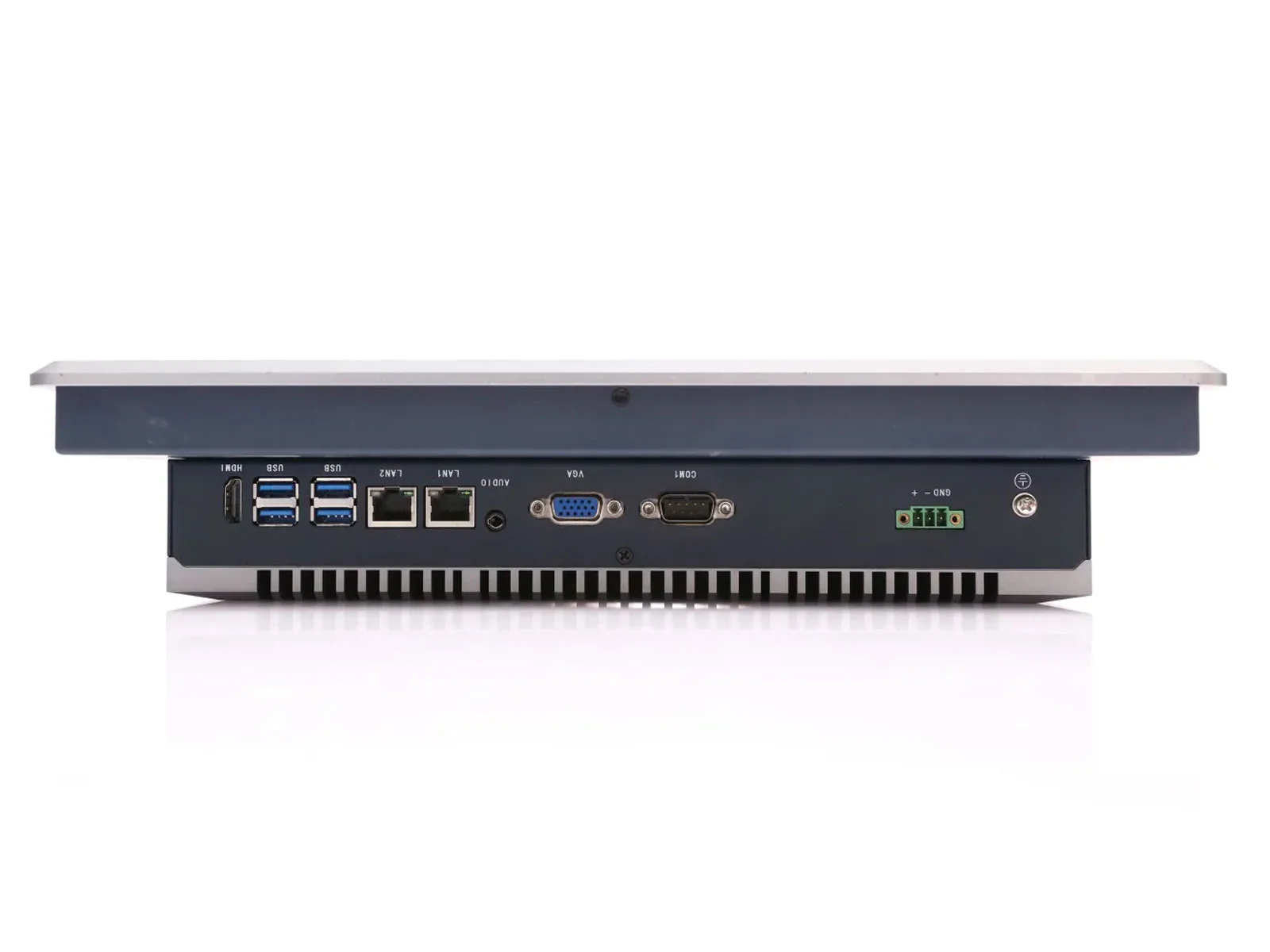

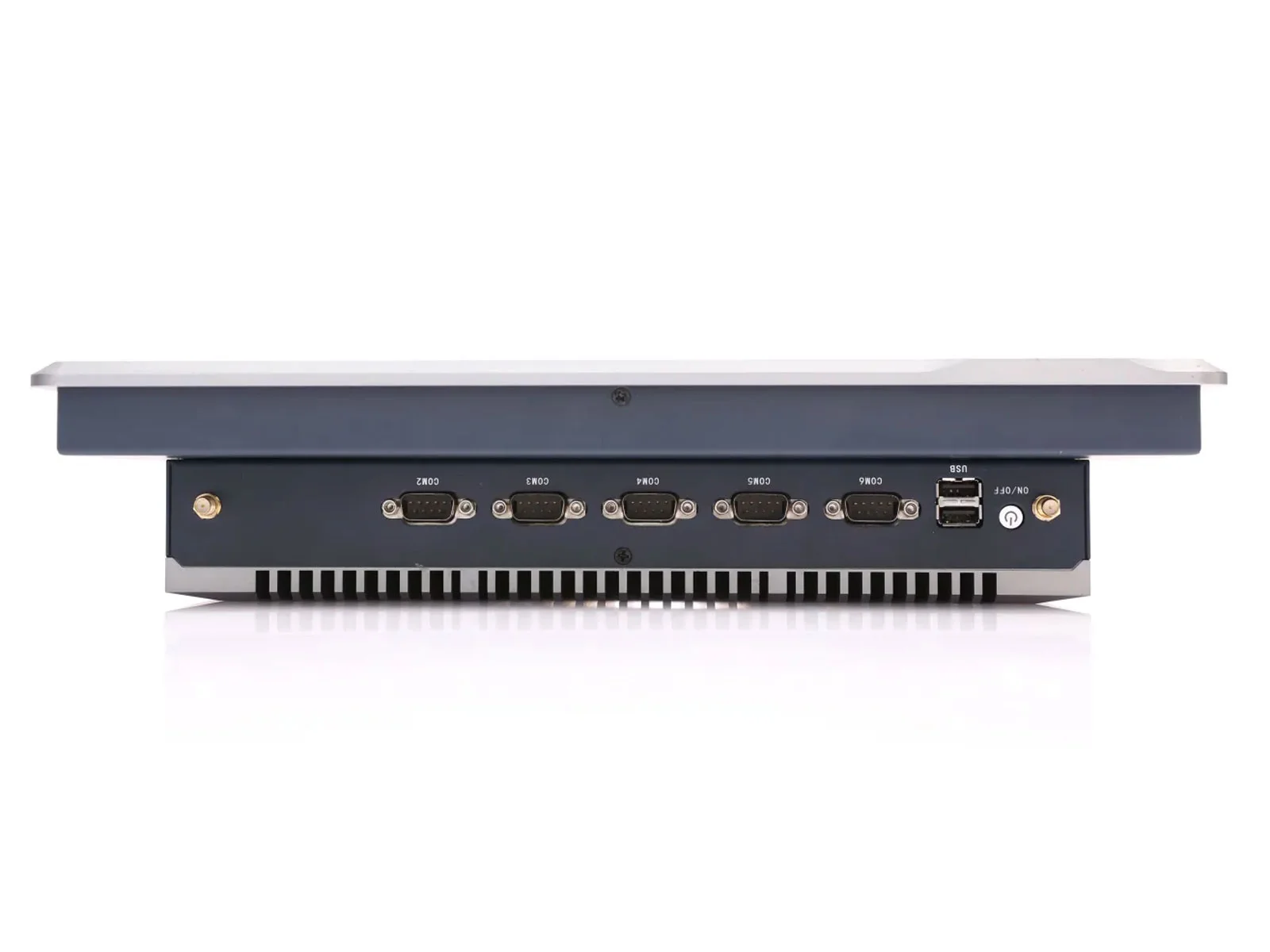

Product Gallery
SPECIFICATIONS
EPC-S1521O-SR Full Specifications
Datasheet V1.0 · Updated 2026-03-20 · Due to chip market fluctuations, key components may change; final specs subject to sales confirmation.
Core Hardware
| Parameter | Specification |
|---|---|
| Processor | Intel® Core™ 12th Gen i3-1215U |
| Cores | 6 |
| Threads | 8 |
| Frequency | 1.2~4.4 GHz |
| Cache | 10 MB |
| TDP | 15W |
| Display | Intel HD Graphics |
| Memory | DDR5L 8~16 GB (capacity optional) |
| Storage | 2 × M.2 NVMe |
I/O Interfaces
| Parameter | Specification |
|---|---|
| USB 2.0 | 2 |
| USB 3.0 | 4 |
| RS232 | 4 |
| RS485 | 2 |
| VGA | 1 |
| HDMI | 1 |
| Gigabit Ethernet | 2 × Intel I210 |
| Audio | 3.5mm TRRS |
| Wi-Fi (optional) | Dual-Band 2.4G/5G Wi-Fi Card |
Power Input
| Parameter | Specification |
|---|---|
| Power Connector | 1× 3-pin pluggable terminal, 9~36V DC wide voltage |
| ATX Switch | 1× ATX Power Switch |
| Power-On Mode | AT/ATX Mode Switch (built-in) |
Physical Attributes
| Parameter | Specification |
|---|---|
| Dimensions | 372.5 (L) ×294.4 (W) ×75.1 (H) mm |
| Mounting Dimensions | 355 (L) ×280 (W) mm (panel cutout) |
| Weight | 3.5 kg net weight |
| Housing Material | 6061 High-Strength Aluminum Alloy |
| Mechanical Structure | Extruded Aluminum + Sheet Metal |
| Mounting | Panel Mount / VESA 75×75 Wall Mount |
| Reset Switch | 1× Reset Switch |
| TPM | TPM 2.0 |
| Watchdog | Hardware watchdog supported |
| MTBF | 60,000 hrs |
Operating Environment
| Parameter | Specification |
|---|---|
| Operating Temperature | 0~60℃ (wide-temp -40~80℃ optional) |
| Storage Temperature | -10~70℃ (wide-temp -40~80℃ optional) |
| Relative Humidity | 10%~90%, non-condensing |
| EMC | CE、FCC（EN 55032 & EN 55035） |
| EMC Harmonics | EN IEC 61000-3-2 |
Touch & Display
| Parameter | Specification |
|---|---|
| Display Size | 15" (4:3) |
| Display Type | XGA TFT LED LCD |
| Resolution | 1024 × 768 |
| Colors | 16.2M |
| Brightness | 350 cd/m² |
| Contrast Ratio | 500:1 |
| Backlight Life | 50,000 hrs |
| Touch Technology | 5-Wire Resistive |
| Touch Protection | IP65 (front panel) |
Operating System
| Parameter | Specification |
|---|---|
| Windows | Windows 10 / Windows 11 |
| Linux | Ubuntu 16.04 / 18.04 / 20.04 / 22.04 |
Certification & Compliance
| Parameter | Specification |
|---|---|
| Factory Certification | ISO9001: 2015 |
| BIOS Customization | BIOS / Boot LOGO / OEM |
I/O LAYOUT
Side / Rear Panel I/O Layout
All I/O is centralized on the rear of the panel PC, keeping the front panel clean at IP65 for embedded console deployment.

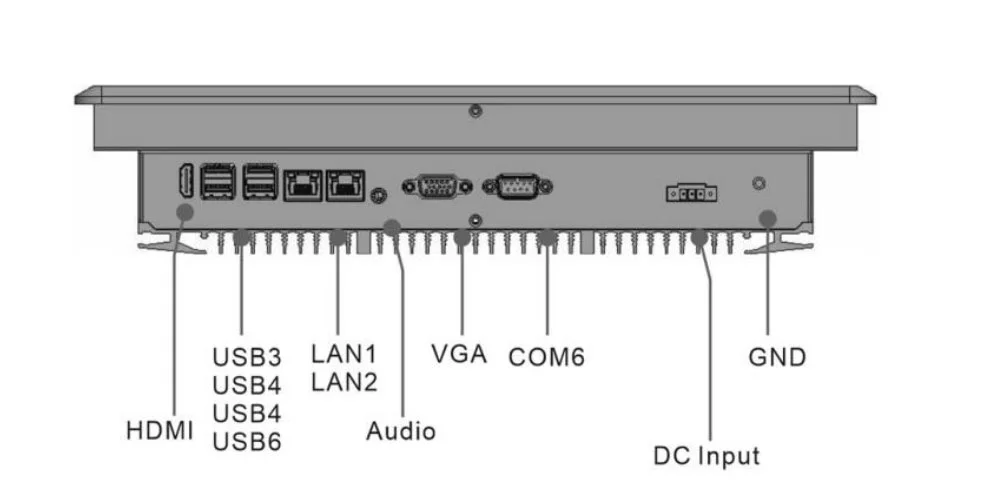

Side / Top Panel

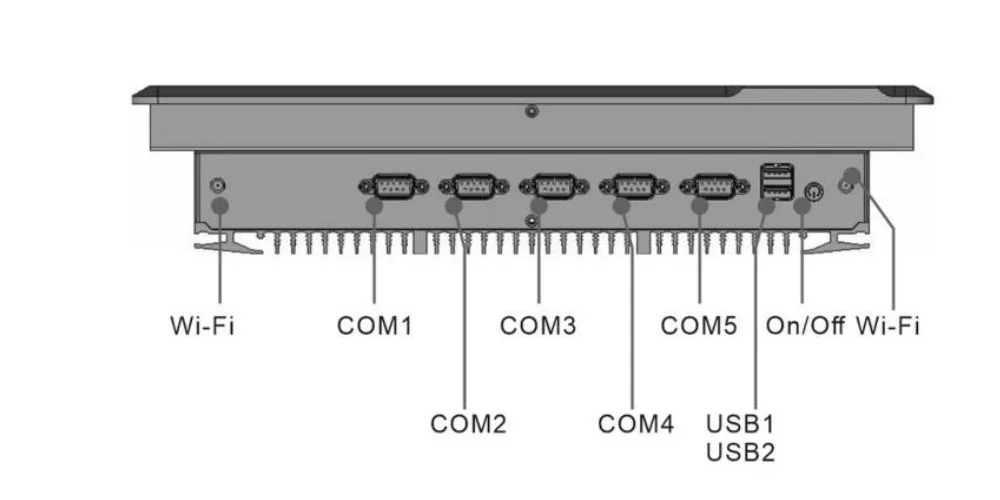

Bottom / Rear Panel
DIMENSIONS

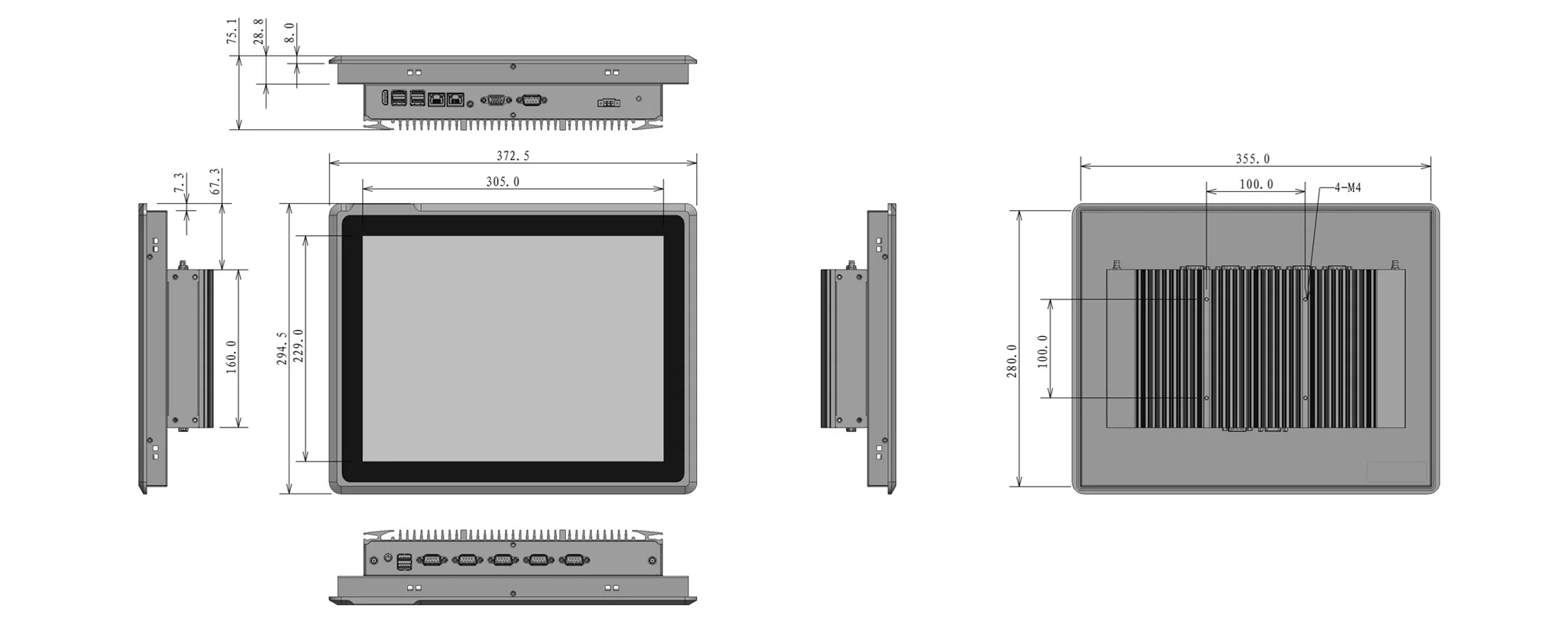

Three-View Dimensions (mm)
15" square-screen standard cutout · panel mount + VESA 75×75 dual mounting.
ORDERING INFORMATION
Ordering Information · Part Number
The standard configurations below can be ordered directly; for custom CPU / memory / storage / I/O boards, please contact sales.
| No. | Part Number | Model | Processor + Touchscreen | Memory | Storage |
|---|---|---|---|---|---|
| 01 | C11.01.04.037 | EPC-S1521O-SR | Intel® Core™ i3-1215U，12" P-CAP | 8GB DDR5 | SSD 256GB |
| 02 | C11.01.04.036 | EPC-S1521O-SR | Intel® Core™ i5-1235U，12" P-CAP | 8GB DDR5 | SSD 256GB |
| 04 | C11.01.04.035 | EPC-S1521O-SR | Intel® Core™ i7-1255U，12" P-CAP | 8GB DDR5 | SSD 256GB |
Note: Due to chip-market fluctuations, key components such as CPU, memory and storage may change; please consult our sales team for details.
APPLICATIONS
EPC-S1521O-SR Typical Applications
Built on a 15"-wire resistive touchscreen + IP65 protection + FlexCore™ Modular, EPC-S1521O-SR is widely deployed across the following industrial sites.
