A 12th-Gen Intel® Core™ industrial panel PC with 17" P-CAP 10-point capacitive touch and an IP65 front bezel
The CESIPC EPC-S1722A industrial panel PC is a highly reliable embedded computing platform built for multi-interface, unattended applications on the industrial floor. It features a 17-inch 5:4 industrial-grade SXGA TFT LED LCD with projected-capacitive P-CAP 10-point touch and an IP65-rated front bezel, ready for demanding factory, warehouse and transportation environments. The compute core is built on the modular EPC-302A architecture with 12th-Gen Intel® Core™ i3/i5/i7 processors, dual Gigabit Ethernet and a rich set of industrial I/O, supporting 9-36V wide-range DC input. Combining the FlexCore™ Modular architecture with SafeCore™ Reliability hardening, it delivers high serviceability and long-term reliability for industrial control, data acquisition and HMI applications.
17" P-CAP industrial touchscreen + IP65 front panel + FlexCore™ Modular — the standard answer for industrial HMI / on-site visualization.
Projected-capacitive touch (P-CAP) with 10-point multi-touch, SXGA TFT LED LCD at 1280 × 1024 resolution, 300-350 cd/m² standard industrial display (500-1000 nits high-brightness optional). 50,000-hour backlight life.
IP65-rated front panel protection with a 6061 high-strength aluminum alloy + sheet-metal structure. Withstands dust, oil and washdown spray on the factory floor for stable long-term operation.
Three options across Intel® Core™ i3-1215U / i5-1235U / i7-1255U. Up to a 10C12T performance cluster with Iris Xe integrated graphics, balancing performance and efficiency.
Supports both embedded panel mounting (17" standard cutout) and VESA 75×75 wall mounting. The two mounting options cover both control-cabinet embedding and standalone wall deployment.
The touchscreen and mainboard are decoupled by design: the display stays available long-term while the mainboard can be upgraded per project for more compute. A single form factor spans i3 to i7 / J1900 to J6412 CPU versions, lowering maintenance cost through platformization.
4× USB 3.0 + 2× USB 2.0 + 4× RS-232 + 2× RS-485 + 2× GbE + HDMI + VGA + audio. High-density layout with multiple serial ports.
1× Mini-PCIe expansion slot for optional dual-band Wi-Fi / Bluetooth / 4G / 5G communication modules, flexibly adapting to shop-floor wireless networking and remote monitoring.
3-pin pluggable Phoenix terminal with 9-36V DC wide-range input. Quad protection against overvoltage / overcurrent / reverse polarity / surge.
Die-cast 6061 high-strength aluminum-alloy finned heat dissipation with zero moving parts — maintenance-free, dust- and vibration-resistant.
Built on the FlexCore™ four-element architecture: i-Core smart core + i-Function expansion + i-Connect interface + Smart Thermal management. Unified interface · unified structure · unified power · free expansion.
Four protection mechanisms work in concert: ① power protection (overvoltage/overcurrent/reverse polarity/surge) + ② backup power (smart lithium-battery power-loss buffering) + ③ start/stop control (auto power-on after restore) + ④ system self-recovery (watchdog + fault restart).
Datasheet V1.0 · Updated 2026-03-20 · Due to chip market fluctuations, key components may change; final specs subject to sales confirmation.
| Parameter | Intel® Core™ i3-1215U | Intel® Core™ i5-1235U | Intel® Core™ i7-1255U |
|---|---|---|---|
| Processor | i3-1215U | i5-1235U | i7-1255U |
| Cores | 6 (2P+4E) | 10 (2P+8E) | 10 (2P+8E) |
| Threads | 8 | 12 | 12 |
| Frequency | 1.2~4.4 GHz | 1.3~4.4 GHz | 1.7~4.7 GHz |
| Cache | 10 MB L3 Cache | 12 MB L3 Cache | 12 MB L3 Cache |
| TDP | 15W | ||
| Display | Intel UHD Graphics (64 EUs) | Intel Iris Xe Graphics (80 EUs) | Intel Iris Xe Graphics (96 EUs) |
| Memory | 8~32 GB DDR5 | ||
| Storage | 2× M.2 2280 PCIe NVMe SSD | ||
| Parameter | Specification |
|---|---|
| USB 2.0 | 2 |
| USB 3.0 | 4 |
| RS232 | 4 |
| RS485 | 2 |
| VGA | 1 |
| HDMI | 1 |
| Gigabit Ethernet | 2 × Intel I210 |
| Audio | 3.5mm TRRS |
| Wi-Fi (optional) | Dual-Band 2.4G/5G Wi-Fi Card |
| 4G/5G (optional) | 4G/5G LTE (optional) |
| Parameter | Specification |
|---|---|
| Power Connector | 1× 3-pin pluggable terminal, 9~36V DC wide voltage |
| ATX Switch | 1× ATX Power Switch |
| Power-On Mode | AT/ATX Mode Switch (built-in) |
| Parameter | Specification |
|---|---|
| Dimensions | 397.0 (L) ×321.0 (W) ×75.1 (H) mm |
| Mounting Dimensions | 374.6 (L) ×312.6 (W) mm (panel cutout) |
| Weight | 5.2 kg net weight |
| Housing Material | 6061 High-Strength Aluminum Alloy |
| Mechanical Structure | Extruded Aluminum + Sheet Metal |
| Mounting | Panel Mount / VESA 75×75 Wall Mount |
| Reset Switch | 1× Reset Switch |
| TPM | TPM 2.0 |
| Watchdog | Hardware watchdog supported |
| MTBF | 60,000 hrs |
| Parameter | Specification |
|---|---|
| Operating Temperature | 0~60℃ (wide-temp -40~80℃ optional) |
| Storage Temperature | -10~70℃ (wide-temp -40~80℃ optional) |
| Relative Humidity | 10%~90%, non-condensing |
| EMC | CE, FCC (EN 55032 & EN 55035) |
| EMC Harmonics | EN IEC 61000-3-2 |
| Parameter | Specification |
|---|---|
| Display Size | 17" (5:4) |
| Display Type | SXGA TFT LED LCD |
| Resolution | 1280 × 1024 |
| Colors | 16.2M |
| Brightness | 350 cd/m² |
| Contrast Ratio | 500:1 |
| Backlight Life | 50,000 hrs |
| Touch Technology | Projected Capacitive (P-CAP), 10-point |
| Touch Protection | IP65 (front panel) |
| Parameter | Specification |
|---|---|
| Windows | Windows 10 / Windows 11 |
| Linux | Ubuntu 16.04 / 18.04 / 20.04 / 22.04 |
| Parameter | Specification |
|---|---|
| Factory Certification | ISO9001: 2015 |
| BIOS Customization | BIOS / Boot LOGO / OEM |

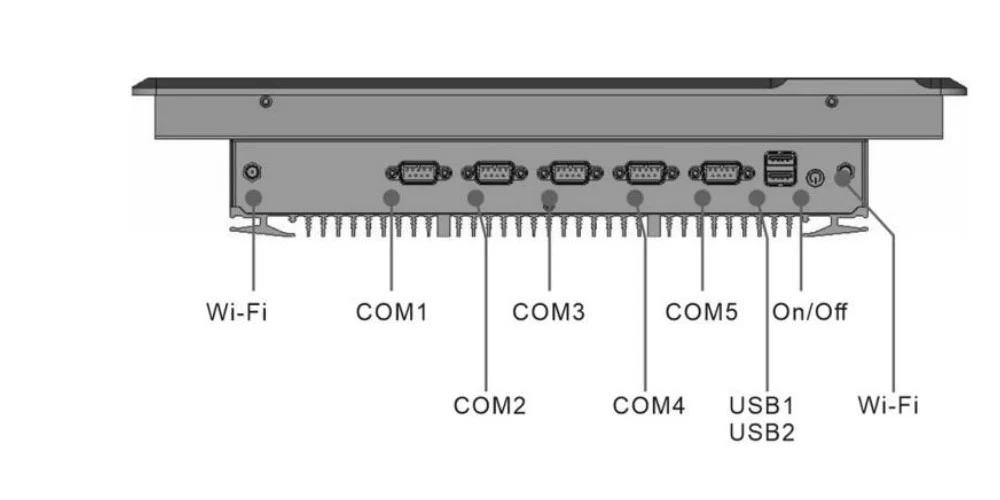

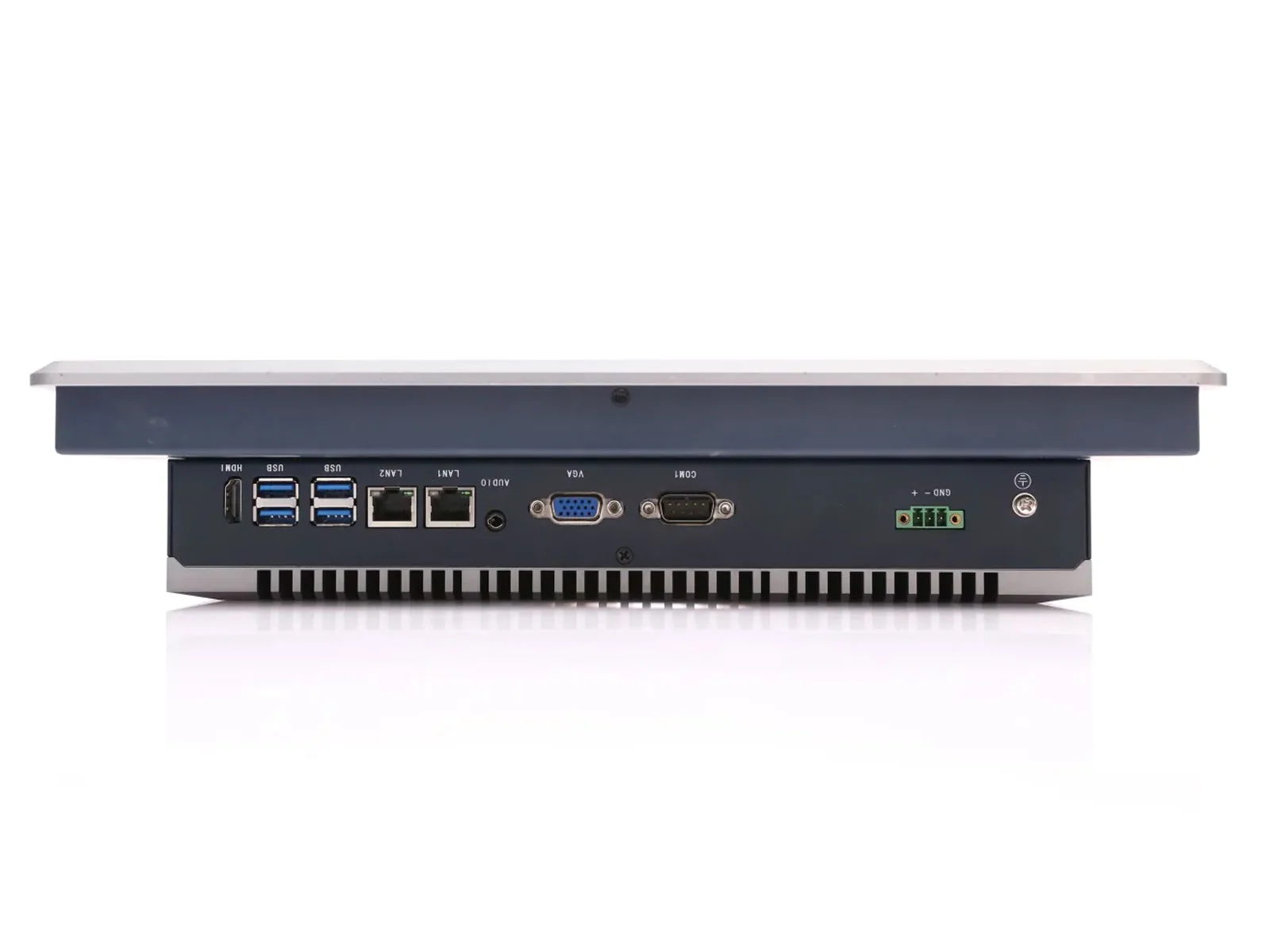

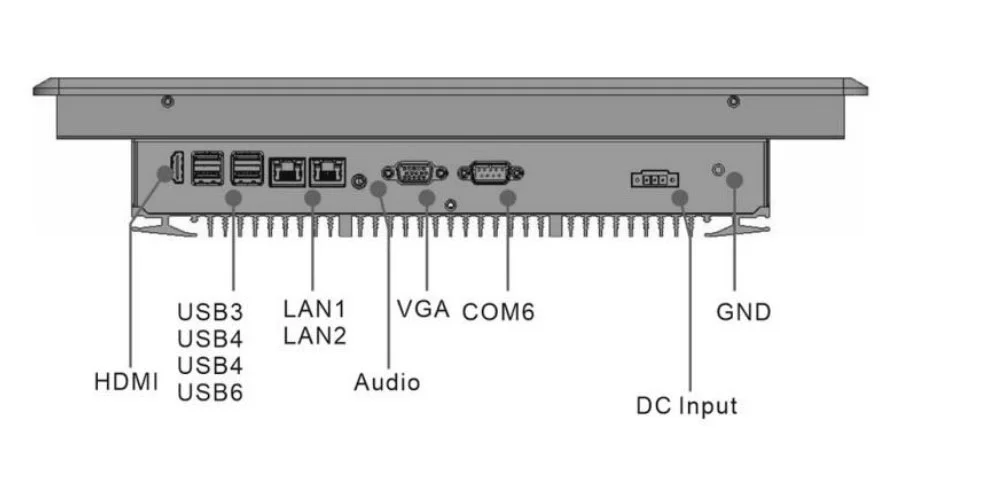

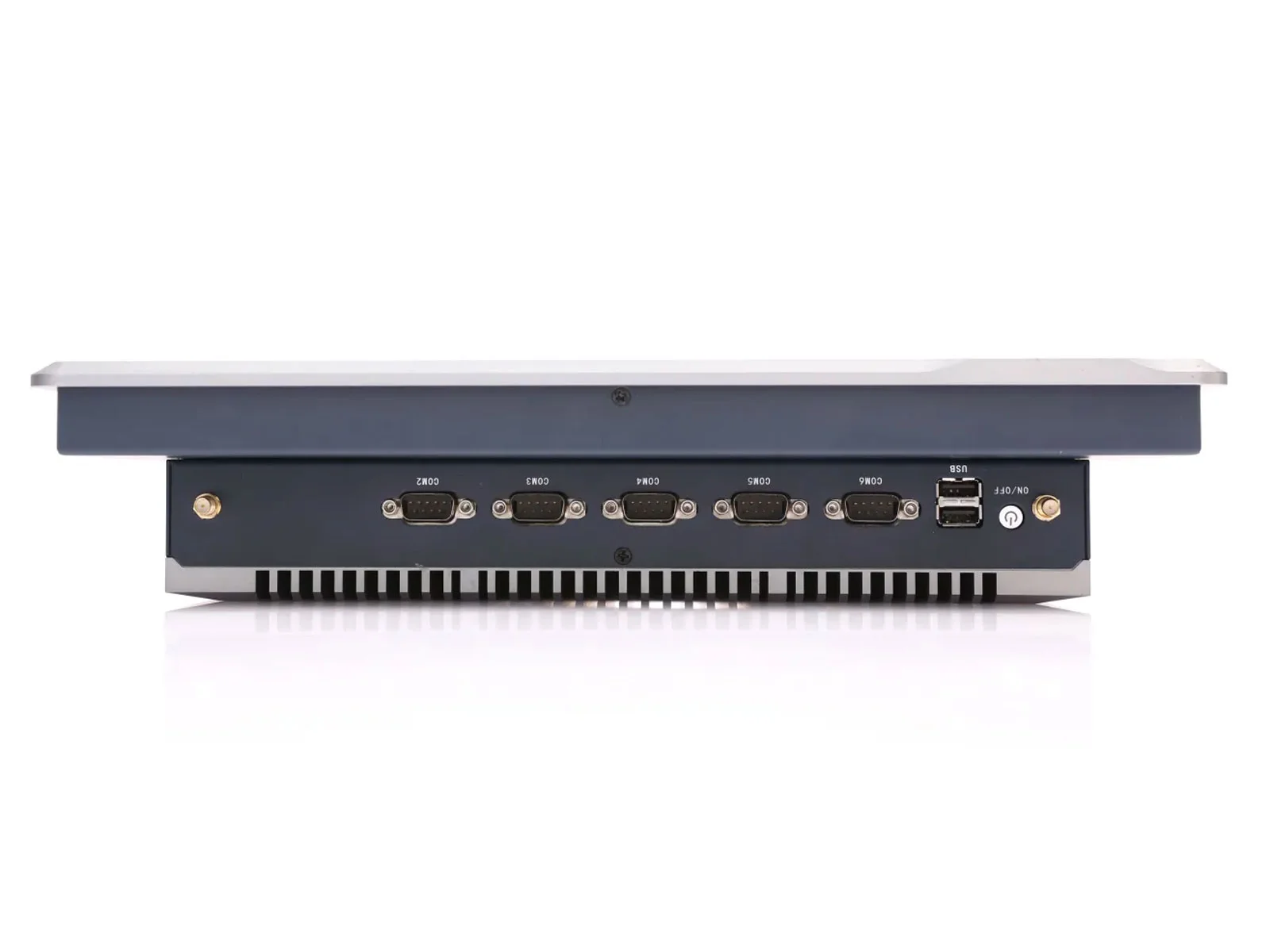

All I/O is centralized on the rear of the panel PC, keeping the front panel clean at IP65 for embedded console deployment.

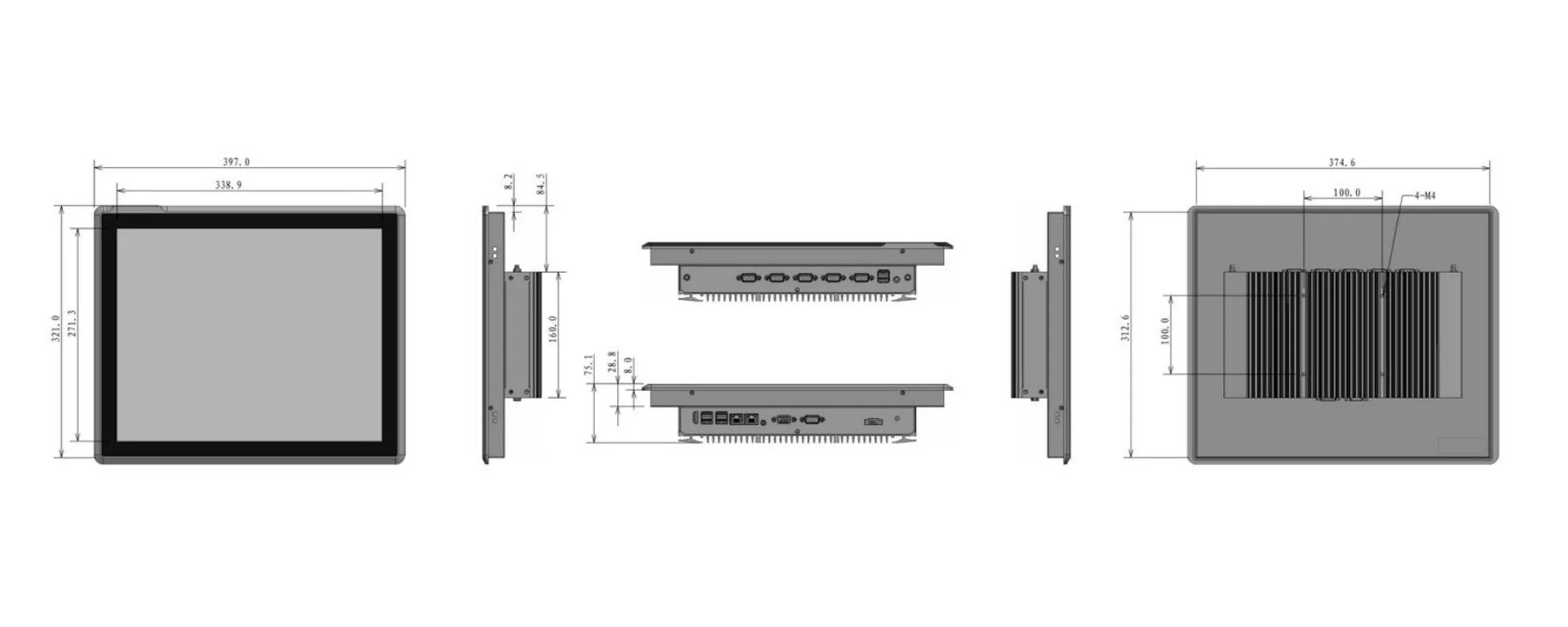

17" standard cutout · panel mount + VESA 75×75 dual mounting.
The standard configurations below can be ordered directly; for custom CPU / memory / storage / I/O boards, please contact sales.
| No. | Part Number | Model | Processor + Touchscreen | Memory | Storage |
|---|---|---|---|---|---|
| 01 | C20.04.02.001 | EPC-S1722A | Intel® Core™ i3-1215U，17" P-CAP | 8GB DDR5 | SSD 128GB |
| 02 | C20.04.02.002 | EPC-S1722A | Intel® Core™ i3-1215U，17" P-CAP | 16GB DDR5 | SSD 256GB |
Note: Due to market fluctuations, key components such as CPU model, memory and storage may change; please contact our sales team for details.
Built on a 17" P-CAP industrial touchscreen + IP65 protection + multi-serial expansion, the EPC-S1722A is widely deployed across the following 4 types of industrial sites.

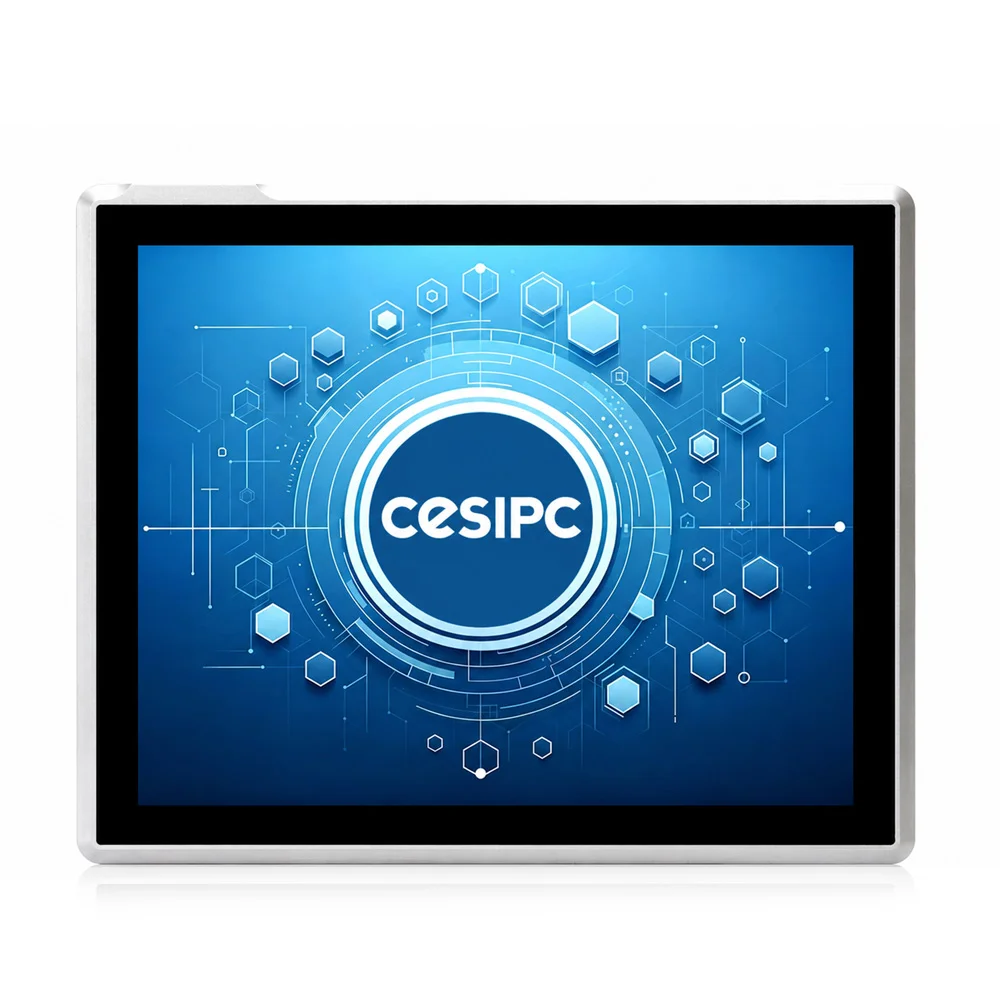

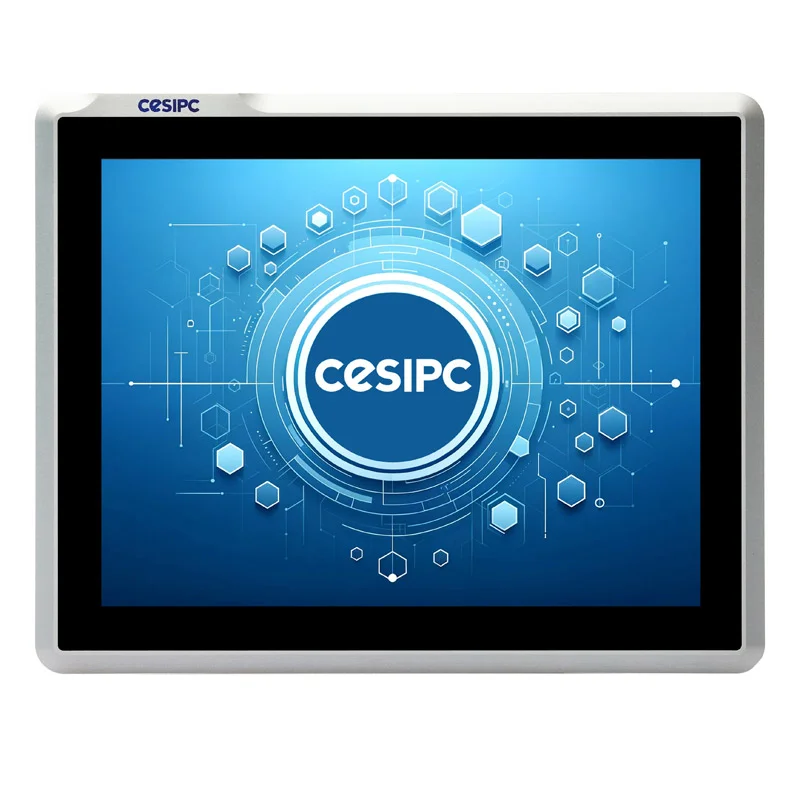

Does the standard EPC-S1722A fall short on I/O or expandability for your project? Within the 17" 5:4 panel PC family you can opt for FlexCore™ Modular customization — a three-board swappable architecture with more interface expansion, matched to your scenario.
📞 Need other customizations? Adjusted port count / CPU platform upgrade / different power input / OEM branding — contact a sales engineer for a custom solution and quote.
Tell us your project background, screen-size requirements, I/O and power needs, and order quantity. Our engineers will respond within 24 hours with a complete datasheet, quotation and evaluation-unit proposal.
