12.5" P-CAP 10-Point capacitive touch + IP65 front bezel + NVIDIA Jetson Orin™ NX flagship AI — HMI + AI Integrated Industrial Panel Terminal
The EA-W12-N500 is an industrial-grade Edge AI computing platform built on the NVIDIA Jetson™ module, designed for vision inference, real-time inspection, and edge intelligent control. The product supports the Jetson Orin™ NX module family, allowing flexible performance configurations per project. The unit integrates 4× PoE Gigabit ports for combined industrial camera/vision-terminal power and data transmission, and provides rich industrial interfaces including USB 3.0, Ethernet, serial, CAN, and GPIO. With 9-36V wide-voltage input, SafeCore™ industrial-grade Reliability, and industrial-grade construction, the EA-W12-N500 runs reliably in complex industrial environments featuring EMI, temperature extremes, and vibration — a dependable platform for machine vision and Edge AI deployment.
NVIDIA Jetson AI + 12.5" P-CAP Touch + 4× PoE Gigabit Vision — HMI + AI Integrated Industrial Panel PC.
Powered by Jetson Orin™ NX 16GB / 8GB module, delivering up to 157 TOPS Edge AI performance. 8-core A78AE @ 2.0 GHz CPU + 1024-core Ampere GPU + 32 Tensor Cores — flagship-grade machine vision and edge decision-making.
Touch operation + AI inference integrated: the 12.5" P-CAP touch display shows AI inference results, vision inspection frames, and status decisions directly. No external HMI host required — on-site decisions in real time.
1024-core NVIDIA Ampere GPU + 32 Tensor Cores at 1173 MHz. Supports INT8 / FP16 deep-learning inference, with performance on par with industrial-server-class GPUs.
Native compatibility with NVIDIA JetPack 6.x (CUDA / cuDNN / TensorRT / DeepStream) on Ubuntu 22.04 LTS (L4T). Supports mainstream frameworks including TensorFlow / PyTorch / ONNX.
4× PoE Gigabit Ethernet ports directly power and transmit data for industrial cameras, vision terminals, and IP cameras — no external PoE switch needed. One-stop simplification of machine vision system deployment.
12.5" 16:9 FHD 1920×1080 industrial display + projected capacitive touch (P-CAP) 10 multi-touch. 300 cd/m² brightness, 50,000-hour backlight lifespan, 16.7M color gamut.
IP65-rated front bezel protection, 6061 aluminum alloy + sheet-metal construction. Supports panel-mount embedded and VESA 75×75 standard wall mounting for consoles, workstations, and control rooms.

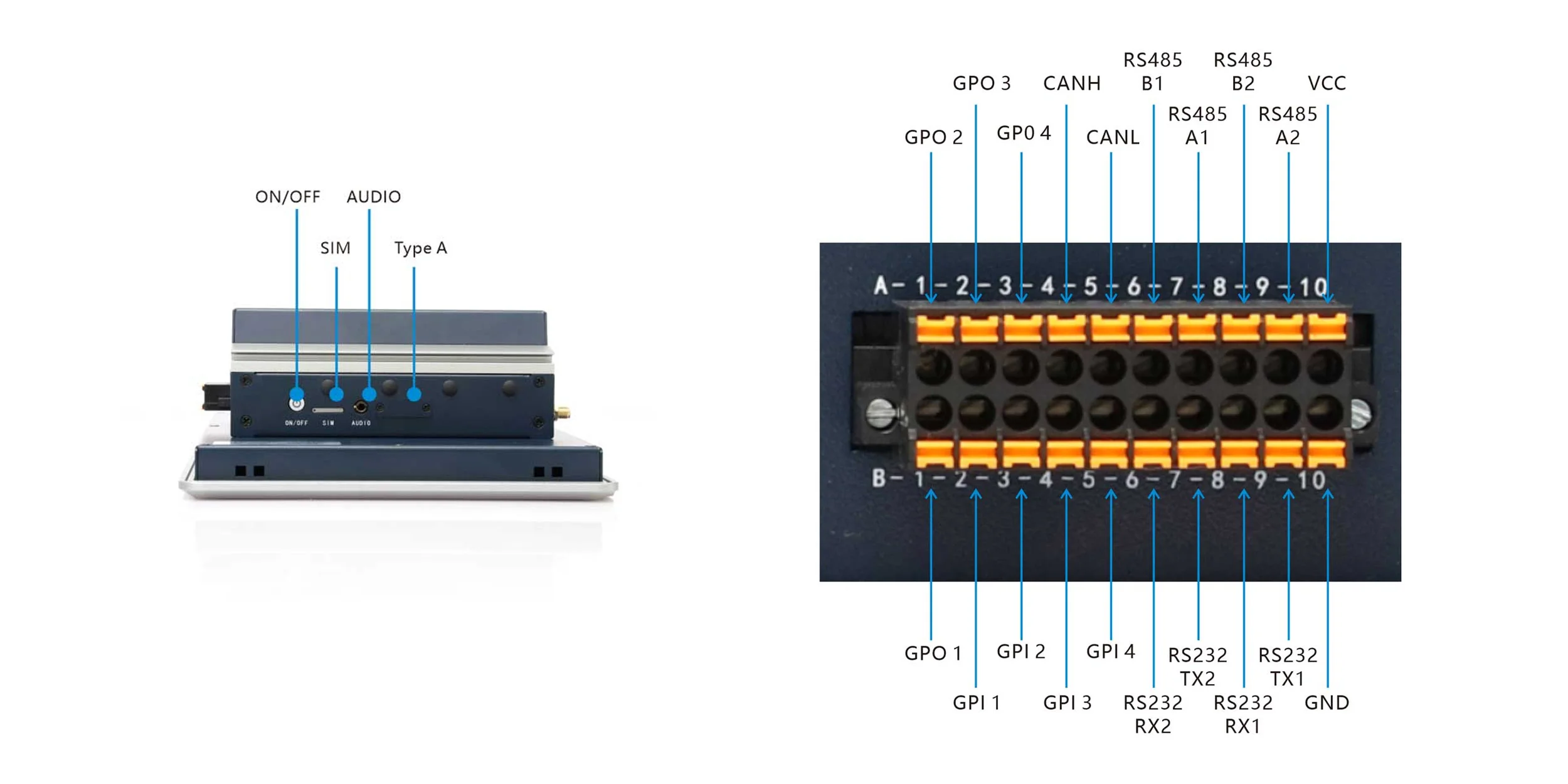

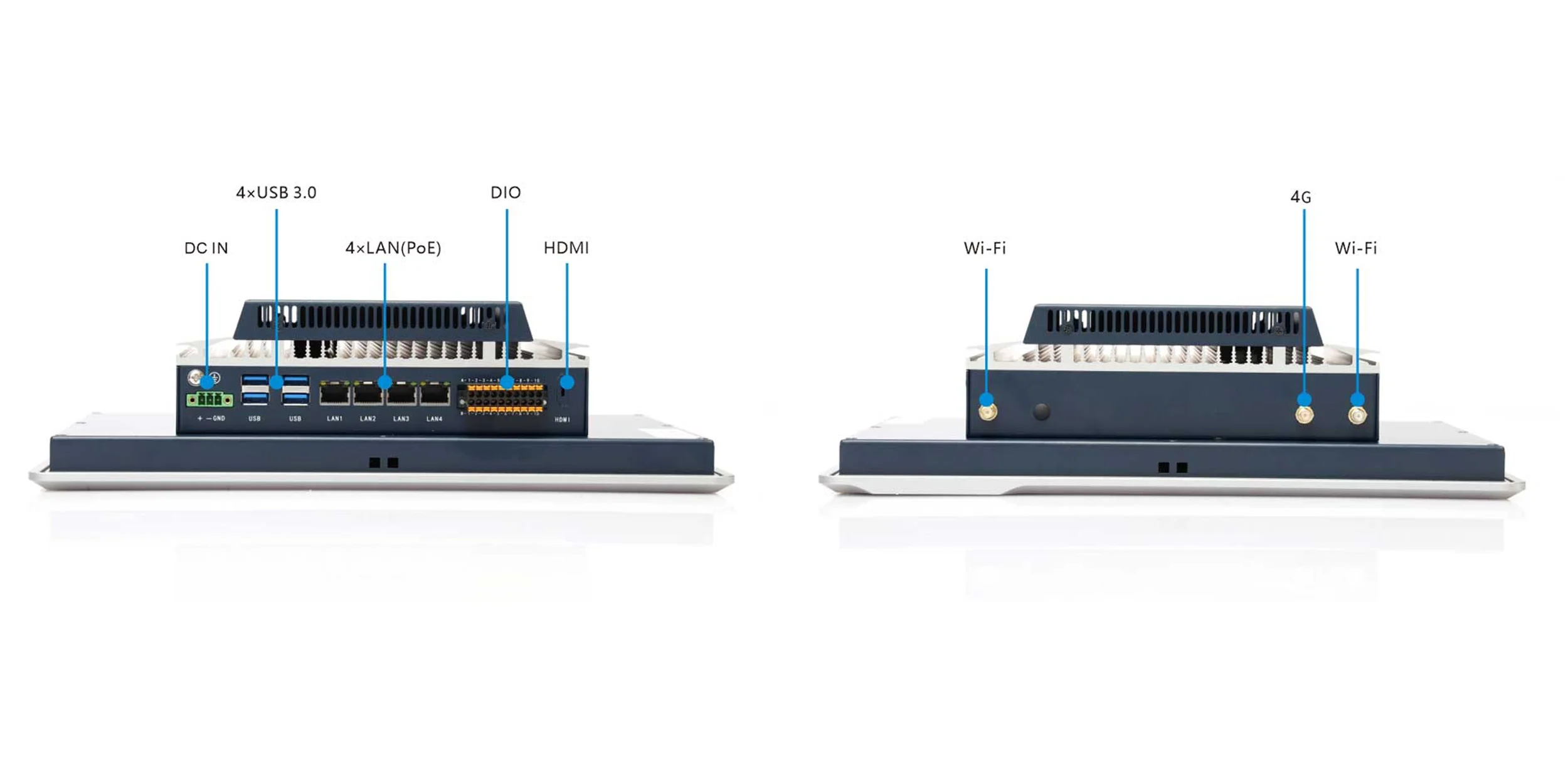

4× USB 3.0 + 4× COM (RS-232/485 optional) + 1× CAN + 8× GPIO + HDMI 2.1 (8K30). covering industrial control, data acquisition, bus communication, and high-resolution external display.
The unit integrates 2× Wi-Fi antennas + a Mini-PCIe expansion slot, with optional 4G / 5G LTE all-carrier communication modules — supporting shop-floor wireless networking, remote monitoring, and outdoor deployment.
3-pin Phoenix pluggable terminal block with 9-36V DC wide-voltage input. Quad-protection covers overvoltage, overcurrent, reverse polarity, and surge — adapting to industrial site power fluctuations.
FlexCore™ four elements (i-Core + i-function + i-Connect + Smart Thermal) modular upgrade path + SafeCore™ quad-protection (Power / Backup / Start-Stop / System Recovery). Jetson performance is upgradable; the unit runs 24/7 in steady state.
Datasheet Version V1.0 · Updated on 2026-03-20 · NVIDIA Jetson module and JetPack version subject to sales confirmation.
| Parameter | NVIDIA Jetson Orin™ NX 16G | NVIDIA Jetson Orin™ NX 8G |
|---|---|---|
| AI Module | Jetson Orin™ NX 16G | Jetson Orin™ NX 8G |
| AI Performance | 157 TOPS | 117 TOPS |
| GPU | 1024-core Ampere, 32 Tensor Cores, 1173 MHz | |
| CPU | 8-core A78AE v8.2, 2.0 GHz, 2 MB L2 + 4 MB L3 | 6-core A78AE v8.2, 2.0 GHz, 1.5 MB L2 + 4 MB L3 |
| TDP | 10W – 25W | 10W – 20W |
| Display Output | 1× 8K30, HDMI 2.1 | |
| Memory (RAM) | 16GB LPDDR5 | 8GB LPDDR5 |
| Storage | M.2 NVMe SSD | |
| Operating System | JetPack 6.x (Ubuntu 22.04 LTS, L4T) | |
| Parameter | Specification |
|---|---|
| USB 3.0 | 4 |
| RS232 | 2 (COM optional RS-232/RS-485) |
| RS485 | 2 (COM optional RS-232/RS-485) |
| HDMI | 1 × HDMI 2.1 (8K30) |
| Gigabit Ethernet | 4 × PoE Gigabit Ethernet ports |
| CAN Bus | 1 × CAN |
| GPIO | 8 channels (4 input / 4 output) |
| Wi-Fi | 2× Wi-Fi antennas |
| 4G/5G (optional) | LTE all-carrier (4G/5G optional) |
| Parameter | Specification |
|---|---|
| Power Connector | 3-pin Phoenix terminal block, supports 9-36V DC wide-voltage input |
| Boot Mode | AT/ATX models-switch |
| Auto Power-On | Hardware-level auto-resume on power restore |
| Parameter | Specification |
|---|---|
| Product Dimensions | 229(W) × 160(D) × 64.5(H) mm |
| Net Weight | 3 KG net |
| Enclosure Material | 6061 high-strength aluminum alloy |
| Mechanical Structure | Aluminum extrusion + sheet-metal construction |
| Mounting Method | Wall-Mount / Desktop |
| Thermal System | CESIPC Smart Thermal |
| MTBF | 60,000 hrs |
| Parameter | Specification |
|---|---|
| Operating Temperature | 0–50℃ (wide-temp optional) |
| Storage Temperature | -10–60℃ (wide-temp optional) |
| Relative Humidity | 10%–95%, non-condensing |
| EMC | CE / FCC (EN 55032 & EN 55035) |
| EMC Harmonics | EN IEC 61000-3-2 |
| Parameter | Specification |
|---|---|
| Display Size | 12.5" (16:9) |
| Display Type | FHD TFT LED LCD |
| Resolution | 1920 × 1080 |
| Colors | 16.7M |
| Brightness | 300 cd/m² |
| Contrast | 1000:1 |
| Backlight Lifespan | 50,000 hrs |
| Touch Technology | projected capacitive touch (P-CAP), 10 |
| Touch protection | IP65 (front bezel) |
| Parameter | Specification |
|---|---|
| Factory Certification | ISO9001: 2015 |
| BIOS Customization | Supports LOGO customizationization |
Plug-and-play with industrial cameras, sensors, PLCs, and displays. The front bezel stays clean at IP65, easing embedded console deployment.

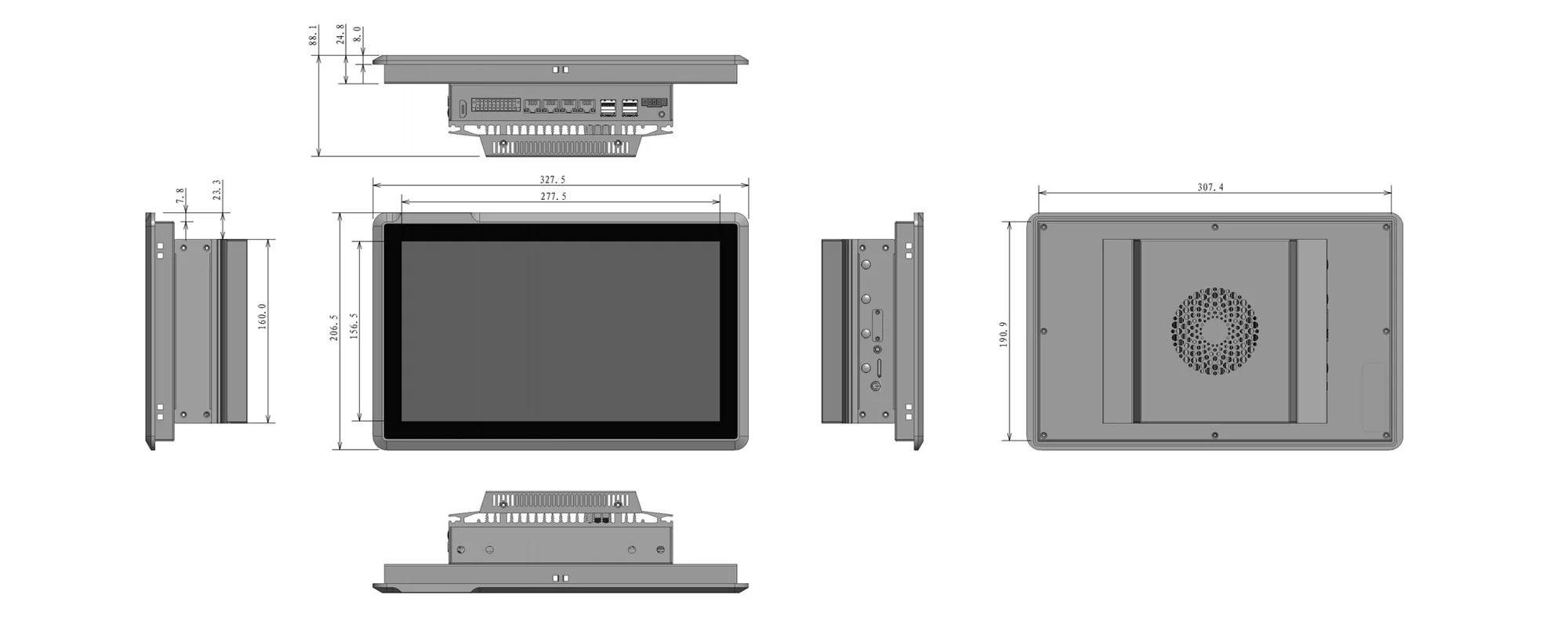

12.5" 16:9 Industrial Panel PC dimensions · panel-mount embedded + VESA 75×75 dual mounting method.
This platform supports flexible Jetson module selection per project (N200 → N500 the same 12.5" chassis upgrade path). Contact sales for the full configuration.
| No. | Part Number (Part Number) | Models | AI Module / Performance | Memory (RAM) | Storage |
|---|---|---|---|---|---|
| 01 | C12.02.01.001 | EA-W12-N500 | Jetson Orin™ NX 16G / 157 TOPS | 16GB LPDDR5 | SSD 256GB |
| 03 | C12.02.01.002 | EA-W12-N500 | Jetson Orin™ NX 8G / 117 TOPS | 8GB LPDDR5 | SSD 256GB |
Note: NVIDIA Jetson modules are supplied per official lead-time and project volume. Jetson performance can be upgraded per project (N200 → N500 common-chassis upgrade path). Contact sales for the full configuration plan.
Built on NVIDIA Jetson AI + P-CAP Touch Display + IP65 industrial protection, the EA-W12-N500 is widely deployed across the following 4 Edge AI + HMI integrated scenarios.
Tell us your AI modelsl size, vision interface count, on-site performance budget, and order quantity. Our engineers will respond For 24 hours with a complete datasheet, quotation, and JetPack software-adaptation evaluation plan.
