15.6" FHD Touch Display
15.6" FHD industrial touchscreen with 10-point capacitive touch. EMC shielding + anti-glare, suited to both bright sunlight and electromagnetically noisy environments.
MPC-TS-W150-T3 · L3 FIDCP NODE · 15.6"
Flagship mission edition · single screen + full-feature 1U payload bay · an Intel® Core™ i7-1255U + 32GB + 2TB NVMe FIDCP integrated field control platform
MPC-TS-W150-T3 FIDCP Flagship Rugged Field Command Platform
The MPC-TS-W150-T3 portable triple-screen all-in-one converged command-and-dispatch case is a portable command platform integrating video conferencing, cluster communication, video backhaul and GIS dispatch. It uses triple-screen collaborative display with synchronized multi-channel HD video and split-screen preview, achieving front-to-rear audio/video interconnection over satellite, 4G/5G and other links. With temporary command-center capability, it supports multi-party consultation and multi-level coordination, meeting the demands of efficient collaborative command in emergency rescue, security and power scenarios.
Typical Applications
15.6"FHD touch
Flagship payloadAI+satellite+MESH+acoustic
1U full-featureHot-swappable on-site expansion
Public/private/satThree-network coordinated access
PRODUCT HIGHLIGHTS · L3 FIDCP NODE
Eight Core Features of the MPC-TS-W150-T3
FIDCP integrated field control platform · flagship mission edition · single screen + full-feature 1U payload bay — field-grade compute + industrial ruggedization + multi-mode connectivity.
Rugged Trolley Flight Case
Rugged trolley flight-case structure integrating display, compute, communication, power and expansion. Rapid deployment with no fixed infrastructure — full mission closure right on site.
i7-1255U + 32GB + 2TB NVMe
Intel® Core™ i7-1255U processor + 32GB DDR4 + 2TB NVMe SSD. Powers on-site data processing, multi-system dispatch, audio/video fusion and a full stack of mission software.
1U Hot-Swappable Payload Bay
Modular bay design with standard 1U hot-swap slots. AI / private network / satellite link / voice gateway / cluster communication / acoustic modules hot-swap on demand, reconfiguring mission capability right on site.
Multi-Network Converged Communication
4G/5G dual-SIM universal network + dual-band Wi-Fi hotspot + GPS positioning. Expandable with BeiDou / satellite communication / MESH ad-hoc networking / private network for coordinated public + private + satellite connectivity.
Built-In Multi-Port Network Switch
Built-in multi-port Gigabit network switch, reducing the need for external switching gear. A full set of USB 3.0 / HDMI / RS-232 industrial interfaces gives strong audio/video fusion and mission-payload expansion.
Continuous Power System
Continuous power system (UPS-like) supporting mains / battery / vehicle multi-mode power, keeping critical mission processes running through power loss.
AI Inference + Mission Logging
Optional AI inference module for local image / voice / data analysis. A full closed loop of situational awareness + coordinated control + data logging + collaborative decision-making — ideal for emergency coordination, unmanned systems, maritime/shipborne use and multi-system collaborative missions.
PRODUCT GALLERY

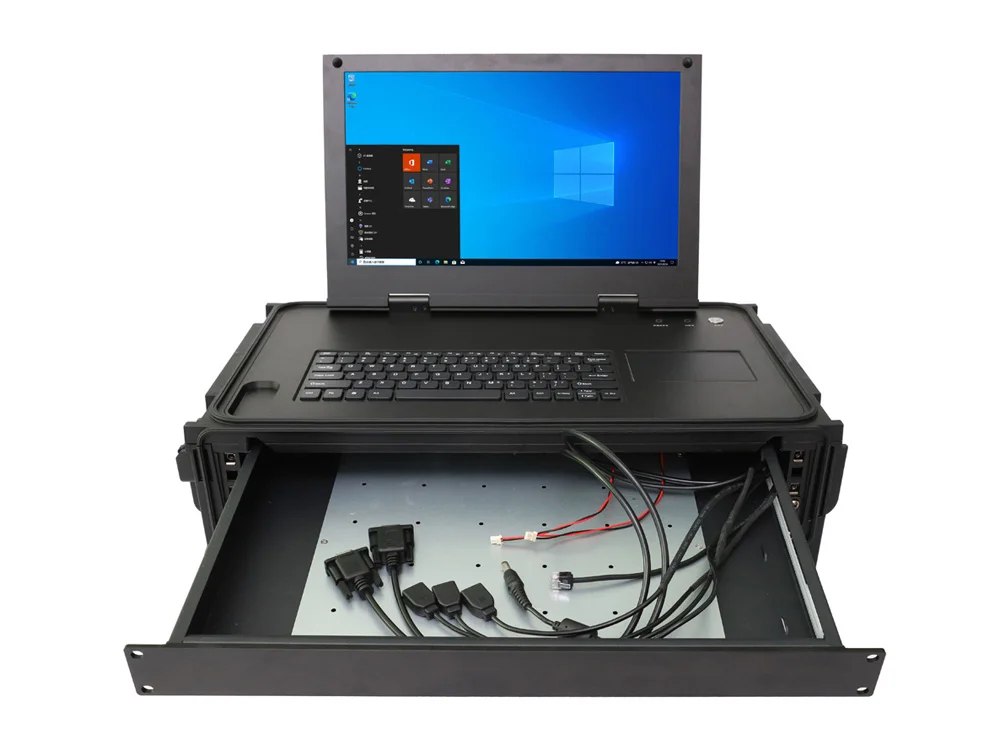

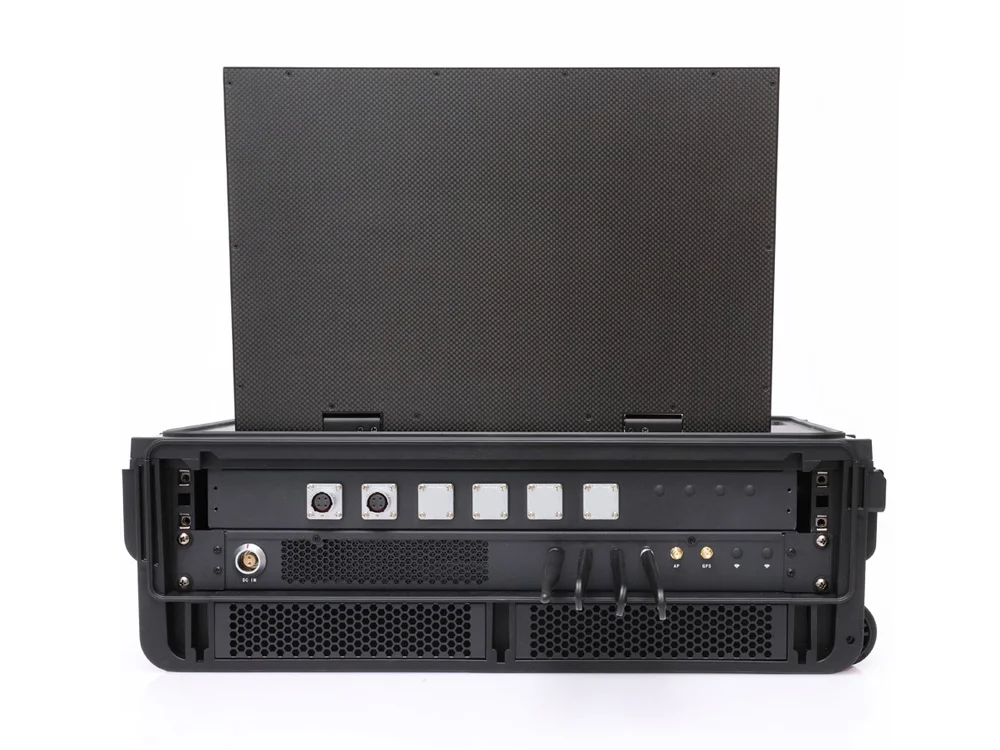

Multi-Angle Product Views
SPECIFICATIONS
MPC-TS-W150-T3 Full Specifications
Datasheet version V1.0 · Due to chip-market fluctuations, key components may change; final configuration is subject to sales confirmation.
Core Hardware
| Parameter | Intel® Core™ i3-1215U | Intel® Core™ i5-1235U | Intel® Core™ i7-1255U |
|---|---|---|---|
| Processor | i3-1215U | i5-1235U | i7-1255U |
| Cores | 6 (2P+4E) | 10 (2P+8E) | 10 (2P+8E) |
| Threads | 8 | 12 | 12 |
| Frequency | 1.2~4.4 GHz | 1.3~4.4 GHz | 1.7~4.7 GHz |
| Cache | 10 MB L3 Cache | 12 MB L3 Cache | 12 MB L3 Cache |
| TDP | 15W | ||
| Graphics | Intel UHD Graphics (64 EUs) | Intel Iris Xe Graphics (80 EUs) | Intel Iris Xe Graphics (96 EUs) |
| Memory | 8~32 GB DDR5 | ||
| Storage | 2× M.2 SSD + 1× M.2 NVMe | ||
| Network switch | Built-in 8-port Gigabit switch | ||
| Operating system | Windows client / Linux server (customizable) | ||
Touch & Display
| Parameter | Specification |
|---|---|
| Display size | 15.6" (16:9) |
| Display type | FHD TFT LED LCD |
| Resolution | 1920 × 1080 |
| Colors | 16.7M |
| Brightness | 700 cd/m² |
| Contrast | 700:1 |
| Backlight life | 50,000 hrs |
| Body material | Carbon-fiber screen cover + industrial-grade ruggedized case |
I/O Interfaces
| Parameter | Specification |
|---|---|
| USB 3.0 | 4 |
| RS232 | 2 |
| HDMI | 2 |
| Gigabit Ethernet | 2 × LAN GbE + 1 × WAN |
| Aviation connectors | 2-pin ×2, 4-pin ×2, 9-pin ×4 |
| DC output | DC 24V × 1 |
| SMA antenna | × 4 |
| Type-C charging | Compatible with mainstream phone Type-C chargers |
| Input system | Built-in keyboard + touchpad |
Wireless Communication
| Parameter | Specification |
|---|---|
| 4G/5G | Dual-SIM universal network, supports public/private networks |
| Wi-Fi | 2.4G/5G dual-band, supports wireless hotspot |
| Positioning | GPS (BeiDou expandable) |
| Telephony | 2× SIM phone cards, can place public-network calls |
| Expansion comms | Satellite communication, MESH ad-hoc networking, cluster private network (expansion bay) |
1U Payload Expansion Bay
| Parameter | Specification |
|---|---|
| Voice gateway | Bridges analog/extension telephony with IP networks, converting traditional voice to IP voice; interfaces with PBX, handsets, intercom and dispatch systems. Supports SIP, FXO/FXS trunking, networked intercom and emergency-dispatch voice access. Commonly used with command-dispatch, campus, government and emergency command kits. |
| Conferencing terminal | All-in-one audio/video conferencing access terminal (standard SIP, H.323); built-in camera, microphone and speaker, supports multi-party video conferencing. Compatible with standard conferencing protocols and platform-level systems. Use: meeting rooms, command centers, remote consultation across branch sites. |
| Audio/video matrix | Arbitrary switching, distribution and routing of multiple audio/video signals; inputs multiple HDMI/AV/network streams, outputs to any wall display, video wall or split screen. Available as analog matrix, digital network matrix or IP streaming matrix. Essential for command centers, video-wall splicing, security surveillance and conferencing. |
| Codec module | Audio/video encoding/compression + decoding/restoration; encode: converts local A/V to IP network streams (H.264/H.265), decode: converts network streams to local HDMI / analog output for video walls. Used for remote transmission, cross-subnet dispatch, narrowband HD transmission and embedded-device integration. |
| Acoustic module | Audio processing + noise reduction + echo cancellation + mixing; AGC automatic gain, AEC echo suppression, noise cancellation, howling suppression and multi-channel mixing. Suited to conferencing, intercom and command calls, resolving echo, noise and fluctuating volume. |
| Encryption module | Hardware/software encryption of audio/video, signaling and data; supports SM (Chinese national) algorithms, AES encryption, signaling authentication and transport encryption. For government, military/police, emergency and classified use — preventing eavesdropping and crosstalk and securing communication. |
| 5G dual-card router | Dual-card dual-standby / dual 5G modules: dual Nano-SIM, supports China Mobile / Unicom / Telecom / Broadcast, with auto-switching / load-sharing / link backup. 5G dual-mode: SA/NSA, Sub-6GHz, up to 2–3Gbps downlink, low latency (10–30ms). Rich I/O: Gigabit WAN/LAN (multi-port, some with PoE), 2.4G+5.8G dual-band Wi-Fi 6. Optional: RS232/485, DI/DO, GPS / BeiDou, VPN, SM encryption. |
| Video-transmission module | Video inputs: HDMI, SDI, AV, Ethernet, some with dual channels (helmet + UAV). Encoding: H.265/H.264, 1080P/4K, adjustable bitrate, low latency (100–300ms). Transmission links (chosen by scenario): 5G/4G video transmission over carrier networks with unlimited range, ideal for cross-city / wide-area command; COFDM/MESH private network, non-line-of-sight and obstruction-resistant, ideal for mountains / buildings / network-down emergencies. Auxiliary functions: two-way intercom, local storage, GPS / BeiDou, AES / SM encryption, 28181/RTSP/RTMP. |
Power & Battery
| Parameter | Specification |
|---|---|
| Battery spec | Dual hot-swappable lithium battery packs, 13000mAh / 15000mAh optional |
| Hot-swap | Hot-switching supported for continuous, stable power |
| BMS | Built-in BMS intelligent battery management system |
| Charging | Compatible with mainstream phone Type-C chargers |
Physical Attributes
| Parameter | Specification |
|---|---|
| Dimensions | 560 (L) × 360 (W) × 230 (H) mm |
| Weight | ≤ 25 kg |
| Body material | Carbon-fiber screen cover + industrial-grade ruggedized case |
| Cooling system | Industrial-grade active air cooling, 4 fans |
| Ingress protection | IP65 (closed state) |
| Expansion form | Upgradable to dual-screen/triple-screen form, supports screen replacement in different sizes |
Operating Environment
| Parameter | Specification |
|---|---|
| Operating temperature | 0~50℃ |
| Storage temperature | -20~70℃ |
| Relative humidity | 10%~95% @40℃, non-condensing |
| Vibration | 50~500Hz / 1.5G, peak-to-peak 0.15mm |
| Shock | 10G (11ms) |
Certifications & Compliance
| Parameter | Specification |
|---|---|
| Factory certification | ISO9001: 2015 |
| Customization | Screen size / screen count / modules / OS / logo customization |
I/O LAYOUT

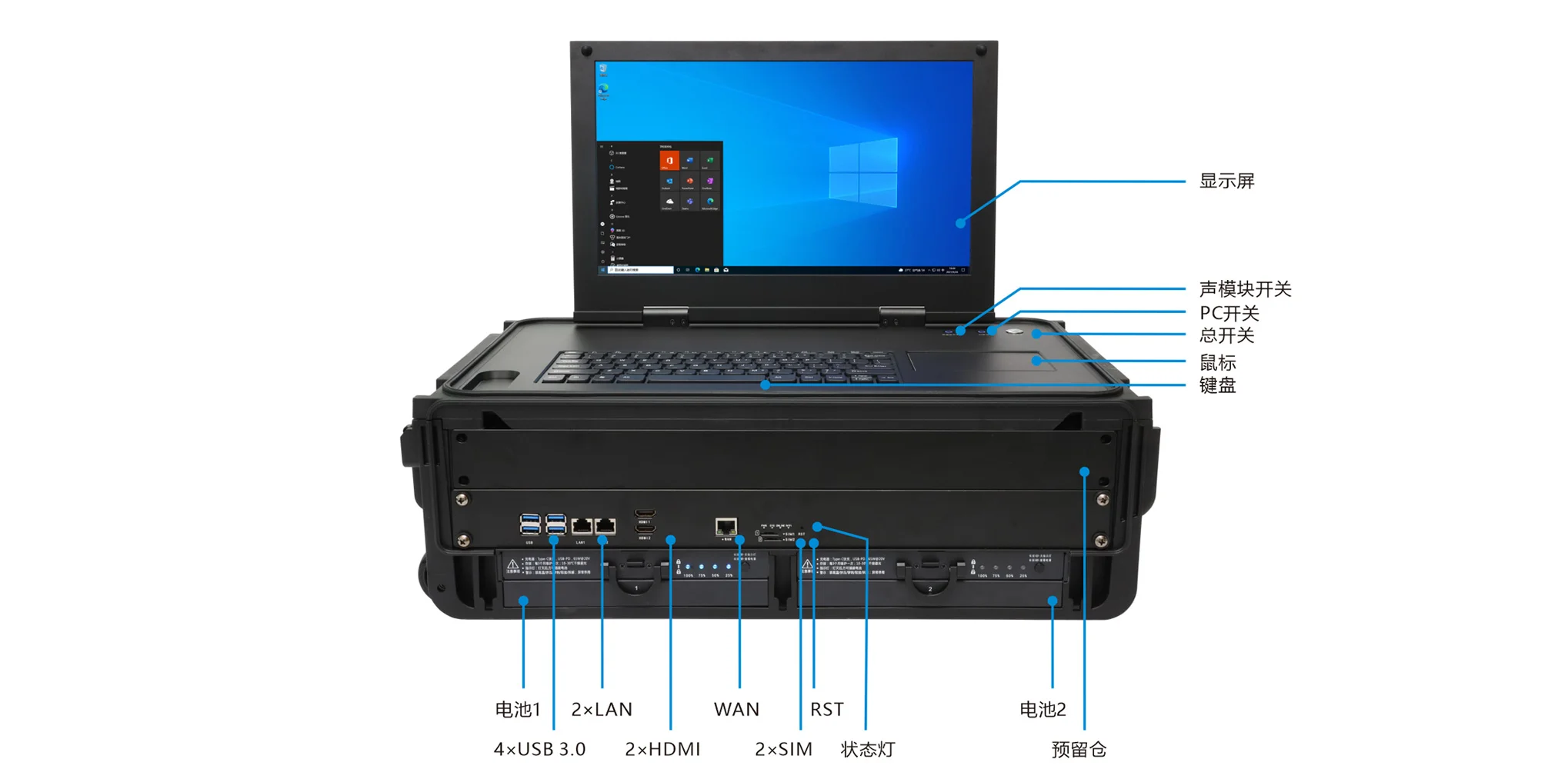

Front & Rear Panel I/O Layout
FIDCP integrated field control platform with industrial-grade interfaces — fast on-site connection and multi-device collaboration.
Side / Top panel

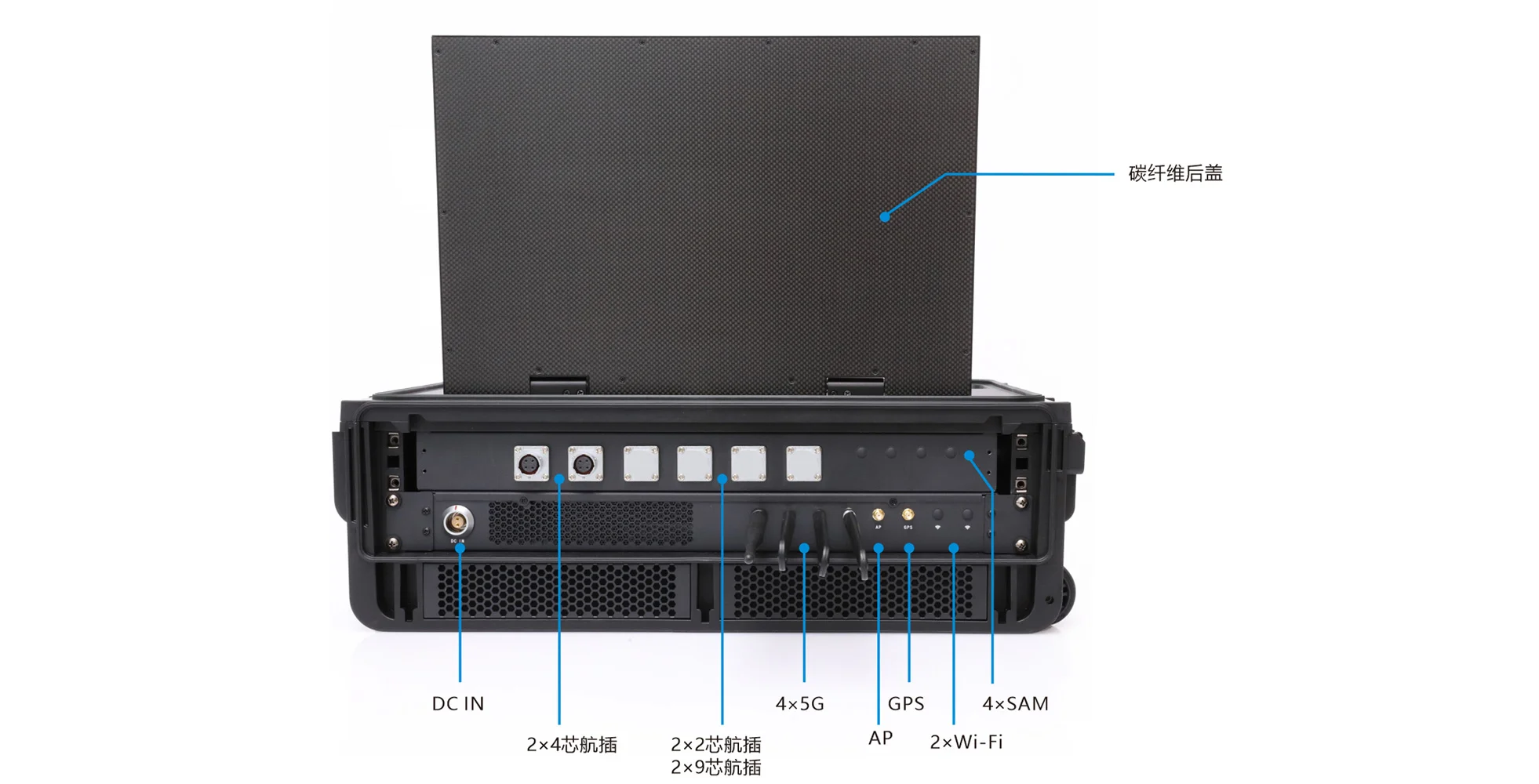

Bottom / Rear panel
DIMENSIONS

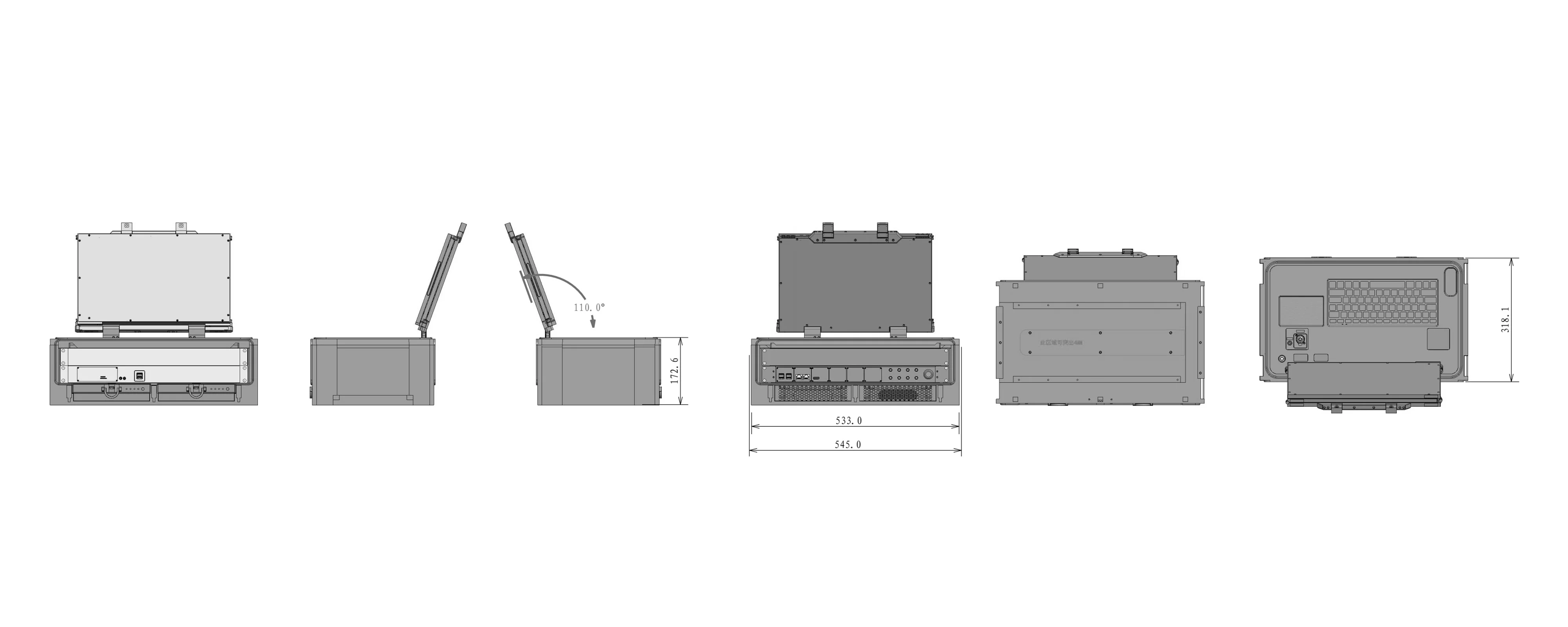

Three-View Dimensions (mm)
Three-view drawing and mounting dimensions of the flagship mission edition · single screen + full-feature 1U payload bay.
ORDERING INFORMATION
Ordering Information · Part Number
Wireless modules (4G/5G/BeiDou), expansion modules, battery capacity and wide-temp versions are customized per project.
| No. | Part Number | Model | Main Configuration | Memory | Storage |
|---|---|---|---|---|---|
| 01 | / | MPC-TS-W150-T3 | Intel® Core™ i3-1215U | 16GB | SSD 512GB |
| 02 | / | MPC-TS-W150-T3 | Intel® Core™ i5-1235U | 16GB | SSD 512GB |
| 03 | / | MPC-TS-W150-T3 | Intel® Core™ i7-1255U | 16GB | SSD 512GB |
Note: Due to market fluctuations, key components such as CPU, memory and storage may vary. Wireless / expansion modules / wide-temp / encrypted versions are customized per project — please consult our sales team.
APPLICATIONS

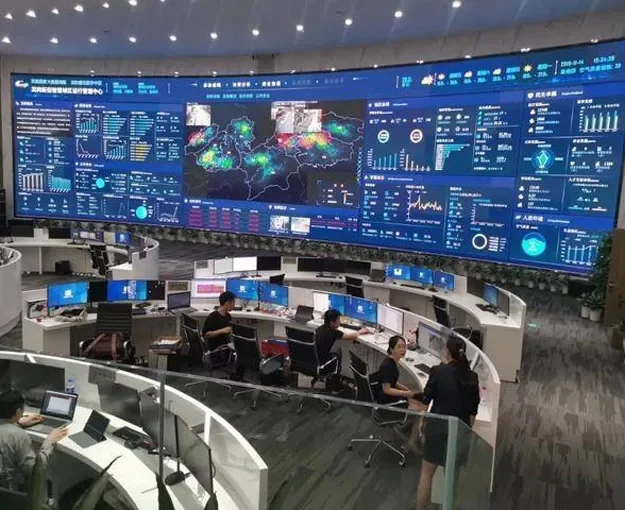

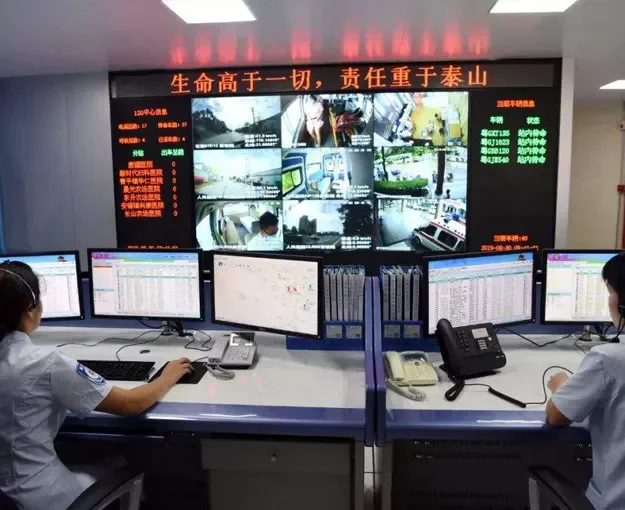

MPC-TS-W150-T3 Typical Applications
