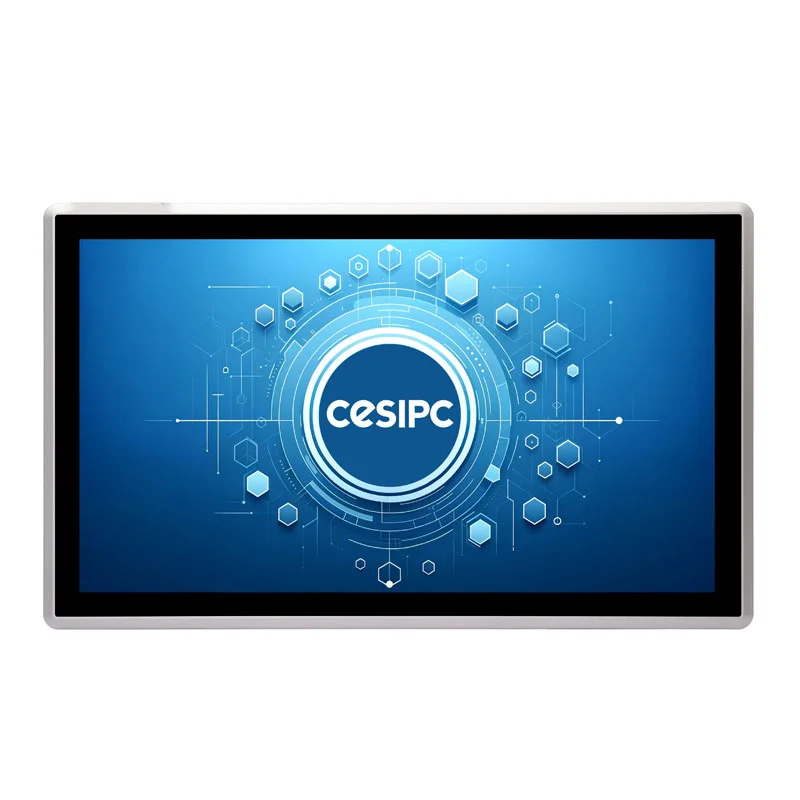

WPC-W2122A-L widescreen light-duty panel PC (L grade / IP65) - front main view - CESIPC

WPC-W21 (L) SERIES · 21.5" 16:9 · IP65 FRONT + IP65 I/O · 4 CPU TIERS

WPC-W21 (L) Series 21.5" Large Widescreen IP65 Aluminum Bezel | 4 CPU Tiers

21.5" 16:9 P-CAP 10-point capacitive touch + 6061 high-strength aluminum front bezel with IP65 front panel + moisture-sealed IP65 I/O ports. Same aluminum bezel and same moisture-sealed I/O spec across 4 CPU tiers (12th Gen flagship / 10th Gen mainstream / J6412 low-power / J1900 economy). An industrial-grade commercial all-in-one upgrade — ideal for inspection areas, offices, office-production interfaces and lab record terminals in light-humidity industrial settings, about 40-50% lower cost than G/S stainless grades.

21.5"16:9 FHD P-CAP

IP65Front Panel + I/O Dual Protection

Aluminum6061 Lightweight Bezel

4 TiersCPU Configuration

View 4 Models Series Selection Advice

4 CPU TIERS · ALUMINUM FRONT BEZEL

WPC-W21 (L) Series — 4 Models Side by Side

Same 21.5" P-CAP touchscreen + same aluminum bezel + same moisture-sealed I/O spec, differing only in processor platform — choose by compute, budget or compatibility needs.

12th Gen Flagship

L Grade IP65 Front Panel + IP65 I/O · 12th Gen i3-i7

WPC-W2122A-L

Intel® Core™ i3 / i5 / i7 12th Gen

Processori3-1215U / i5-1235U / i7-1255U
PerformanceUp to 10C12T · Iris Xe
Display21.5" · FHD 1920×1080 · P-CAP 10-Point
ProtectionIP65 Front Panel + IP65 I/O · 6061 Aluminum

View Details Inquire

WPC-W2162A-L widescreen light-duty panel PC (L grade / IP65) - front main view - CESIPC

Economy Multi-I/O

L Grade IP65 Front Panel + IP65 I/O · J1900 Economy

WPC-W2162A-L

Intel® Celeron® J1900

ProcessorJ1900 · 4C4T · 2.0 GHz
PerformanceNative Win 7 Support
Display21.5" · FHD 1920×1080 · P-CAP 10-Point
ProtectionIP65 Front Panel + IP65 I/O · 6061 Aluminum

View Details Inquire

WPC-W2172A-L widescreen light-duty panel PC (L grade / IP65) - front main view - CESIPC

Low-Power Upgrade

L Grade IP65 Front Panel + IP65 I/O · J6412 Low-Power

WPC-W2172A-L

Intel® Celeron® J6412

ProcessorJ6412 · 4C4T · 2.6 GHz
Performance10nm · 10W TDP
Display21.5" · FHD 1920×1080 · P-CAP 10-Point
ProtectionIP65 Front Panel + IP65 I/O · 6061 Aluminum

View Details Inquire

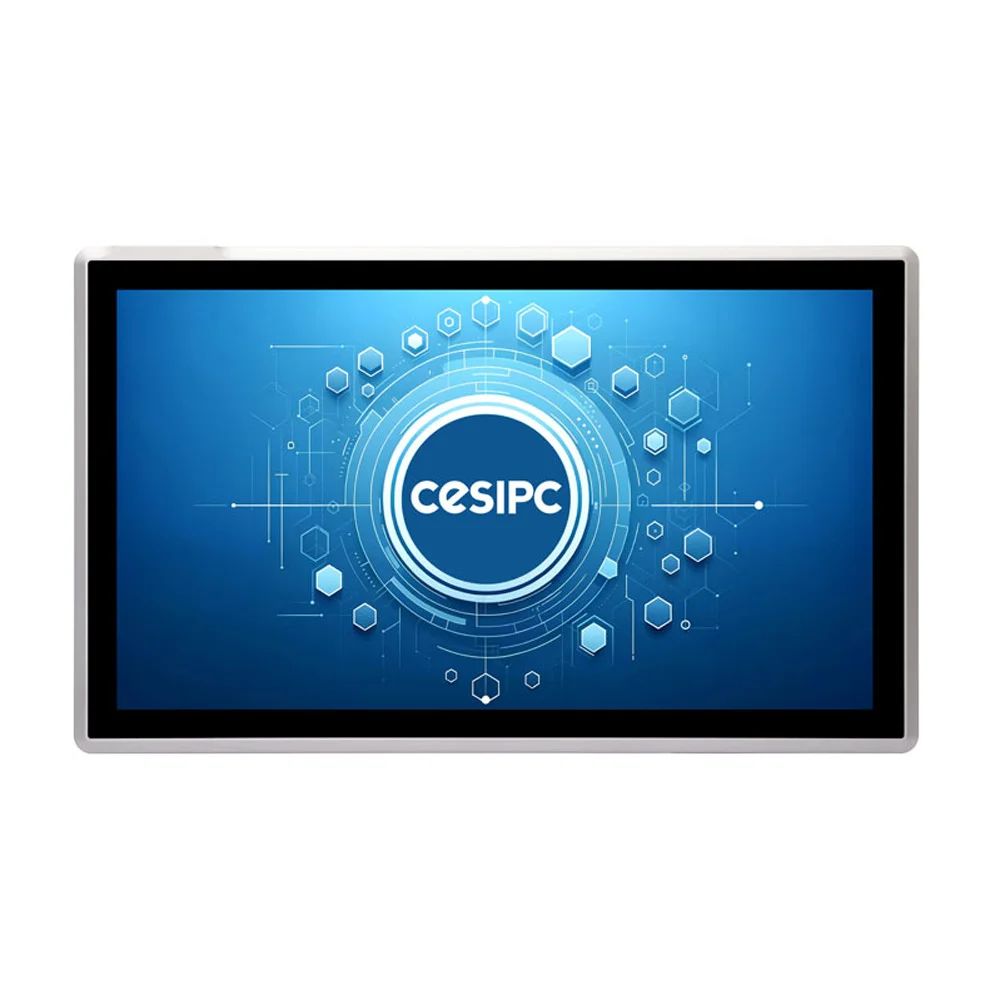

WPC-W2192A-L widescreen light-duty panel PC (L grade / IP65) - front main view - CESIPC

10th Gen Mainstream

L Grade IP65 Front Panel + IP65 I/O · 10th Gen i3-i7

WPC-W2192A-L

Intel® Core™ i3 / i5 / i7 10th Gen

Processori3-10110U / i5-10210U / i7-10510U
PerformanceU-Series Low Power
Display21.5" · FHD 1920×1080 · P-CAP 10-Point
ProtectionIP65 Front Panel + IP65 I/O · 6061 Aluminum

View Details Inquire

SIDE-BY-SIDE COMPARE

4-Model Spec Comparison

Spec / Model	WPC-W2122A-L	WPC-W2162A-L	WPC-W2172A-L	WPC-W2192A-L
CPU Platform	12th Gen i3-i7	J1900 Economy	J6412 Low-Power	10th Gen i3-i7
Processor	i3-1215U / i5-1235U / i7-1255U	J1900 · 4C4T · 2.0 GHz	J6412 · 4C4T · 2.6 GHz	i3-10110U / i5-10210U / i7-10510U
Memory	8-32GB DDR5	2-8GB DDR3	4-16GB DDR4	8-32GB DDR4
Typical Use	Performance Flagship · Real-time SCADA / Large Dashboards / Multi-Window Monitoring	Economy · Simple Status Display / Legacy Business Systems	Low-Power · 24/7 Always-On / Large Signage / Vision Dashboards	Balanced Mainstream · Inspection Data / ERP-MES Terminals / Office Monitoring

L CLASS · SHARED PLATFORM

WPC-W21 (L) Series Shared Platform Features

All 4 CPU variants share the same aluminum bezel / same moisture-sealed I/O / same mounting spec — a cost-effective industrial-grade commercial all-in-one upgrade.

Front-Panel IP65 Dust & Splash Resistant

IP65 front-panel protection handles dust, splashing moisture, alcohol wiping and daily cleaning. Suited to long-term operation in inspection areas, offices and light-humidity environments (for heavy washdown choose the G grade IP69K).

IP65 Moisture-Sealed I/O Ports

All I/O ports use a polymer-sealed design, reaching IP65 moisture and dust protection. The rear ports are protected too, preventing moisture / dust ingress that causes shorts.

6061 High-Strength Aluminum Bezel

Aviation-grade 6061 aluminum + extruded aluminum body: lighter, better cooling, rust- and corrosion-resistant. The anodized surface resists chemical cleaning agents for worry-free daily wiping.

Commercial All-in-One Upgrade

Designed for the office-production interface; compared with ordinary commercial machines = full-unit IP65 + industrial wide voltage + 24/7 stability. About 40-50% lower cost than G / S stainless grades.

P-CAP 10-Point · Wet Hands / Gloves

Projected capacitive touch, supporting wet-hand touch and glove operation. FHD 1920×1080 industrial display, 350 cd/m² brightness, 50,000-hour backlight life.

FlexCore™ + SafeCore™ Dual Assurance

FlexCore™ four-element modularity (long-life display, upgradable mainboard) + SafeCore™ four-layer protection (power / backup / start-stop / system recovery) — no data loss on power failure.

APPLICATIONS

WPC-W21 (L) Series Typical Applications

🔍 Inspection / Retention Sampling 💼 Shop-Floor Office Terminals 📊 ERP / MES Entry Terminals 🧪 Laboratory Record Terminals 🏭 Production Monitoring Displays 📦 Logistics / Sorting Stations 🚉 Traffic Command & Dispatch ⚡ Energy Monitoring Consoles

EXPLORE OTHER SIZES

L Series — Other Screen Sizes

21.5" large widescreen / 24" ultra-wide, 2 size sub-series cover every large-display workstation at the office-production interface.

21.5" · 16:9

WPC-W21 (L) Series

21.5" Large Widescreen · FHD 1920×1080

Current Series

WPC-W2422A-L widescreen light-duty panel PC (L grade / IP65) - front main view - CESIPC

23.8" · 16:9

WPC-W24 (L) Series

24" Ultra-Wide · FHD 1920×1080

View →

WPC-W21 (L) Series Selection Advice

Tell us your project background (inspection / office / laboratory / production monitoring), mounting method (embedded / VESA / desktop), wide-temperature needs and order quantity, and our engineers will reply within 24 hours with a full datasheet + quotation + sample evaluation plan.

Inquire Now Call 0755-85286060 Download Catalog
