17" P-CAP 10-point capacitive touch + 304/316 stainless steel front panel, IP69K protection + embedded console panel mounting, powered by Intel® Celeron® J1900 — a hygienic industrial touch panel PC

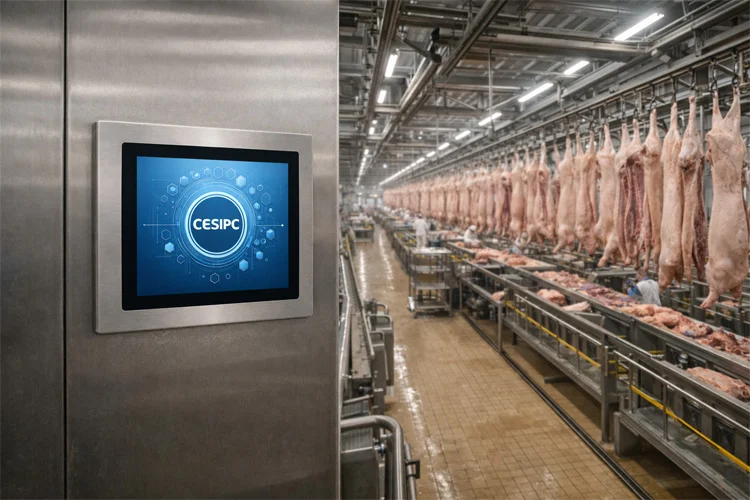

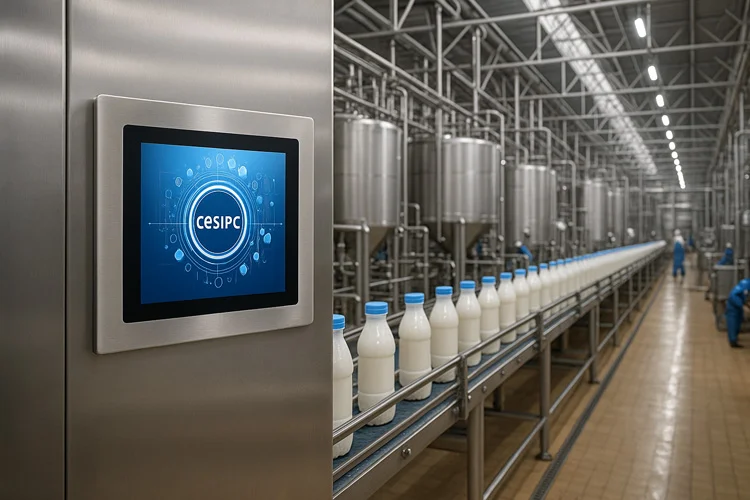

The WPC-S1762A-S is a 17-inch embedded hygienic industrial panel PC for food processing, dairy, pharmaceutical and hygienic washdown zones. It uses a SUS304 stainless steel front panel in an embedded structure that mounts into equipment cabinets or production-line machines to give the equipment full IP69K protection, withstanding high-temperature high-pressure water washdown, foam cleaning and frequent disinfection. Powered by Intel® Celeron® J1900, it balances performance, stable operation and long-term uptime. The 17-inch 4:3 design suits equipment-side HMI, line monitoring and on-site information display — a cost-effective solution for digitalizing hygienic workshops.
Stainless steel front panel IP69K + embedded console mounting + better value than the fully sealed G class — the best choice for 90% of hygienic scenarios.
304 / 316 stainless steel front panel with IP69K protection, withstanding direct washdown with 80°C / 100 bar high-pressure hot water. The front panel meets EHEDG / 3-A hygiene standards for worry-free daily deep cleaning. With standard rear I/O outside the wet zone, the unit offers better value than the fully sealed G class.
Embedded panel-mount design: the front panel embeds into a control cabinet / clean-room partition / equipment panel, exposing only the front panel to the wet washdown zone while rear cabling is serviced in the dry zone. VESA 100×100 standard mounting covers industrial consoles / clean-room touchscreens / equipment HMI stations.
304 / 316 food-grade stainless steel front panel with no dirt-trapping crevices. The mirror brushed finish resists corrosion and chemical cleaning agents (hypochlorite, hydrogen peroxide, quaternary ammonium), staying rust-free under long-term contact with brine, acids and alkalis. An optional 316 upgrade handles coastal high-salt environments.
Projected capacitive touch (P-CAP) with 10-point multi-touch, supporting wet-hand touch and gloved operation. SXGA TFT LED LCD 1280 × 1024 industrial panel, 300-350 cd/m² standard brightness (500-1000 nits high-brightness customizable), AG anti-glare, 50,000-hour backlight life.
Intel® Celeron® J1900, 4C4T, 2.0 GHz base. Native Windows 7 support — the top choice for legacy-system compatibility.

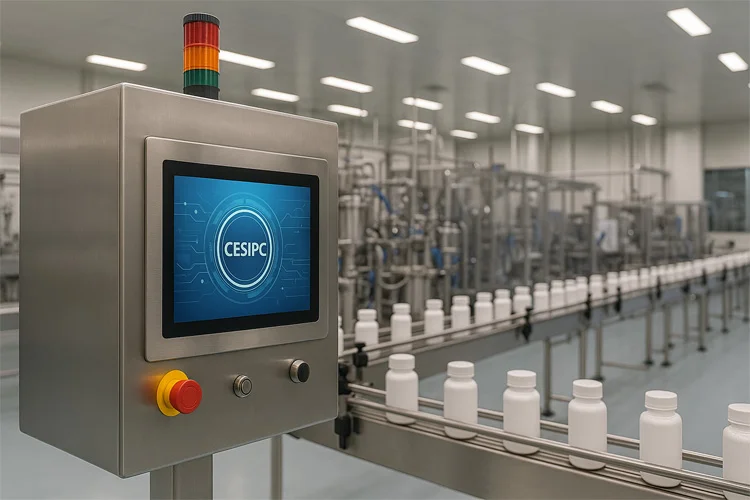

Compatible with FDA food-grade materials + ISO 22000 food safety management system. Suitable for critical compliance scenarios such as GMP pharmaceutical lines / HACCP food safety management / 3-A dairy standards.
IP69K front panel + embedded mounting covers 90% of hygienic scenarios. With rear cabling in the dry zone, the total unit cost is about 30% lower than the fully sealed G class — the best choice for console-embedded deployment.

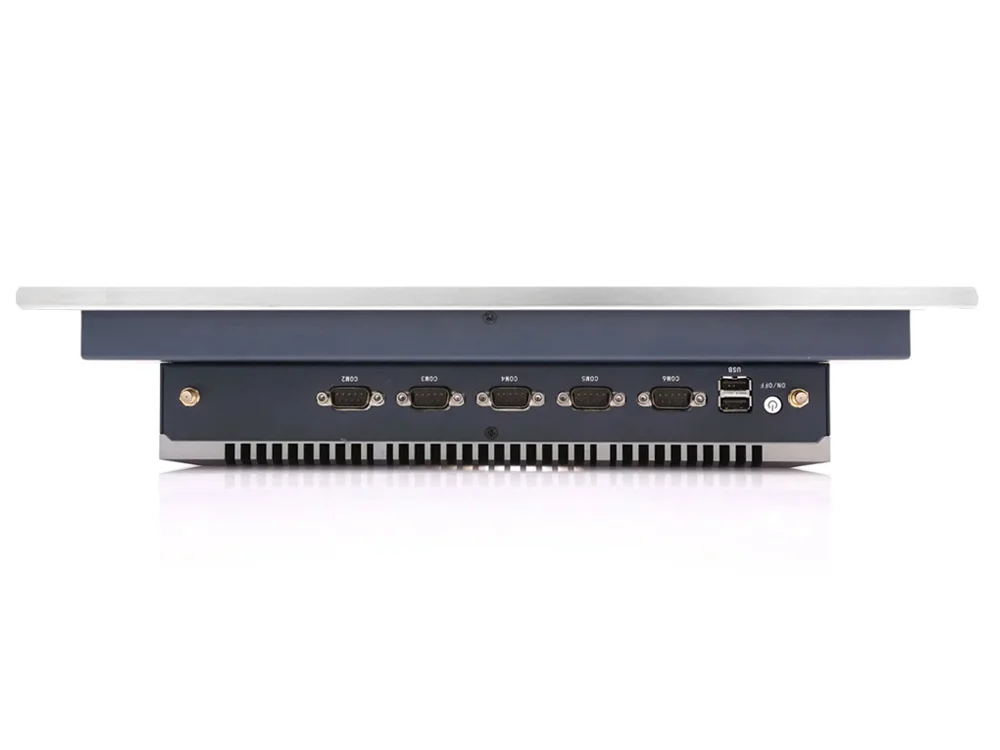

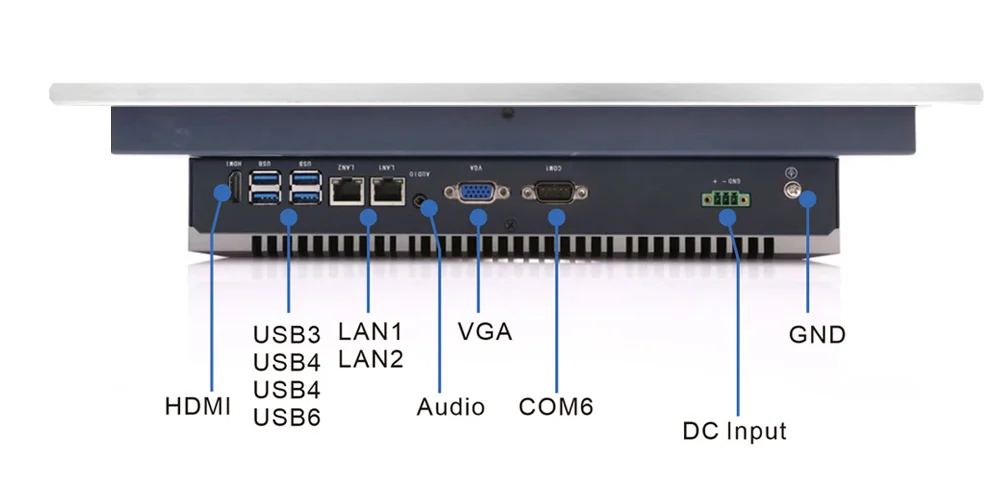

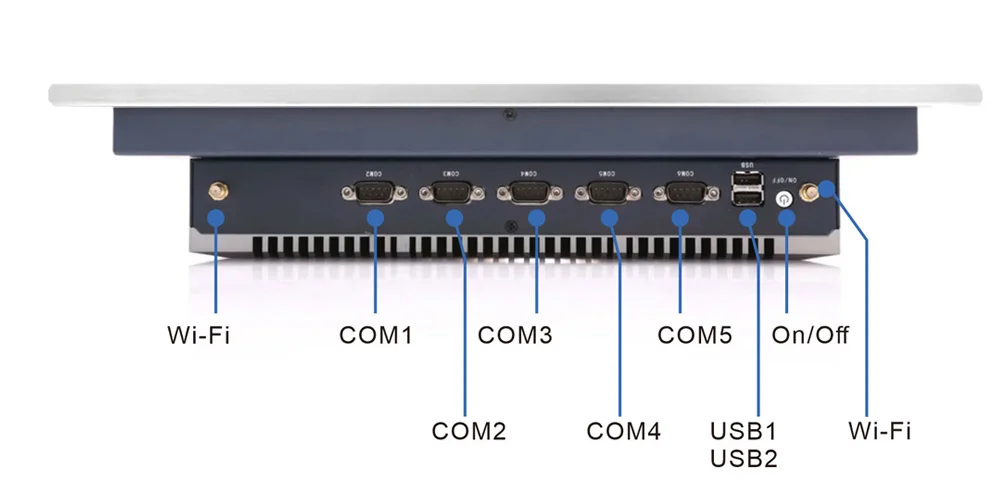

The rear of the unit sits inside the control cabinet / dry zone with standard industrial I/O: 4× USB 3.0 + 2× USB 2.0 + 4× COM + 2× GbE + HDMI + VGA + audio. No aviation-grade sealed connectors required, making maintenance and expansion easier.
3-pin pluggable Phoenix terminal with 9-36V DC wide-voltage input. Quad protection against overvoltage / overcurrent / reverse polarity / surge. Compatible with 24V industrial PLC direct supply and 12V vehicle-mount scenarios.
Built on the FlexCore™ four-element architecture: i-Core smart core + i-Function expansion + i-Connect interface + Smart Thermal management. Long-term display availability, with the mainboard upgradable on demand.
Four coordinated protection mechanisms (power protection + backup power + start-stop control + system self-recovery). Native Windows 7 support, also compatible with Win 10 / Ubuntu / CentOS, meeting legacy pharmaceutical MES compatibility needs.
Datasheet version V1.0 · Updated 2026-03-20 · Due to chip-market fluctuations, key chips may change; final configuration subject to sales confirmation.
| Parameter | Specification |
|---|---|
| Processor | Intel® Celeron® J1900 |
| Cores | 4 |
| Threads | 4 |
| Frequency | 2.0~2.42 GHz |
| Cache | 2 MB L2 Cache |
| TDP | 10W |
| Graphics | Intel HD Graphics |
| Memory | DDR3L 4~8 GB |
| Storage | 1× mSATA SSD |
| Parameter | Specification |
|---|---|
| USB | 1×USB3.0，5×USB2.0 |
| RS232 | 4 |
| RS485 | 2 |
| Gigabit Ethernet | 2 × RJ45（10/100/1000Mbps） |
| Audio | 3.5mm TRRS |
| Display Output | HDMI OUT (VGA OUT optional) |
| Wi-Fi (optional) | Dual-band 2.4G/5G wireless card, Bluetooth |
| Parameter | Specification |
|---|---|
| Power Connector | 1-row 3-pin pluggable terminal, supports 9~36V DC wide-voltage input |
| Power Switch | 1× ATX power switch |
| Boot Mode | AT/ATX mode switch (built-in) |
| Parameter | Specification |
|---|---|
| Dimensions | 397.0 (L) × 321.0 (W) × 75.1 (T) mm |
| Weight | 7.1 KG net |
| Enclosure Material | SUS304 stainless steel |
| Mechanical Structure | Sheet-metal structure |
| Mounting | Embedded panel mount / VESA 100×100 wall mount |
| Reset Switch | 1× reset switch |
| Watchdog | Hardware watchdog supported |
| MTBF | 50,000 hrs |
| Parameter | Specification |
|---|---|
| Operating Temperature | 0~60℃ (wide-temp -40~80℃ optional) |
| Storage Temperature | -10~70℃ (wide-temp -40~80℃ optional) |
| Relative Humidity | 10%~90%, non-condensing |
| EMC | CE、FCC（EN 55032 & EN 55035） |
| EMC Harmonics | EN IEC 61000-3-2 |
| Parameter | Specification |
|---|---|
| Display Size | 17" (4:3) |
| Display Type | SXGA TFT LED LCD |
| Resolution | 1280 × 1024 |
| Colors | 16.2M |
| Brightness | 350 cd/m² |
| Contrast | 1000:1 |
| Backlight Life | 50,000 hrs |
| Touch Type | Projected capacitive touch (P-CAP), 10-point |
| Touch Protection | IP65 (front panel) |
| Parameter | Specification |
|---|---|
| Windows | Windows 7 / Windows 10 / Windows 11 |
| Linux | Ubuntu 16.04 / 18.04 / 20.04 / 22.04 |
| Parameter | Specification |
|---|---|
| Factory Certification | ISO9001: 2015 |
| BIOS Customization | BIOS / Boot LOGO / OEM |

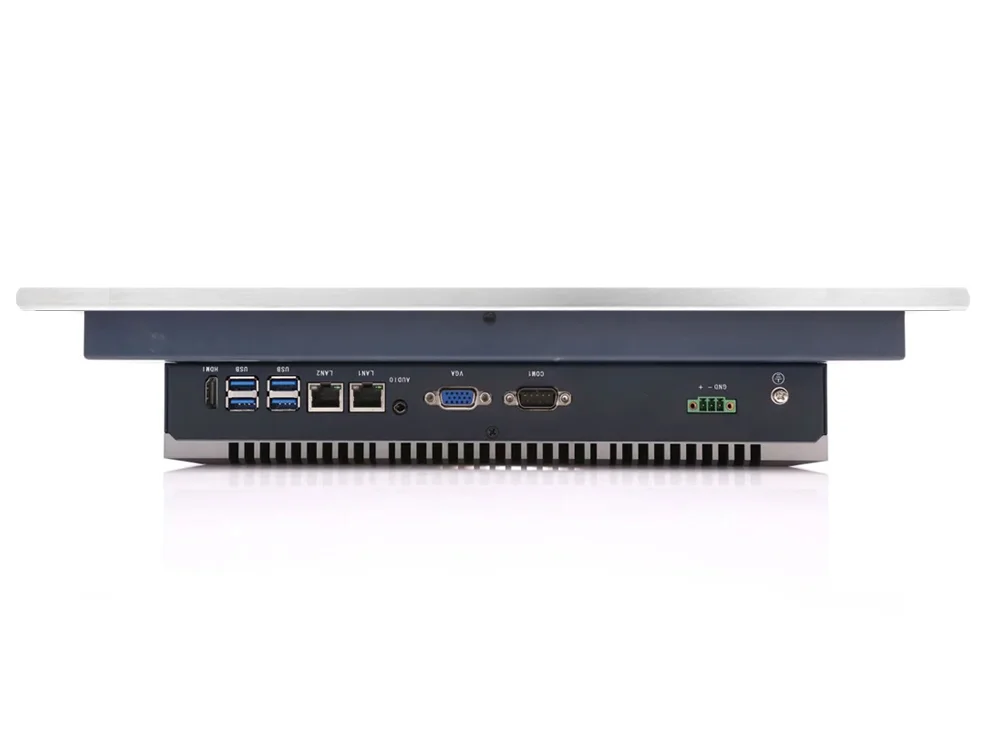

The IP69K stainless steel front panel embeds into the console while the rear sits inside the control cabinet / dry zone with standard industrial I/O for easy expansion and maintenance.

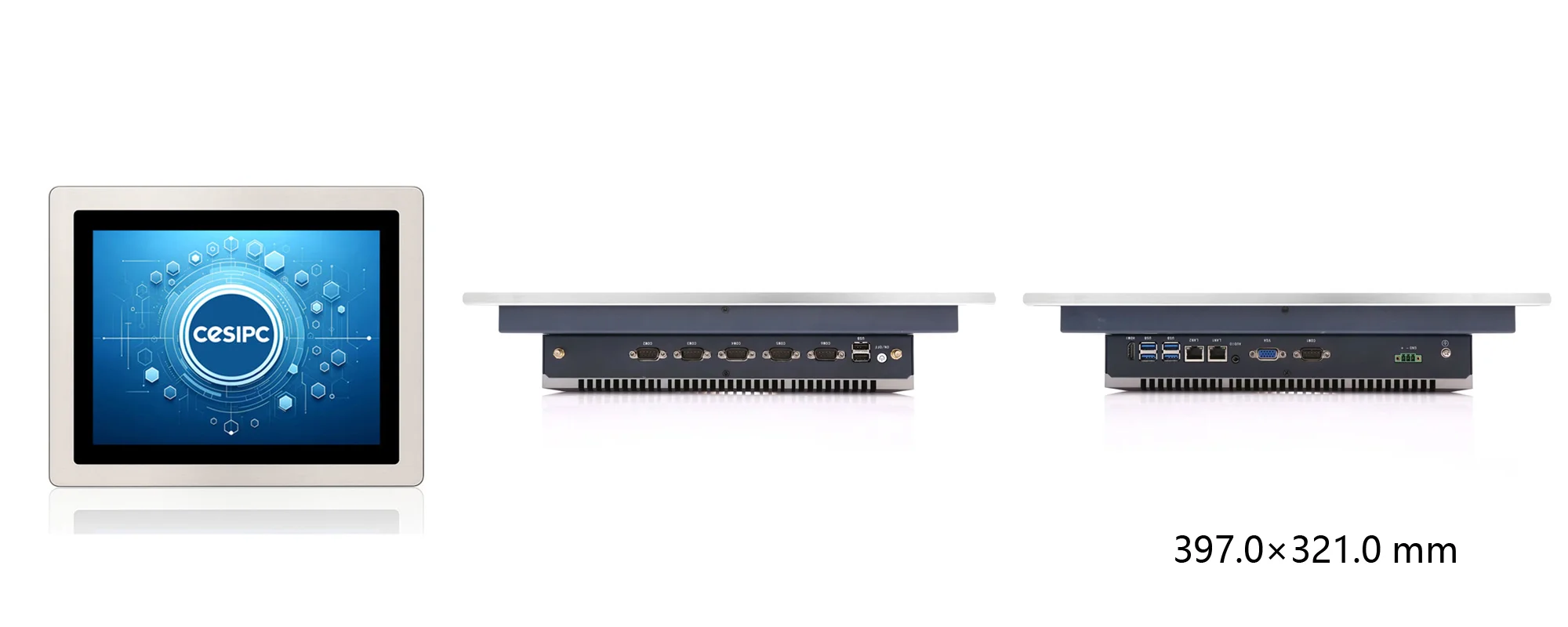

17" standard cutout dimensions · embedded console panel mounting + optional VESA 100×100.
Stainless steel grade (304 / 316), embedded cutout dimensions and 3-A / EHEDG certification are customized per project — please contact sales to confirm.
| No. | Part Number | Model | Processor + Touchscreen | Memory | Storage |
|---|---|---|---|---|---|
| 01 | C5.02.08.065 | WPC-S1762A-S | Intel® Celeron® J1900，17" P-CAP | 8GB DDR3 | SSD 256GB |
Note: Due to market fluctuations, key chips such as CPU, memory and storage may change.304 / 316 stainless steel front panel and 3-A / EHEDG certificationare customized per project — please consult our sales team for details.
Built on an IP69K front panel + 304/316 stainless steel embedded chassis, WPC-S1762A-S is a cost-effective choice for food / pharma console-embedded deployment.
Tell us your project background (food / pharma / seafood / dairy), console embedded cutout dimensions, stainless steel grade (304 / 316) and order quantity, and our engineers will respond within 24 hours with a full datasheet + quotation + sample evaluation plan.
