15" P-CAP capacitive touch
Projected capacitive (P-CAP) with 10-point multi-touch. XGA TFT LED LCD at 1024 × 768, 300 cd/m² brightness, 30,000-hour backlight life. 5ms response time, 160°/160° (H/V) viewing angle.
FPM-S1502A · 15" 4:3 P-CAP · HDMI + VGA
An industrial-grade display terminal with a 15" 4:3 P-CAP capacitive touchscreen, IP65 front bezel and HDMI+VGA dual input
FPM-S1502A 15-inch Industrial Monitor | P-CAP + HDMI+VGA + IP65
The FPM-S1502A is a 15-inch industrial-grade monitor built for industrial control, power equipment, communications terminals and equipment integration. Its high-strength aluminum alloy bezel and industrial-grade structure make it rugged and durable, with good thermal performance and long-term stable operation. It supports HDMI + VGA dual video input, compatible with a wide range of industrial PCs and equipment platforms. The IP65-rated front panel resists dust, oil and demanding industrial environments — a reliable solution for device-side HMI display and on-site industrial visualization.
Typical Applications
15"4:3 P-CAP touch
1024×768XGA resolution
HDMI+VGAdual signal input
IP65dust- and water-resistant front panel
PRODUCT HIGHLIGHTS
Nine Core Features of the FPM-S1502A
15" 4:3 industrial display terminal — the standard answer for a split-type industrial HMI paired with a ComputeOps™ industrial PC.
15" 4:3 Industrial Display
XGA TFT LED LCD, 1024 × 768 resolution, 16.7M colors. Standard 4:3 aspect ratio with long-life industrial backlight for uniform, stable brightness.
HDMI + VGA Dual Signal Input
HDMI + VGA dual video input, compatible with ComputeOps™ industrial PCs, laptops, embedded hosts, PLCs and other signal sources. A pure display terminal with no host — pair it with an industrial PC as needed to build a split-type HMI.
IP65 Dust- and Water-Resistant Front Panel
IP65-rated front-panel protection withstands dust, oil, wash-down splash and EMI for long-term stable operation in demanding industrial environments.
6061 High-Strength Aluminum Bezel
5mm chamfered design with a 6061 high-strength aluminum bezel and anodized coating — combining an industrial high-tech look with a rugged body for long-term maintenance-free use.
Panel / VESA / Desktop Mounting
Panel-mount installation (15-inch standard cutout) + VESA 75×75 wall mounting + desktop arm stand. Covers cabinet embedding, wall mounting and console-desk deployment.
12V DC Standard · 9-36V Wide-Voltage Optional
12V / 2A DC standard input with optional 9-36V wide-voltage. Four-way protection against over-voltage, over-current, reverse polarity and surge — handling grid glitches and transient voltage fluctuations on the plant floor.
Industrial Certifications · CE / FCC / RoHS
CE / FCC / RoHS certified, meeting industrial EMC, safety and environmental standards. Pairs with ComputeOps™ industrial PCs for a complete solution.
Pairs with ComputeOps™ Industrial PCs
Split-type industrial HMI: FPM monitor + EPC industrial PC. Keep the display long-term while the industrial PC is upgraded independently for compute — decoupling display from compute cuts maintenance cost by 40%.
PRODUCT GALLERY

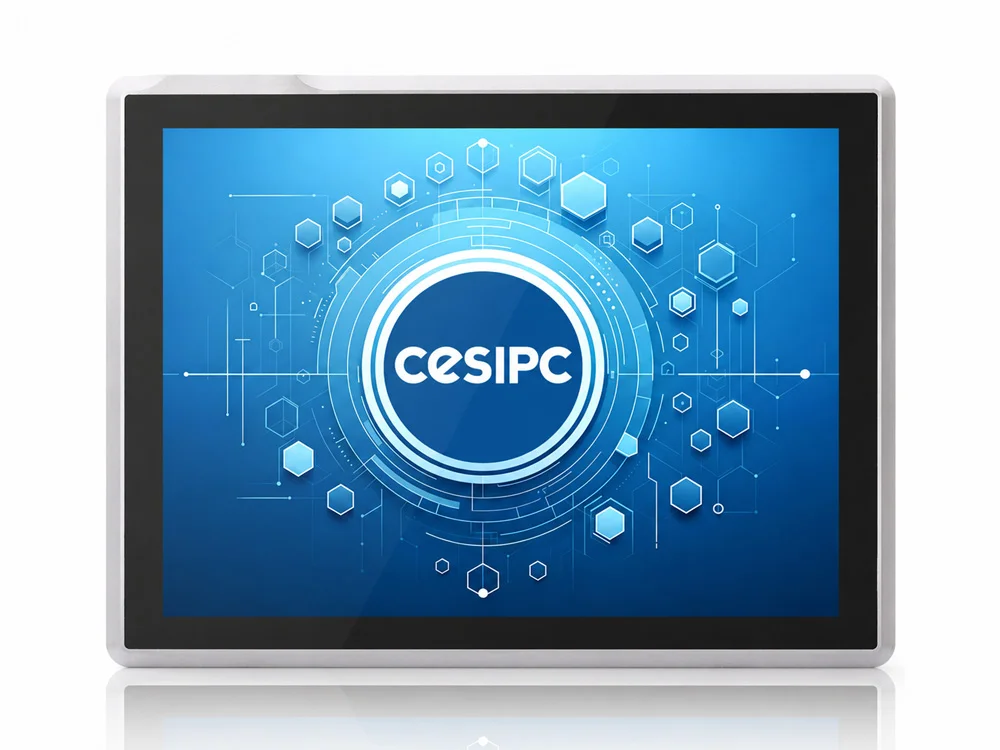

Product Gallery
SPECIFICATIONS
FPM-S1502A Full Specifications
Datasheet version V1.0 · Updated 2026-03-20 · The industrial monitor is a pure display terminal — no host / CPU / OS included.
Touch & Display
| Parameter | Specification |
|---|---|
| Display Size | 15" (4:3) |
| Display Type | XGA TFT LED LCD |
| Resolution | 1024 × 768 |
| Colors | 16.7M |
| Brightness | 300 cd/m² |
| Viewing Angle | 160° / 160° (H/V) |
| Response Time | 5ms |
| Backlight Life | 30,000 hrs |
| Touch Technology | Projected capacitive (P-CAP), 10-point |
| Touch Protection | IP65 (front panel) |
I/O Ports
| Parameter | Specification |
|---|---|
| Video Input | HDMI + VGA |
| Input Voltage | 12V / 2A DC (9-36V wide-voltage optional) |
Physical & General
| Parameter | Specification |
|---|---|
| Dimensions | 358.3 (H) × 282.2 (D) × 44.3 (depth) mm |
| Weight | 3.7KG |
| Enclosure Material | High-strength aluminum alloy + SUS |
| Panel Design | 5mm ultra-thin flat panel, chamfered, anodized coating |
| Mounting | Desktop / VESA / panel mount |
Operating Environment
| Parameter | Specification |
|---|---|
| Operating Temperature | -20~60℃ |
| Storage Temperature | -30~70℃ |
| Protection | IP65 (front panel) |
Certifications & Compliance
| Parameter | Specification |
|---|---|
| Factory Certification | ISO9001: 2015 |
INPUT LAYOUT

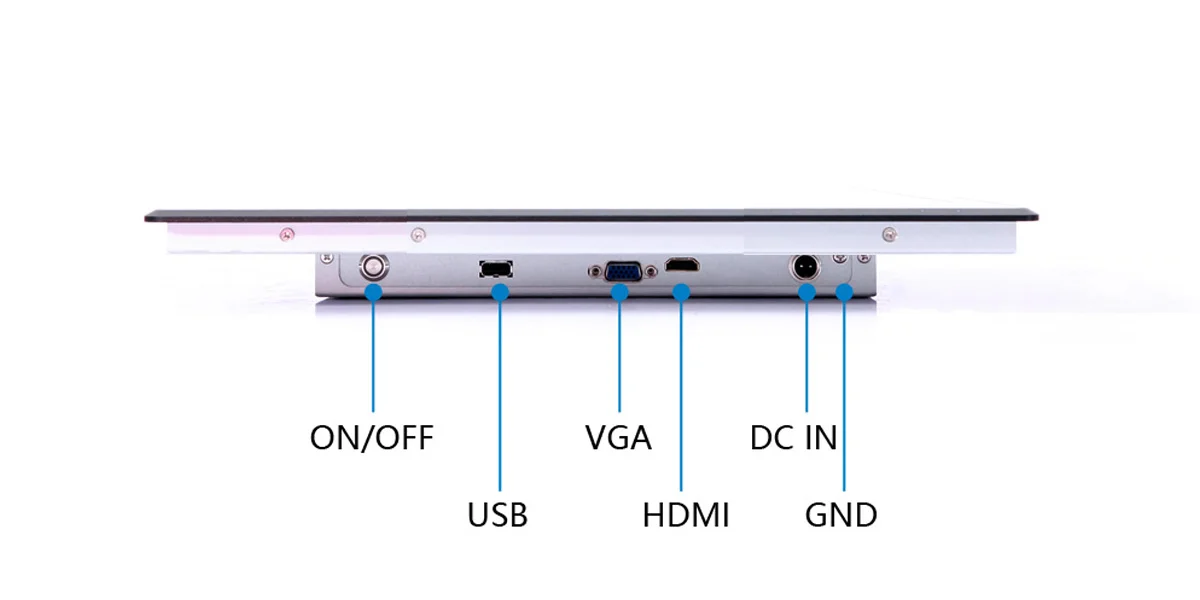

Rear I/O Layout (HDMI + VGA)
The monitor exposes only video input and power connectors, keeping a clean IP65 front panel. Dual HDMI / VGA inputs are compatible with ComputeOps™ industrial PCs, laptops, embedded hosts, PLCs and more.
Side / Top Panel

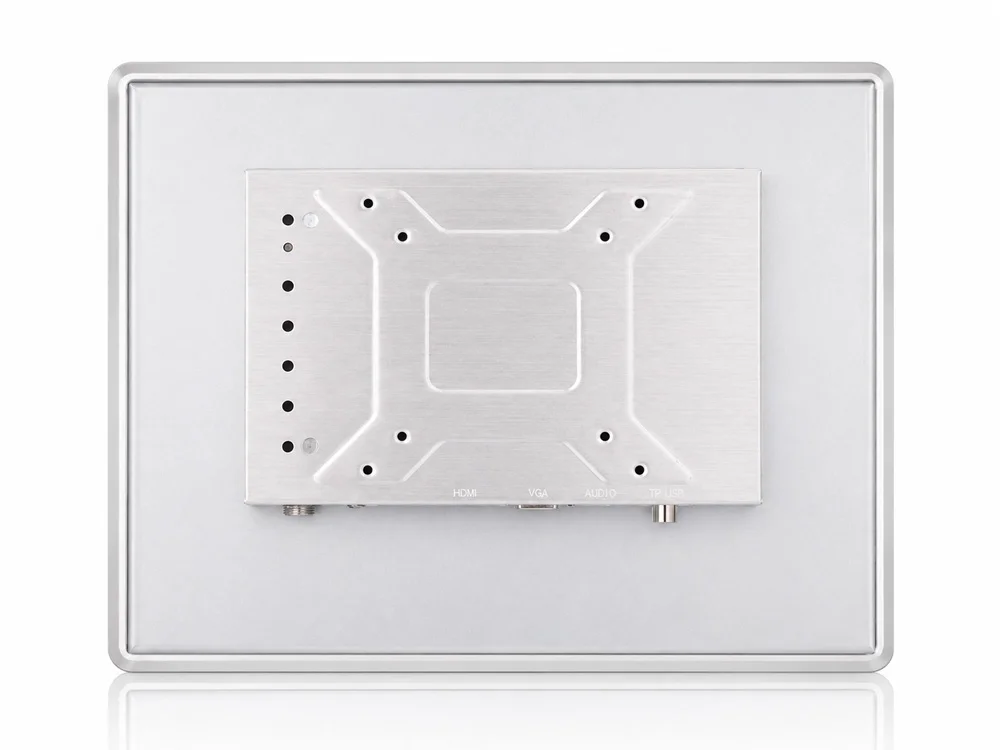

Bottom / Rear Panel
DIMENSIONS

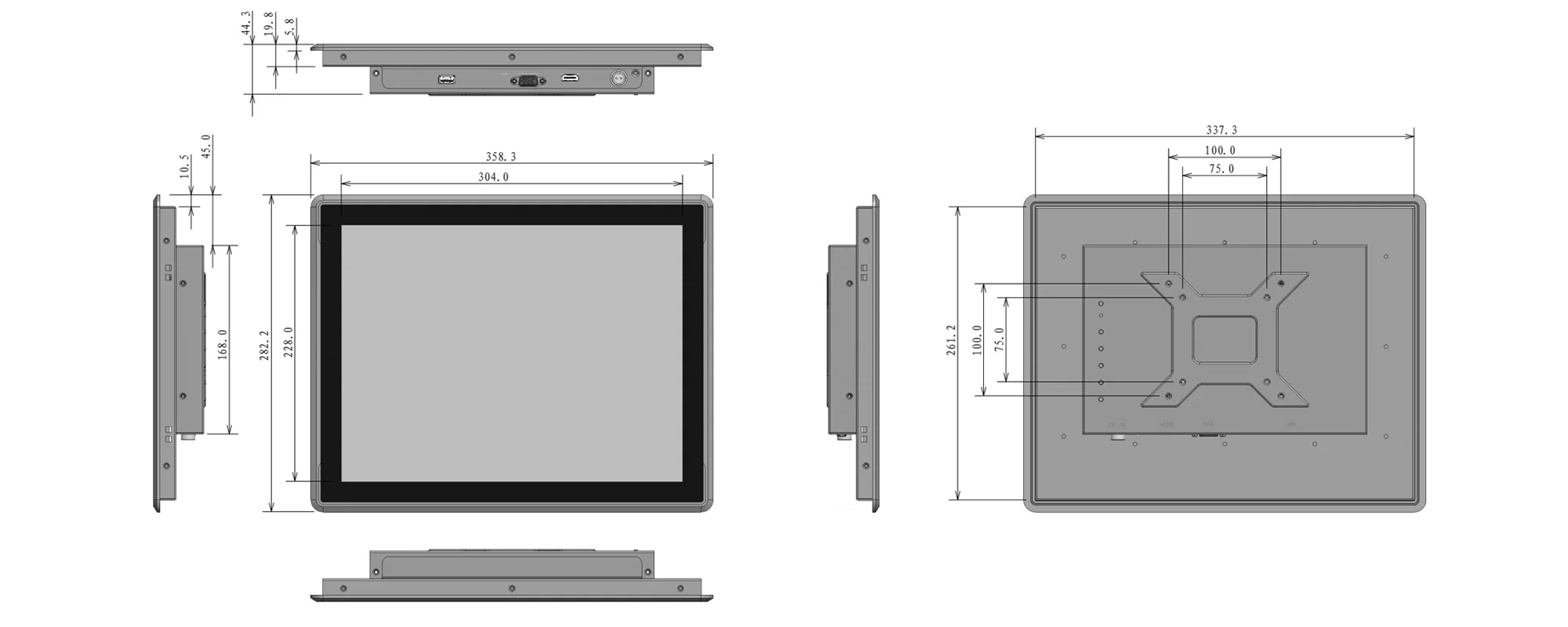

Dimensions (mm)
15-inch standard cutout · panel mount + VESA 75×75 dual mounting · optional desktop arm stand.
ORDERING INFORMATION
Ordering Information · Part Number
For optional 9-36V wide-voltage, non-touch versions or 1000-nit high-bright versions, please contact sales.
| No. | Part Number | Model | Display Spec | Video Input | Power |
|---|---|---|---|---|---|
| 01 | C5.02.02.007 | FPM-S1502A | 15" capacitive-touch industrial monitor, HDMI+VGA | / | / |
Note: This series is a pure display terminal — no host / CPU / OS. Pair it with a ComputeOps™ industrial PC to build a split-type industrial HMI.
APPLICATIONS
FPM-S1502A Typical Applications
A pure display-terminal solution for industrial control, power & energy, communications & networking and HMI visualization.
FPM-S1502A Selection Consulting
Tell us your application, signal-source type, brightness needs, mounting method (panel / VESA / desktop) and order quantity. Our engineers will respond within 24 hours with a full datasheet, quotation and host-pairing recommendation.
