19" P-CAP 10-point capacitive touch + IP65 front panel, powered by Intel® Celeron® J6412 — an industrial touch panel PC
The CESIPC EPC-S1972A industrial touch panel PC is a highly reliable embedded computing platform built for multi-interface, unattended applications on the factory floor. It uses a 19-inch 5:4 industrial-grade SXGA TFT LED LCD display with projected-capacitive P-CAP 10-point touch and an IP65-rated front panel, suiting complex field environments such as factories, warehousing and transportation. The core is built on the EPC-307A modular architecture with an Intel® Celeron® J6412 quad-core processor, dual Gigabit Ethernet and rich industrial I/O, and supports 9-36V wide-range DC input. The unit combines the FlexCore™ Modular architecture and SafeCore™ Reliability enhancements for high maintainability and long-term reliability across industrial control, data acquisition and HMI applications.
19" P-CAP industrial touchscreen + IP65 front panel + FlexCore™ Modular — the standard answer for industrial HMI / on-site visualization.
Projected-capacitive touch (P-CAP) with 10-point multi-touch, SXGA TFT LED LCD at 1280 × 1024 resolution and a 300-350 cd/m² standard industrial panel (high-bright 500-1000 nits optional). 50,000-hour backlight life.
IP65-rated front panel protection with a 6061 high-strength aluminum alloy + sheet-metal structure. Withstands dust, oil and washdown spray on the factory floor for stable long-term operation.
Intel® Celeron® J6412 4C4T, up to 2.6 GHz Boost and just 10W TDP. 10 nm process for low heat and high stability.
Supports embedded panel mounting (19" standard cutout) and VESA 75×75 wall mounting. Both methods cover control-cabinet embedding and standalone wall deployment.
The touchscreen and mainboard are decoupled by design: the display stays available long-term while the mainboard can be upgraded per project for more compute. A single form factor spans i3 to i7 / J1900 to J6412 CPU versions, lowering maintenance cost through platformization.
4× USB 3.0 + 2× USB 2.0 + 4× RS-232 + 2× RS-485 + 2× GbE + HDMI + VGA + audio. High-density layout with multiple serial ports.
1× Mini-PCIe expansion slot for optional dual-band Wi-Fi / Bluetooth / 4G / 5G communication modules, flexibly adapting to shop-floor wireless networking and remote monitoring.
3-pin pluggable Phoenix terminal with 9-36V DC wide-range input. Quad protection against overvoltage / overcurrent / reverse polarity / surge.
Die-cast 6061 high-strength aluminum-alloy finned heat dissipation with zero moving parts — maintenance-free, dust- and vibration-resistant.
Built on the FlexCore™ four-element architecture: i-Core smart core + i-Function expansion + i-Connect interface + Smart Thermal management. Unified interface · unified structure · unified power · free expansion.
Four protection mechanisms work in concert: ① power protection (overvoltage/overcurrent/reverse polarity/surge) + ② backup power (smart lithium-battery power-loss buffering) + ③ start/stop control (auto power-on after restore) + ④ system self-recovery (watchdog + fault restart).
Datasheet V1.0 · Updated 2026-03-20 · Due to chip market fluctuations, key components may change; final specs subject to sales confirmation.
| Parameter | Specification |
|---|---|
| Processor | Intel® Celeron® J6412 |
| Cores | 4 |
| Threads | 4 |
| Frequency | 2.0~2.6 GHz |
| Cache | 4 MB L3 Cache，1.5 MB L2 Cache |
| TDP | 10W |
| Display | Intel UHD Graphics 32EU |
| Memory | DDR4 4~32 GB |
| Storage | 1× mSATA SSD |
| Parameter | Specification |
|---|---|
| USB 2.0 | 4 |
| USB 3.0 | 2 |
| RS232 | 4 |
| RS485 | 2 |
| VGA | 1 |
| HDMI | 1 |
| Gigabit Ethernet | 2 × LAN |
| Audio | 3.5mm TRRS |
| Wi-Fi (optional) | Dual-Band 2.4G/5G Wi-Fi Card |
| 4G/5G (optional) | 4G/5G LTE (optional) |
| Parameter | Specification |
|---|---|
| Power Connector | 1× 3-pin pluggable terminal, 9~36V DC wide voltage |
| ATX Switch | 1× ATX Power Switch |
| Power-On Mode | AT/ATX Mode Switch (built-in) |
| Parameter | Specification |
|---|---|
| Dimensions | 443.0 (L) ×368.0 (W) ×75.1 (H) mm |
| Mounting Dimensions | 411.9 (L) ×342.9 (W) mm (panel cutout) |
| Weight | 4.2 kg net weight |
| Housing Material | 6061 High-Strength Aluminum Alloy |
| Mechanical Structure | Extruded Aluminum + Sheet Metal |
| Mounting | Panel Mount / VESA 75×75 Wall Mount |
| Reset Switch | 1× Reset Switch |
| TPM | TPM 2.0 |
| Watchdog | Hardware watchdog supported |
| MTBF | 60,000 hrs |
| Parameter | Specification |
|---|---|
| Operating Temperature | 0~60℃ (wide-temp -40~80℃ optional) |
| Storage Temperature | -10~70℃ (wide-temp -40~80℃ optional) |
| Relative Humidity | 10%~90%, non-condensing |
| EMC | CE、FCC（EN 55032 & EN 55035） |
| EMC Harmonics | EN IEC 61000-3-2 |
| Parameter | Specification |
|---|---|
| Display Size | 19" (5:4) |
| Display Type | SXGA TFT LED LCD |
| Resolution | 1280 × 1024 |
| Colors | 16.2M |
| Brightness | 350 cd/m² |
| Contrast Ratio | 500:1 |
| Backlight Life | 50,000 hrs |
| Touch Technology | Projected Capacitive (P-CAP), 10-point |
| Touch Protection | IP65 (front panel) |
| Parameter | Specification |
|---|---|
| Windows | Windows 10 / Windows 11 |
| Linux | Ubuntu 16.04 / 18.04 / 20.04 / 22.04 |
| Parameter | Specification |
|---|---|
| Factory Certification | ISO9001: 2015 |
| BIOS Customization | BIOS / Boot LOGO / OEM |

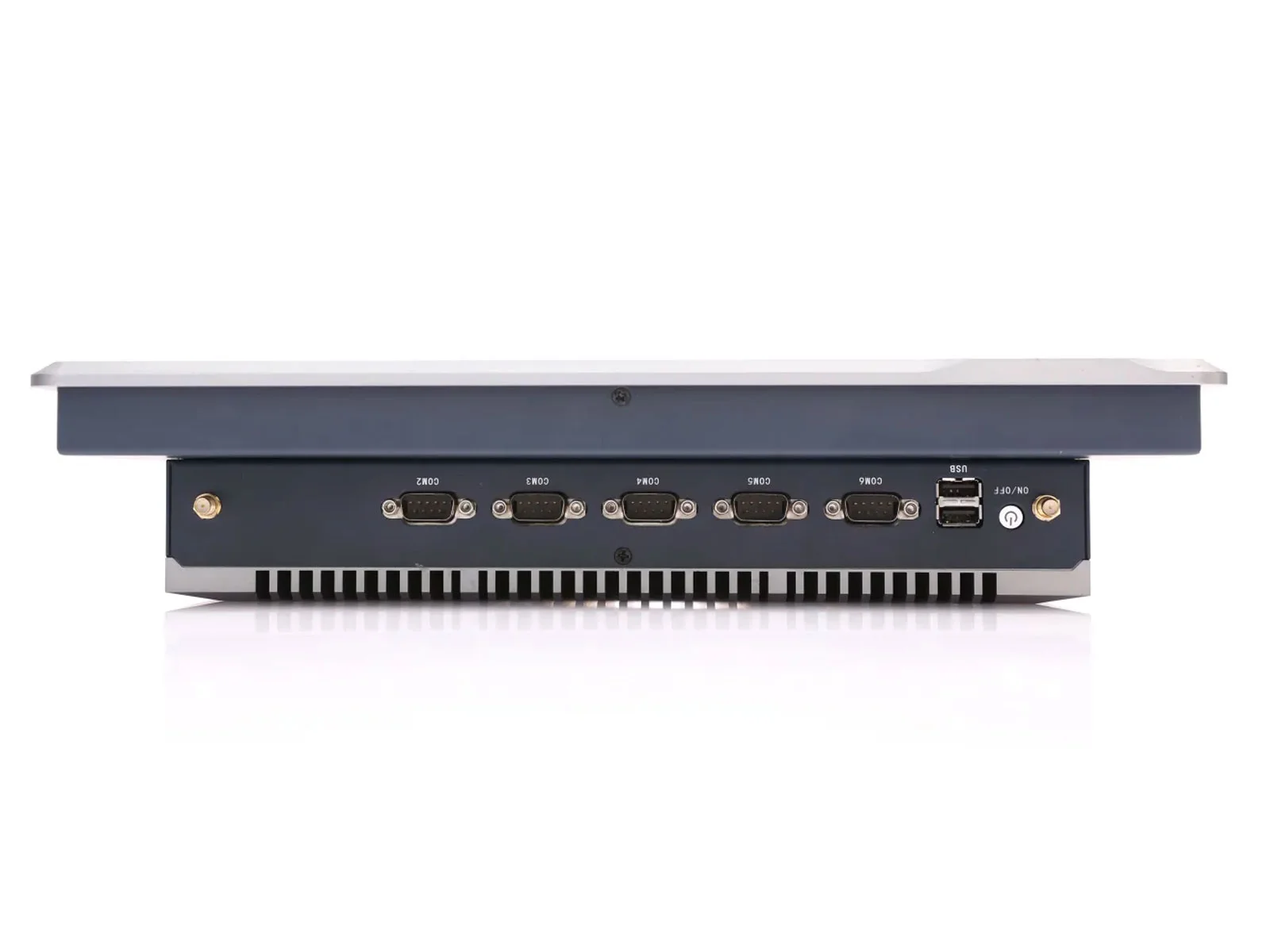

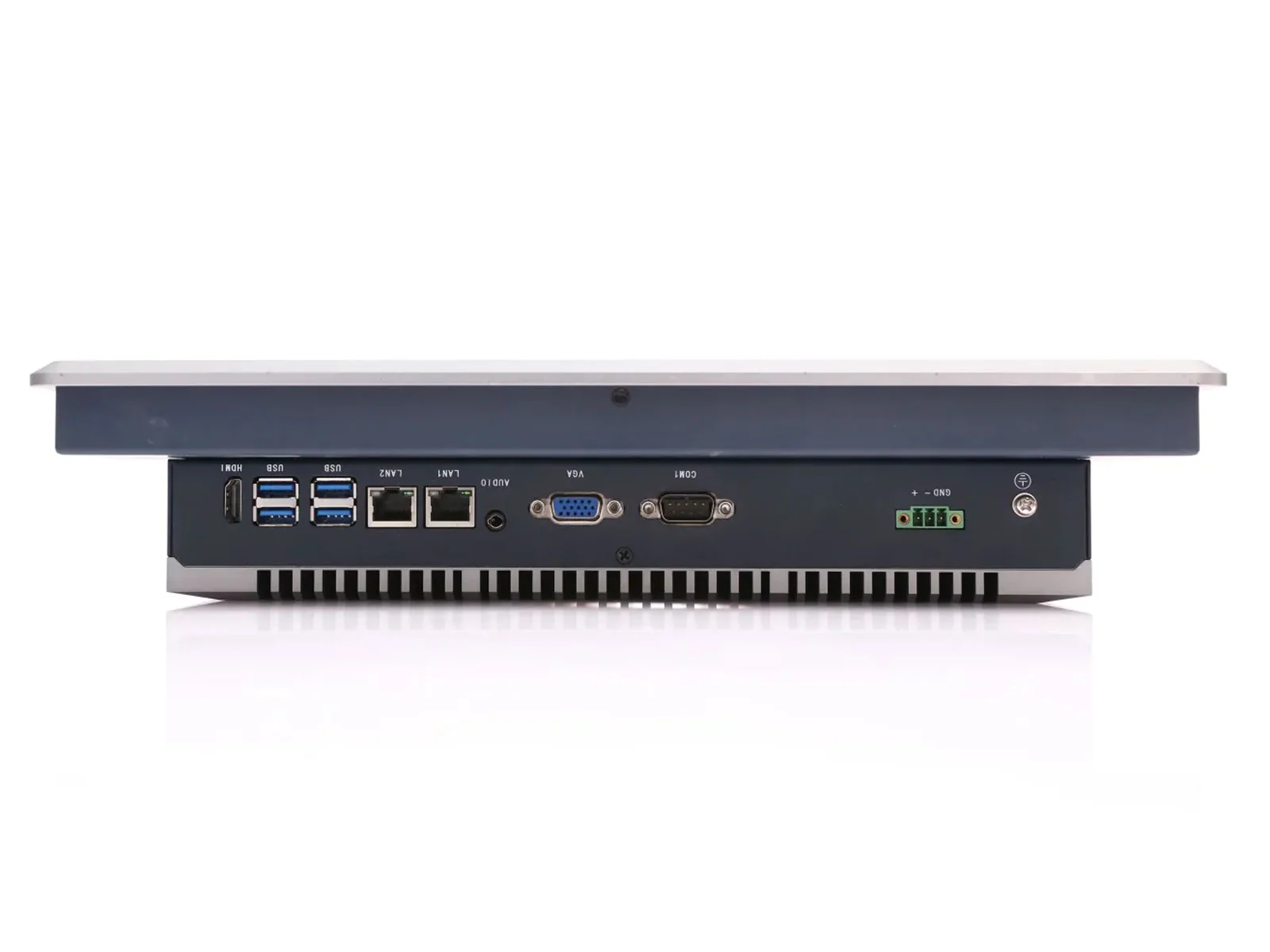

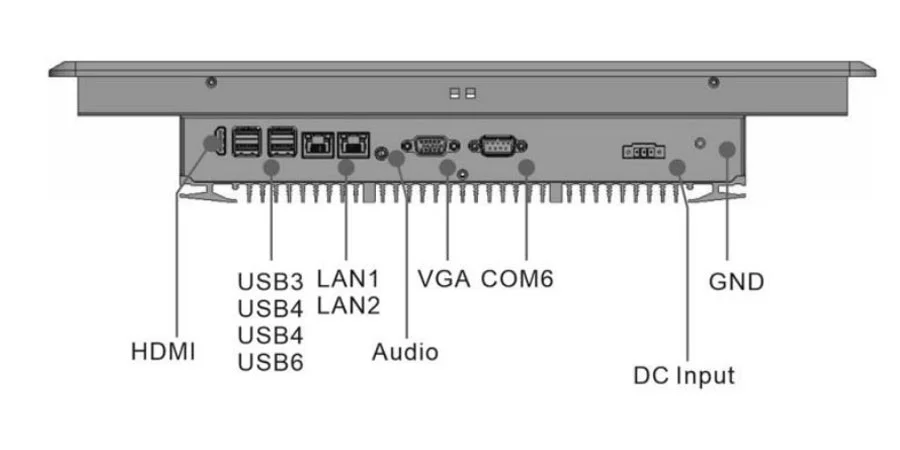

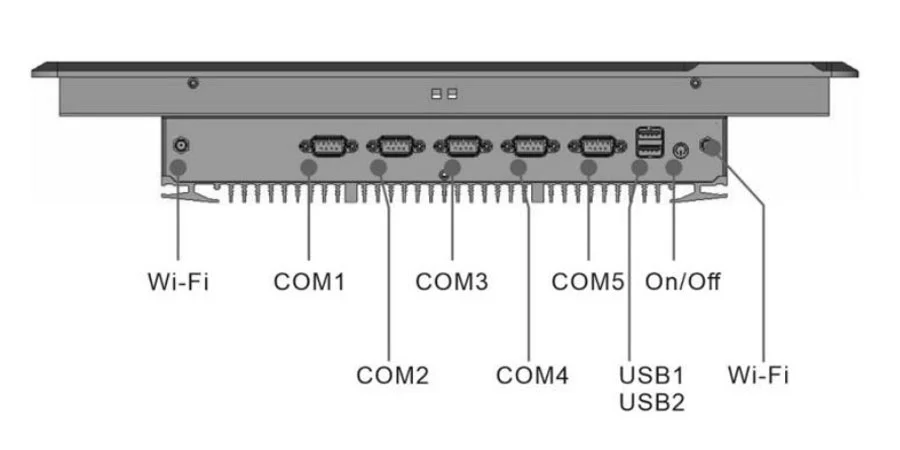

All I/O is centralized on the rear of the panel PC, keeping the front panel clean at IP65 for embedded console deployment.

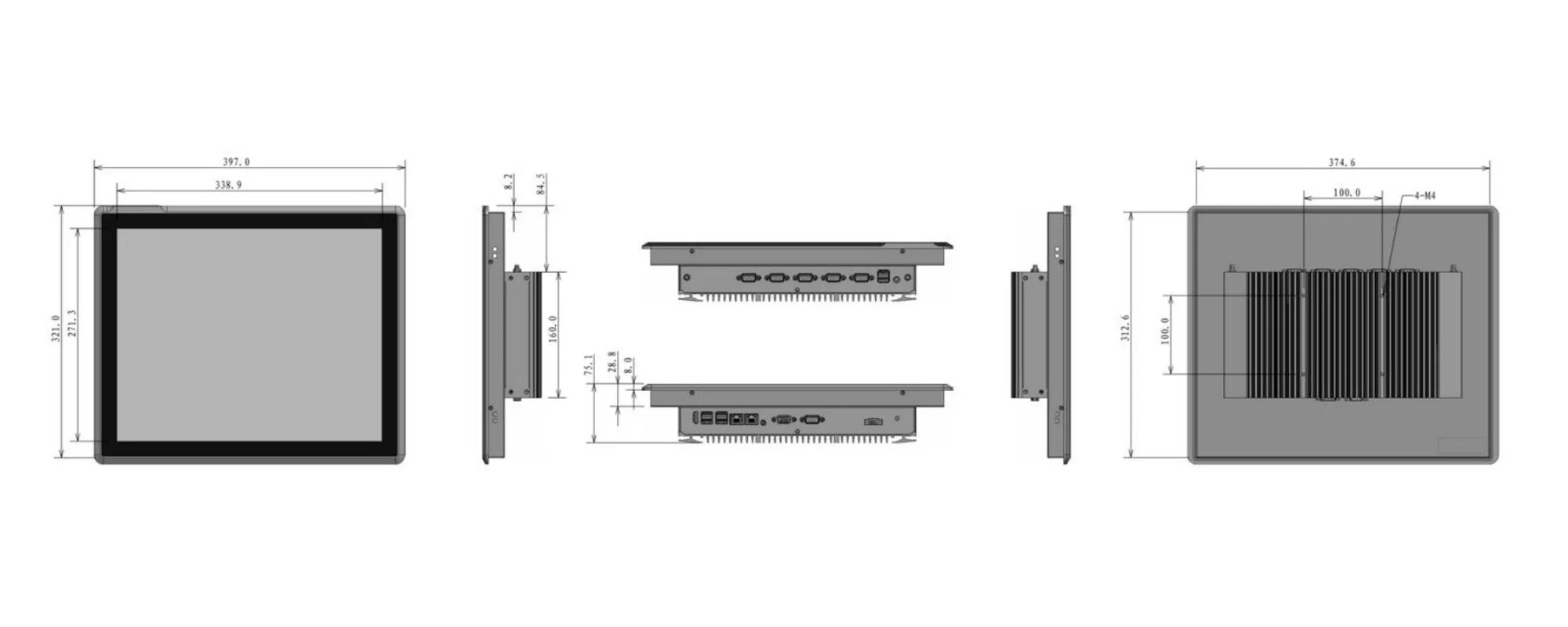

19" standard cutout · panel mount + VESA 75×75 dual mounting.
The standard configurations below can be ordered directly; for custom CPU / memory / storage / I/O boards, please contact sales.
| No. | Part Number | Model | Processor + Touchscreen | Memory | Storage |
|---|---|---|---|---|---|
| 01 | C20.05.05.001 | EPC-S1972A | Intel® Celeron® J6412，19" P-CAP | 8GB DDR4 | SSD 128GB |
| 02 | C20.05.05.002 | EPC-S1972A | Intel® Celeron® J6412，19" P-CAP | 16GB DDR4 | SSD 256GB |
Note: Due to market fluctuations, key components such as CPU model, memory and storage may change; please contact our sales team for details.
