15" 5-Wire Resistive Touch + Glove Operation
5-wire resistive touchscreen that responds to gloved hands, finger cots and oily/wet fingers, XGA TFT LED LCD 1024 × 768, 350 cd/m² industrial display. 50,000-hour backlight life.
EPC-S1571A · 15" 5-WIRE RESISTIVE · INTEL® CELERON® J6412
15" square-screen 5-wire resistive touch + IP65 front panel — an Intel® Celeron® J6412 modular industrial panel PC · low-power J6412 · multi-serial
EPC-S1571A J6412 15" Resistive-Touch Panel PC | 5-Wire + IP65
The EPC-S1571A industrial panel PC is a highly reliable embedded computing platform for multi-interface, unattended industrial sites. It uses a 15-inch 4:3 industrial-grade XGA TFT LCD with 5-wire resistive touch that supports glove operation and stays usable amid oil, moisture and dust. The front panel is rated IP65 for factory, warehouse, transportation and other demanding environments. The core compute is built on the EPC-107A modular architecture with an Intel® Celeron® J6412 quad-core processor, dual gigabit Ethernet and rich industrial I/O, supporting 9-36V wide-voltage DC input. Combining FlexCore™ Modular architecture and SafeCore™ Reliability enhancement, it delivers high serviceability and long-term reliability for industrial control, data acquisition and HMI applications.
Typical Applications
15"5-Wire Resistive Touch
J6412Quad-Core Low-Power
10WLow-Heat TDP
9-36VWide-Voltage Input
PRODUCT HIGHLIGHTS
EPC-S1571A Eleven Core Features
Low-power J6412 · multi-serial · FlexCore™ Modular · SafeCore™ Reliability — for industrial HMI and on-site visualization.
Separable Screen + Modular
Separable touchscreen and mainboard design: the screen stays serviceable long-term while the mainboard is upgraded per project. One form factor spans multiple CPU variants, lowering maintenance cost through platformization.
Elkhart Lake J6412 Low-Power
Intel® Celeron® J6412 4C/4T, up to 2.6 GHz Boost, just 10W TDP. The 10nm process delivers low heat and high stability.
IP65 Dust- & Water-Resistant Front Panel
IP65-rated front-panel protection with a 6061 high-strength aluminum-alloy + sheet-metal structure. Withstands industrial dust, oil and washdown spray for long-term stable operation.
Panel Mount / VESA Dual Mounting
Supports embedded panel mounting (15" square-screen standard cutout) and standard VESA 75×75 wall mounting for both cabinet-embedded and standalone wall deployment.
Rich Industrial I/O
4× USB 3.0 + 2× USB 2.0 + 4× RS-232 + 2× RS-485 + 2× GbE + HDMI + VGA + audio. High-density multi-serial layout.
Mini-PCIe Wireless Expansion
1× Mini-PCIe expansion slot with optional dual-band Wi-Fi / Bluetooth / 4G / 5G communication modules, flexibly adapting to workshop wireless networking and remote monitoring.
9-36V Wide-Voltage Phoenix Terminal
3-pin pluggable Phoenix terminal with 9-36V DC wide-voltage input. Quad protection against over-voltage / over-current / reverse polarity / surge.
FlexCore™ Modular Hardware Architecture
Built on the FlexCore™ four-element architecture: i-Core + i-Function expansion + i-Connect I/O + Smart Thermal. Unified interface · unified structure · unified power · free expansion.
SafeCore™ Industrial-Grade Reliability
Four coordinated protection mechanisms: ① power protection (over-voltage / over-current / reverse polarity / surge) + ② backup power (smart lithium-battery outage buffer) + ③ power-cycle control (auto power-on after outage) + ④ system self-recovery (watchdog + fault restart).
Multi-OS Support
Windows 10 / 11 · CentOS · Ubuntu 16.04 / 18.04 / 20.04 / 22.04. BIOS customization, Boot LOGO and OEM branding supported.
PRODUCT GALLERY

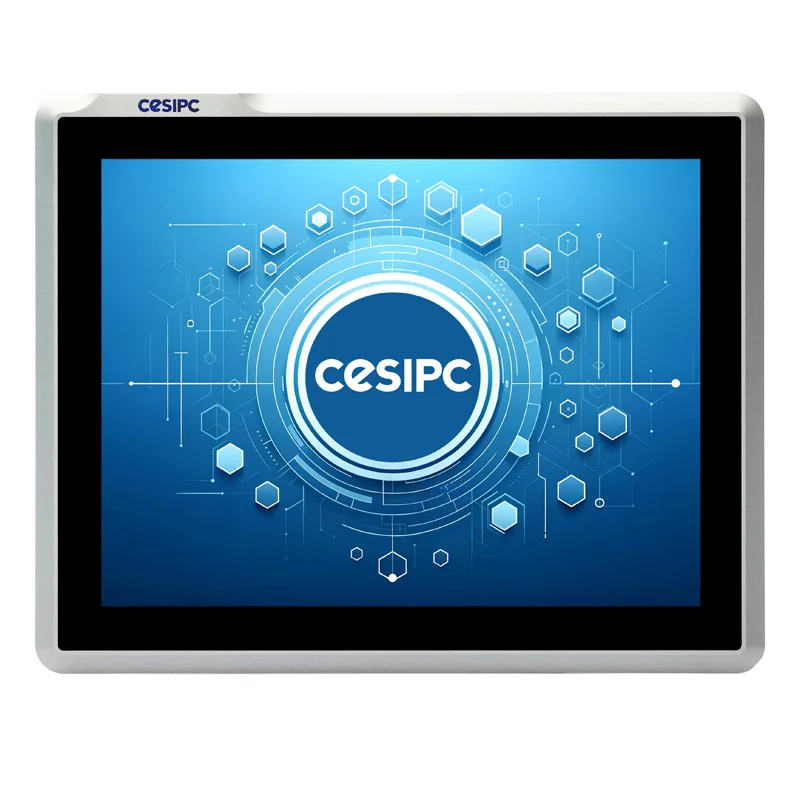

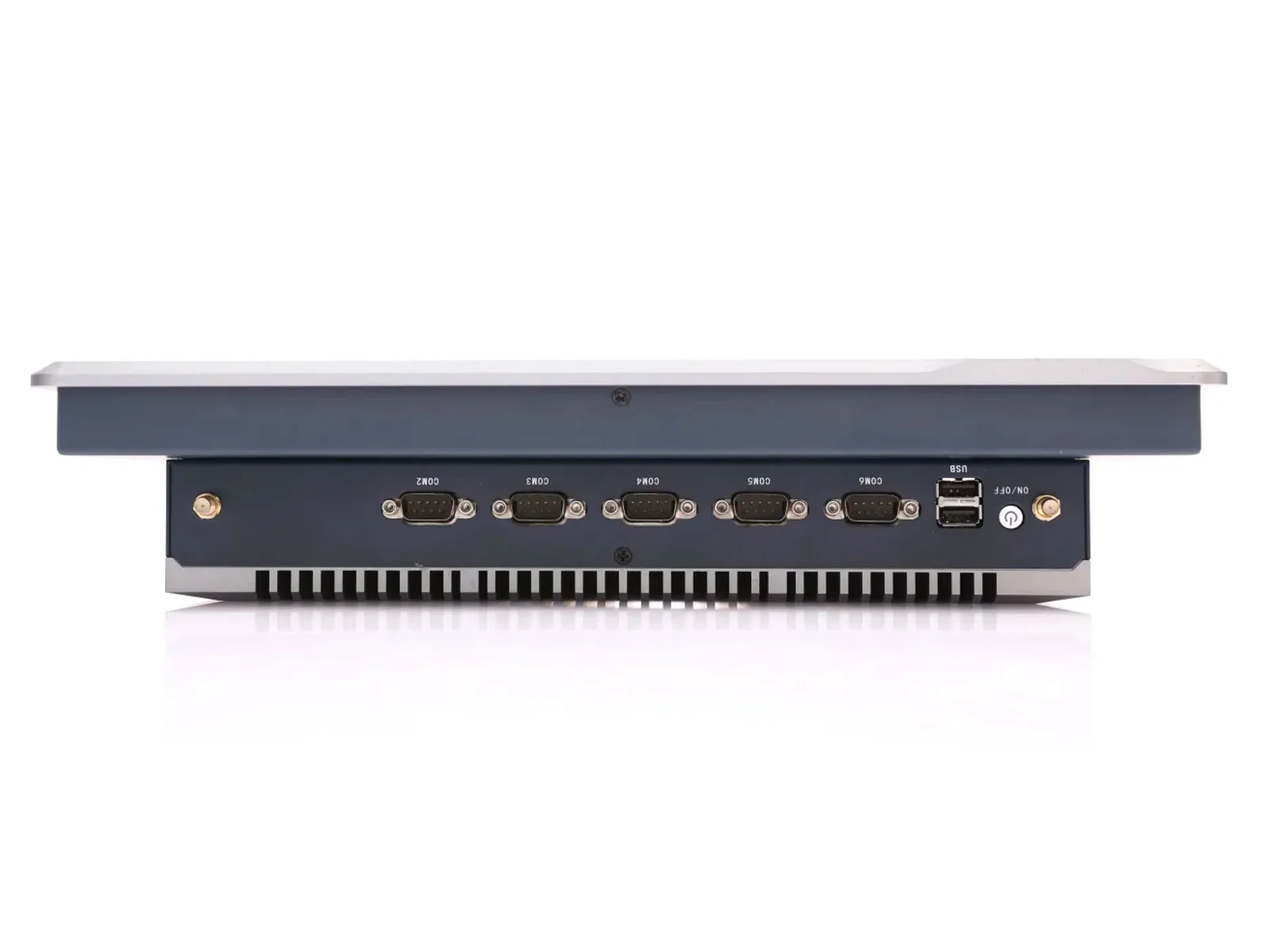

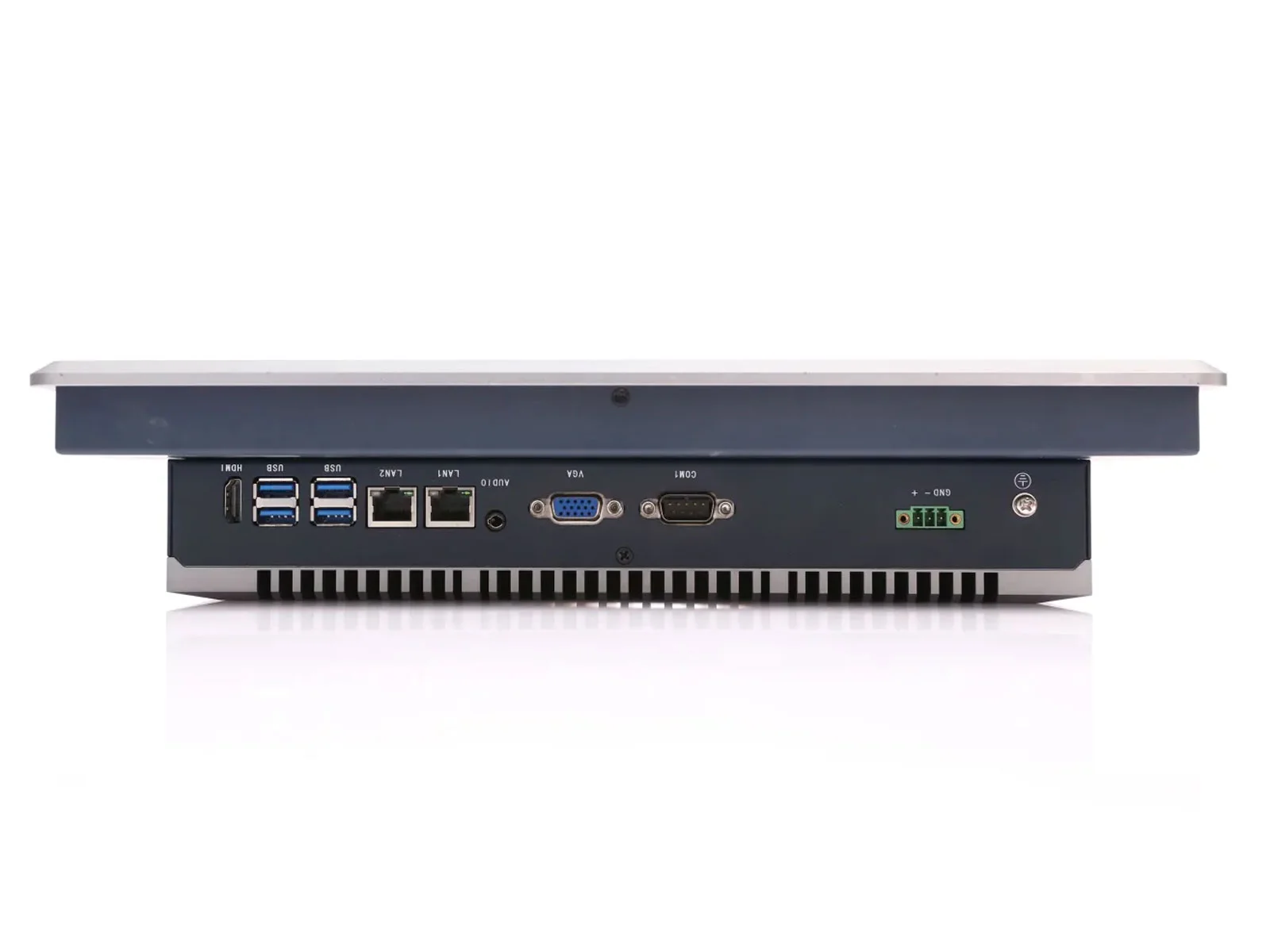

Product Gallery
SPECIFICATIONS
EPC-S1571A Full Specifications
Datasheet V1.0 · Updated 2026-03-20 · Due to chip market fluctuations, key components may change; final specs subject to sales confirmation.
Core Hardware
| Parameter | Specification |
|---|---|
| Processor | Intel® Celeron® J6412 |
| Cores | 4 |
| Threads | 4 |
| Frequency | 2.0~2.6 GHz |
| Cache | 4 MB L3 Cache，1.5 MB L2 Cache |
| TDP | 10W |
| Display | Intel UHD Graphics 32EU |
| Memory | DDR4 4~32 GB |
| Storage | 1× mSATA SSD |
I/O Interfaces
| Parameter | Specification |
|---|---|
| USB 2.0 | 4 |
| USB 3.0 | 2 |
| RS232 | 4 |
| RS485 | 2 |
| VGA | 1 |
| HDMI | 1 |
| Gigabit Ethernet | 2 × LAN |
| Audio | 3.5mm TRRS |
| Wi-Fi (optional) | Dual-Band 2.4G/5G Wi-Fi Card |
| 4G/5G (optional) | 4G/5G LTE (optional) |
Power Input
| Parameter | Specification |
|---|---|
| Power Connector | 1× 3-pin pluggable terminal, 9~36V DC wide voltage |
| ATX Switch | 1× ATX Power Switch |
| Power-On Mode | AT/ATX Mode Switch (built-in) |
Physical Attributes
| Parameter | Specification |
|---|---|
| Dimensions | 359.9 (L) ×283.9 (W) ×75.1 (H) mm |
| Mounting Dimensions | 342.4 (L) ×269.4 (W) mm (panel cutout) |
| Weight | 4.3 kg net weight |
| Housing Material | 6061 High-Strength Aluminum Alloy |
| Mechanical Structure | Extruded Aluminum + Sheet Metal |
| Mounting | Panel Mount / VESA 75×75 Wall Mount |
| Reset Switch | 1× Reset Switch |
| TPM | TPM 2.0 |
| Watchdog | Hardware watchdog supported |
| MTBF | 60,000 hrs |
Operating Environment
| Parameter | Specification |
|---|---|
| Operating Temperature | 0~60℃ (wide-temp -40~80℃ optional) |
| Storage Temperature | -10~70℃ (wide-temp -40~80℃ optional) |
| Relative Humidity | 10%~90%, non-condensing |
| EMC | CE、FCC（EN 55032 & EN 55035） |
| EMC Harmonics | EN IEC 61000-3-2 |
Touch & Display
| Parameter | Specification |
|---|---|
| Display Size | 15" (4:3) |
| Display Type | XGA TFT LED LCD |
| Resolution | 1024 × 768 |
| Colors | 16.2M |
| Brightness | 350 cd/m² |
| Contrast Ratio | 500:1 |
| Backlight Life | 50,000 hrs |
| Touch Technology | 5-Wire Resistive |
| Touch Protection | IP65 (front panel) |
Operating System
| Parameter | Specification |
|---|---|
| Windows | Windows 10 / Windows 11 |
| Linux | Ubuntu 16.04 / 18.04 / 20.04 / 22.04 |
Certification & Compliance
| Parameter | Specification |
|---|---|
| Factory Certification | ISO9001: 2015 |
| BIOS Customization | BIOS / Boot LOGO / OEM |
I/O LAYOUT
Side / Rear Panel I/O Layout
All I/O is centralized on the rear of the panel PC, keeping the front panel clean at IP65 for embedded console deployment.

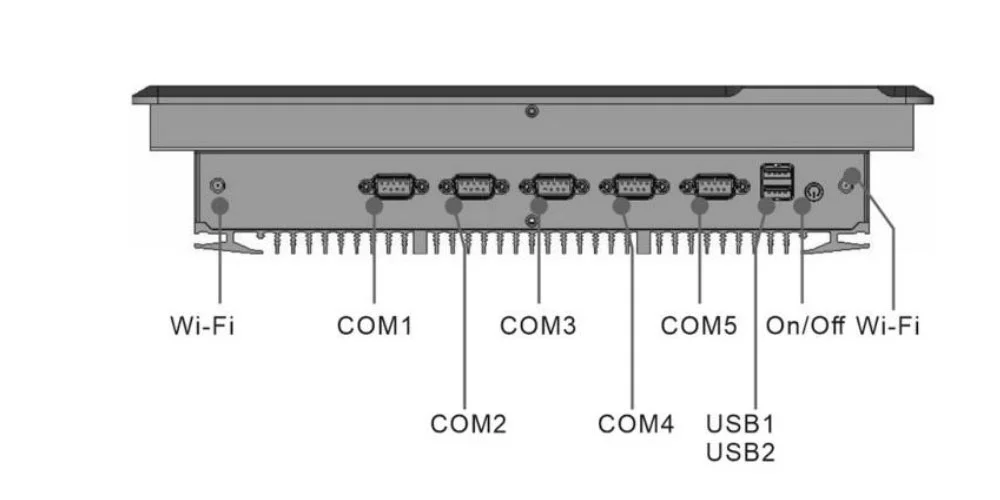

Side / Top Panel

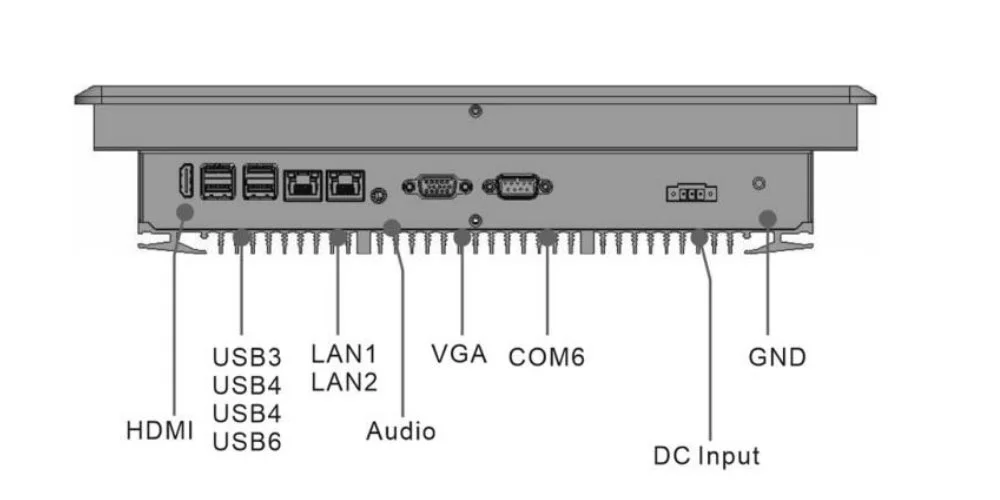

Bottom / Rear Panel
DIMENSIONS

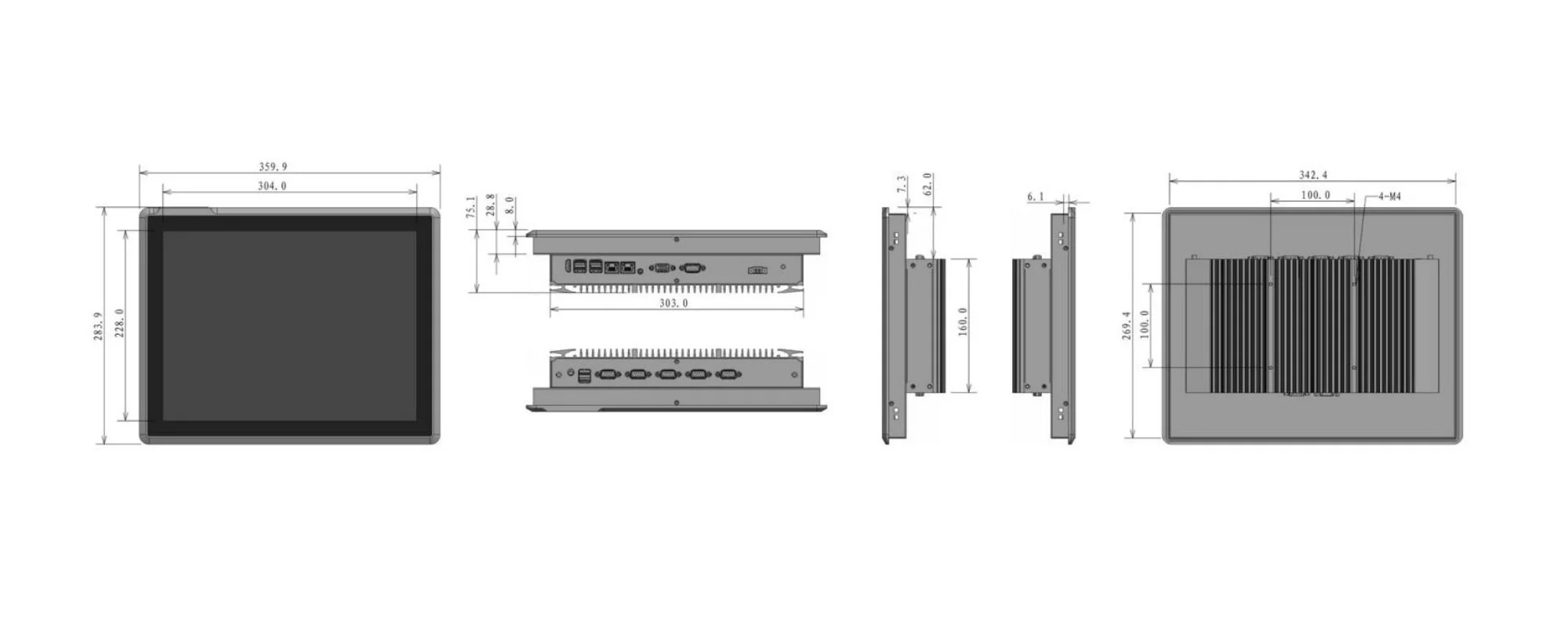

Three-View Dimensions (mm)
15" square-screen standard cutout · panel mount + VESA 75×75 dual mounting.
ORDERING INFORMATION
Ordering Information · Part Number
The standard configurations below can be ordered directly; for custom CPU / memory / storage / I/O boards, please contact sales.
| No. | Part Number | Model | Processor + Touchscreen | Memory | Storage |
|---|---|---|---|---|---|
| 01 | C20.03.05.001 | EPC-S1571A | Intel® Celeron® J6412，15" P-CAP | 4GB DDR4 | SSD 128GB |
| 02 | C20.03.05.002 | EPC-S1571A | Intel® Celeron® J6412，15" P-CAP | 8GB DDR4 | SSD 256GB |
| 03 | C20.03.05.003 | EPC-S1571A | Intel® Celeron® J6412，15" P-CAP | 8GB DDR4 | SSD 512GB |
| 04 | C20.03.05.004 | EPC-S1571A | Intel® Celeron® J6412，15" P-CAP | 32GB DDR4 | SSD 1TB |
Note: Due to chip-market fluctuations, key components such as CPU, memory and storage may change; please consult our sales team for details.
APPLICATIONS
EPC-S1571A Typical Applications
Built on a 15"-wire resistive touchscreen + IP65 protection + FlexCore™ Modular, EPC-S1571A is widely deployed across the following industrial sites.
