15.6" EMC-Shielded Industrial Touch
15.6" FHD touchscreen + EMC-shielded glass for strong electromagnetic immunity. 10-point capacitive touch, sunlight-readable outdoors.
MPC-AS-W150-T1-A · L2 PORTABLE WORKSTATION · 15.6"
15.6" single-screen portable workstation · a 7th/10th/12th-Gen Intel® Core™ i3/i5/i7 portable workstation

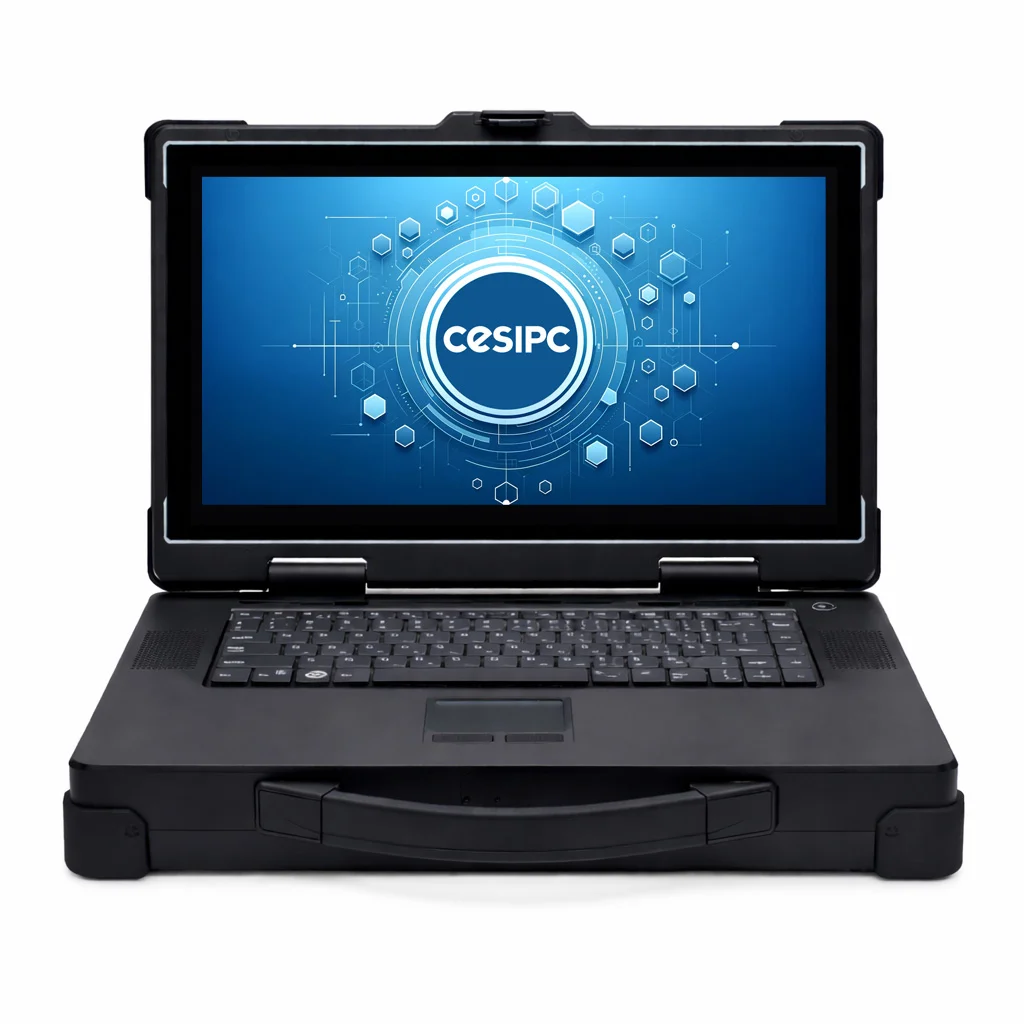

MPC-AS-W150-T1-A Single-Screen 15.6 inch Rugged Portable Workstation
The CESIPC MPC-AS-W150-T1-A is a rugged mobile computing terminal purpose-built for demanding industrial environments and specialized field deployments such as power inspection, emergency response, UAV ground stations and industrial field operations. Its high-strength aluminum-alloy unibody is structurally rugged, shock- and vibration-resistant, dust-proof and weather-resistant, adapting to harsh conditions including temperature extremes, humidity and heavy dust. It features a 15.6-inch Full HD display with multi-touch capacitive operation for fast, efficient control, plus a comprehensive set of interfaces — Gigabit LAN, USB, industrial serial, HDMI and wireless — to meet multi-device connection and on-site data integration needs. Widely used in emergency command and dispatch, field mission execution, industrial equipment debugging, on-site data capture, power O&M inspection and UAV configuration control, it is a reliable industrial-grade mobile compute terminal for severe environments.
Typical Applications
15.6"FHD EMC-shielded touch
Single screenTrolley carry case
IP54Dust & splash protection
24000mAhHigh-capacity long runtime
PRODUCT HIGHLIGHTS · L2 PORTABLE WORKSTATION
Eight Core Features of the MPC-AS-W150-T1-A
Portable workstation · 15.6" single-screen — field-grade compute + industrial ruggedization + multi-mode connectivity.
Rugged Aluminum-Alloy Trolley Case
Aluminum/magnesium-alloy unibody + trolley carry case — structurally rugged, shock- and vibration-resistant. IP54 dust and water protection, adapting to temperature extremes, dust and vibration.
7th / 10th / 12th-Gen Core Compatible
7th / 10th / 12th-Gen Intel® Core™ i3 / i5 / i7, multiple tiers available. Performance configured to need, covering everything from inspection data capture to UAV ground-station control.
24000 mAh High-Capacity Battery
24000 mAh lithium battery, standard 19V supply, 9~36V wide-voltage customization supported. Sustained runtime in field locations without mains power — ideal for emergency-response use.
Full I/O Set + Rear Aviation Connectors
Dual USB 2.0 + dual USB 3.0 + Gigabit LAN + HDMI — a complete interface set. Rear custom aviation connectors for more stable, reliable industrial connection.
Wi-Fi + Bluetooth + Optional 5G
Dual-band Wi-Fi + Bluetooth standard, with optional 4G/5G universal-network module. A workhorse for mobile connectivity in power inspection, emergency response and UAV ground-station scenarios.
Aluminum/Magnesium Alloy + Shock Ruggedization
High-strength aluminum/magnesium-alloy body, temperature-extreme tolerant and vibration-resistant, matching the demands of harsh industrial field environments and single-operator deployment.
Win 10 + Ubuntu Multi-OS
Win 10 + Ubuntu dual-OS support, with BIOS customization / boot logo / OEM project-level support.
PRODUCT GALLERY

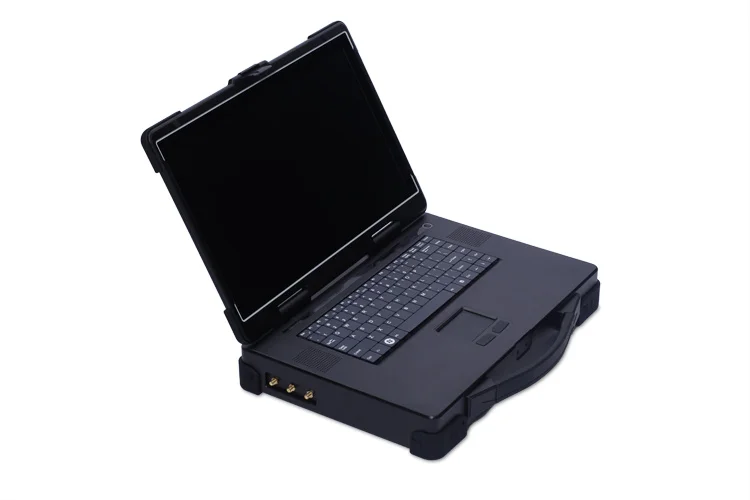

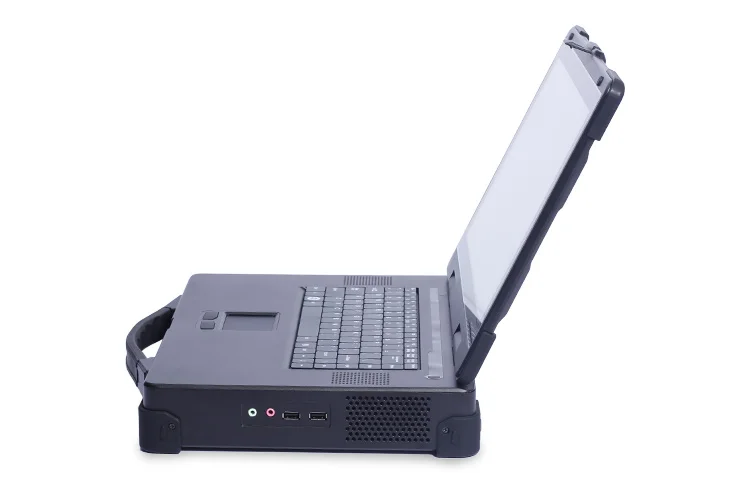

Multi-Angle Product Views
SPECIFICATIONS
MPC-AS-W150-T1-A Full Specifications
Datasheet version V1.0 · Due to chip-market fluctuations, key components may change; final configuration is subject to sales confirmation.
Core Hardware
| Parameter | Intel® Core™ 7th Gen | Intel® Core™ 10th Gen | Intel® Core™ 12th Gen |
|---|---|---|---|
| Processor | i7-7560U | i7-10870H | i7-1255U |
| Cores | 2 cores | 8 cores | 10 cores (2P+8E) |
| Threads | 4 threads | 16 threads | 12 threads |
| Frequency | Base 2.4GHz / Turbo 3.8GHz | Base 2.2GHz / Turbo 5.0GHz | Base 1.7GHz / Turbo 4.7GHz |
| Cache | 4MB | 16MB | 12MB |
| TDP | 15W | 45W | 15W |
| Graphics | Intel Iris Plus Graphics 640 | Intel UHD Graphics 630 | Intel Iris Xe Graphics (96EU) |
| Memory | 8GB | 16GB | 32GB |
| Storage | 500GB SSD | 1TB SSD | 2TB SSD |
Touch & Display
| Parameter | Specification |
|---|---|
| Display size | 15.6" (16:9) |
| Display type | FHD TFT LED LCD |
| Resolution | 1920 × 1080 |
| Colors | 16.7M |
| Brightness | 300 cd/m² |
| Contrast | 700:1 |
| Backlight life | 50,000 hrs |
| Touch type | Projected-capacitive touch (P-CAP), 10-point |
| Touch protection | IP65 (front panel) |
I/O Interfaces
| Parameter | Specification |
|---|---|
| USB 3.0 | 2 |
| USB 2.0 | 2 |
| HDMI | 1 |
| Gigabit Ethernet | 1 |
| Wi-Fi (optional) | Dual-band 2.4G/5G wireless card |
| Aviation connector | Rear custom aviation connector |
| RS232 | Optional |
Power Input
| Parameter | Specification |
|---|---|
| Input voltage | DC 19V |
| Battery | 24,000mAh lithium battery, 4+ hours runtime |
Physical Attributes
| Parameter | Specification |
|---|---|
| Dimensions | 440 (L) × 320 (W) × 180 (H) mm |
| Weight | Approx. 5 kg net |
| Housing material | High-strength aluminum alloy (magnesium-aluminum alloy optional) |
| Color | Black |
Operating Environment
| Parameter | Specification |
|---|---|
| Operating temperature | 0 to 50℃ (wide-temp optional) |
| Ingress protection | IP54 |
Operating System
| Parameter | Specification |
|---|---|
| Windows | Windows 7 / Windows 10 / Windows 11 |
| Linux | Ubuntu 20.04 / 22.04 |
Certifications & Compliance
| Parameter | Specification |
|---|---|
| Factory certification | ISO9001: 2015 |
| Customization options | RFID / ID-card reader / router / aviation connectors / structural ruggedization |
I/O LAYOUT
Front & Rear Panel I/O Layout
Portable workstation with industrial-grade interfaces — fast on-site connection and multi-device collaboration.

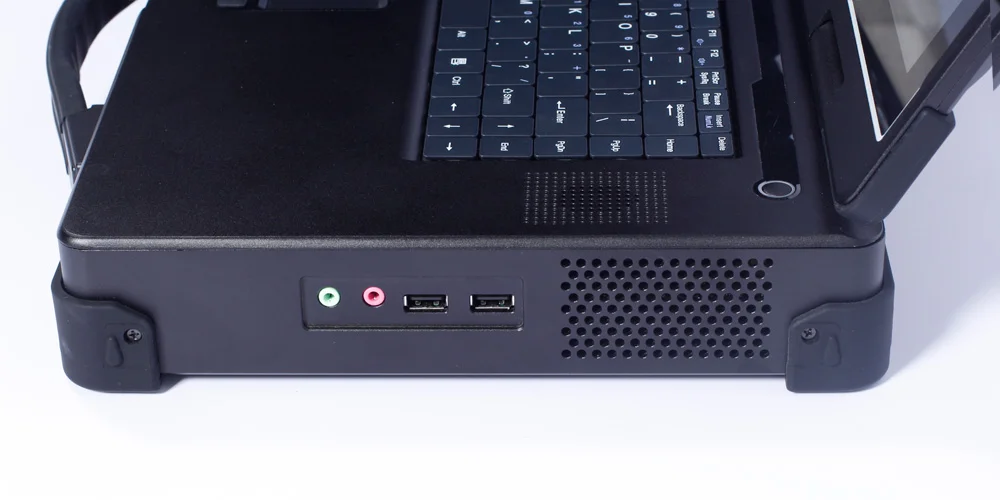

Side / Top panel

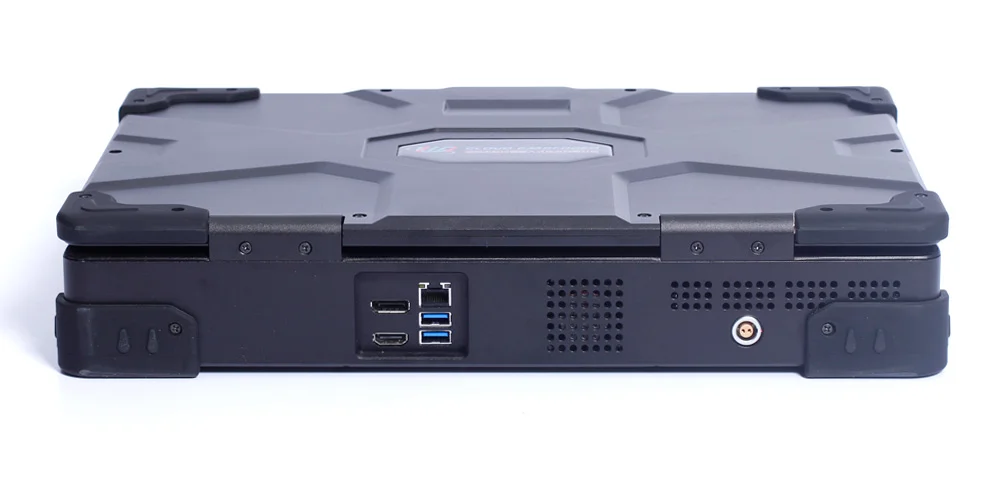

Bottom / Rear panel
DIMENSIONS

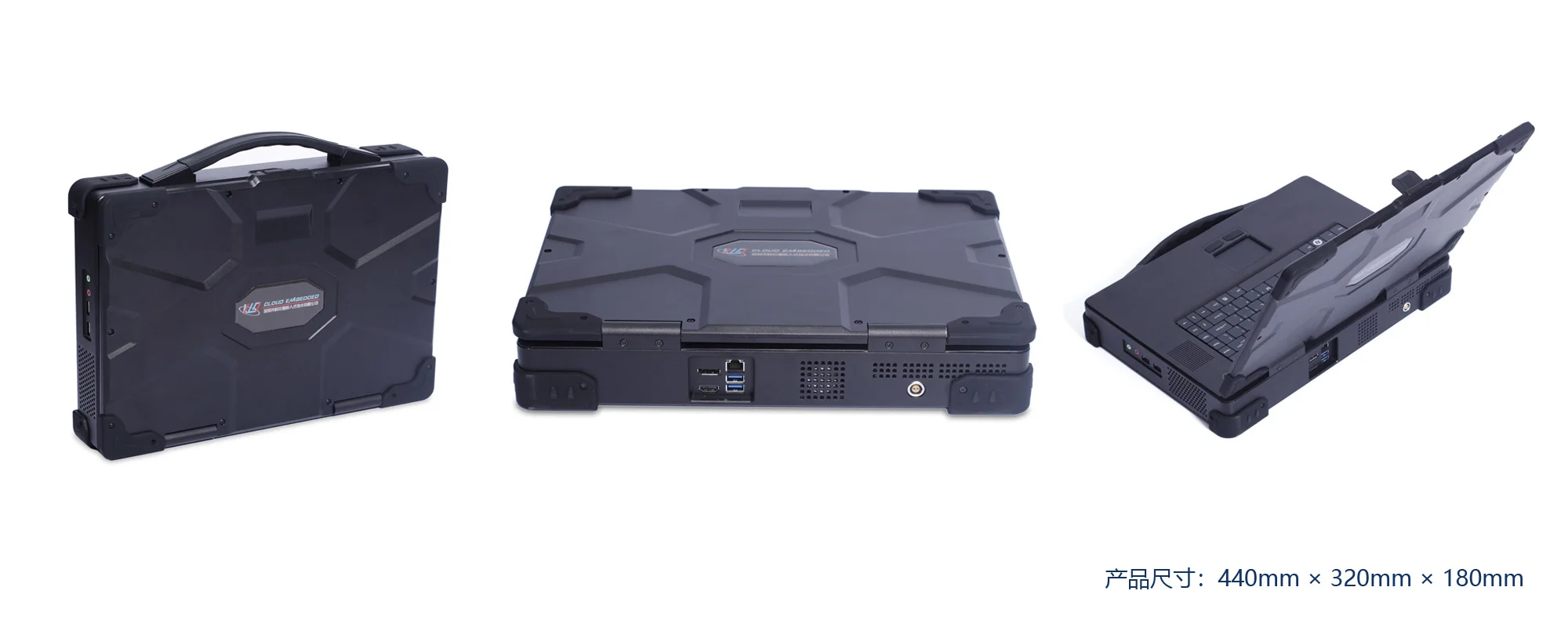

Three-View Dimensions (mm)
Three-view drawing and mounting dimensions of the 15.6" single-screen portable workstation.
ORDERING INFORMATION
Ordering Information · Part Number
Wireless modules (4G/5G/BeiDou), expansion modules, battery capacity and wide-temp versions are customized per project.
| No. | Part Number | Model | Main Configuration | Memory | Storage |
|---|---|---|---|---|---|
| 01 | C5.02.05.009 | MPC-AS-W150-T1-A | Intel® Core™ i7-7560U | 8GB DDR4 | SSD 512GB |
| 02 | C5.02.05.010 | MPC-AS-W150-T1-A | Intel® Core™ i7-10870H | 16GB DDR4 | SSD 1TB |
| 03 | C5.02.05.011 | MPC-AS-W150-T1-A | Intel® Core™ i7-1255U | 32GB DDR4 | SSD 2TB |
Note: Due to market fluctuations, key components such as CPU, memory and storage may vary. Wireless / expansion modules / wide-temp / encrypted versions are customized per project — please consult our sales team.
APPLICATIONS

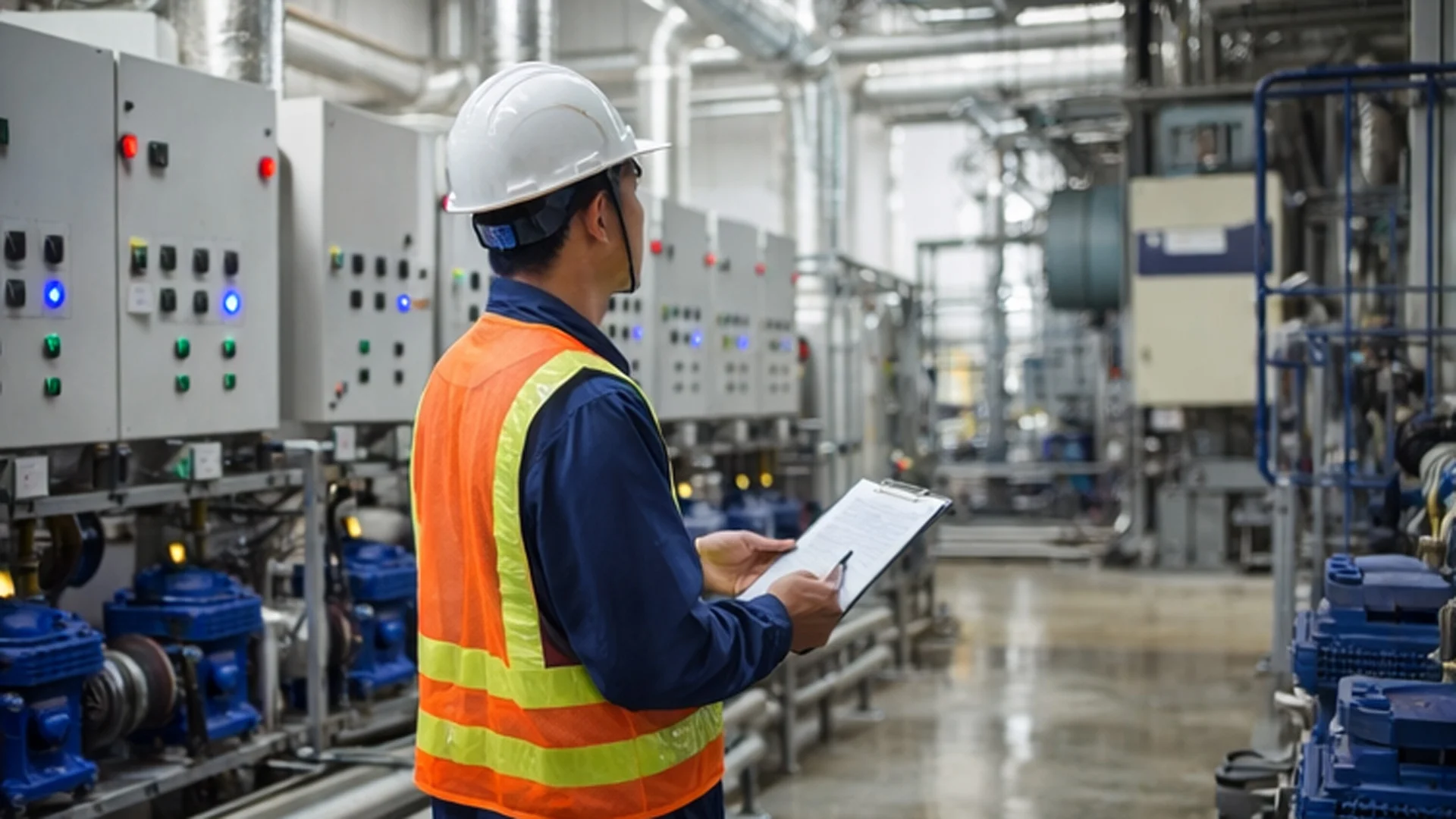

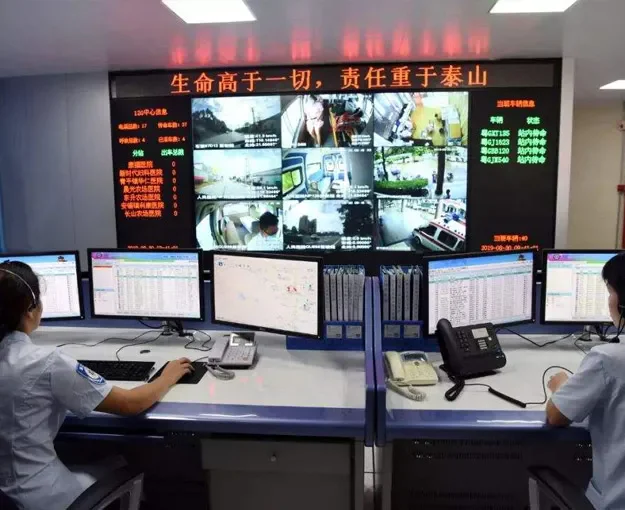

MPC-AS-W150-T1-A Typical Applications
Portable workstation · field-grade compute + full-mode connectivity + industrial ruggedness, covering power / emergency / unmanned / coordinated-control scenarios.
MPC-AS-W150-T1-A Selection Consultation
Tell us your project background (power / emergency / unmanned / maritime / coordinated control), the expansion modules you need (4G/5G/satellite/BeiDou/RFID/AI), order quantity and field environment, and our engineers will reply within 24 hours with a full datasheet, quotation and sample-evaluation plan.
