24" widescreen P-CAP 10-point capacitive touch + aluminum front bezel with IP65 front panel + moisture-sealed IP65 I/O ports — the 10th Gen Intel® Core™ light-duty industrial touch panel PC

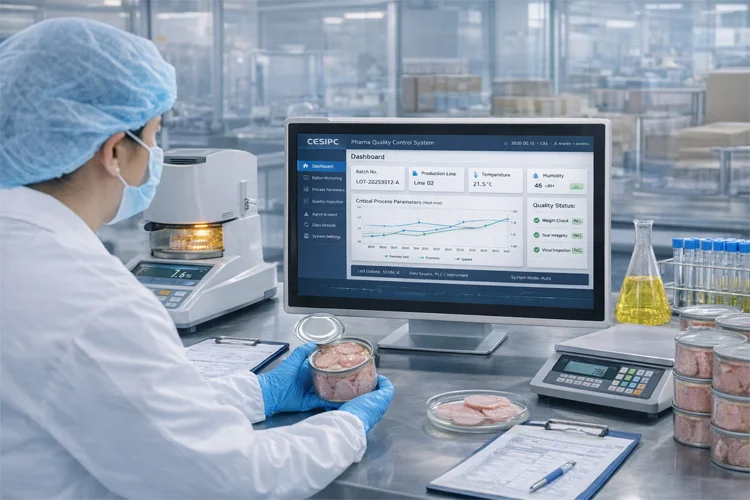

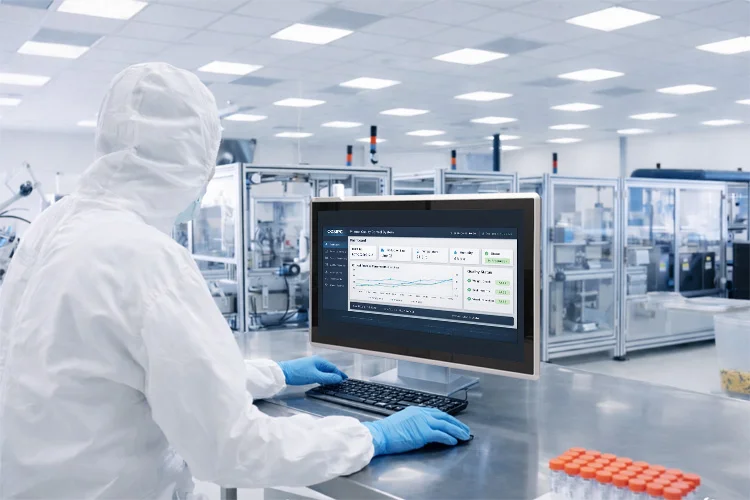

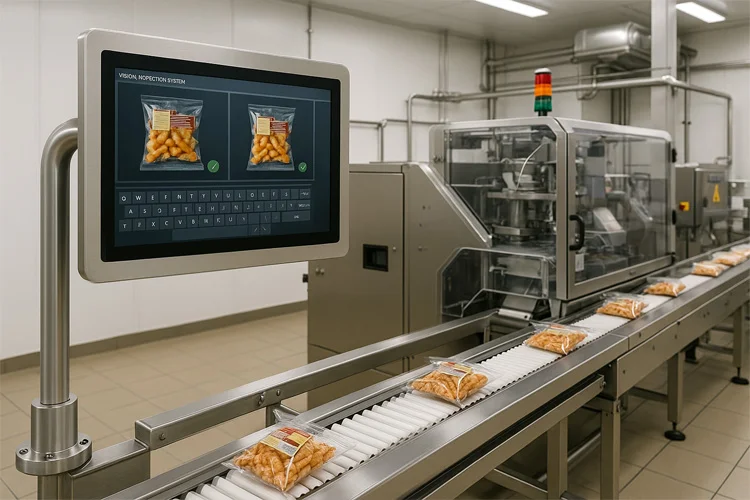

The WPC-W2492A-L is a 23.6" light-duty industrial panel PC for inspection areas, offices, packaging lines and light-humidity environments. Its aluminum front-bezel industrial structure provides front-panel IP65 protection, effectively handling dust, splashing moisture and daily cleaning. The 23.6" Full HD widescreen offers a larger viewing area for industrial visualization, HMI, data dashboards and on-site office needs. Powered by Intel® 10th Gen Core™ i3 / i5 / i7, it combines solid performance with stable operation. Without complex protection investment, it markedly improves system stability and environmental adaptability — a cost-effective industrial-grade commercial PC upgrade.
Aluminum bezel + IP65 front panel + IP65 moisture-sealed I/O — a cost-effective industrial-grade commercial all-in-one upgrade.
Front-panel IP65 protection rating effectively handles dust splash, moisture, alcohol wiping and daily cleaning. Suitable for long-term operation in inspection areas, offices and light-humidity environments. Not rated for high-pressure hot-water washdown — for heavy washdown processes choose the G grade (IP69K).

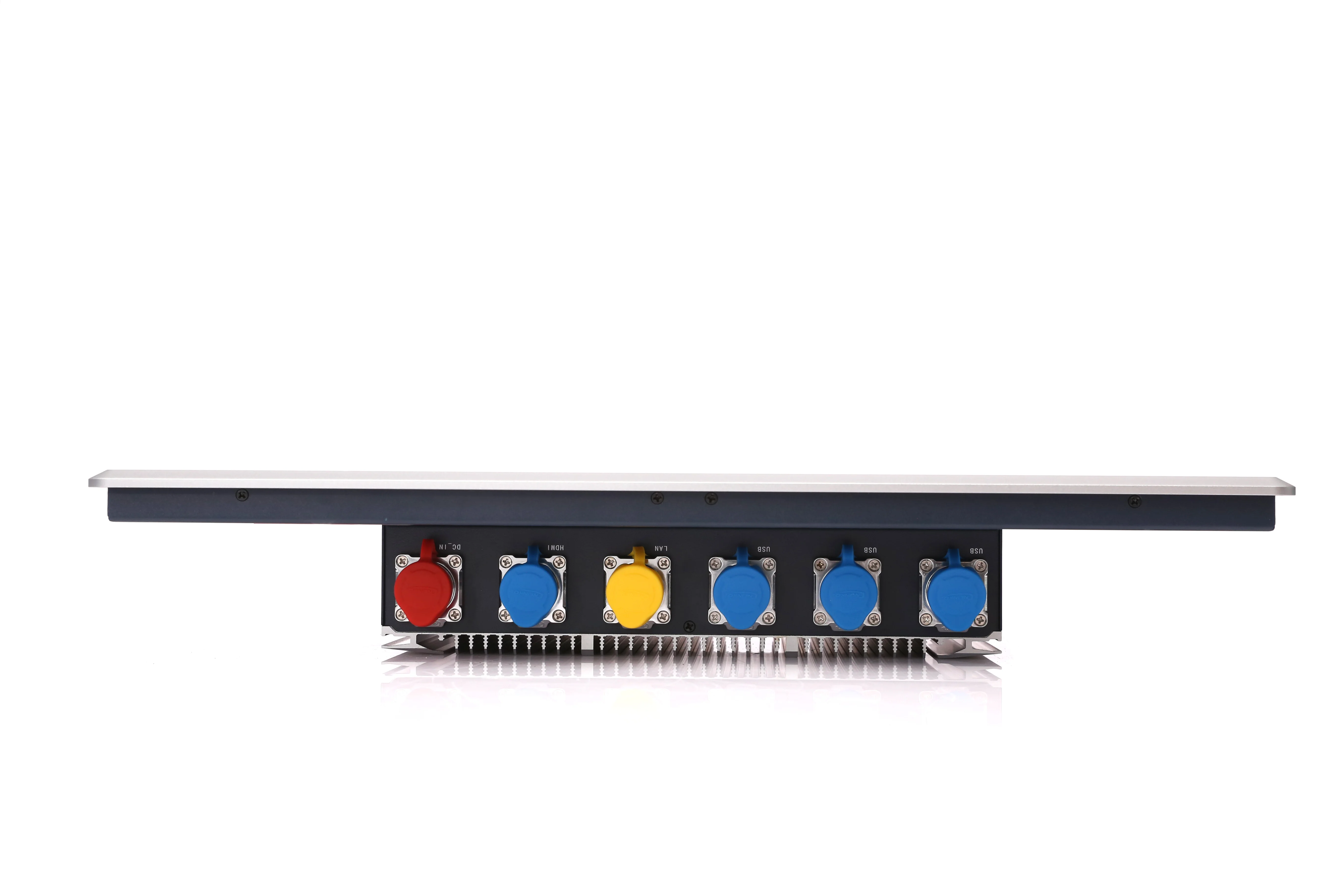

All I/O ports use a polymer-sealed design, reaching IP65 moisture and dust protection. Beyond the front panel, the rear ports are protected too, preventing moisture / dust ingress that causes shorts and failures. Compared with the exposed ports of ordinary commercial all-in-ones, overall reliability is greatly improved.
6061 aviation-grade aluminum front bezel + extruded aluminum body structure: lighter, better cooling, rust- and corrosion-resistant. The anodized front-panel surface resists chemical cleaning agents (hypochlorite, alcohol, quaternary ammonium) for worry-free daily wiping. The lightweight structure suits VESA wall mount, desktop and embedded deployment.

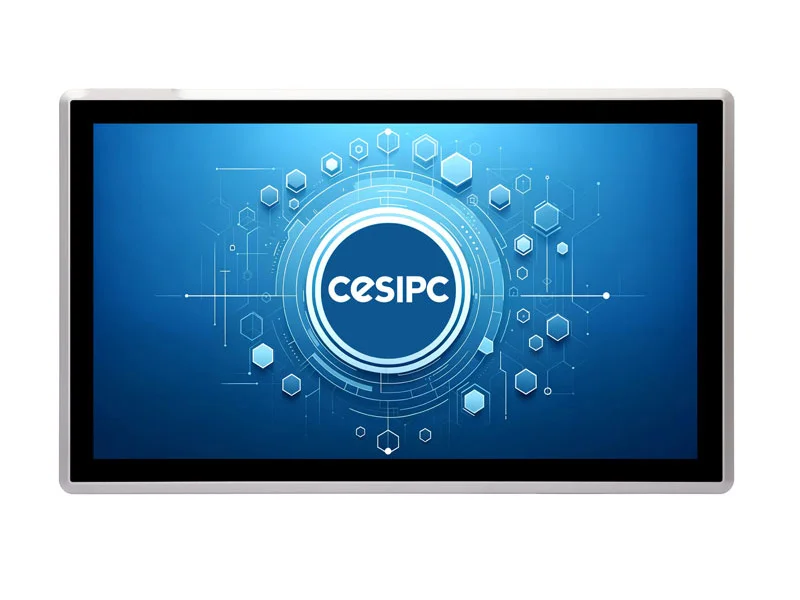

Projected capacitive touch (P-CAP), 10-point multi-touch, supports wet-hand touch and glove operation. FHD TFT LED LCD 1920 × 1080 industrial display, 350 cd/m² brightness, AG anti-glare, 50,000-hour backlight life.
Intel® Core™ i3-10110U / i5-10210U / i7-10510U in three tiers. U-Series low power balancing performance and efficiency.

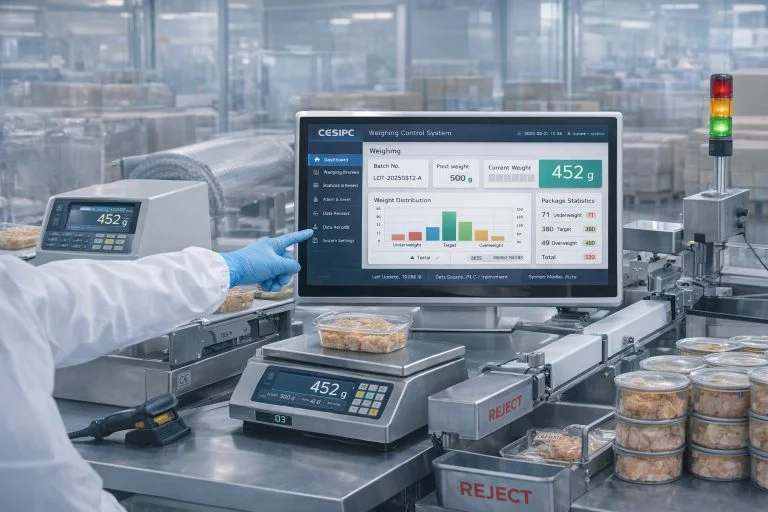

Designed for the office-production interface: offices, shop-floor office areas, inspection rooms and record stations. Compared with ordinary commercial all-in-ones, it offers full-unit IP65 protection + industrial wide voltage + 24/7 stable operation. About 40-50% lower cost than G / S stainless grades — a cost-effective industrial upgrade.
1920 × 1080 Full HD resolution, 16:9 widescreen, displaying multi-window dashboards + industrial SCADA + ERP/MES terminals on one screen. 16.7M true colors + 178° full-viewing-angle IPS panel, suited to both office reading and field monitoring.
4-pin pluggable Phoenix terminal, 9-36V DC wide-voltage input. Four-way protection against overvoltage / overcurrent / reverse polarity / surge. Suits 24V industrial PLC direct supply / 12V vehicle scenarios.
Built on the FlexCore™ four-element architecture: i-Core + i-Function expansion + i-Connect I/O + Smart Thermal management. Long-life display retention with on-demand mainboard upgrades, easing industry customization and future upgrades.
Four coordinated protection mechanisms: ① power protection + ② backup power + ③ start-stop control + ④ system self-recovery. No data loss on power failure, stable long term. Multi-OS support: Win 10/11 · Ubuntu · CentOS.
Supports three mounting options: embedded panel mount (716×326 mm standard cutout) / VESA 75×75 / 100×100 wall mount / desktop stand. Fanless cooling design with 0 dB noise for distraction-free office environments.
Datasheet V1.0 · Updated 2026-04-29 · Due to chip market fluctuations, key chips may vary; final spec is subject to sales confirmation.
| Parameter | Intel® Core™ i3-10110U | Intel® Core™ i5-10210U | Intel® Core™ i7-10510U |
|---|---|---|---|
| Processor | i3-10110U | i5-10210U | i7-10510U |
| Cores | 2 | 4 | 4 |
| Threads | 4 | 8 | 8 |
| Frequency | 2.1~4.1 GHz | 1.6~4.2 GHz | 1.8~4.9 GHz |
| Cache | 4MB | 6MB | 8MB |
| TDP | 15W | ||
| Graphics | Intel UHD Graphics 620 | ||
| Memory | 4~32GB DDR4 | ||
| Storage | 1× M.2 SSD + 1× M.2 NVMe | ||
| Parameter | Specification |
|---|---|
| USB 3.0 | 3 |
| HDMI | 1 |
| Gigabit Ethernet | 1 |
| Wi-Fi (optional) | Dual-band 2.4G/5G wireless module |
| 4G/5G (optional) | 4G/5G LTE all-network (optional) |
| Parameter | Specification |
|---|---|
| Power Connector | 4-pin pluggable terminal, 9~36V DC wide-voltage input |
| ATX Switch | 1× ATX power switch |
| Boot Mode | AT/ATX mode switch (built-in) |
| Parameter | Specification |
|---|---|

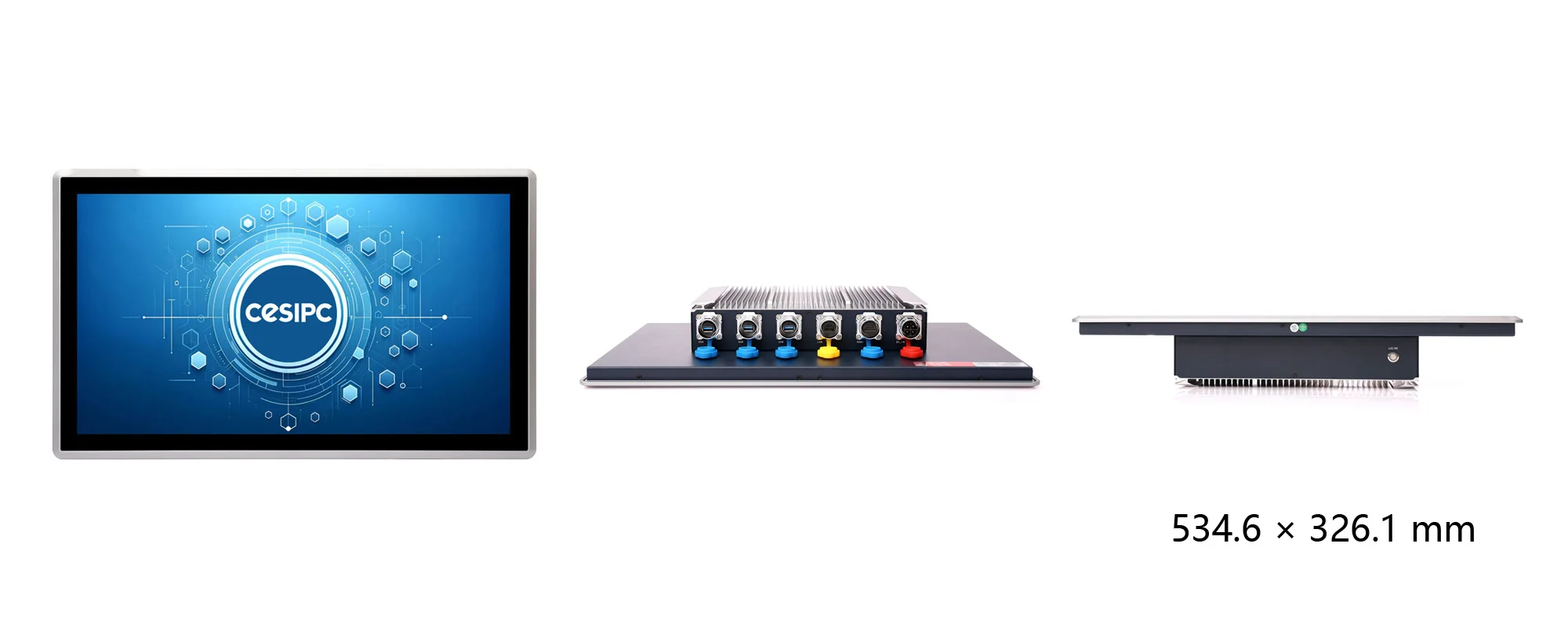

| Dimensions | 534.6(W)×326.1(D)×88.1(H) mm |
| Mounting Dimensions | 516.6(W)×308.1(D) mm (panel cutout) |
| Weight | 6.75 KG net |
| Enclosure Material | 6061 high-strength aluminum |
| Mechanical Structure | Extruded aluminum + sheet-metal structure |
| Mounting | Embedded panel mount / VESA 75×75 wall mount |
| MTBF | 60,000 hrs |
| Parameter | Specification |
|---|---|
| Operating Temp. | 0~60℃ (wide-temp -40~80℃ optional) |
| Storage Temp. | -10~70℃ (wide-temp -40~80℃ optional) |
| Relative Humidity | 10%~90%, non-condensing |
| EMC | CE, FCC (EN 55032 & EN 55035) |
| EMC Harmonics | EN IEC 61000-3-2 |
| Parameter | Specification |
|---|---|
| Display Size | 23.6" (16:9) |
| Display Type | FHD TFT LED LCD |
| Resolution | 1920 × 1080 |
| Colors | 16.7M |
| Brightness | 350 cd/m² |
| Contrast | 500:1 |
| Backlight Life | 50,000 hrs |
| Touch Type | Projected capacitive touch (P-CAP), 10-point |
| Touch Protection | IP65 (front panel) |
| Parameter | Specification |
|---|---|
| Windows | Windows 7 / Windows 10 / Windows 11 |
| Linux | Ubuntu 16.04 / 18.04 / 20.04 / 22.04 |
| Parameter | Specification |
|---|---|
| Factory Certification | ISO9001: 2015 |
| BIOS Customization | BIOS / Boot LOGO / OEM |

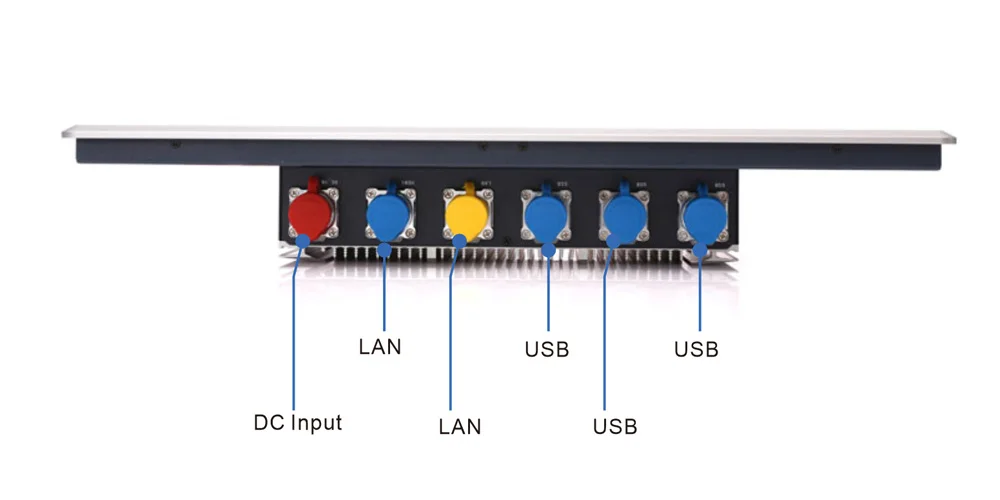

All ports use a polymer-sealed design reaching IP65 moisture and dust protection, greatly improving reliability over the exposed ports of ordinary commercial all-in-ones.
24" ultra-wide standard cutout · three mounting options: embedded / VESA 75×75 wall mount / desktop.
Aluminum color, wide temperature (-40~80℃), 4G/5G module, Wi-Fi and RFID options — please contact sales to confirm.
| No. | Part Number | Model | Processor + Touchscreen | Memory | Storage |
|---|---|---|---|---|---|
| 01 | C5.02.08.081 | WPC-W2492A-L | Intel® i3-10110U，21.5" P-CAP | 8GB DDR4 | SSD 1TB |
| 02 | C5.02.08.082 | WPC-W2492A-L | Intel® i5-10210U，21.5" P-CAP | 8GB DDR4 | SSD 1TB |
| 03 | C5.02.08.083 | WPC-W2492A-L | Intel® i7-10510U，21.5" P-CAP | 8GB DDR4 | SSD 1TB |
Note: Due to market fluctuations, key chips such as CPU, memory and storage may vary. Wide-temperature version (-40~80℃), 4G/5G module and RFID options are customized per project — please consult our sales team.
Built on an IP65 front panel + IP65 I/O + aluminum body, WPC-W2492A-L is a cost-effective industrial-grade commercial all-in-one upgrade.
Tell us your project background (inspection / office / field monitoring / laboratory), mounting method (embedded / VESA / desktop), wide-temperature needs and order quantity, and our engineers will reply within 24 hours with a full datasheet + quotation + sample evaluation plan.
