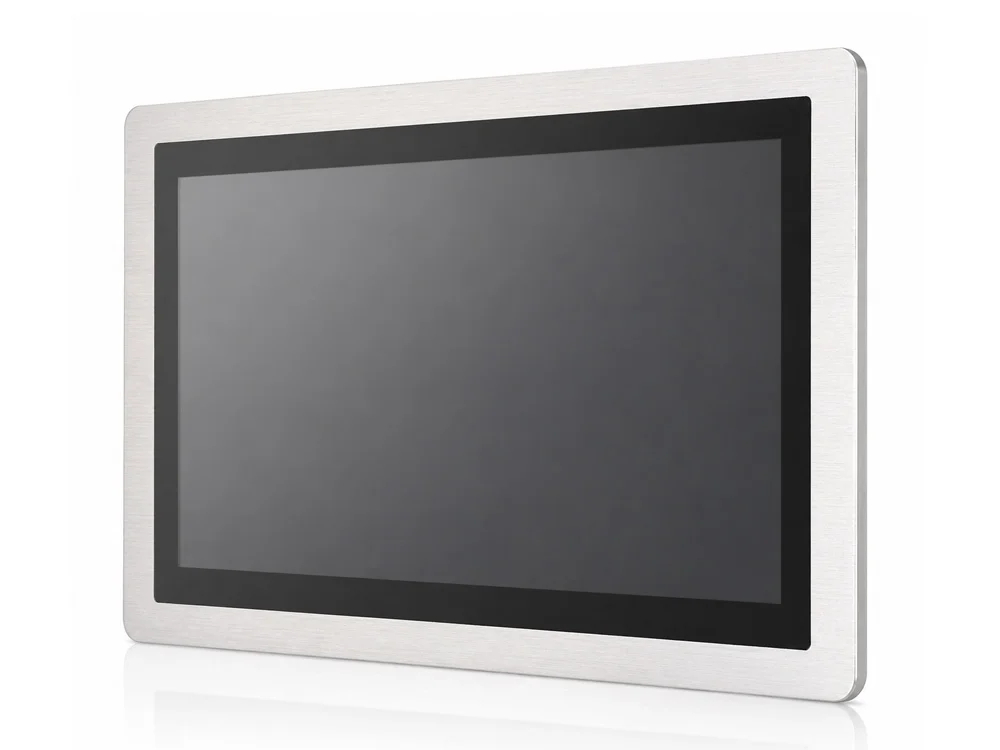

21.5" widescreen P-CAP 10-point capacitive touch + 304/316 stainless steel fully enclosed chassis + IP69K full-unit protection — the Intel® Celeron® J6412 hygienic industrial touch panel PC
The WPC-W2172A-G is a 21.5" low-power hygienic industrial panel PC built for high-hygiene washdown environments such as food processing, dairy and pharma. Its all-stainless-steel body delivers dual IP67 / IP69K protection, withstanding high-temperature high-pressure washdown, foam cleaning and frequent sanitization to meet stringent hygiene requirements. The large 21.5" widescreen suits line-status monitoring, MES dashboards, equipment interfaces and multi-window display, widely used for HMI and equipment control across washdown zones.
304/316 stainless steel fully enclosed + IP69K full-unit protection + P-CAP touch — the standard industrial HMI answer for compliant food/pharma washdown zones.
IP69K full-unit protection rating withstands direct washdown with 80°C / 100 bar high-pressure hot water. Purpose-built for daily deep cleaning in washdown zones across food, pharma, seafood and dairy, meeting EHEDG / 3-A hygienic standards.
304 / 316 food-grade stainless steel one-piece sheet-metal structure, fully enclosed with no dead corners and no dirt-trapping crevices. Mirror brushed surface resists corrosion and chemical cleaning agents (hypochlorite, hydrogen peroxide, quaternary ammonium), with no corrosion from long-term contact with brine, acids or alkalis.
Projected capacitive touch (P-CAP), 10-point multi-touch, supports wet-hand touch and glove operation. FHD TFT LED LCD 1920 × 1080 industrial display, 350 cd/m² brightness, AG anti-glare, 50,000-hour backlight life.
Intel® Celeron® J6412 4C4T, up to 2.6 GHz boost, just 10W TDP. 10nm process, low heat and high stability.
FDA food-grade materials + ISO 22000 food safety management system compatible. Suitable for critical compliance scenarios such as GMP pharmaceutical lines / HACCP food safety management / 3-A dairy standards.
Every I/O uses a CNC-machined stainless steel connector system with flange mounting, plus a matching stainless steel plug + sealing cap. Compared with ordinary M12 aviation connectors, it offers superior mechanical strength, sealing reliability and corrosion resistance, fully suited to IP67 / IP69K high-pressure hot-water washdown environments.
Supports cleanroom embedded panel mounting (21.5" widescreen standard cutout) + VESA 100×100 stainless steel bracket wall mount. Covers cleanroom / filling line / packaging line / inspection station deployments.
3-pin pluggable Phoenix terminal, 9-36V DC wide-voltage input. Four-way protection against overvoltage / overcurrent / reverse polarity / surge. Suits 24V industrial PLC direct supply / 12V vehicle scenarios.
Built on the FlexCore™ four-element architecture: i-Core + i-Function expansion + i-Connect I/O + Smart Thermal management. Long-life display retention with on-demand mainboard upgrades.
Four coordinated protection mechanisms: ① power protection + ② backup power + ③ start-stop control + ④ system self-recovery. Power loss does not corrupt critical batch data, keeping the HACCP traceability chain unbroken.
Windows 10 / 11 · CentOS · Ubuntu 16.04 / 18.04 / 20.04 / 22.04. BIOS supports customization, boot logo and OEM.
Datasheet V1.0 · Updated 2026-03-20 · Due to chip market fluctuations, key chips may vary; final spec is subject to sales confirmation.
| Parameter | Specification |
|---|---|
| Processor | Intel® Celeron® J6412 |
| Cores | 4 |
| Threads | 4 |
| Frequency | 2.0~2.6 GHz |
| Cache | 4 MB L3 Cache，1.5 MB L2 Cache |
| TDP | 10W |
| Graphics | Intel UHD Graphics 32EU |
| Memory | DDR4 4~32 GB |
| Storage | 1× M.2 2242 SSD |
| Parameter | Specification |
|---|---|
| USB 2.0 | 2 |
| RS232 | 1 |
| RS485 | 1 |
| Gigabit Ethernet | 2 × LAN |
| Audio | 3.5mm TRRS |
| Wi-Fi (optional) | Dual-band 2.4G/5G wireless module |
| Parameter | Specification |
|---|---|
| Power Connector | 1× 3-pin pluggable terminal, 9~36V DC wide-voltage input |
| ATX Switch | 1× ATX power switch |
| Boot Mode | AT/ATX mode switch (built-in) |
| Parameter | Specification |
|---|---|

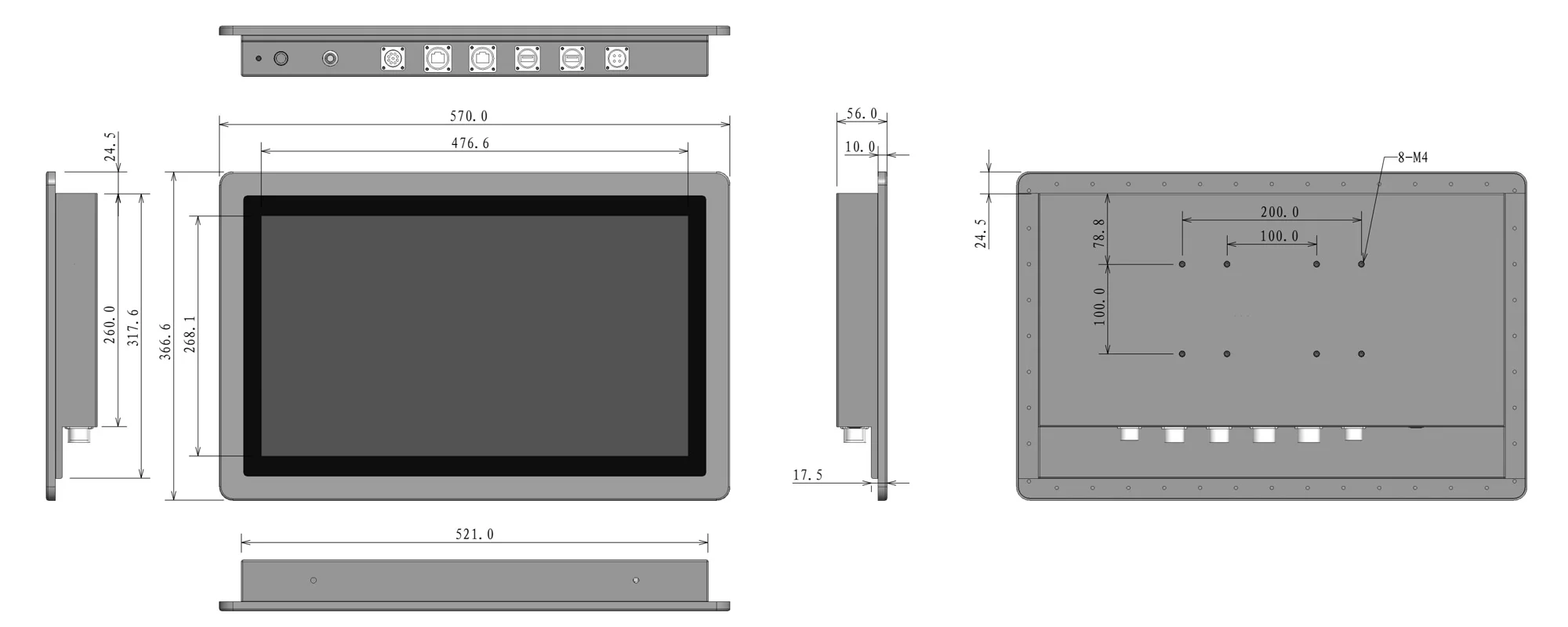

| Dimensions | 570 (W) × 366.6(D) × 56 (H) mm |
| Weight | 12.34 KG net |
| Enclosure Material | 304/316 stainless steel |
| Mechanical Structure | Sheet-metal structure |
| Mounting | Embedded panel mount / VESA 100×100 wall mount |
| Reset Switch | 1× reset switch |
| TPM | TPM 2.0 |
| Watchdog | Hardware watchdog supported |
| MTBF | 60,000 hrs |
| Parameter | Specification |
|---|---|
| Operating Temp. | 0~60℃ (wide-temp -40~80℃ optional) |
| Storage Temp. | -10~70℃ (wide-temp -40~80℃ optional) |
| Relative Humidity | 10%~90%, non-condensing |
| EMC | CE, FCC (EN 55032 & EN 55035) |
| EMC Harmonics | EN IEC 61000-3-2 |
| Parameter | Specification |
|---|---|
| Display Size | 21.5" (16:9) |
| Display Type | XGA TFT LED LCD |
| Resolution | 1920 × 1080 |
| Colors | 16.2M |
| Brightness | 350 cd/m² |
| Contrast | 1000:1 |
| Backlight Life | 50,000 hrs |
| Touch Type | Projected capacitive touch (P-CAP), 10-point |
| Touch Protection | IP67 (full unit) |
| Parameter | Specification |
|---|---|
| Windows | Windows 7 / Windows 10 / Windows 11 |
| Linux | Ubuntu 16.04 / 18.04 / 20.04 / 22.04 |
| Parameter | Specification |
|---|---|
| Factory Certification | ISO9001: 2015 |
| BIOS Customization | BIOS / Boot LOGO / OEM |

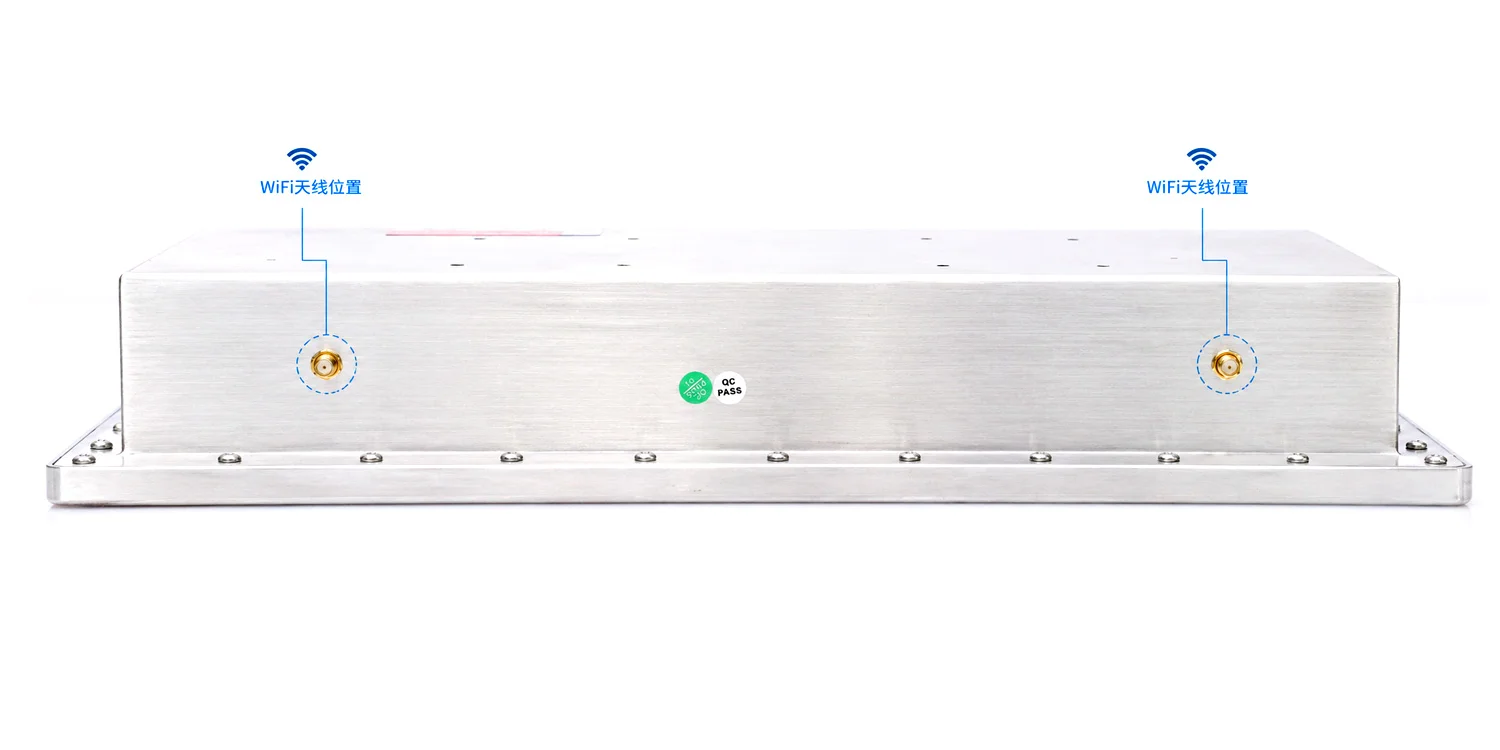

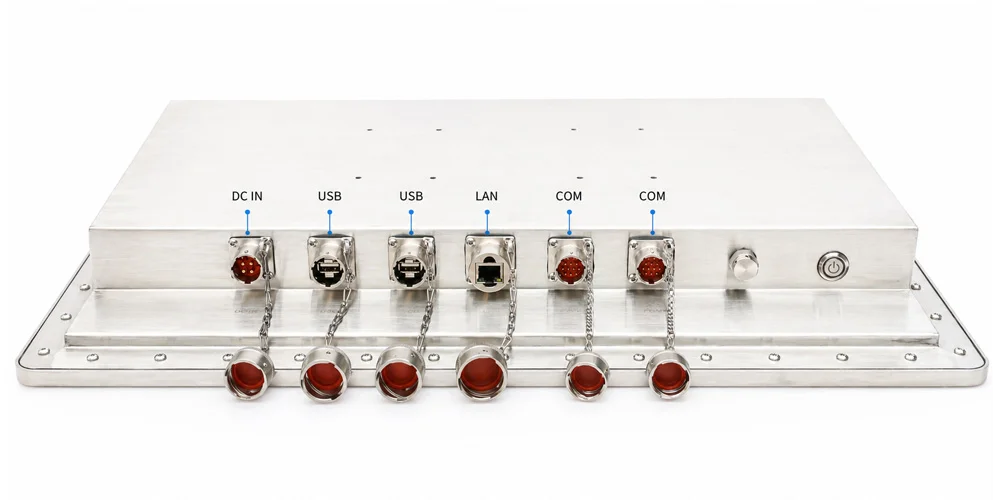

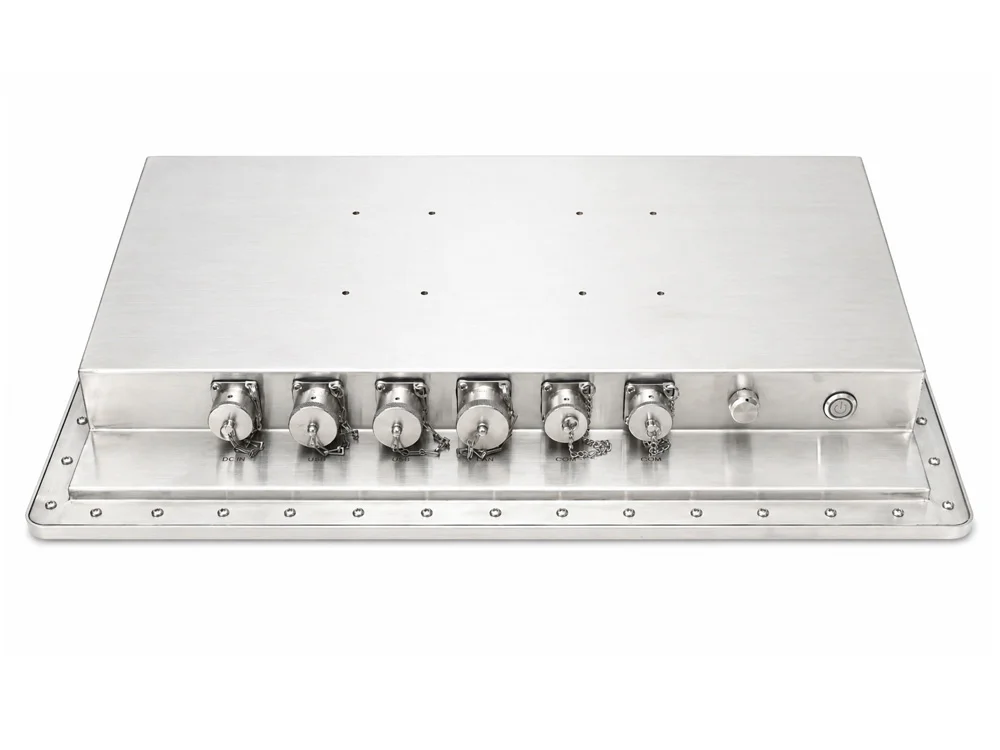

Every I/O uses a CNC-machined stainless steel connector (not an ordinary M12 aviation connector) + flange mounting + matching stainless steel plug and sealing cap, for gap-free IP69K protection across the whole body. The front panel stays a continuous stainless steel surface, with all ports routed through side / bottom connector outlets.
21.5" widescreen standard cutout · embedded cleanroom mounting + VESA 100×100 stainless steel bracket wall mount.
Stainless steel grade (304 / 316), I/O configuration and 3-A / EHEDG certification are customized per project — please contact sales to confirm.
| No. | Part Number | Model | Processor + Touchscreen | Memory | Storage |
|---|---|---|---|---|---|
| 01 | C5.02.08.044 | WPC-W2172A-G | Intel® Celeron® J6412 | 8GB DDR4 | SSD 256GB |
Note: Due to market fluctuations, key chips such as CPU, memory and storage may vary. Stainless steel grade (304 / 316) and 3-A / EHEDG certification are customized per project — please consult our sales team.

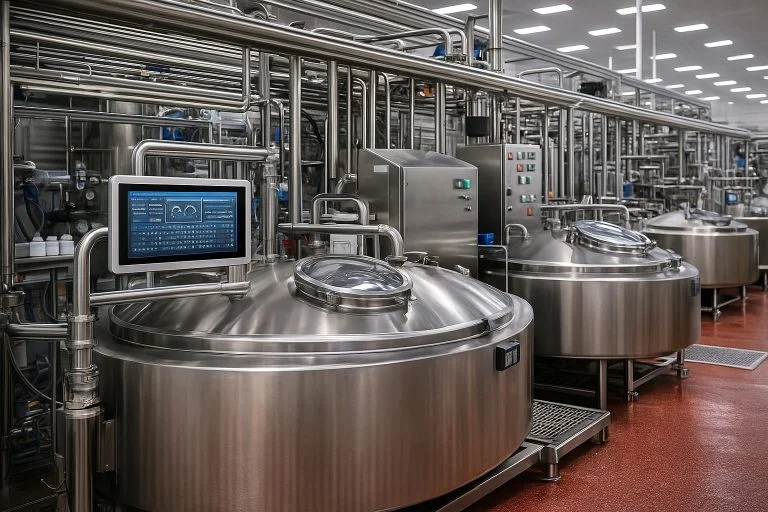

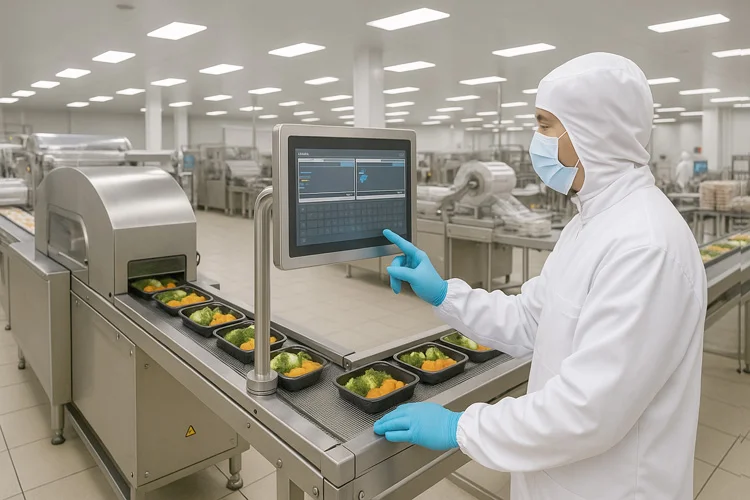

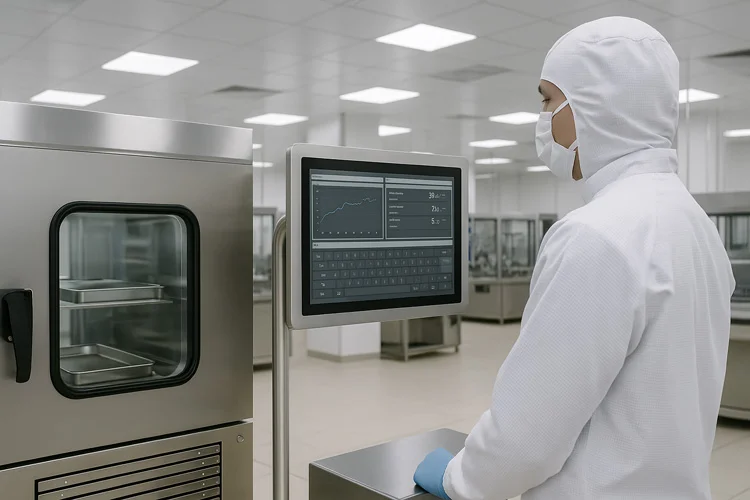

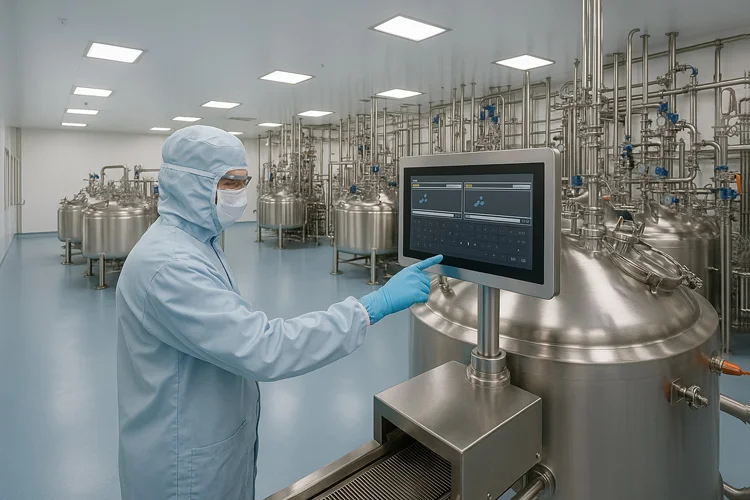

Built on IP69K full-unit protection + 304/316 stainless steel body + food-grade sealing, WPC-W2172A-G is purpose-built for the high-hygiene scenarios below.
Tell us your project background (food / pharma / seafood / dairy), stainless steel grade (304 / 316), certification needs (3-A / EHEDG / FDA) and order quantity, and our engineers will reply within 24 hours with a full datasheet + quotation + sample evaluation plan.
