15.6" widescreen P-CAP 10-point capacitive touch + 304/316 stainless steel front panel with IP69K protection + embedded console panel mounting — the Intel® Celeron® J1900 hygienic industrial touch panel PC

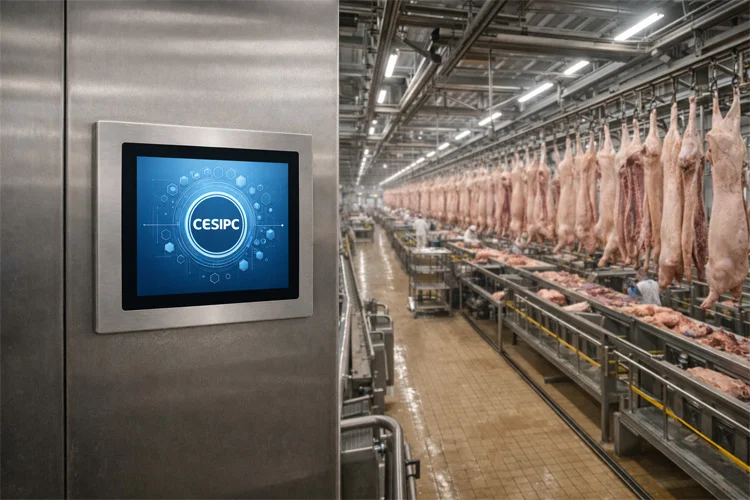

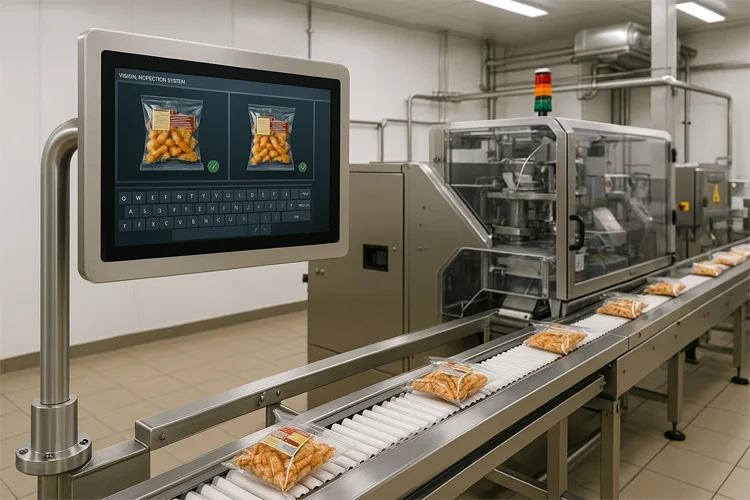

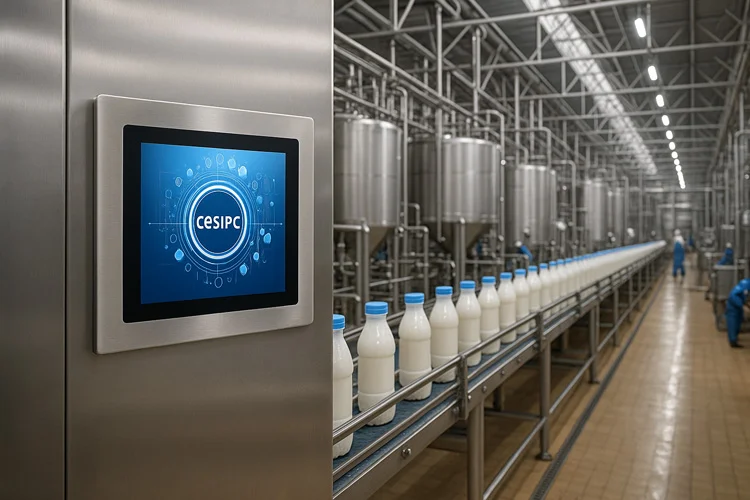

The WPC-W1562A-S is a 15" embedded hygienic industrial panel PC built for food processing, dairy, pharma and clean washdown areas. Its SUS304 stainless steel front bezel with embedded structure mounts into equipment cabinets or line machines to deliver front-end IP69K protection, withstanding high-temperature high-pressure washdown, foam cleaning and frequent sanitization — ideal for equipment integration in hygienic and cleaning zones. Powered by Intel® Celeron® J1900, it balances low power, stable operation and long-term uptime. The 15" 4:3 display suits equipment HMI, line monitoring and field information display — a reliable solution for hygienic-shop digitalization.
Stainless steel front panel IP69K + embedded console mounting + better value than fully enclosed G grade — the best choice for 90% of hygienic applications.
304 / 316 stainless steel front panel with IP69K protection withstands direct washdown with 80°C / 100 bar high-pressure hot water. The front panel meets EHEDG / 3-A hygienic standards for worry-free daily deep cleaning. Rear standard I/O stays out of the wet zone, offering better value than a fully enclosed G grade.
Embedded panel mounting design: the front panel mounts into control cabinets / cleanroom partitions / equipment fascias, exposing only the front to the washdown zone, while rear wiring is serviced in the dry zone. VESA 100×100 standard cutout covers industrial consoles / cleanroom touchscreens / equipment HMI stations.
304 / 316 food-grade stainless steel front panel with no dirt-trapping crevices. Mirror brushed surface resists corrosion and chemical cleaning agents (hypochlorite, hydrogen peroxide, quaternary ammonium), with no corrosion from long-term contact with brine, acids or alkalis. Optional 316 upgrade for high-salinity coastal environments.
Projected capacitive touch (P-CAP), 10-point multi-touch, supports wet-hand touch and glove operation. XGA TFT LED LCD 1024 × 768 industrial display, 300-350 cd/m² standard brightness (high-brightness 500-1000 nits customizable), AG anti-glare, 50,000-hour backlight life.
Intel® Celeron® J1900 4C4T, 2.0 GHz base. Native Windows 7 support — ideal for legacy-system compatibility.

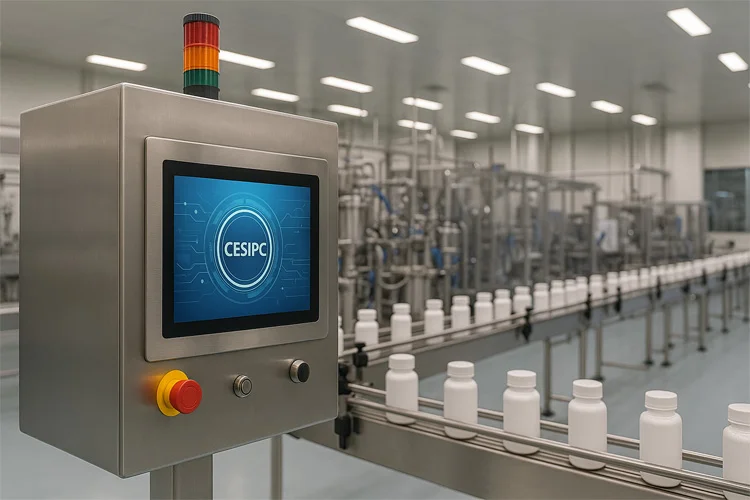

FDA food-grade materials + ISO 22000 food safety management system compatible. Suitable for critical compliance scenarios such as GMP pharmaceutical lines / HACCP food safety management / 3-A dairy standards.
IP69K front panel + embedded mounting meets 90% of hygienic application needs. With rear wiring in the dry zone, total cost is about 30% lower than a fully enclosed G grade — the best choice for embedded console deployment.

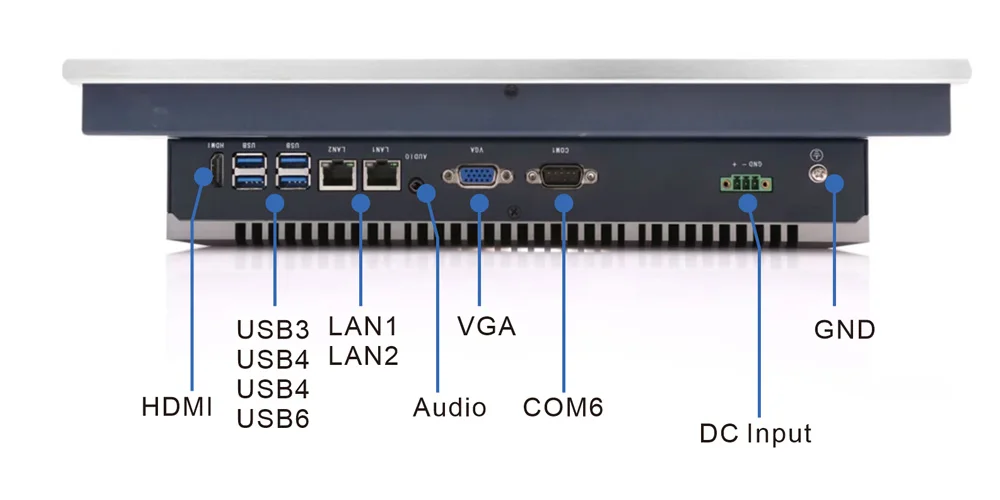

The rear of the unit sits inside the control cabinet / dry zone with standard industrial I/O: 4× USB 3.0 + 2× USB 2.0 + 4× COM + 2× GbE + HDMI + VGA + audio. No aviation-grade sealed connectors required, making maintenance and expansion easier.
3-pin pluggable Phoenix terminal, 9-36V DC wide-voltage input. Four-way protection against overvoltage / overcurrent / reverse polarity / surge. Suits 24V industrial PLC direct supply / 12V vehicle scenarios.
Built on the FlexCore™ four-element architecture: i-Core + i-Function expansion + i-Connect I/O + Smart Thermal management. Long-life display retention with on-demand mainboard upgrades.
Four coordinated protection mechanisms (power protection + backup power + start-stop control + system self-recovery). Native Windows 7 support, also compatible with Win 10 / Ubuntu / CentOS, meeting legacy pharma MES compatibility needs.
Datasheet V1.0 · Updated 2026-03-20 · Due to chip market fluctuations, key chips may vary; final spec is subject to sales confirmation.
| Parameter | Specification |
|---|---|
| Processor | Intel® Celeron® J1900 |
| Cores | 4 |
| Threads | 4 |
| Frequency | 2.0~2.42 GHz |
| Cache | 2 MB L2 Cache |
| TDP | 10W |
| Graphics | Intel HD Graphics |
| Memory | DDR3L 4~8 GB |
| Storage | 1× mSATA SSD |
| Parameter | Specification |
|---|---|
| USB | 1×USB3.0，5×USB2.0 |
| RS232 | 4 |
| RS485 | 2 |
| Gigabit Ethernet | 2 × RJ45（10/100/1000Mbps） |
| Audio | 3.5mm TRRS |
| Display Output | HDMI OUT (VGA OUT optional) |
| Wi-Fi (optional) | Dual-band 2.4G/5G wireless module, Bluetooth |
| Parameter | Specification |
|---|---|
| Power Connector | 1× 3-pin pluggable terminal, 9~36V DC wide-voltage input |
| Power Switch | 1× ATX power switch |
| Boot Mode | AT/ATX mode switch (built-in) |
| Parameter | Specification |
|---|---|

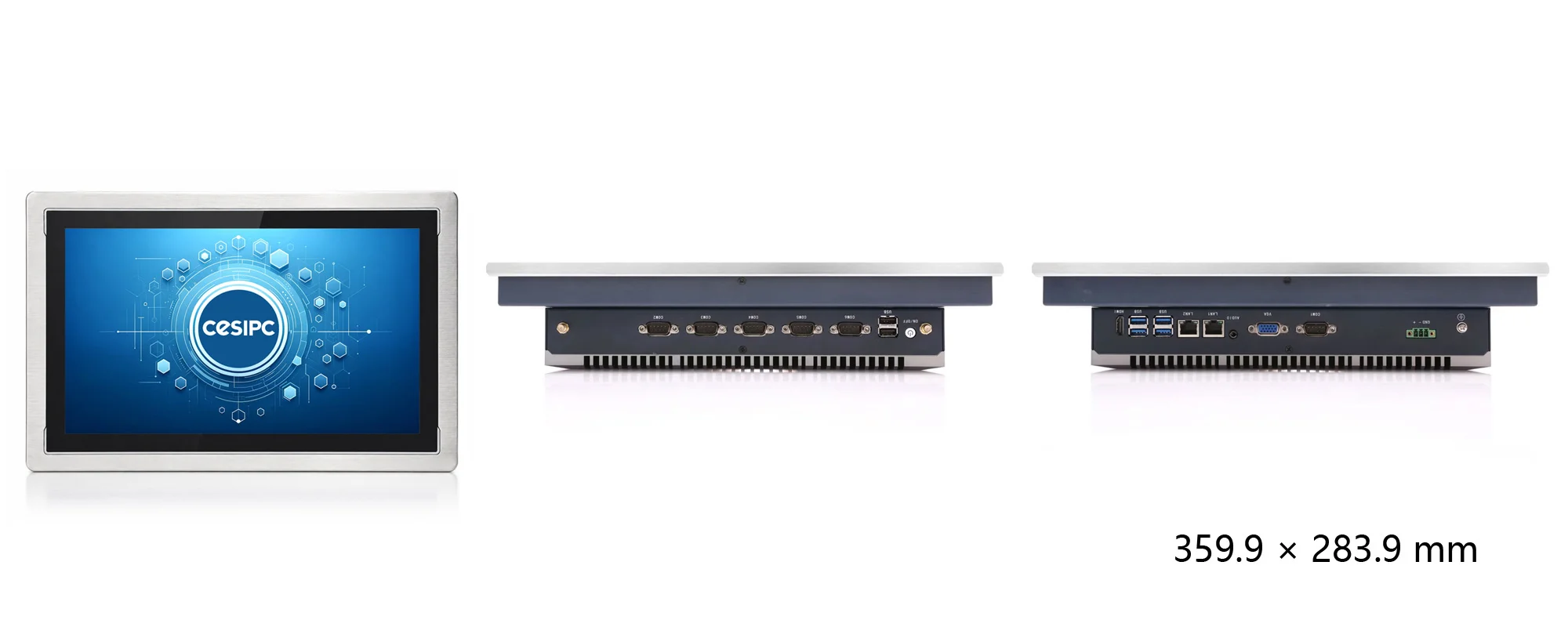

| Dimensions | 349.9(W)×283.9(D)×75.1(H) mm |
| Weight | 6.2 KG net |
| Enclosure Material | SUS304 stainless steel |
| Mechanical Structure | Sheet-metal structure |
| Mounting | Embedded panel mount / VESA 100×100 wall mount |
| Reset Switch | 1× reset switch |
| Watchdog | Hardware watchdog supported |
| MTBF | 50,000 hrs |
| Parameter | Specification |
|---|---|
| Operating Temp. | 0~60℃ (wide-temp -40~80℃ optional) |
| Storage Temp. | -10~70℃ (wide-temp -40~80℃ optional) |
| Relative Humidity | 10%~90%, non-condensing |
| EMC | CE, FCC (EN 55032 & EN 55035) |
| EMC Harmonics | EN IEC 61000-3-2 |
| Parameter | Specification |
|---|---|
| Display Size | 15.6" (16:9) |
| Display Type | XGA TFT LED LCD |
| Resolution | 1024 × 768 |
| Colors | 16.2M |
| Brightness | 350 cd/m² |
| Contrast | 1000:1 |
| Backlight Life | 50,000 hrs |
| Touch Type | Projected capacitive touch (P-CAP), 10-point |
| Touch Protection | IP65 (front panel) |
| Parameter | Specification |
|---|---|
| Windows | Windows 7 / Windows 10 / Windows 11 |
| Linux | Ubuntu 16.04 / 18.04 / 20.04 / 22.04 |
| Parameter | Specification |
|---|---|
| Factory Certification | ISO9001: 2015 |
| BIOS Customization | BIOS / Boot LOGO / OEM |

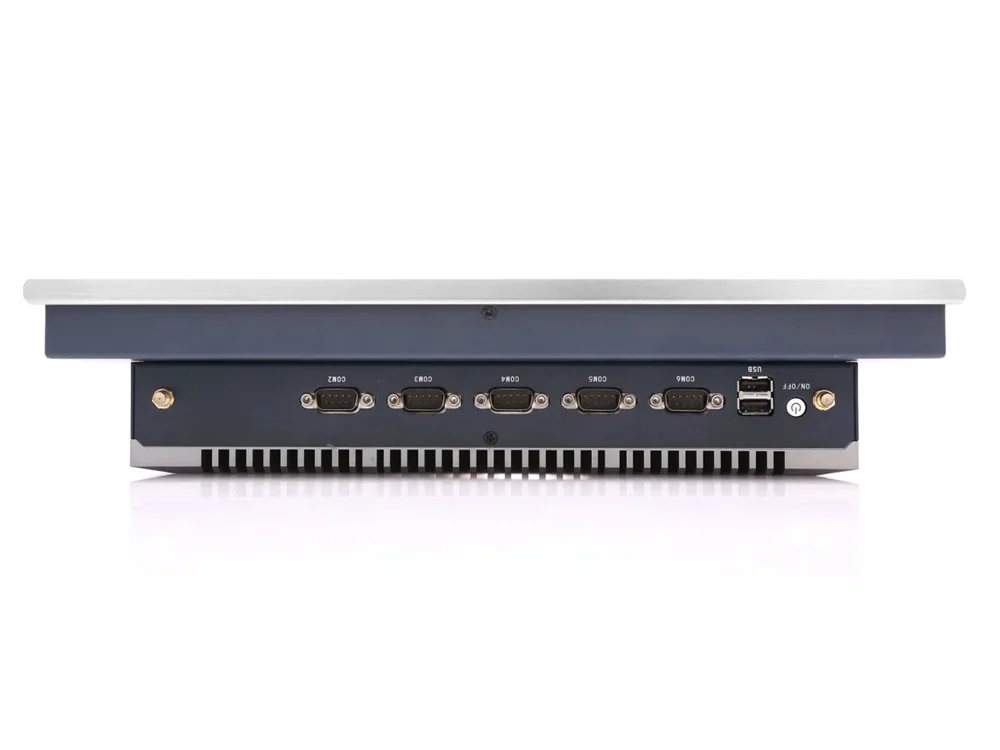

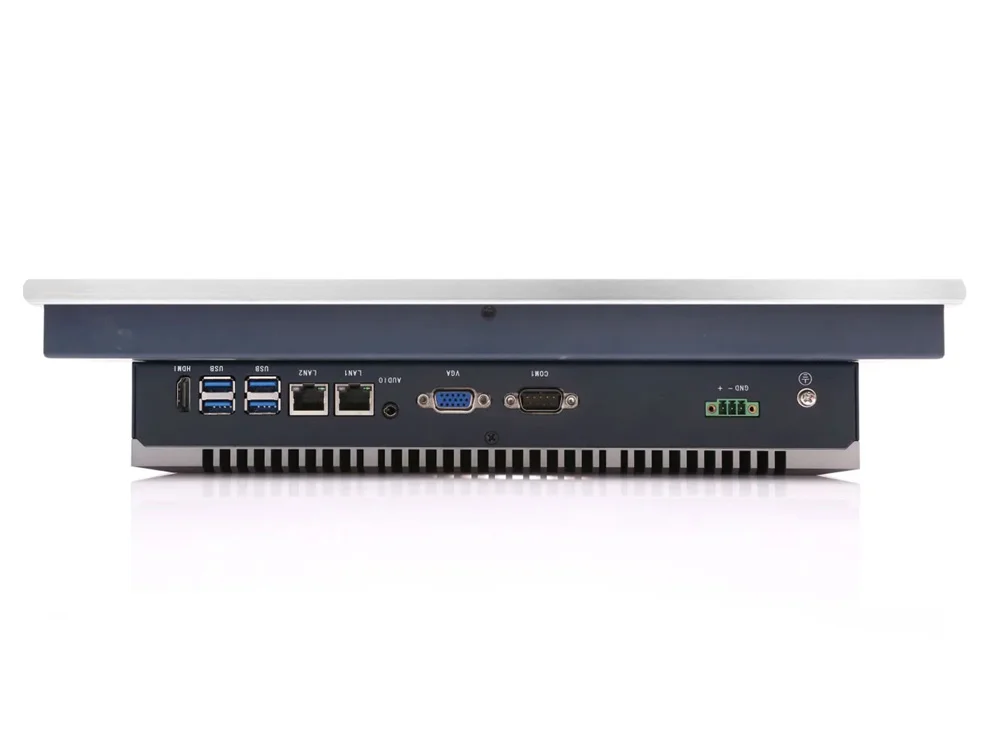

The IP69K stainless steel front panel mounts into the console, while the rear sits inside the control cabinet / dry zone with standard industrial I/O for easy expansion and maintenance.
15.6" widescreen standard cutout · embedded console panel mounting + optional VESA 100×100.
Stainless steel grade (304 / 316), embedded cutout dimensions and 3-A / EHEDG certification are customized per project — please contact sales to confirm.
| No. | Part Number | Model | Processor + Touchscreen | Memory | Storage |
|---|---|---|---|---|---|
| 01 | / | WPC-W1562A-S | Intel® Celeron® J1900，15" P-CAP | 4GB DDR3 | SSD 128GB |
| 02 | / | WPC-W1562A-S | Intel® Celeron® J1900，15" P-CAP | 8GB DDR3 | SSD 128GB |
| 03 | / | WPC-W1562A-S | Intel® Celeron® J1900，15" P-CAP | 8GB DDR3 | SSD 256GB |
Note: Due to market fluctuations, key chips such as CPU, memory and storage may vary. The 304 / 316 stainless steel front panel and 3-A / EHEDG certification are customized per project — please consult our sales team.
Built on an IP69K front panel + 304/316 stainless steel embedded body, WPC-W1562A-S is a cost-effective solution for embedded food / pharma console deployment.
Tell us your project background (food / pharma / seafood / dairy), embedded console cutout dimensions, stainless steel grade (304 / 316) and order quantity, and our engineers will reply within 24 hours with a full datasheet + quotation + sample evaluation plan.
