10" P-CAP 10-point capacitive touch + 304/316 stainless steel fully sealed chassis + IP69K full-unit protection, a 10th Gen Intel® Core™ hygienic industrial touch panel PC
The WPC-S1092A-G is a 10-inch full-stainless-steel IP69K washdown G-series industrial panel PC for food processing, dairy, meat processing, pharmaceutical and hygienic washdown zones. The whole unit uses a SUS304 / SUS316 fully sealed stainless steel structure with IP67 / IP69K dual protection, withstanding high-temperature high-pressure water washdown, foam cleaning and frequent disinfection to meet strict hygiene requirements. Powered by 10th Gen Intel® Core™ i3 / i5 / i7, it balances performance, stable operation and long-term uptime. The 10-inch 4:3 design suits equipment-side HMI, line operation and on-site control — a reliable solution for human-machine interaction and equipment control in washdown zones.
304/316 stainless steel full enclosure + IP69K full-unit protection + P-CAP touch — the industrial HMI standard answer for food/pharma washdown-zone compliance.
IP69K full-unit protection rating withstands direct washdown with 80°C / 100 bar high-pressure hot water. Engineered for daily deep cleaning in washdown zones across food, pharma, seafood and dairy, meeting EHEDG / 3-A hygiene standards.
304 / 316 food-grade one-piece stainless steel sheet-metal structure, fully sealed with no dead corners and no dirt-trapping crevices. The mirror brushed finish resists corrosion and chemical cleaning agents (hypochlorite, hydrogen peroxide, quaternary ammonium), staying rust-free under long-term contact with brine, acids and alkalis.
Projected capacitive touch (P-CAP) with 10-point multi-touch, supporting wet-hand touch and gloved operation. XGA TFT LED LCD 1024 × 768 industrial panel, 350 cd/m² brightness, AG anti-glare, 50,000-hour backlight life.
Intel® Core™ i3-10110U / i5-10210U / i7-10510U in three tiers. U-series low power balancing performance and efficiency.
Compatible with FDA food-grade materials + ISO 22000 food safety management system. Suitable for critical compliance scenarios such as GMP pharmaceutical lines / HACCP food safety management / 3-A dairy standards.

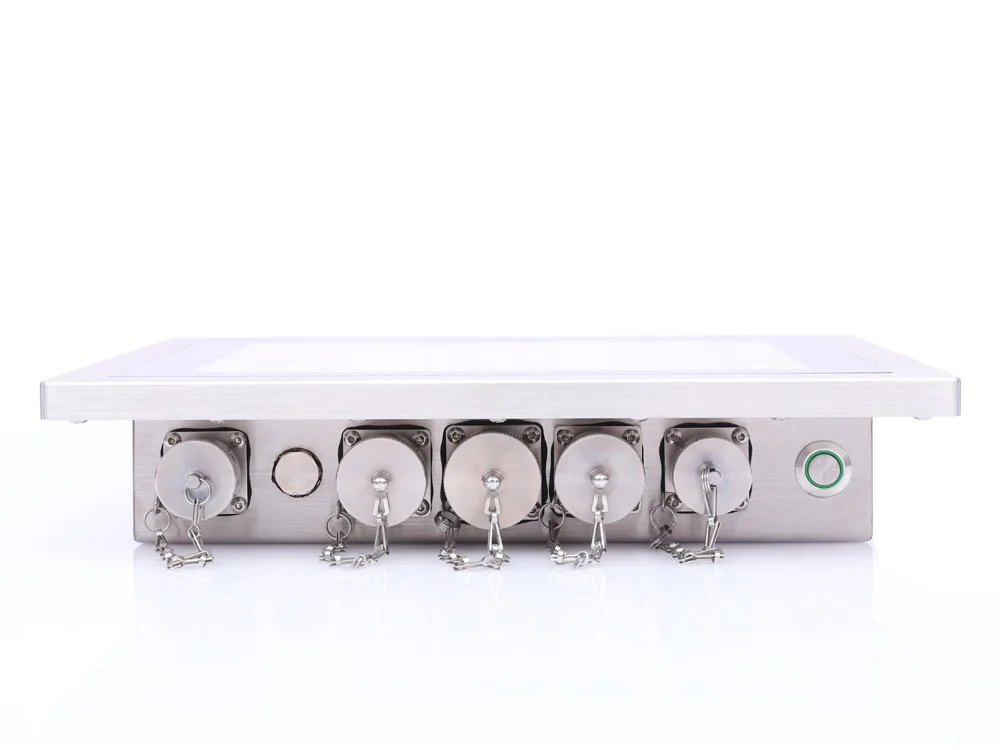

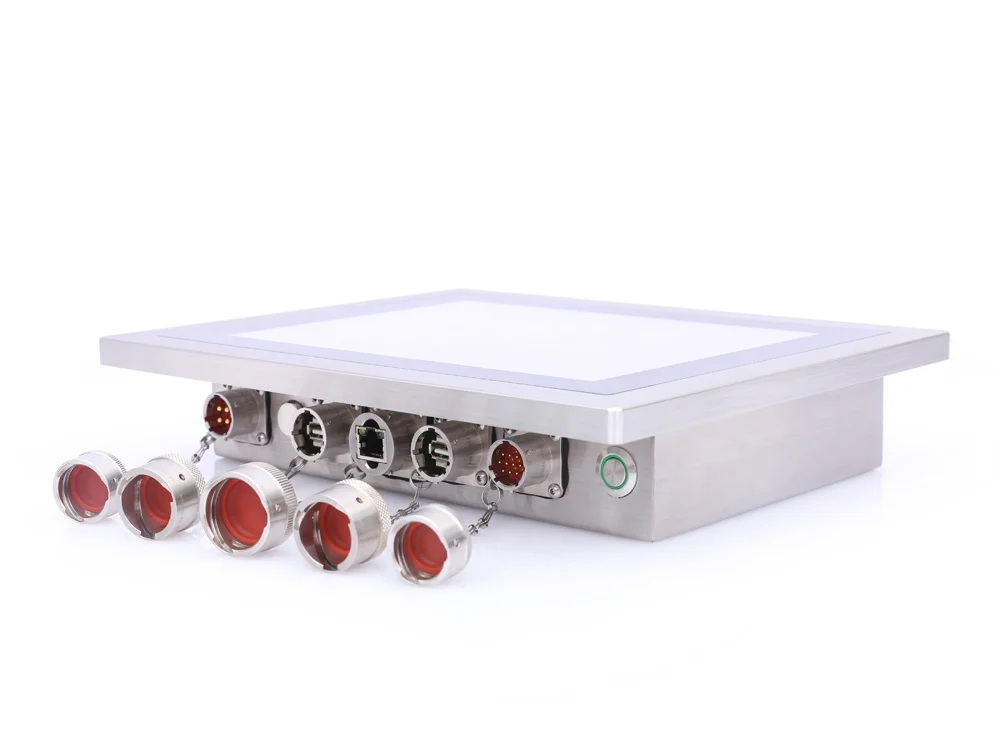

Every I/O uses a CNC-machined stainless steel connector system plus flange mounting, with matching stainless steel plugs and sealing caps. Compared with ordinary M12 aviation plugs, it delivers higher mechanical strength, sealing reliability and corrosion resistance, fully suited to IP67 / IP69K high-pressure hot-water washdown environments.
Supports clean-room embedded panel mounting (10" standard cutout) + VESA 100×100 stainless steel bracket wall mount. Covers clean room / filling line / packaging line / inspection station deployments.
3-pin pluggable Phoenix terminal with 9-36V DC wide-voltage input. Quad protection against overvoltage / overcurrent / reverse polarity / surge. Compatible with 24V industrial PLC direct supply and 12V vehicle-mount scenarios.
Built on the FlexCore™ four-element architecture: i-Core smart core + i-Function expansion + i-Connect interface + Smart Thermal management. Long-term display availability, with the mainboard upgradable on demand.
Four coordinated protection mechanisms: ① power protection + ② backup power + ③ start-stop control + ④ system self-recovery. Power loss won't corrupt critical batch data, keeping the HACCP traceability chain unbroken.
Windows 10 / 11 · CentOS · Ubuntu 16.04 / 18.04 / 20.04 / 22.04. BIOS customization, Boot LOGO and OEM supported.
Datasheet version V1.0 · Updated 2026-03-20 · Due to chip-market fluctuations, key chips may change; final configuration subject to sales confirmation.
| Parameter | Intel® Core™ i3-10110U | Intel® Core™ i5-10210U | Intel® Core™ i7-10510U |
|---|---|---|---|
| Processor | i3-10110U | i5-10210U | i7-10510U |
| Cores | 2 | 4 | 4 |
| Threads | 4 | 8 | 8 |
| Frequency | 2.1~4.1 GHz | 1.6~4.2 GHz | 1.8~4.9 GHz |
| Cache | 4MB | 6MB | 8MB |
| TDP | 15W | ||
| Graphics | Intel UHD Graphics 620 | ||
| Memory | 4~32GB DDR4 | ||
| Storage | 1× M.2 SSD + 1× M.2 NVMe | ||
| Parameter | Specification |
|---|---|
| USB 2.0 | 2 |
| RS232 | 1 |
| RS485 | 1 |
| Gigabit Ethernet | 1 × LAN |
| Audio | 3.5mm TRRS |
| Wi-Fi (optional) | Dual-band 2.4G/5G wireless card |
| Parameter | Specification |
|---|---|
| Power Connector | 1-row 3-pin pluggable terminal, supports 9~36V DC wide-voltage input |
| ATX Switch | 1× ATX power switch |
| Boot Mode | AT/ATX mode switch (built-in) |
| Parameter | Specification |
|---|---|
| Dimensions | 278(W)*225.4(D)*57.8(H)mm |
| Weight | 4 KG net |
| Enclosure Material | 304/316 stainless steel |
| Mechanical Structure | Sheet-metal structure |
| Mounting | Embedded panel mount / VESA 100×100 wall mount |
| Reset Switch | 1× reset switch |
| TPM | TPM 2.0 |
| Watchdog | Hardware watchdog supported |
| MTBF | 60,000 hrs |
| Parameter | Specification |
|---|---|
| Operating Temperature | 0~60℃ (wide-temp -40~80℃ optional) |
| Storage Temperature | -10~70℃ (wide-temp -40~80℃ optional) |
| Relative Humidity | 10%~90%, non-condensing |
| EMC | CE、FCC（EN 55032 & EN 55035） |
| EMC Harmonics | EN IEC 61000-3-2 |
| Parameter | Specification |
|---|---|
| Display Size | 10" (4:3) |
| Display Type | XGA TFT LED LCD |
| Resolution | 1024 × 768 |
| Colors | 16.2M |
| Brightness | 350 cd/m² |
| Contrast | 500:1 |
| Backlight Life | 50,000 hrs |
| Touch Type | Projected capacitive touch (P-CAP), 10-point |
| Touch Protection | IP67 (full unit) |
| Parameter | Specification |
|---|---|
| Windows | Windows 7 / Windows 10 / Windows 11 |
| Linux | Ubuntu 16.04 / 18.04 / 20.04 / 22.04 |
| Parameter | Specification |
|---|---|
| Factory Certification | ISO9001: 2015 |
| BIOS Customization | BIOS / Boot LOGO / OEM |

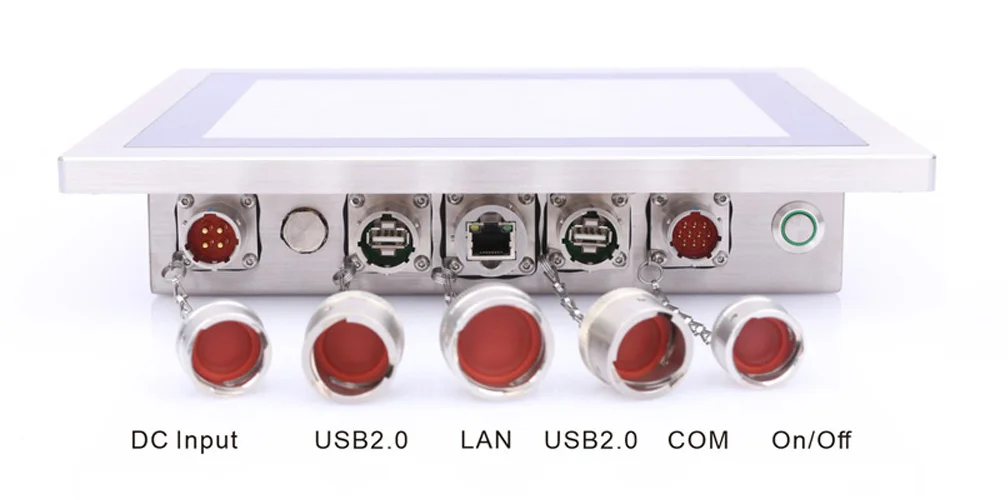

Every I/O uses a CNC-machined stainless steel connector (not an ordinary M12 aviation plug) plus flange mounting and matching stainless steel plugs and sealing caps, giving the whole chassis IP69K protection with no dead corners. The front panel stays a continuous stainless steel surface, with all ports routed through side / bottom connector outlets.

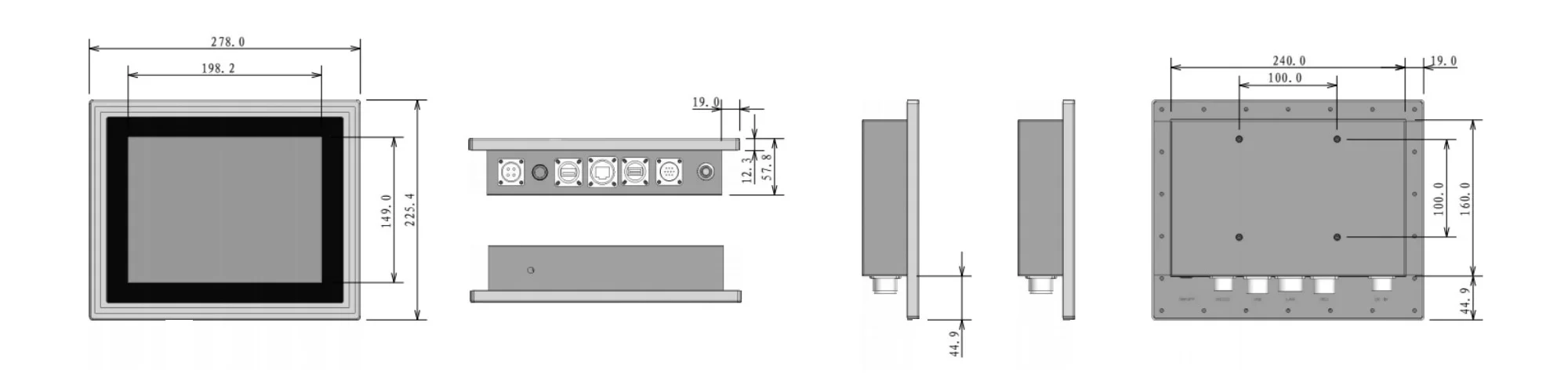

10" standard cutout dimensions · embedded clean-room mounting + VESA 100×100 stainless steel bracket wall mount.
Stainless steel grade (304 / 316), I/O configuration and 3-A / EHEDG certification are customized per project — please contact sales to confirm.
| No. | Part Number | Model | Processor + Touchscreen | Memory | Storage |
|---|---|---|---|---|---|
| 01 | C5.02.08.024 | WPC-S1092A-G | i3-10110U™，10" P-CAP | 8GB DDR4 | SSD 128GB |
| 02 | C5.02.08.024 | WPC-S1092A-G | i5-10210U™，10" P-CAP | 16GB DDR4 | SSD 256GB |
Note: Due to market fluctuations, key chips such as CPU, memory and storage may change. 304 / 316 stainless steel grade and 3-A / EHEDG certification are customized per project — please consult our sales team for details.

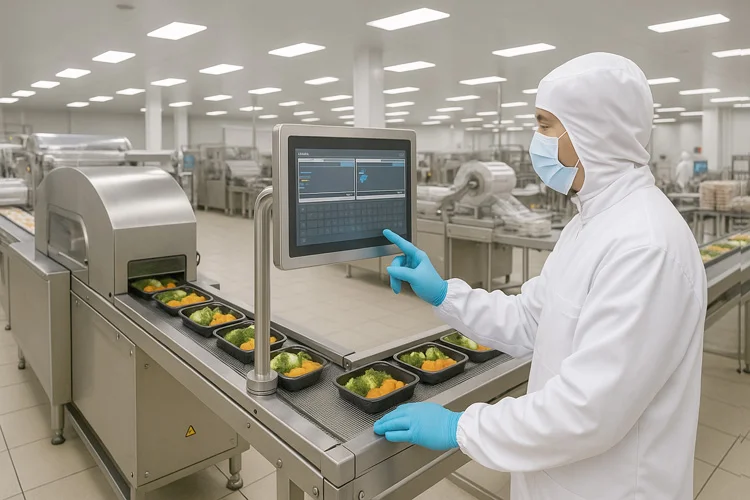

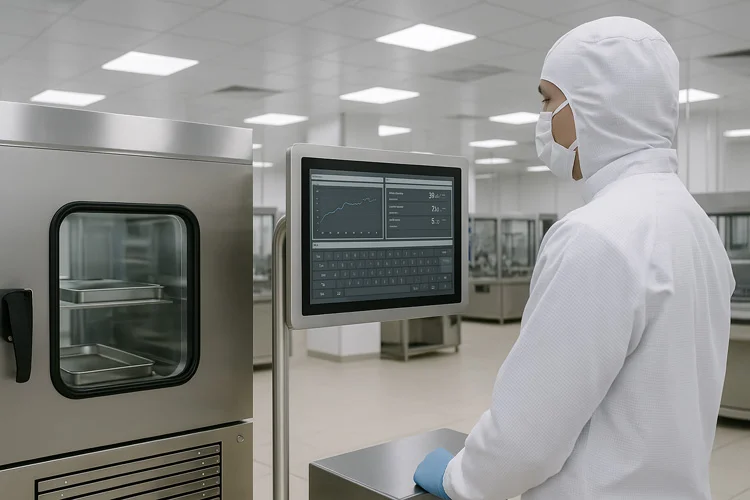

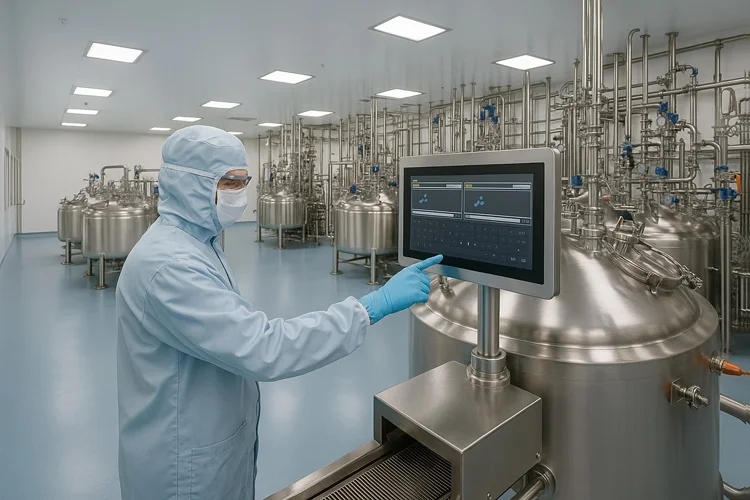

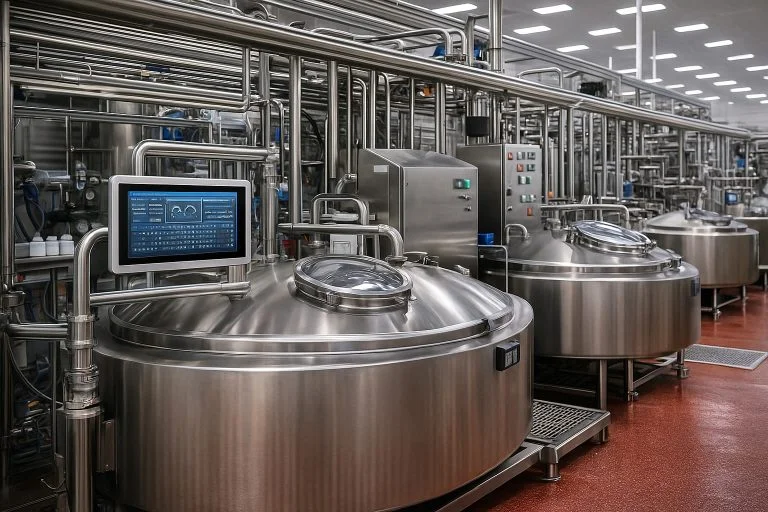

Built on IP69K full-unit protection + 304/316 stainless steel chassis + food-grade sealing, WPC-S1092A-G is engineered for the following high-hygiene scenarios.
Tell us your project background (food / pharma / seafood / dairy), stainless steel grade (304 / 316), certification needs (3-A / EHEDG / FDA) and order quantity, and our engineers will respond within 24 hours with a full datasheet + quotation + sample evaluation plan.
